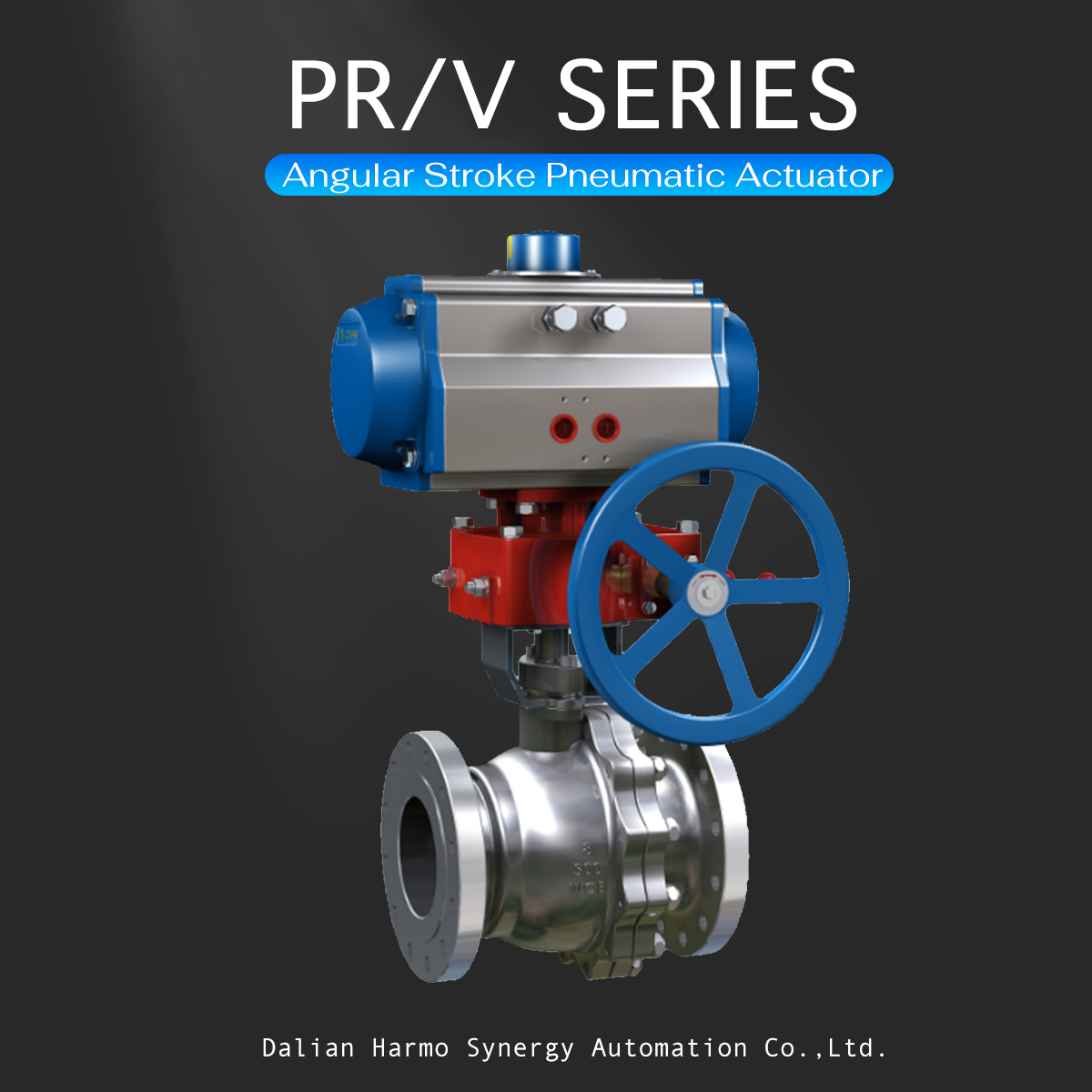

PR/V Series Angular Stroke Pneumatic Actuator
Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:0 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others
Keywords:PR/V Angular Stroke Pneumatic Actuator
| Product Category: | Manufacturing & Processing Machinery > Valves & Pumps & Compressors | Trademark: | HSA |
| Product Package: | wooden case | Specifications: | on request |
| Place of Origin: | China | Port: | Dalian Port |

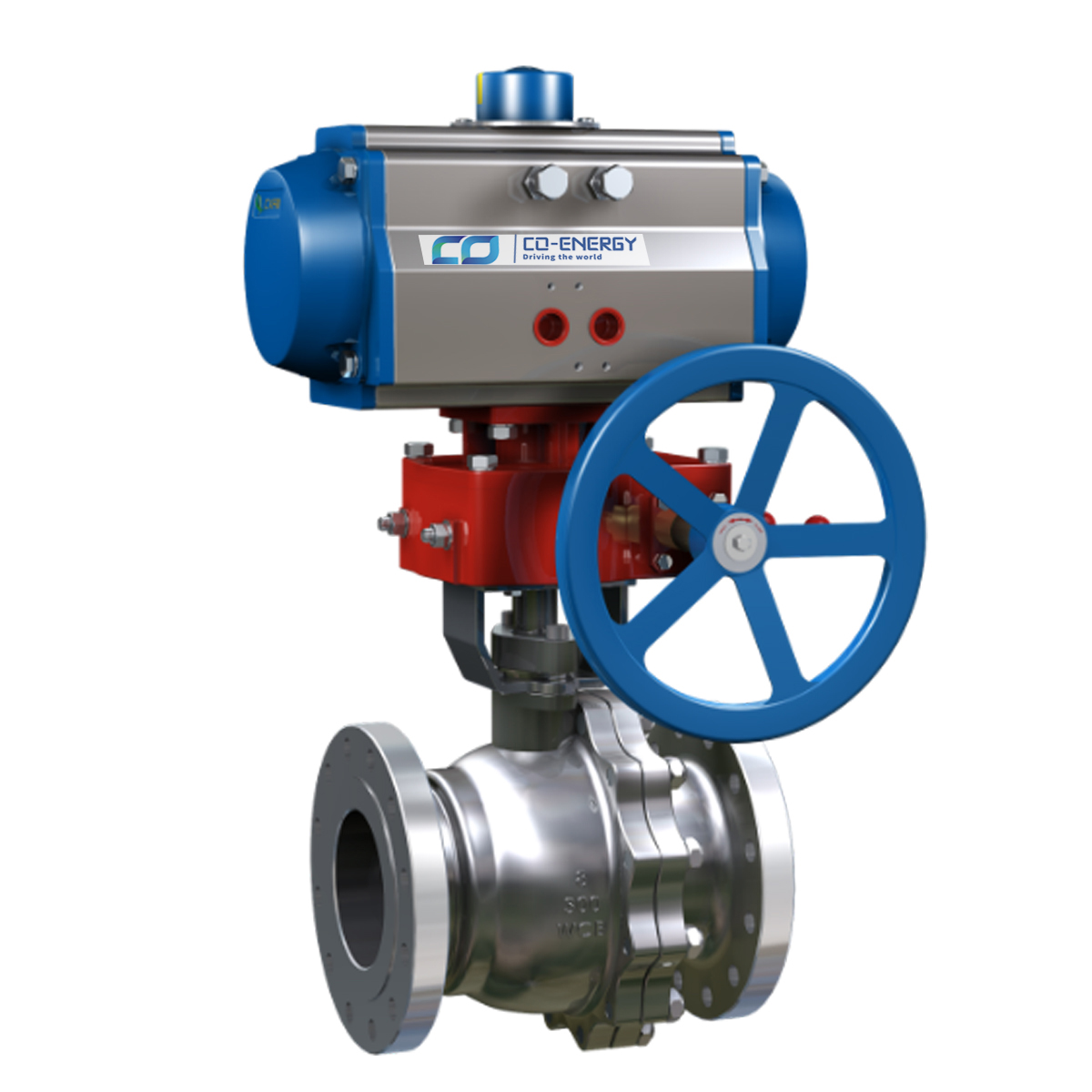

Pr/v series is a pneumatic actuator with piston gear strip structure.
Designed according to 1s05211 or din3337 standards, it has compact structure and strong versatility.
The product range is complete. The product range includes double acting or single acting pneumatic actuators.
The cylinder diameter can be selected from 42mm to 400mm.
The output torque of the double acting actuator is constant.
The single acting actuator adds a standard spring group to the standard double acting cylinder.
The user can select the number of springs according to the required torque.
Pr/v series products can be used in power plants, petrochemical plants, pipeline engineering and ships, such as pneumatic butterfly valves and pneumatic ball valves for power plant desulfurization and denitration systems, water treatment systems, pipeline engineering and other applications.
features
>You can choose different materials and surface treatment processes for different working environments.
>The inner surface of the cylinder barrel and the piston rack and gear are hardened.
>With piston limit mechanism, the output angle can be adjusted.
>The output torque of double acting actuator is constant.

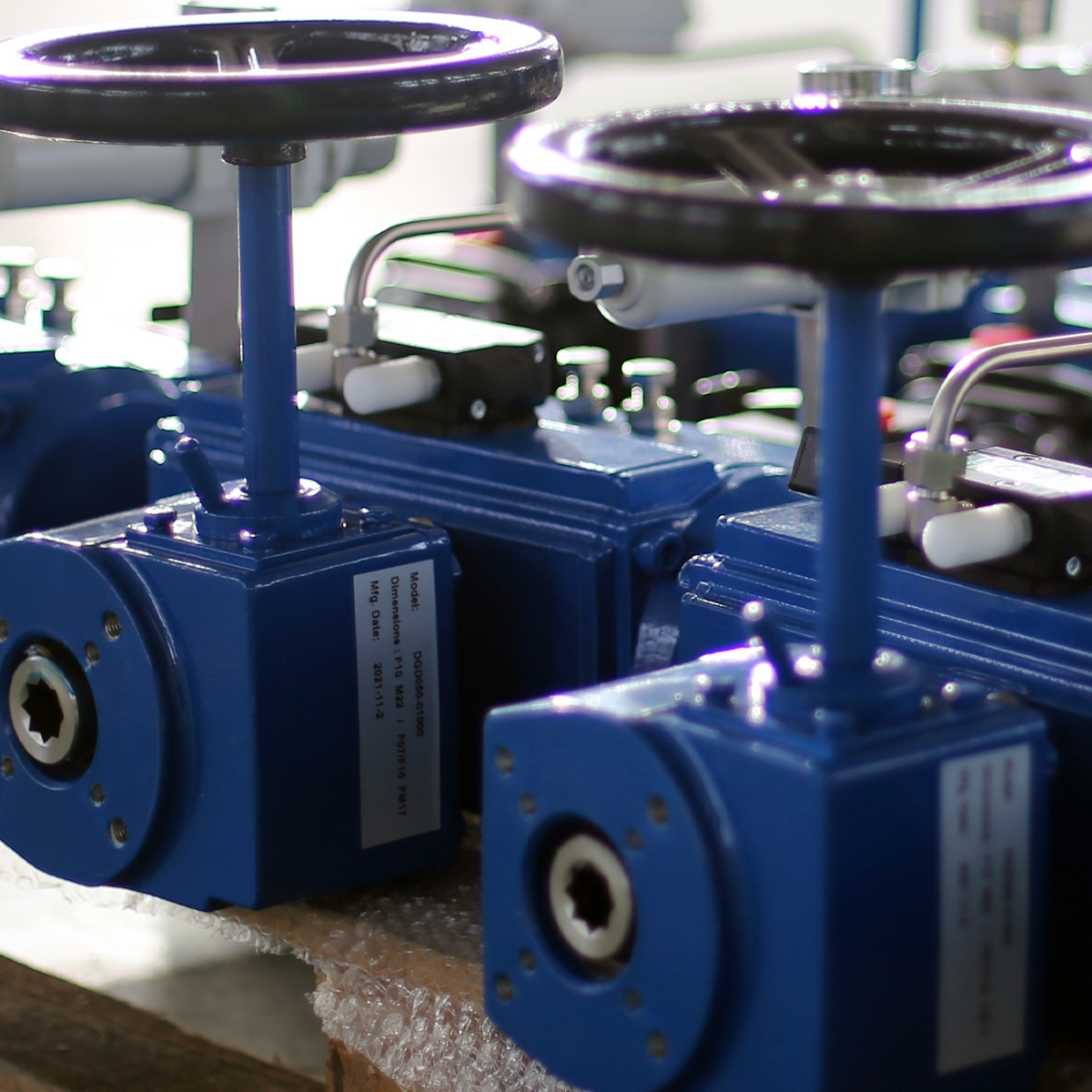

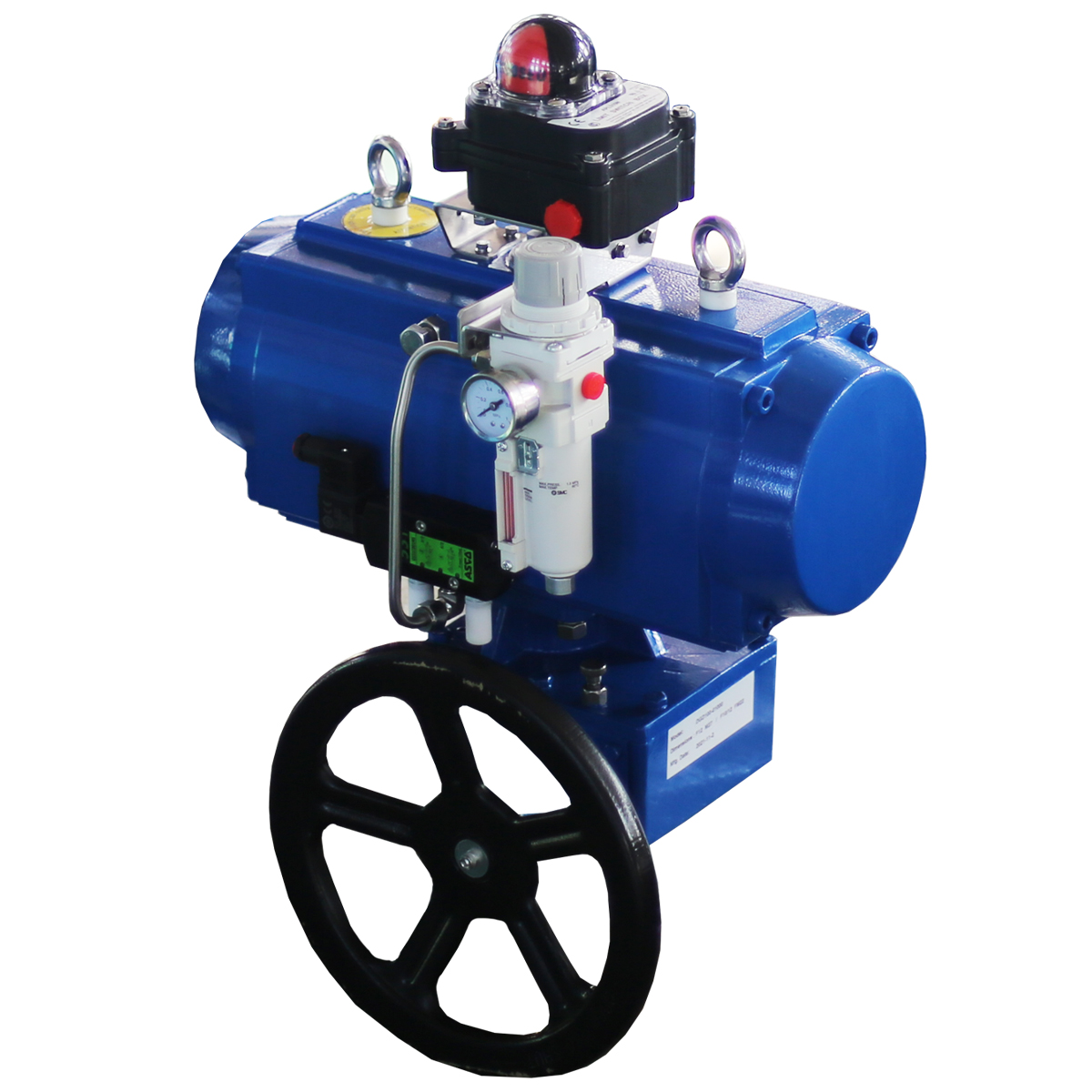

>Handwheel mechanism can be configured integrally.
>Accessories can be customized according to customer requirements.
>The mounting connections between the actuator and the valve can be customized.
>The single acting actuator is equipped with a standard spring set on the standard double acting cylinder. The user can select the number of springs to be installed according to the required torque.
>Modular installation accessories make the actuator more safe and reliable.
>Pneumatic actuator has three break protection function.
>The control circuit and production control cabinet are designed according to the special needs of users to realize split control.
specifications
>Cylinder diameter: 42~400 mm
>Torque: see model selection table for details
>Cylinder working pressure: max. 8bar
>Operating temperature:
-20~80 ℃ (constant temperature type)
-20~150 ℃ (high temperature type)
-40~80 ℃ (low temperature type)
>Travel time: design control circuit as required
>Three break protection: hold position / full open / full close
>Piping and fittings: copper or stainless steel
>Handwheel mechanism: optional
>Cylinder material: aluminum alloy
>The installation of actuator and valve shall comply with ISO5211 or din3337 standards.
>The assembly and connection of accessories and actuators shall comply with vdi/vde3845 and NAMUR standards.
| （Nm）Output Torque of Single Acting Actuators | |||||||||||||||
| （Nm）Output torque of air to springs | |||||||||||||||
| （bar）Air pressure | 3 | 4 | 5 | 6 | 7 | 8 | Springs output | ||||||||
| 0° | 90° | 0° | 90° | 0° | 90° | 0° | 90° | 0° | 90° | 0° | 90° | 90° | 0° | ||
| Model | Spring Qty. | Start | End | Start | End | Start | End | Start | End | Start | End | Start | End | Start | End |
| SR 052 | 5 | 7.6 | 5.6 | 6.2 | 4.2 | ||||||||||
| 6 | 6.8 | 4.3 | 10.8 | 8.3 | 7.4 | 5.1 | |||||||||
| 7 | 5.9 | 3.0 | 9.9 | 7.0 | 13.9 | 11.1 | 8.6 | 5.9 | |||||||
| 8 | 5.3 | 2.0 | 9.0 | 5.7 | 13.0 | 9.8 | 17.1 | 13.8 | 9.9 | 6.8 | |||||
| 9 | 4.5 | 0.8 | 8.1 | 4.4 | 12.2 | 8.5 | 16.2 | 12.5 | 20.2 | 16.5 | 11.1 | 7.6 | |||
| 10 | 7.2 | 3.1 | 11.3 | 7.2 | 15.3 | 11.2 | 19.3 | 15.2 | 12.4 | 8.5 | |||||
| 11 | 6.8 | 1.8 | 10.4 | 5.9 | 14.4 | 9.9 | 18.4 | 13.9 | 22.5 | 18.0 | 13.6 | 9.3 | |||
| 12 | 13.5 | 8.6 | 17.6 | 12.6 | 21.6 | 16.7 | 14.8 | 10.1 | |||||||
| SR 063 | 5 | 13.5 | 9.7 | 20.6 | 16.8 | 11.0 | 7.4 | ||||||||
| 6 | 12.0 | 7.4 | 19.1 | 14.5 | 26.2 | 21.6 | 13.2 | 8.9 | |||||||
| 7 | 10.4 | 5.1 | 17.5 | 12.2 | 24.6 | 19.3 | 15.4 | 10.4 | |||||||
| 8 | 8.8 | 2.8 | 15.9 | 9.9 | 23.0 | 17.0 | 17.6 | 11.9 | |||||||
| 9 | 14.4 | 7.6 | 21.5 | 14.7 | 28.6 | 21.8 | 19.8 | 13.3 | |||||||
| 10 | 12.8 | 5.3 | 19.9 | 12.4 | 27.0 | 19.5 | 34.1 | 26.6 | 22.0 | 14.8 | |||||
| 11 | 18.4 | 10.0 | 25.5 | 17.1 | 32.6 | 24.3 | 39.7 | 31.4 | 24.2 | 16.3 | |||||
| 12 | 16.8 | 7.7 | 23.9 | 14.8 | 31.0 | 21.9 | 38.1 | 29.0 | 26.4 | 17.8 | |||||
| SR 075 | 5 | 19.1 | 15.0 | 29.2 | 25.0 | 14.5 | 10.5 | ||||||||
| 6 | 16.9 | 11.9 | 27.0 | 22.0 | 37.0 | 32.1 | 17.4 | 12.7 | |||||||
| 7 | 14.7 | 8.9 | 24.7 | 18.9 | 34.8 | 29.0 | 20.3 | 14.8 | |||||||
| 8 | 12.4 | 5.8 | 22.5 | 15.9 | 32.6 | 26.0 | 42.6 | 36.0 | 52.7 | 46.1 | 23.2 | 16.9 | |||
| 9 | 20.3 | 12.8 | 30.4 | 22.9 | 40.4 | 33.0 | 50.5 | 43.0 | 26.1 | 19.0 | |||||
| 10 | 18.1 | 9.8 | 28.1 | 19.9 | 38.2 | 29.9 | 48.3 | 40.0 | 58.3 | 50.1 | 29.0 | 21.1 | |||
| 11 | 25.9 | 16.8 | 36.0 | 26.9 | 46.1 | 36.9 | 56.1 | 47.0 | 31.9 | 23.2 | |||||
| 12 | 23.7 | 13.8 | 33.8 | 23.8 | 43.8 | 33.9 | 53.9 | 44.0 | 34.7 | 25.3 | |||||
| SR 083 | 5 | 29.6 | 22.0 | 45.0 | 37.4 | 23.0 | 15.8 | ||||||||
| 6 | 26.3 | 17.2 | 41.7 | 32.6 | 57.1 | 48.0 | 27.6 | 19.0 | |||||||
| 7 | 22.9 | 12.3 | 38.3 | 27.7 | 53.8 | 43.1 | 32.2 | 22.1 | |||||||
| 8 | 35.0 | 22.9 | 50.4 | 38.3 | 65.8 | 53.7 | 81.2 | 69.1 | 36.8 | 25.3 | |||||
| 9 | 31.7 | 18.0 | 47.1 | 33.5 | 62.5 | 48.9 | 77.9 | 64.3 | 41.4 | 28.5 | |||||
| 10 | 28.3 | 13.2 | 43.8 | 28.6 | 59.2 | 44.0 | 74.6 | 59.4 | 90.0 | 74.8 | 46.0 | 31.6 | |||
| 11 | 40.4 | 23.8 | 55.8 | 39.2 | 71.3 | 54.6 | 86.7 | 70.0 | 50.6 | 34.8 | |||||
| 12 | 37.1 | 18.9 | 52.5 | 34.3 | 67.9 | 49.7 | 83.3 | 65.2 | 55.2 | 38.0 | |||||
| SR 092 | 5 | 43.6 | 32.0 | 66.3 | 54.7 | 34.4 | 23.3 | ||||||||
| 6 | 38.7 | 24.8 | 61.4 | 47.5 | 84.1 | 70.2 | 41.2 | 28.0 | |||||||
| 7 | 33.8 | 17.5 | 56.5 | 40.2 | 79.2 | 63.0 | 48.1 | 32.7 | |||||||
| 8 | 51.6 | 33.0 | 74.3 | 55.7 | 97.0 | 78.5 | 119.8 | 101.2 | 55.0 | 37.3 | |||||
| 9 | 46.7 | 25.8 | 69.4 | 48.5 | 92.1 | 71.2 | 114.8 | 93.9 | 61.9 | 42.0 | |||||
| 10 | 41.8 | 18.5 | 64.5 | 41.3 | 87.2 | 64.0 | 109.9 | 86.7 | 132.6 | 109.4 | 68.7 | 46.7 | |||
| 11 | 59.6 | 34.0 | 82.3 | 56.7 | 105.0 | 79.5 | 127.7 | 102.2 | 75.6 | 51.4 | |||||
| 12 | 54.6 | 26.8 | 77.4 | 49.5 | 100.1 | 72.2 | 122.8 | 95.0 | 82.5 | 56.0 | |||||
| SR 105 | 5 | 64.2 | 45.8 | 97.1 | 78.7 | 50.3 | 32.8 | ||||||||
| 6 | 57.3 | 35.2 | 90.2 | 68.1 | 123.0 | 101.0 | 60.3 | 39.3 | |||||||
| 7 | 50.4 | 24.6 | 83.3 | 57.5 | 116.1 | 90.4 | 70.4 | 45.9 | |||||||
| 8 | 43.5 | 14.0 | 76.4 | 46.9 | 109.2 | 79.8 | 142.1 | 112.7 | 175.0 | 145.6 | 80.4 | 52.4 | |||
| 9 | 69.5 | 36.3 | 102.3 | 69.2 | 135.2 | 102.1 | 168.1 | 135.0 | 90.5 | 59.0 | |||||
| 10 | 62.6 | 25.8 | 95.4 | 58.6 | 128.3 | 91.5 | 161.2 | 124.4 | 194.1 | 157.3 | 100.5 | 65.6 | |||
| 11 | 88.5 | 48.1 | 121.4 | 80.9 | 154.3 | 113.8 | 187.2 | 146.7 | 110.6 | 72.1 | |||||
| 12 | 81.6 | 37.5 | 114.5 | 70.4 | 147.4 | 103.3 | 180.3 | 136.1 | 120.6 | 78.7 | |||||
| SR 125 | 5 | 97.9 | 70.7 | 149.2 | 121.9 | 79.0 | 53.1 | ||||||||
| 6 | 86.8 | 54.0 | 138.0 | 105.3 | 189.3 | 156.6 | 94.8 | 63.7 | |||||||
| 7 | 75.6 | 37.4 | 126.8 | 88.7 | 178.1 | 139.9 | 110.6 | 74.3 | |||||||
| 8 | 64.4 | 20.8 | 115.7 | 72.0 | 166.9 | 123.3 | 218.2 | 174.6 | 269.5 | 225.8 | 126.4 | 84.9 | |||
| 9 | 104.5 | 55.4 | 155.8 | 106.7 | 207.0 | 157.9 | 258.3 | 209.2 | 142.2 | 95.6 | |||||
| 10 | 93.3 | 38.8 | 144.6 | 90.0 | 195.9 | 141.3 | 247.1 | 192.6 | 298.4 | 243.8 | 158.0 | 106.2 | |||
| 11 | 133.4 | 73.4 | 184.7 | 124.7 | 236.0 | 175.9 | 287.2 | 227.2 | 173.8 | 116.8 | |||||
| 12 | 122.2 | 56.8 | 173.5 | 108.0 | 224.8 | 159.3 | 276.1 | 210.6 | 189.6 | 127.4 | |||||
| SR 140 | 5 | 172.8 | 127.4 | 260.5 | 215.1 | 129.0 | 85.8 | ||||||||
| 6 | 154.7 | 100.2 | 242.4 | 187.9 | 330.1 | 275.6 | 154.8 | 102.9 | |||||||
| 7 | 136.7 | 73.1 | 224.4 | 160.8 | 312.1 | 248.5 | 180.5 | 120.1 | |||||||
| 8 | 118.6 | 45.9 | 206.3 | 133.6 | 294.0 | 221.3 | 381.7 | 309.0 | 469.4 | 396.7 | 206.3 | 137.3 | |||
| 9 | 188.3 | 106.5 | 276.0 | 194.2 | 363.7 | 281.9 | 451.4 | 369.6 | 232.1 | 154.4 | |||||
| 10 | 170.2 | 79.3 | 257.9 | 167.0 | 345.6 | 254.7 | 433.3 | 342.4 | 521.0 | 430.1 | 257.9 | 171.6 | |||
| 11 | 239.8 | 139.9 | 327.5 | 227.6 | 415.2 | 315.3 | 502.9 | 403.0 | 283.7 | 188.7 | |||||
| 12 | 221.8 | 112.7 | 309.5 | 200.4 | 397.2 | 288.1 | 484.9 | 375.8 | 309.5 | 205.9 | |||||
| SR 160 | 5 | 253.9 | 181.6 | 387.6 | 315.3 | 208.3 | 139.7 | ||||||||
| 6 | 224.5 | 137.8 | 358.2 | 271.4 | 491.8 | 405.1 | 250.0 | 167.6 | |||||||
| 7 | 195.1 | 93.9 | 328.8 | 227.6 | 462.4 | 361.2 | 291.6 | 195.5 | |||||||
| 8 | 165.7 | 50.1 | 299.4 | 183.7 | 433.0 | 317.4 | 566.6 | 451.0 | 700.3 | 584.6 | 333.3 | 223.4 | |||
| 9 | 270.0 | 139.9 | 403.6 | 273.5 | 537.2 | 407.1 | 670.9 | 540.8 | 375.0 | 251.4 | |||||
| 10 | 240.6 | 96.0 | 374.2 | 229.6 | 507.8 | 363.3 | 641.5 | 496.9 | 775.1 | 630.6 | 416.6 | 279.3 | |||
| 11 | 344.8 | 185.8 | 478.4 | 319.4 | 612.1 | 453.1 | 745.7 | 586.7 | 458.3 | 307.2 | |||||
| 12 | 315.4 | 141.9 | 449.0 | 275.6 | 582.7 | 409.2 | 716.3 | 542.8 | 499.9 | 335.2 | |||||
| SR 190 | 5 | 435.5 | 320.5 | 650.9 | 535.9 | 309.3 | 200.1 | ||||||||
| 6 | 393.4 | 255.4 | 608.8 | 470.8 | 824.1 | 686.1 | 371.2 | 240.1 | |||||||
| 7 | 351.3 | 190.3 | 566.7 | 405.7 | 782.0 | 621.0 | 433.0 | 280.1 | |||||||
| 8 | 309.2 | 125.2 | 524.5 | 340.5 | 739.9 | 555.9 | 955.3 | 771.3 | 1170.6 | 986.6 | 494.9 | 320.1 | |||
| 9 | 267.0 | 60.0 | 482.4 | 275.4 | 697.8 | 490.8 | 913.2 | 706.2 | 1128.5 | 921.5 | 556.8 | 360.1 | |||
| 10 | 440.3 | 210.3 | 655.7 | 425.7 | 871.0 | 641.0 | 1086.4 | 856.4 | 618.6 | 400.1 | |||||
| 11 | 398.2 | 145.2 | 613.5 | 360.5 | 828.9 | 575.9 | 1044.3 | 791.3 | 1259.7 | 1006.7 | 680.5 | 440.2 | |||
| 12 | 571.4 | 295.4 | 786.8 | 510.8 | 1002.2 | 726.2 | 1217.5 | 941.5 | 742.4 | 480.2 | |||||
| SR 210 | 5 | 486.1 | 370.7 | 749.2 | 633.8 | 397.7 | 288.0 | ||||||||
| 6 | 425.5 | 287.0 | 688.6 | 550.1 | 951.7 | 813.2 | 477.2 | 345.6 | |||||||
| 7 | 364.8 | 203.3 | 627.9 | 466.4 | 891.0 | 729.5 | 556.7 | 403.3 | |||||||
| 8 | 304.2 | 119.5 | 567.3 | 382.6 | 830.4 | 645.7 | 1093.5 | 908.8 | 1356.6 | 1171.9 | 636.3 | 460.9 | |||
| 9 | 506.6 | 298.9 | 769.7 | 562.0 | 1032.8 | 825.1 | 1295.9 | 1088.2 | 715.8 | 518.5 | |||||
| 10 | 446.0 | 215.2 | 709.1 | 478.3 | 972.2 | 741.4 | 1235.3 | 1004.5 | 1498.4 | 1267.6 | 795.3 | 576.1 | |||
| 11 | 648.5 | 394.6 | 911.6 | 657.7 | 1174.7 | 920.8 | 1437.8 | 1183.9 | 874.9 | 633.7 | |||||
| 12 | 587.8 | 310.9 | 850.9 | 574.0 | 1114.0 | 837.1 | 1377.1 | 1100.2 | 954.4 | 691.3 | |||||
| SR 240 | 5 | 727.8 | 576.6 | 1114.4 | 963.2 | 554.0 | 410.4 | ||||||||
| 6 | 641.4 | 460.0 | 1028.0 | 846.5 | 1414.6 | 1233.1 | 664.8 | 492.5 | |||||||
| 7 | 555.0 | 343.3 | 941.6 | 729.9 | 1328.2 | 1116.5 | 775.7 | 574.6 | |||||||
| 8 | 468.6 | 226.7 | 855.2 | 613.3 | 1241.8 | 999.9 | 1628.4 | 1386.5 | 2015.0 | 1773.1 | 886.5 | 656.6 | |||
| 9 | 768.8 | 496.6 | 1155.4 | 883.2 | 1542.0 | 1269.8 | 1928.6 | 1656.4 | 997.3 | 738.7 | |||||
| 10 | 682.4 | 380.0 | 1069.0 | 766.6 | 1455.6 | 1153.2 | 1842.2 | 1539.8 | 2228.8 | 1926.4 | 1108.1 | 820.8 | |||
| 11 | 982.6 | 649.9 | 1369.2 | 1036.5 | 1755.8 | 1423.1 | 2142.4 | 1809.7 | 1218.9 | 902.9 | |||||
| 12 | 896.2 | 533.3 | 1282.8 | 919.9 | 1669.4 | 1306.5 | 2056.0 | 1693.1 | 1329.7 | 985.0 | |||||
| SR 270 | 5 | 1172.6 | 933.9 | 1759.7 | 1521.0 | 786.2 | 559.4 | ||||||||
| 6 | 1054.8 | 768.4 | 1641.9 | 1355.5 | 2229.1 | 1942.7 | 943.4 | 671.3 | |||||||
| 7 | 937.0 | 602.9 | 1524.2 | 1190.0 | 2111.3 | 1777.1 | 1100.6 | 783.2 | |||||||
| 8 | 819.2 | 437.4 | 1406.4 | 1024.5 | 1993.5 | 1611.6 | 2580.7 | 2198.8 | 3167.8 | 2785.9 | 1257.9 | 895.1 | |||
| 9 | 1288.6 | 859.0 | 1875.8 | 1446.1 | 2462.9 | 2033.3 | 3050.0 | 2620.4 | 1415.1 | 1007.0 | |||||
| 10 | 1170.8 | 693.5 | 1758.0 | 1280.6 | 2345.1 | 1867.8 | 2932.3 | 2454.9 | 3519.4 | 3042.1 | 1572.3 | 1118.9 | |||
| 11 | 1640.2 | 1115.1 | 2227.3 | 1702.3 | 2814.5 | 2289.4 | 3401.6 | 2876.5 | 1729.6 | 1230.7 | |||||
| 12 | 1522.4 | 949.6 | 2109.6 | 1536.7 | 2696.7 | 2123.9 | 3283.9 | 2711.0 | 1886.8 | 1342.6 | |||||
| SR 300 | 5 | 1459.0 | 1102.0 | 1127.7 | 788.6 | ||||||||||
| 6 | 1292.9 | 864.5 | 2056.0 | 1627.6 | 1353.3 | 946.3 | |||||||||
| 7 | 1126.9 | 627.1 | 1889.9 | 1390.1 | 2653.0 | 2153.2 | 1578.8 | 1104.0 | |||||||
| 8 | 960.9 | 389.7 | 1723.9 | 1152.7 | 2486.9 | 1915.7 | 1804.4 | 1261.8 | |||||||
| 9 | 1557.9 | 915.3 | 2320.9 | 1678.3 | 3083.9 | 2441.3 | 2029.9 | 1419.5 | |||||||
| 10 | 1391.9 | 677.9 | 2154.9 | 1440.9 | 2917.9 | 2203.9 | 3680.9 | 2966.9 | 2255.5 | 1577.2 | |||||
| 11 | 1988.9 | 1203.5 | 2751.9 | 1966.5 | 3514.9 | 2729.5 | 4277.9 | 3492.5 | 2481.0 | 1734.9 | |||||
| 12 | 1822.9 | 966.1 | 2585.9 | 1729.1 | 3348.9 | 2492.1 | 4111.9 | 3255.1 | 2706.6 | 1892.6 | |||||
| SR 350 | 5 | 2123.7 | 1535.7 | 1797.0 | 1238.3 | ||||||||||
| 6 | 1863.0 | 1157.4 | 3005.4 | 2299.8 | 2156.4 | 1486.0 | |||||||||
| 7 | 1602.3 | 779.0 | 2744.7 | 1921.5 | 3887.2 | 3063.9 | 2515.8 | 1733.7 | |||||||
| 8 | 1341.6 | 400.7 | 2484.0 | 1543.1 | 3626.5 | 2685.6 | 2875.2 | 1981.3 | |||||||
| 9 | 2223.3 | 1164.8 | 3365.8 | 2307.2 | 4508.2 | 3449.7 | 3234.6 | 2229.0 | |||||||
| 10 | 1962.6 | 786.5 | 3105.1 | 1928.9 | 4247.5 | 3071.3 | 5389.9 | 4213.8 | 6532.3 | 5356.2 | 3594.0 | 2476.7 | |||
| 11 | 2844.4 | 1550.6 | 3986.8 | 2693.0 | 5129.2 | 3835.4 | 6271.6 | 4977.9 | 3953.4 | 2724.3 | |||||
| 12 | 2583.7 | 1172.3 | 3726.1 | 2314.7 | 4868.5 | 3457.1 | 6010.9 | 4599.5 | 4312.8 | 2972.0 | |||||
| SR 400 | 5 | 2171.7 | 1385.1 | ||||||||||||
| 6 | 3133.7 | 2140.1 | 4761.5 | 3767.9 | 2606.0 | 1662.1 | |||||||||
| 7 | 2842.1 | 1682.9 | 4469.9 | 3310.7 | 3040.4 | 1939.1 | |||||||||
| 8 | 2550.5 | 1225.7 | 4178.3 | 2853.5 | 3474.7 | 2216.2 | |||||||||
| 9 | 2258.9 | 768.5 | 3886.7 | 2396.3 | 5514.5 | 4024.1 | 3909.1 | 2493.2 | |||||||
| 10 | 1967.3 | 311.3 | 3595.1 | 1939.1 | 5222.9 | 3566.9 | 4343.4 | 2770.2 | |||||||
| 11 | 3303.5 | 1481.9 | 4931.3 | 3109.7 | 6559.1 | 4737.5 | 4777.7 | 3047.2 | |||||||
| 12 | 3011.9 | 1024.7 | 4639.7 | 2652.5 | 6267.5 | 4280.3 | 7895.2 | 5908.0 | 9523.0 | 7535.8 | 5212.1 | 3324.2 | |||
| 13 | 4348.1 | 2195.3 | 5975.9 | 3823.1 | 7603.6 | 5450.8 | 9231.4 | 7078.6 | 5646.4 | 3601.3 | |||||
| 14 | 4056.5 | 1738.1 | 5684.3 | 3365.9 | 7312.0 | 4993.6 | 8939.8 | 6621.4 | 6080.8 | 3878.3 | |||||
| 15 | 3764.9 | 1280.9 | 5392.7 | 2908.7 | 7020.4 | 4536.4 | 8648.2 | 6164.2 | 6515.1 | 4155.3 | |||||
| 16 | 5101.1 | 2451.5 | 6728.8 | 4079.2 | 8356.6 | 5707.0 | 6949.4 | 4432.3 | |||||||
| （Nm）Output Torque of Double Acting Actuators | |||||||
| Model | （bar）Output Torque of Double Acting Actuators | ||||||
| 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| DA 032 | 3 | 5 | 6 | 8 | 9 | 11 | 12 |
| DA 040 | 5 | 7 | 10 | 12 | 14 | 17 | 19 |
| DA 052 | 8 | 12 | 16 | 20 | 24 | 28 | 32 |
| DA 063 | 15 | 22 | 29 | 36 | 44 | 51 | 58 |
| DA 075 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| DA 083 | 31 | 47 | 63 | 78 | 94 | 110 | 125 |
| DA 092 | 45 | 68 | 90 | 113 | 135 | 158 | 181 |
| DA 105 | 66 | 99 | 132 | 165 | 198 | 231 | 264 |
| DA 125 | 100 | 150 | 200 | 251 | 301 | 351 | 401 |
| DA 140 | 171 | 256 | 342 | 427 | 513 | 598 | 684 |
| DA 160 | 266 | 399 | 532 | 665 | 798 | 931 | 1064 |
| DA 190 | 426 | 638 | 851 | 1064 | 1277 | 1490 | 1702 |
| DA 210 | 532 | 798 | 1064 | 1330 | 1596 | 1862 | 2128 |
| DA 240 | 769 | 1154 | 1539 | 1924 | 2308 | 2693 | 3078 |
| DA 240 | 769 | 1154 | 1539 | 1924 | 2308 | 2693 | 3078 |
| DA 270 | 1170 | 1754 | 2239 | 2924 | 3509 | 4094 | 4679 |
| DA 300 | 1526 | 2289 | 3052 | 3815 | 4578 | 5341 | 6104 |
| DA 350 | 2285 | 3427 | 4570 | 5712 | 6854 | 7997 | 9139 |
| DA 400 | 3256 | 4884 | 6512 | 8140 | 9768 | 11396 | 13024 |
| Contact Name: | Mr Jack Ning | Contact Email: | ni****e@zhonghejuneng.com |
| Contact Job Title: | Press & Media | Contact Mob: | 138***729 |
| Contact Tel: | 0411-86185888 | Contact Fax: | 0411-86173030 |
| Address: | 大连市高新园区龙头分NO50,Longxing Rd,Longtou High-tech industrial zone,dalian | Website: | http://www.zhonghejuneng.com |

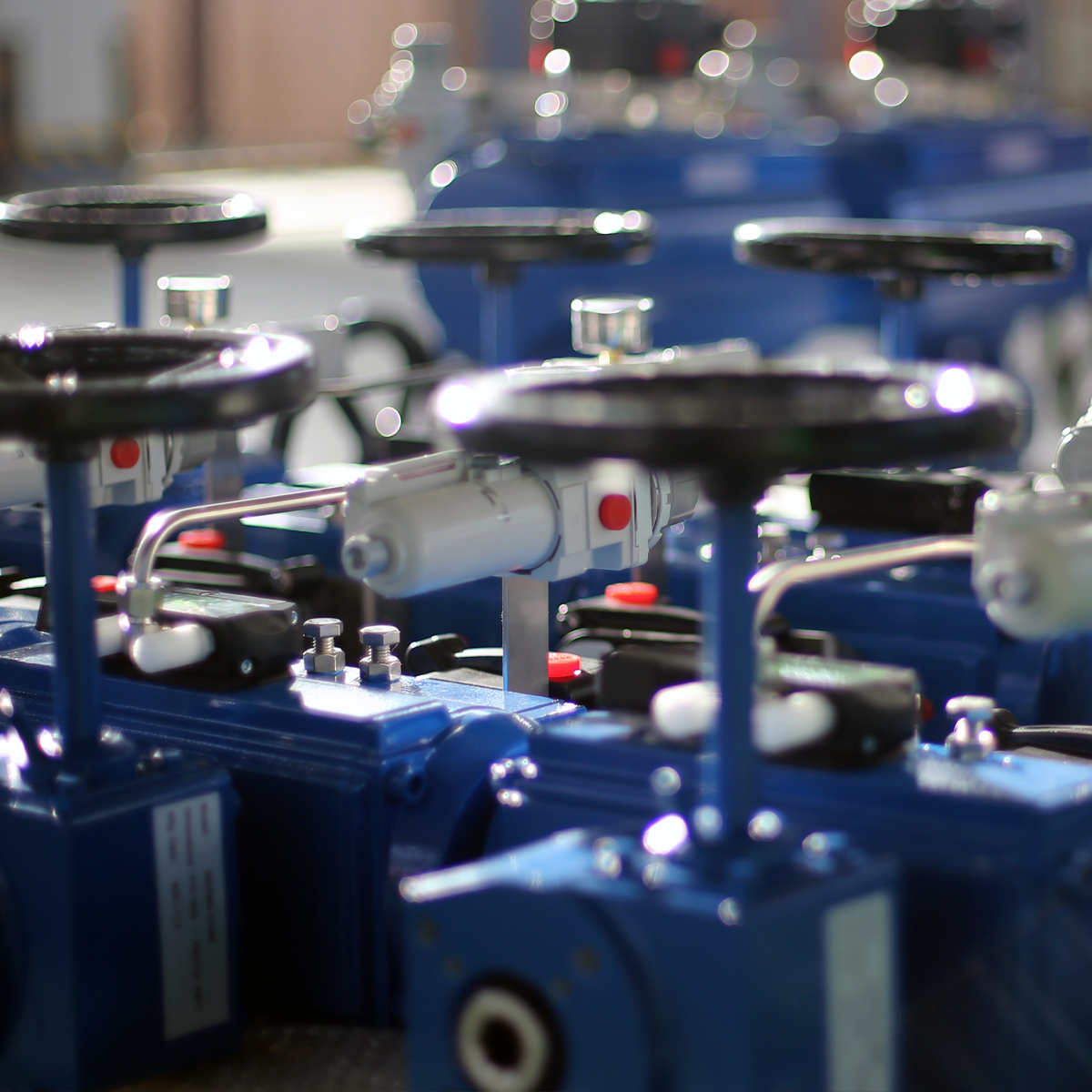

More than 20 years, HSA(Harmo Synergy Automation) has focused on the design, development and production of complete actuation systems for the operation of industrial valves in the most demanding applications and processes across the world. HSA is now an local leader in valve actuation. We design and manufacture complete actuation systems, which can be fully customised to meet customer needs, applications or processes. We offer a diverse range of valve actuation (both pneumatic or hydraulic) products including linear and quarter turn actuators, smart valve positioners, and a full range of accessories.
