high speed expanded metal machine
Manufacturing & Processing Machinery Engineering & Construction Machinery
MOQ:1 Piece(s)
Payment Method :
Keywords:expanded metal mesh machine expanded mesh metal machine expanded metal sheet machine
| Product Category: | Manufacturing & Processing Machinery > Engineering & Construction Machinery | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | xingang |

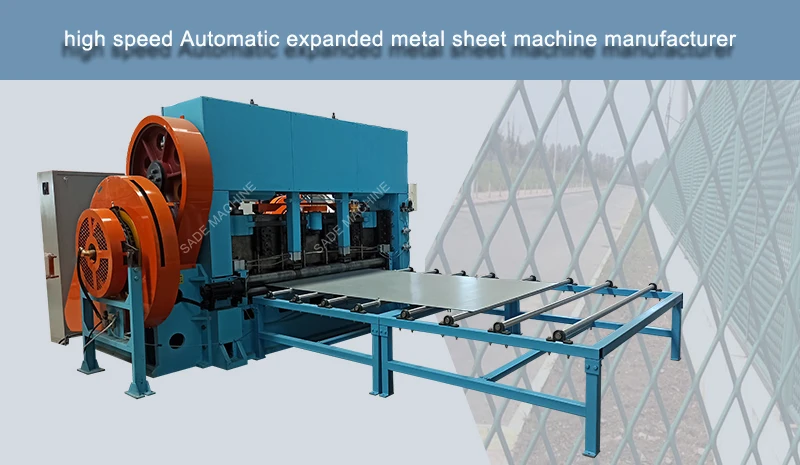

Heavy expanded metal making machine
Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.

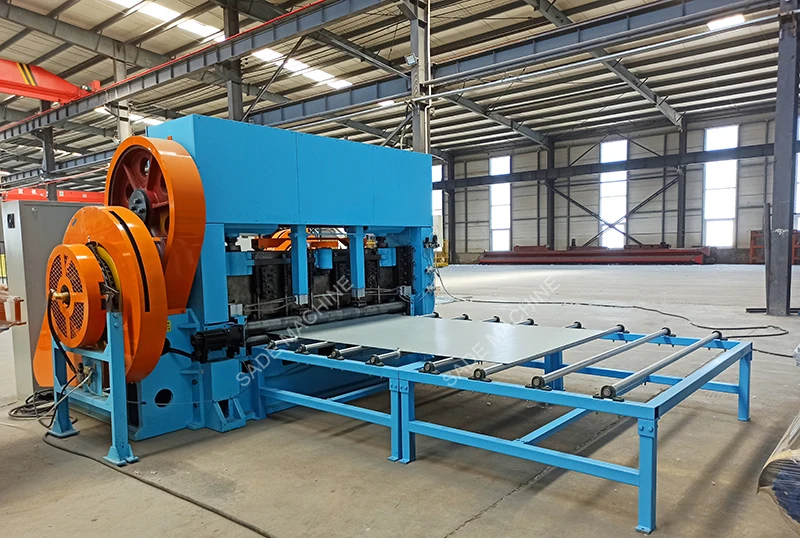

feeding in sheet
![]()

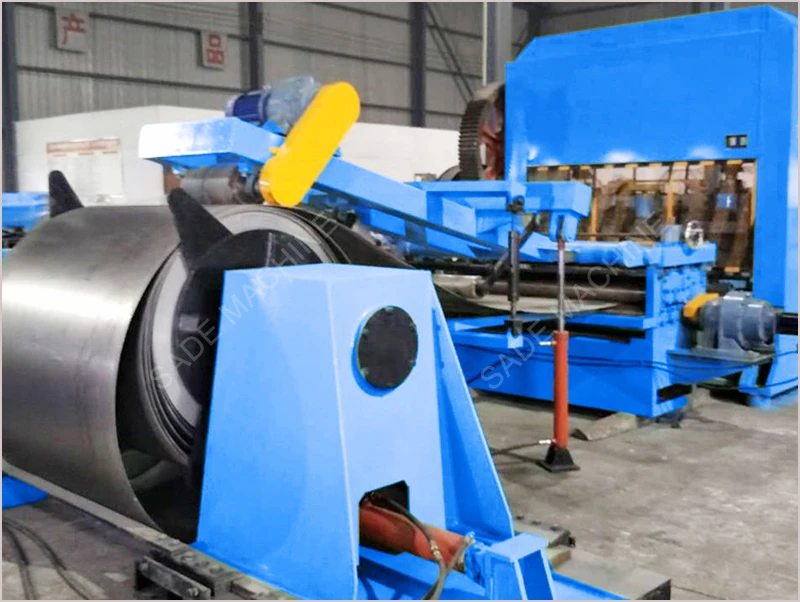

Material feeding in Coil
Expanded Metal Machine Technical Parameters
Type | JQ25-6.3 | JQ25-16 | JQ25-25 | JQ25-40 | JQ25-63 | JQ25-100 |
Depth(mm) | 1.0 | 1.0 | 1.5 | 2.5 | 4 | 6 |
Width(mm) | 500 | 1000 | 1250 | 1500 | 2000 | 2000 |
Stroke per min(times/min) | 290 | 180 | 160 | 80 | 67 | 60 |
Distance(mm) | 0-1.5 | 0-10 | 0-10 | 0-10 | 0-20 | 0-20 |
Lenght of Mesh(mm) | max.12.5 | max.25 | max.30 | max.80 | max.200 | max.200 |
Motor(KW) | 2.2 | 3 | 4 | 11 | 11 | 15 |
Weight(T) | 0.95 | 2 | 3 | 6 | 10 | 12 |
Measurement(mm) | 1090*710 | 1800*1320 | 1940*1600 | 2870*1990 | 2400x3500*2300 | 3600*2500 |
Related auxiliary machine
Expanded Metal Flatten Machinery Main Technical Parameter
Model | LE-YPJ800 | LE-YPJ1000 | LE-J1300 | LE-J1500 | LE-J2500 |
Working width | 800mm | 1000mm | 1300mm | 1500mm | 2500mm |
Thickness | 0.5~2mm | 0.5~2mm | 0.5~2mm | 0.5~2mm | 0.5-4 |
Roller diameter | 300/280mm | 320/300mm | 350mm | 450/350mm | 660mm |
Motor power | 3kw | 4kw | 5.5kw | 7.5kw | 37kw |
Machine weight | 2T/1.8T | 2.5T/2.8T | 4T | 6.5T/5.5T | 16T |

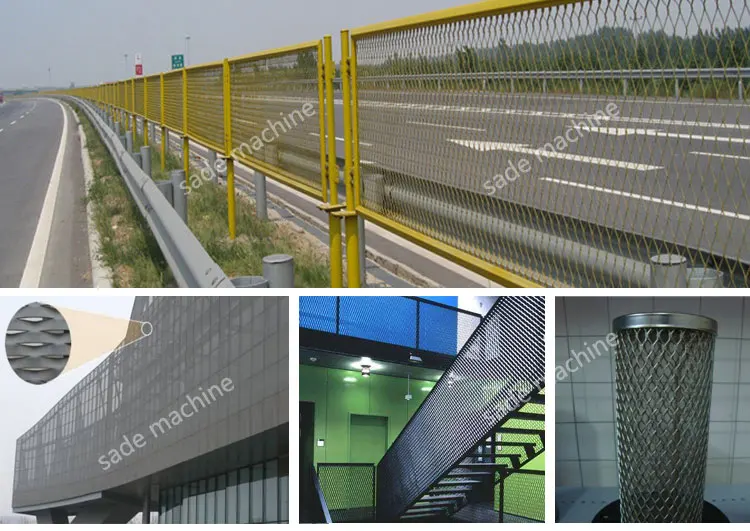

Finished product usage
Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.
Hebei SADE Wire Mesh Machine Manufacturing Co.Ltd is located in Anping County - the well-known hometown of wire mesh, Hebei province, China, covers a total area of 67000 square meters. And we have more than 100 sets of processing machinery and over 300 employees, among them, there are more than 70 technicians. This is a enterprise that professional engaged in wire mesh equipment research and development, production, processing, manufacturing. We have passed ISO9001, CE and SGS Certificates through consistent efforts of all staff members. Our company has been rated as an advanced company of scientific&technological progress and civilized company by the government for several years.
Main products::Breed Aquatics Mesh Welding Machine, CNC fence mesh welding machine, Reinforcing Mesh Welding Machine, Welded Wire Mesh Machine and Fully Automatic Chain Link Fence Machine,Hexagonal Wire Netting machine, Gabion Mesh Machine, Expanded Metal Machine, Perforated metal machine, Roll Forming Machine and so on. The market of our products has already exported to more than 90 countries of Central and South America, the Middle East, Southeast Asia and Africa.
Our business philosophy: Diligence makes the machinery, Innovation wins the future. Best Quality satisfies the customers.
Any questions please feel free to ask me .
