WANMA 6N40 Rice Mill Cassava Flour Processing Machine Rice Milling Machine 6N70 for Sale

Agricultural Agricultural Machinery

FOB Price:US$ 167.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T Western Union Paypal Money Gram Others

Keywords:6N40 Rice Mill Cassava Processing Machine Rice Milling Machine 6N70

Add to Favorites

Product Category: Agricultural > Agricultural Machinery Trademark:
Product Package: 620x320x550mm Specifications:
Place of Origin: Sichuan Port: Chongqing, Luzhou, Zhejiang, Guangzhou, Shenzhen

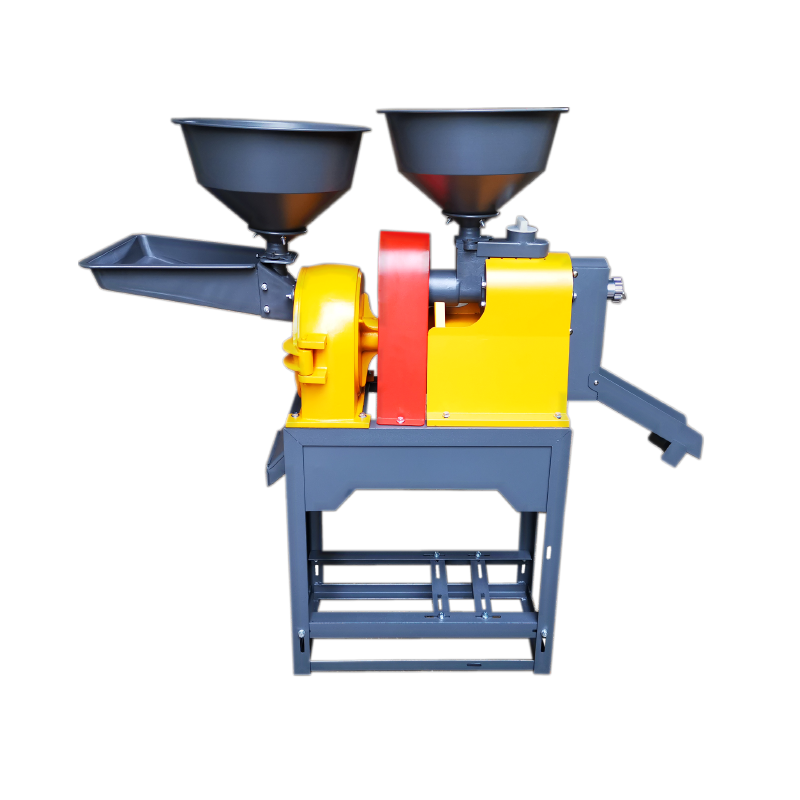

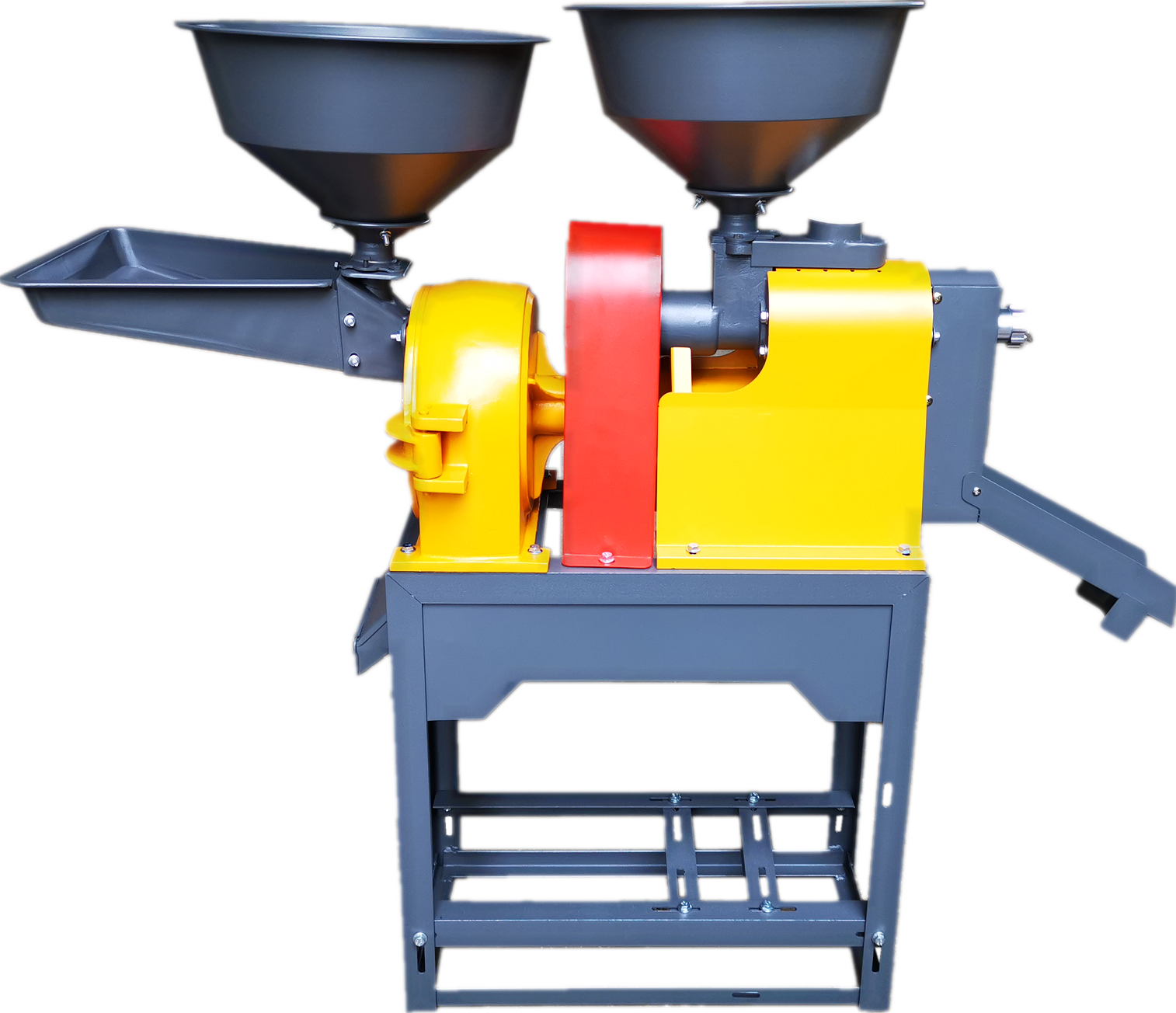

China 2 in 1 Corn Crushing and Rice Hulling Rice Milling Combined Machine



Overview:

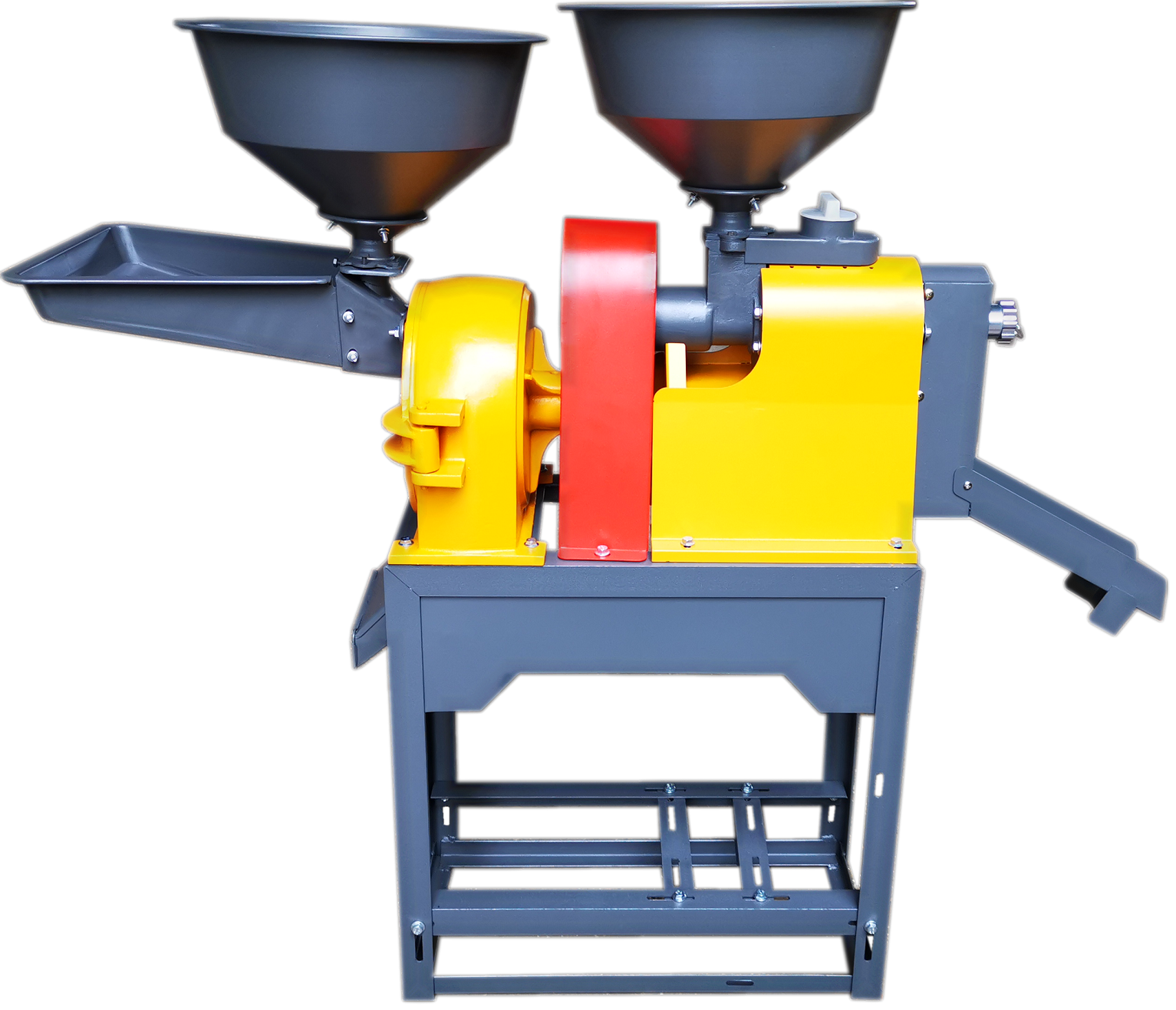

      The 6NF4E-9FC21 combined rice machine is composed of a feed hopper, a feed control valve, a rice milling room, a white milling room, a rice pressure regulating mechanism, a crushing room, and a hopper. To achieve automatic switching between rice mills and pulverizers without changing the drive belt, the household-type combined rice machine has a development history of more than 30 years, the technology is mature, and it is deeply loved by users

Features of this machine:

      1,Installed with forward and backward switch, the motor steering can be automatically adjusted;

      2,Equipped with automatic steering wheel, you don't have to swap the triangle belts;

      3,Adopt knob-type feed control valve, to achieve evenly feeding;

      4,Gear adjustment using aluminum material, durable;

      5,Rice milling machine is applicable to: rice, corn, coffee beans and granular medicine

      6,Crusher is applicable for crushing corn, soybean, lentil, rice and other granular materials

    The household fresh rice machine is a light and small rice mill that integrates a complete set of traditional mechanical equipment for processing rice to facilitate family use, from traditional large-scale industrial rice milling equipment to small household fresh rice machine, from appearance , Technology, operation, convenience and other aspects have made breakthroughs in technological innovations, making household fresh rice machines gradually become a new type of household equipment that has been gradually recognized by the public and entered thousands of households.


      The fresh rice machine is composed of a fuselage, a rice milling room, a rice roller, a rice sieve, a feeding hopper, etc. When working, pour rice or rice into the feeding hopper, start the switch, and the rice automatically flows into the rice milling room and the space where you press the rice roller Because of the rotation of the rice milling roller, the rice is subjected to a large amount of squeezing force and friction, which makes the chaff fall off, and grinds the chaff finely, and the rice grains are white. Under the action of continuous rotation of the rice milling roller, the rice milling roller The screw teeth push the rice to the outlet and the rice bran leaks from the rice sieve into the bran box. You can turn the knob on the front cover to adjust the whiteness and accuracy of the rice.





Model 6NF4E-9FC21 Dimensions750x430x1100mm
Productivity ≥160-220kg/h Package Size 550x310x750mm
Structure type Steel roller without rice knife Packing Carton
Rated voltage 110-240V//50-60Hz Gross weight 38kg/With motor:61kg
Rated power 1.8-2.2kw,2800 r/min Net weight 36kg/With motor:59kg
Spindle speed 1400-1600r/min Screen 167x70x52mm
Power consumption 0.9-1.05kW.h/100kg Fan speed 3600-4000r/min



Combine Rice Mill



Related products






Contact Name: Mr Shuo Chen Contact Email: sc****a@xwanma.com
Contact Job Title: Manager Contact Mob: 134***999
Contact Tel: Contact Fax:
Address: 148 Xiwang Avenue, Yancheng Town, Leshan City, Sichuan Province Website: www.scwanma.com

Founded on March 15, 2000, Sichuan Wanma Machinery Manufacturing Co., Ltd. is a company specializing in the manufacture of agricultural machinery with more than 20 years of experience. Its main products include: Series 6N Rice Husking Machine and Series 9F Grinders, Series 6FP Flour Mills, Series 9ZT Hay Cutters, Series TQSC Derocker and Cleaner, Series 93QS Chopper, Series 5TY Corn Thresher, Series 5TG Rice, Rape, Millet, Wheat, Soybean, Mung Bean, Hyacinth Bean Thresher; with sound sales network, the machines are sold to Southeast Asia, Europe, Africa and other countries. Its annual production capacity reaches 50,000 sets. The registered capital of the company is 10 million yuan. It is a private limited liability company with free import and export operation right and has obtained Customs Registration Certificate, CE Certification, RoHS Certification, ISO9001 Certification.

Our company workshops cover an area of more than 40,000 m2, equipped with more than 60 machines such as 2 machining centers, 10 CNC lathes, 2 CNC milling machines, 2 CNC grinding machines, and 3 special bearing pressure equipment; 2 dynamic balancing machines, 1 hardness tester, 2 static balance detectors and other inspection equipment, totaling more than 30 sets. There are 38 employees, including 15 professionals. By virtue of strong and independent R&D and innovation capabilities, it has won 3 national invention patents, 35 utility model patents, and 1 first prize of Sichuan Science and Technology Innovation.

Our company is one of the participants who establish China’s “Iron Roller Rice Husking Machine (standard number: JB/T9792-2013)” standard; it belongs to “National High-tech Enterprise” and its products have won “Sichuan Famous Brand” for several consecutive times and “Wanmashan” combinational machine was recognized as “Leshan Famous Brand” by Leshan authority, and the company was recognized as “Leshan Key Leading Enterprise” by Leshan authority, and became the “Science and Technology Achievement Pilot Base” of Sichuan Agricultural Machinery Research and Design Institute.

Our business philosophy: Quality first, win-win cooperation, serving the society.
