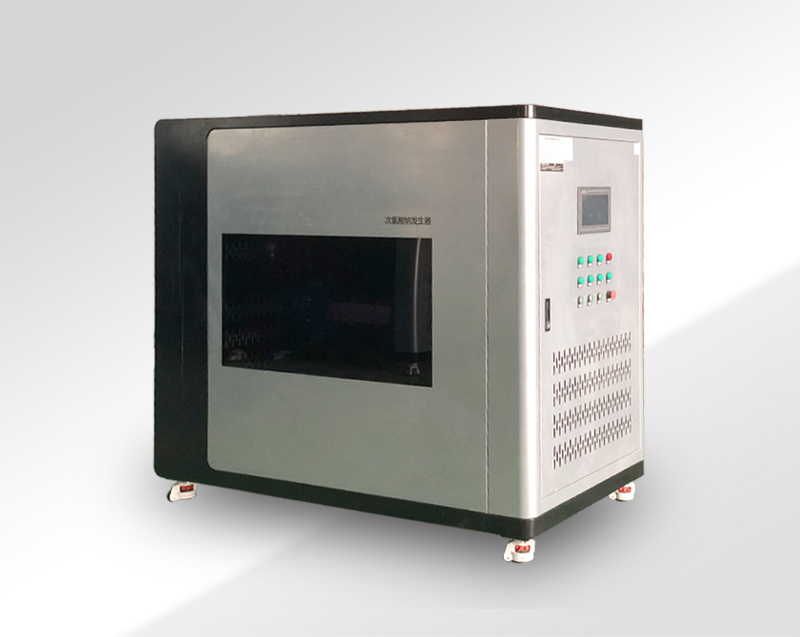

Medium Large Sodium Hypochlorite Generator
Manufacturing & Processing Machinery Water treatment & Environment
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Western Union Money Gram Others
Keywords:Sodium Hypochlorite Generator electro chlorination system NaCLO generator chlorine production system seawater chlorination system seawater chlorination package brine chlorination package brine chlorination system Water Treatment Industrial Water Treatment Equipment
| Product Category: | Manufacturing & Processing Machinery > Water treatment & Environment | Trademark: | BlueWav |
| Product Package: | packing boxes | Specifications: | |
| Place of Origin: | HENAN | Port: | TIANJIN;SHANGHAI;GUANGZHOU;SHENZHEN |
Product Introduction
Features:
Water treatment Capacity: 20~1000 MLD
Salt consumption: 3.5kg/kg Cl2
Power consumption: 4kw/kg Cl2
Plug-Play & Minimal Installation Operation
Fully Automatic Running
Enhanced Electrode Protection for Longer Shelf life
Triple Protection for Hydrogen gas emission
How it works
The BLUEWAV? Electro-Chemistry technology to design a fully integrated and skid mounted sodium hypochlorite generator to produce 0.8% strength sodium hypochlorite solution in range: 556lb (250kg) – 4500lb (2,000kg) NaOCl/day by brine electrolysis process.
Electro-Chemistry Electrode Reaction:
Anode: 2Cl–2e- → Cl2
cathode: 2H2O + 2e- → H2 + OH-
Total Reaction: 2NaOH + Cl2 → NaCl + NaClO + H2O
How it installs
BLUEWAV? Skid-Mounted machine provide minimal operator attention for a quick Plug-Play running to produce NaCLO and dosing on site.
Installation Steps:
(1)Connect to the water supply pipeline;
(2)Connect the chlorination pipeline;
(3)Install hydrogen exhaust pipe;
(4)Switch on the power supply.

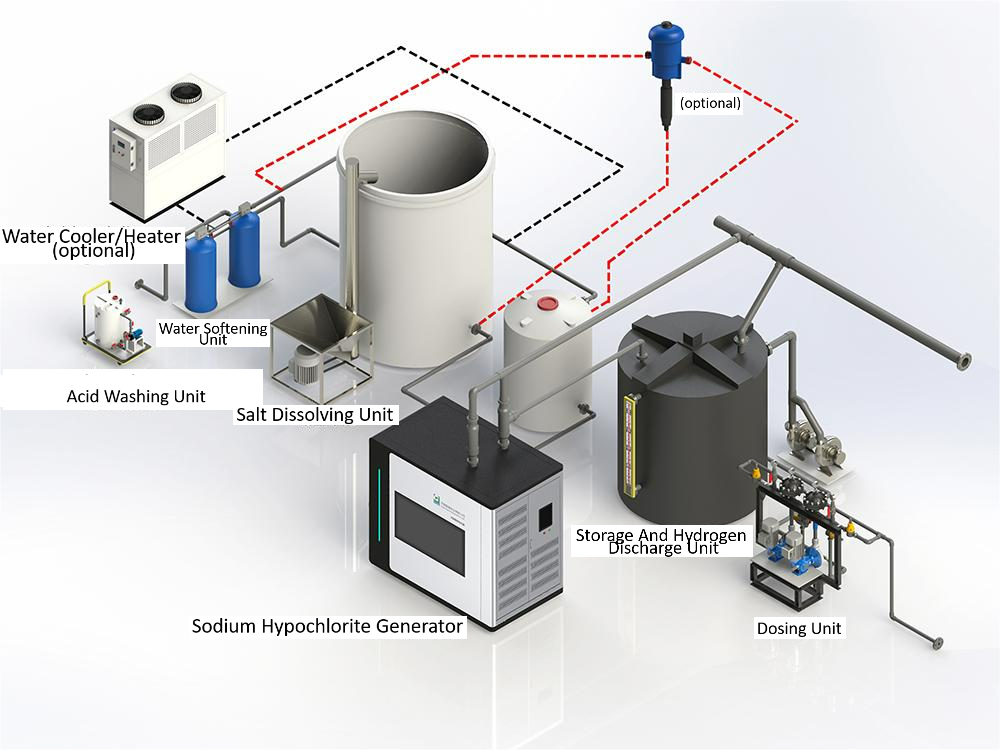

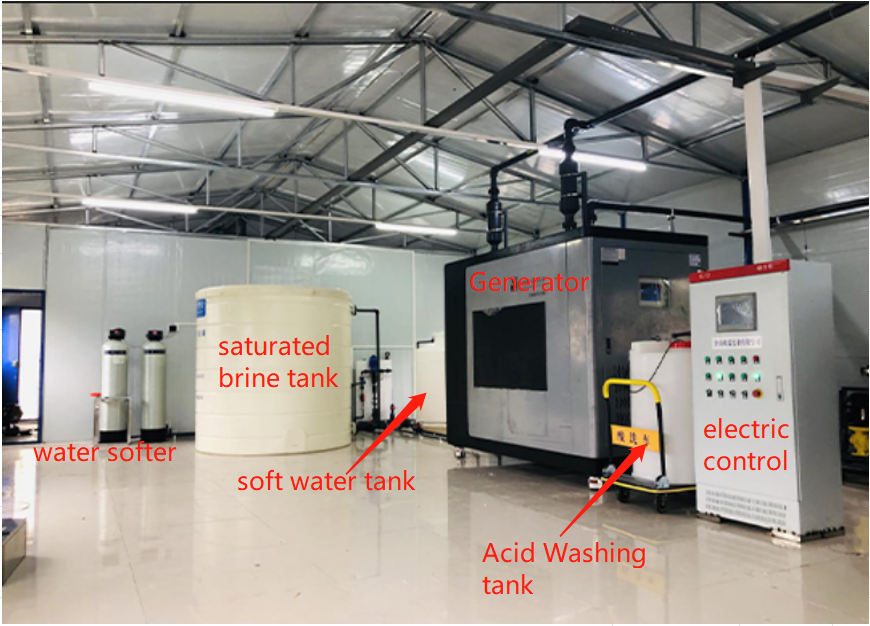

System composition ：
Water Softener
Water Chiller (Optional)
Salt Saturator
Pumps
Electrolyzer
Rectifier
PLC Contraol Panel
Remote Online control
Storage Tank
Air blower
Dosing Pump
Acid Washing Package
specifications
| GBS-1K-NACLO | GBS-5K-NACLO | GBS-10K-NACLO | GBS-20K-NACLO | GBS-50K-NACLO | GBS-80K-NACLO | |
| Chlorine Capacity | 1.0kg/hr | 5.0kg/hr | 10.0kg/hr | 20.0kg/hr | 50.0kg/hr | 80.0kg/hr |
| Water treatment Capacity(At 1ppm dosing)20MLD | 20MLD | 100MLD | 200MLD | 400MLD | 1000MLD | 1600MLD |
| Salt Consumption | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 |
| Power Consumption | 4.0kw/kg Cl2 | 4.0kw/kg Cl2 | 4.0kw/kg Cl2 | 4.0kw/kg Cl2 | 4.0kw/kg Cl2 | 4.0kw/kg Cl2 |
| Concentration of HYPO | 8000ppm | 8000ppm | 8000ppm | 8000ppm | 8000ppm | 8000ppm |
| Production Flow Rate | 125L/hr | 625L/hr | 1250L/hr | 2500L/hr | 6250L/hr | 10000L/hr |
| Contact Name: | Miss. Diana Wang | Contact Email: | in****o@bluewavv.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 152***011 |
| Contact Tel: | +86 15222771011 | Contact Fax: | |
| Address: | HENAN | Website: | https://sodiumhypochloritegenerators.com/ |
