CONCERTINA RAZOR WIRE
Metallurgy,Chemicals & Energy Metallic Minerals Products
MOQ:2 Ton(s)
Payment Method : L/C T/T Western Union
Keywords:RAZOR WIRE RAZOR BARBED WIRE CONCERTINA WIRE CONCERTINA BLADE WIRE BTO-22 RAZOR SINGLE COIL RAZOR WIRE SAFETY BLADE WIRE CBT-65
| Product Category: | Metallurgy,Chemicals & Energy > Metallic Minerals Products | Trademark: | YASW |
| Product Package: | WRAPPED WITH WATERPROOF PAPER+ PLASTIC WOVEN BAG | Specifications: | BTO-22X500MM,CBT-65X600MM |
| Place of Origin: | HENGSHUI | Port: | TIANJIN |
Razor Blade Barbed Wire BTO-22 Security Net for Prison fence
Razor barbed wire, known as blade barbed wire and blade barbed wire mesh, is a new type of protective net. The blade barbed wire has the excellent characteristics of beautiful appearance, economy and practicality, good anti-blocking effect and convenient construction.
1. Materials
The blade barbed wire is made of hot-dip galvanized steel sheet or stainless steel sheet punched out with a sharp blade shape. High-strength galvanized steel wire or stainless steel wire is used as the core wire.Main material is galvanized sheet and stainless steel sheet.
2. Surface treatment
- Hot dip galvanized
- stainless steel
- Powder coated

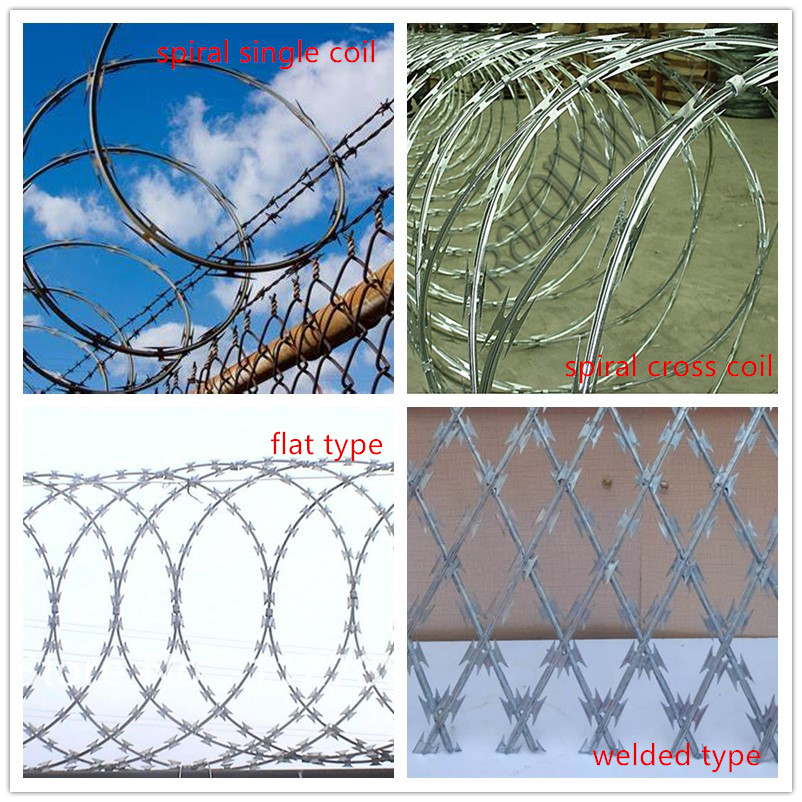

3. Type (according to the installation method)
-spiral blade barbed wire
-Straight
-flat type
-Welded type
4. Specifications
| Specification | Shape | blade thickness | wire dia. | blade length | blade width | blade distance |
| BTO-10 |  | 0.5±0.05 | 2.5±0.1 | 10±1 | 15±1 | 25±1 |
| BTO-12 |  | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 |  | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTI-22 |  | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 35±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 46±1 | |
| BTO-30 |  | 0.5±0.05 | 2.5±0.1 | 30±1 | 15±1 | 46±1 |
| CBT-65 |  | 0.5±0.05 | 2.5±0.1 | 65±1 | 15±1 | 100±1 |
| Out Dia | Loop No. | Cover Length | Type | Remark |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.18.22 | Cross type |
| 600mm | 86 | 14M | BTO-10.18.22 | Cross type |
| 700mm | 72 | 12M | BTO-10.18.22 | Cross type |
| 800mm | 64 | 10M | BTO-10.18.22 | Cross type |
| 900mm | 52 | 9M | BTO-10.18.22 | Cross type |
5. Packaging and loading
Moisture-proof paper + plastic woven tape / carton packaging or according to customer requirements
6. Application
The blade barbed wire has been widely used in industrial and mining enterprises, garden apartments, border posts, military fields, prisons, detention centers, government buildings and security facilities of other countries in many countries.
