Concertina Razor Wire BTO-22 Cross Type 0.5mm blade thickness and 2.5mm Core Wire

Construction & Decoration Building Structural Material

FOB Price:US$ 770.00 / Ton(s)

MOQ:5 Ton(s)

Payment Method : L/C T/T Paypal

Keywords:concertina wire razor wire Barbed Wire concertina razor wire Razor Blade razor barbed wire Razor Accessories welded razor wire razor wire mesh fence

Add to Favorites

Product Category: Construction & Decoration > Building Structural Material Trademark:
Product Package: Waterproof paper inside and woven bag outside Specifications: BTO-22
Place of Origin: China Port: Tianjin

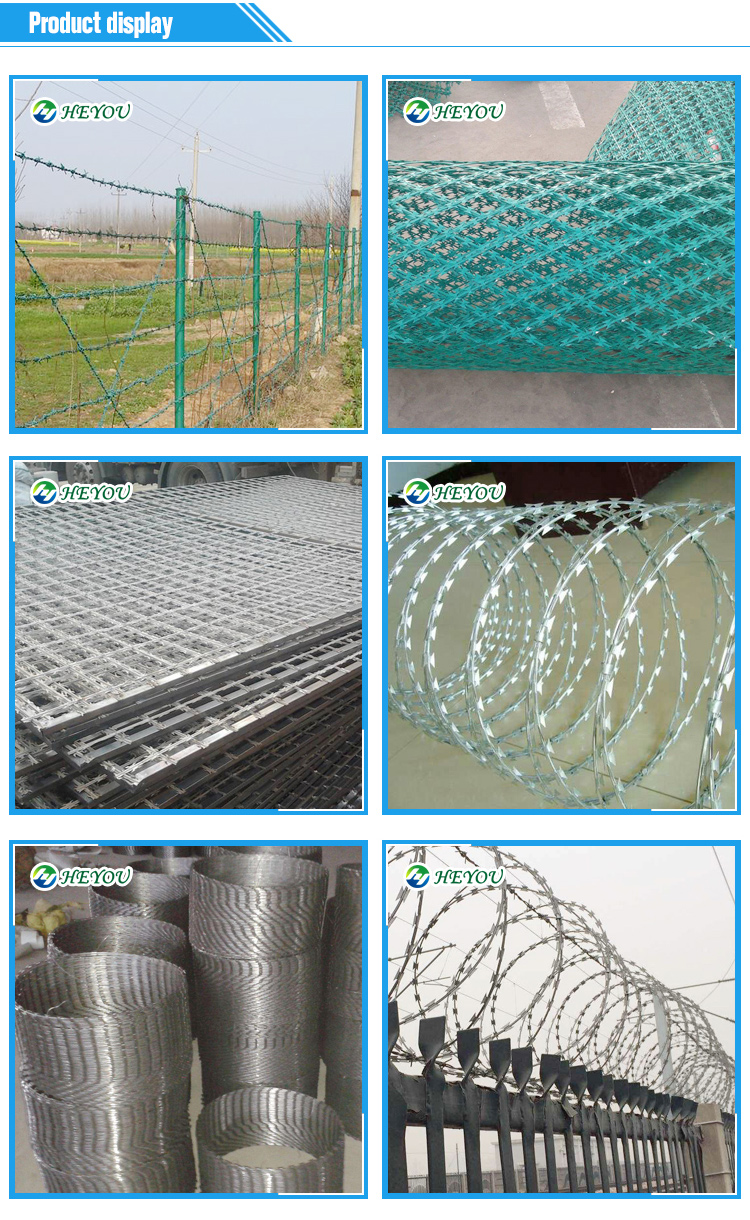

 Razor barbed wire

    is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

Razor type barbed wire is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security. Razor wire can be classified into straight type razor wire, concertina coils, crossed type and flat type according to the installation models.



Reference   No.

Thickness

Wire diameter

Barb length

Barb length

Barbe spacing

BTO-10

0.5 +/-   0.05

2.5 +/- 0.1

10 +/- 2

13 +/- 2

26 +/- 2

BTO-12

0.5 +/-   0.05

2.5 +/- 0.1

15 +/- 2

15 +/- 2

26 +/- 2

BTO-18

0.5 +/-   0.05

2.5 +/-0.1

18 +/- 2

15 +/- 2

33 +/- 2

BTO-22

0.5 +/-   0.05

2.5 +/- 0.1

22 +/- 2

15 +/- 2

34 +/- 2

BTO-28

0.5 +/-   0.05

2.5 +/-0.1

28+/- 2

15+/- 2

45 +/- 2

BTO-30

0.5 +/-   0.05

2.5 +/-0.1

30+/- 2

18+/- 2

45 +/- 2

CBT-60

0.6 +/-   0.05

2.5 +/-0.1

60 +/- 2

32 +/- 2

100 +/- 2

CBT-65

0.6 +/-   0.05

2.5 +/-0.1

65 +/- 2

21 +/- 2

100 +/- 2



Outside Diameter

Laps

Standards covering the length

Forms of production

Notes

450mm

33

8M

CBT-65

Single coil

500mm

41

10M

CBT-65

Single coil

700mm

41

10M

CBT-65

Single coil

960mm

53

13M

CBT-65

Single coil

500mm

102

16M

BTO-10.15.22

Cross type

600mm

86

14M

BTO-10.15.22

Cross type

700mm

72

12M

BTO-10.15.22

Cross type

800mm

64

10M

BTO-10.15.22

Cross type

960mm

52

9M

BTO-10.15.22

Cross type

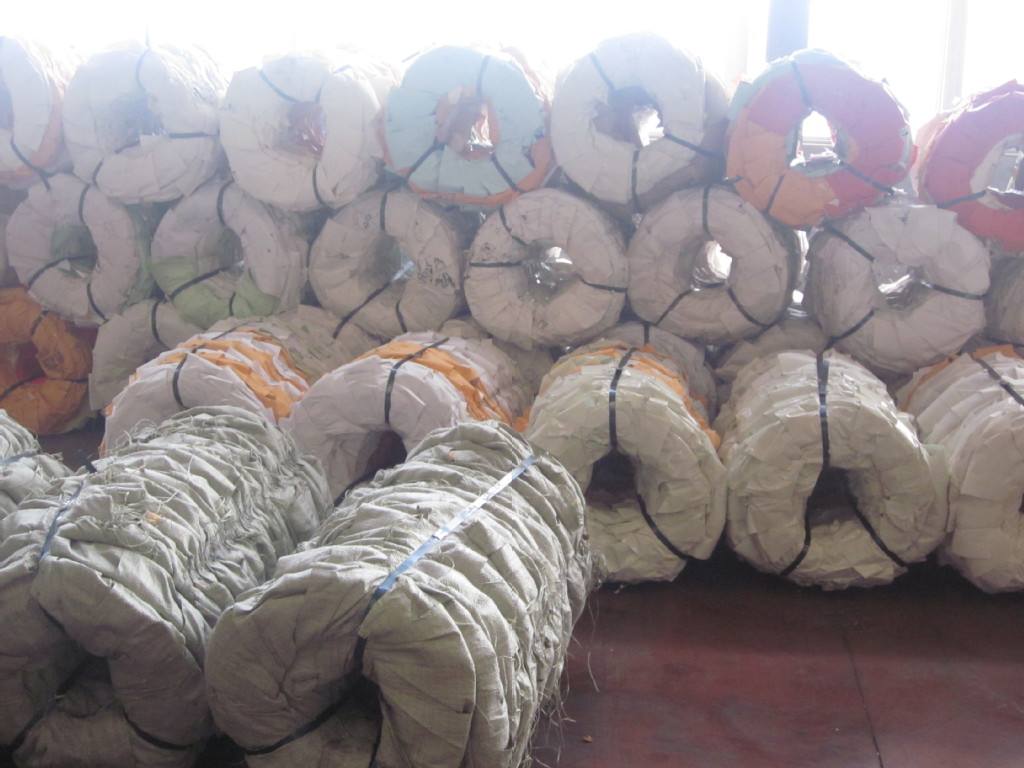

Packing:

Waterproof Paper Inside and Woven Bag Outside
