Product Description

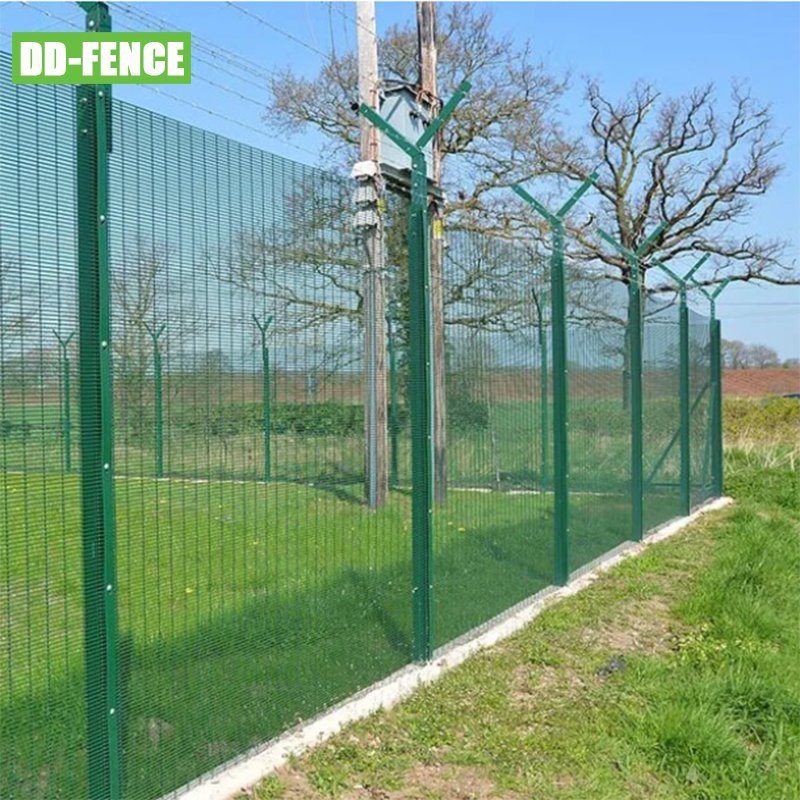

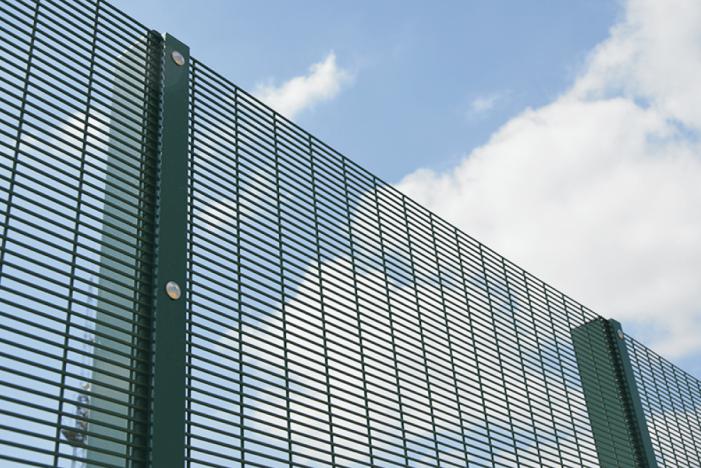

High Security 358 Weld Wire Mesh Anti Climb Mesh Fence for Prison Airport Border Railway Power Station

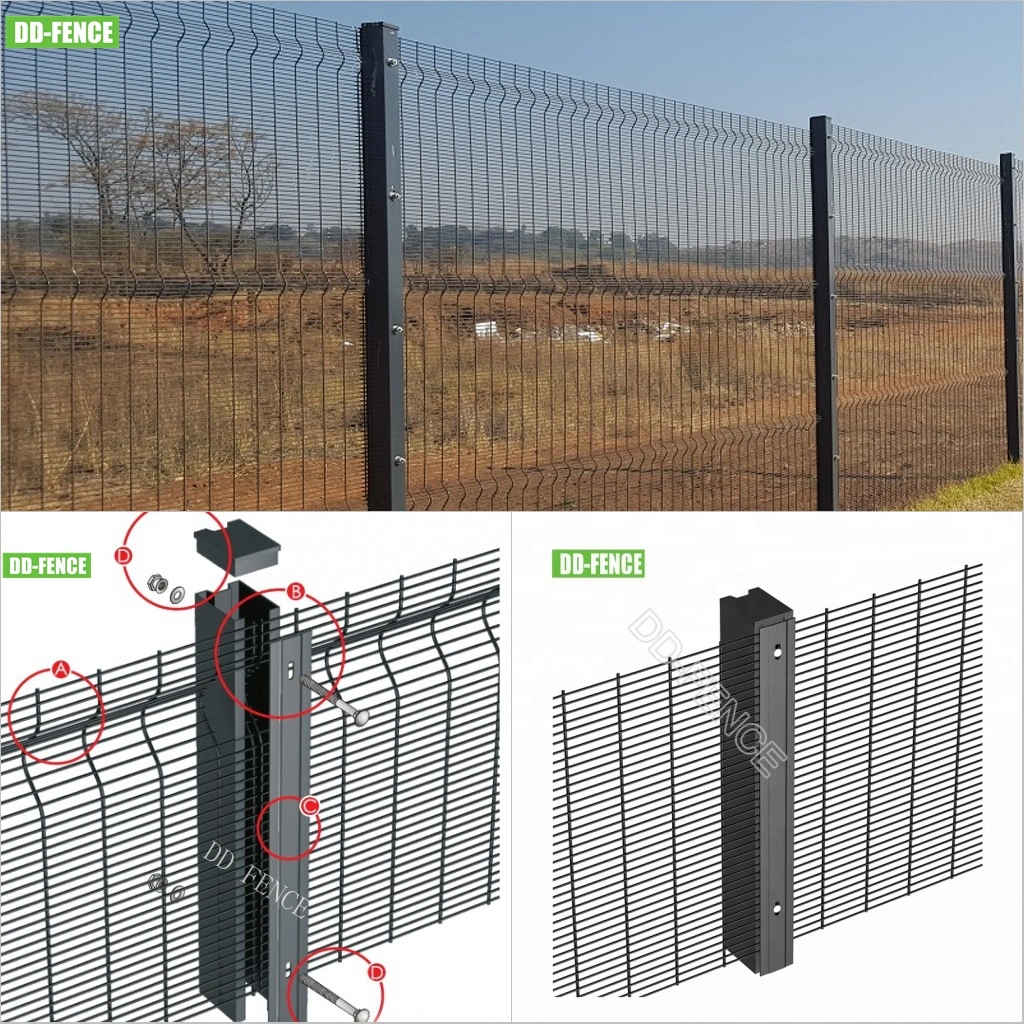

DD Fence Anti Climb Fence-Secure Wall System

The product is our unique design fencing system for security solution.

It includes panel mesh ,C post and accessories ,the panel mesh is welded with galvanized wire as per EN10244 and the post is shaped from galvanized coils as per EN10346.

The bolts and nuts are stainless steel 304 , panel and post are powder coated with Akzo Nobel- Interpon 600 series powder and pass 500H-1000H salty spray followed by ISO9227.

Feature:

1, Attractive appearance or see through view

2, Rigid enough with perfect steel structure

3, Simple and easy installation

4, Alternative for both ground bury or flange installation

5, Suitable for flat ground and slope ground installation

6, High security protection and anti climb

7, Anti cutting and durable

8, Reference standard:BS1722-14,ISO1461,EN13438,EN10436

Application:

Secure wall is suitable for:

* Prison

* Power stations

* Government infrastructure projects

* Parks

* Factories

* Warehouses

* Sports facilities

* Commercial and industrial applications

* Airport

* oil-gas pipeline infrastructure

* Railway

* Harbor

Specification:

Fence panel:

The fence panel is welded by our advanced automatic machine as per BS1722-14 to give the fence high welded shear strength and more rigid after installation. wire diameter comes with 3mm,4mm,5.6mm, mesh size in 76.2*12.7mm or 75x12.5mm.

The surface treatment in pre galvanized/HDG+polyester powder coating as per EN10245/EN10348, standard colors: RAL6005 Green,RAL9005 Black,RAL7040 Grey,RAL7016 Grey,RAL5002 Blue,other colors on request.

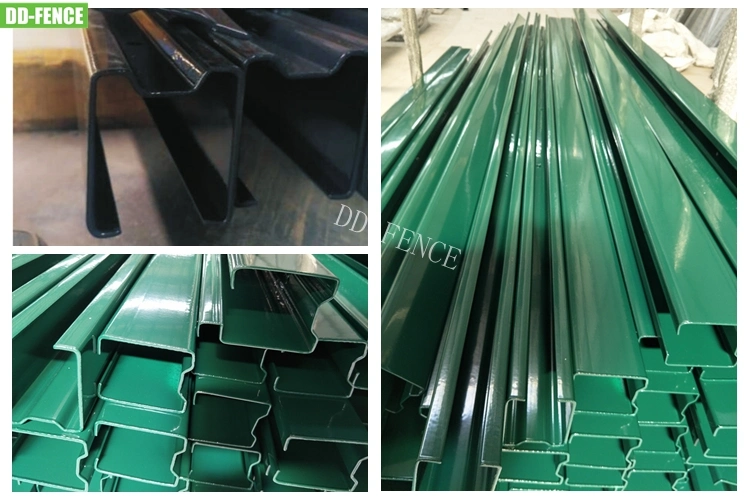

Post:

The C post is our unique design on fence market,it's shaped from galvanized coils as per EN10346.the post is rigid structure and attractive appearance.

The surface treatment in pre galvanized/HDG+polyester powder coating as per EN13438, standard colors: RAL6005 Green,RAL9005 Black,RAL7040 Grey,RAL7016 Grey,RAL5002 Blue,other colors on request.

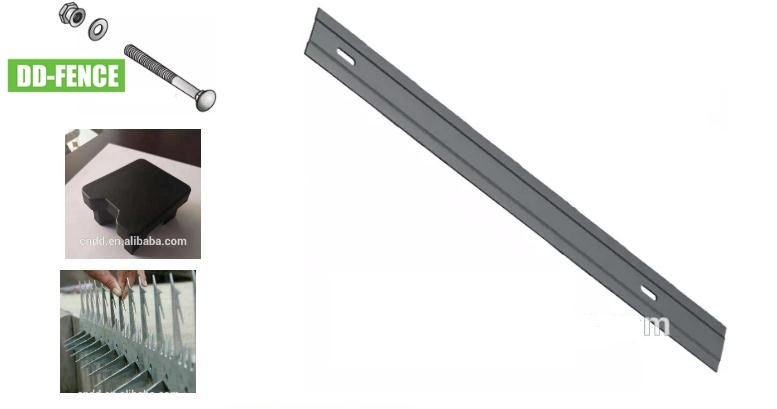

Accessories:

1. Installation Fittings: flat bar-H1,bolt,shear off nut,washer,rain-hat.

2. Extension Fittings:razor wire, barbed wire,extension arm(single or double arm),wall spike

3. Security Enhence Fittings: electric fencing system

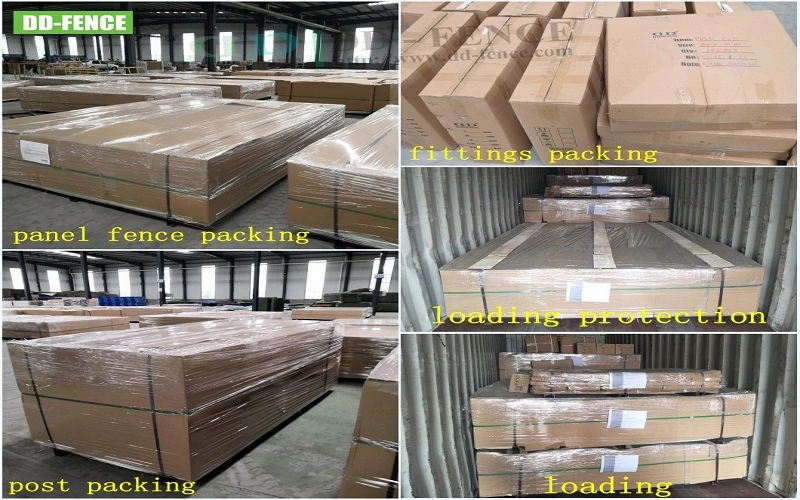

Product Packaging and Shipping

* Panel-Metal Pallet wrapped with cardboard plate and then wrapped with plastic film

* Post- Wrapped with PP bags,then put on pallet ,wrapped with plastic film

* Accessories- Carton

* Customized packing is available

Company  Profile

As one of the leading manufacturers on perimeter fencing products, DD-FENCE has more than Ten years running experience, and enjoy a high reputation in China fencing industry. Now our business covers: Steel or Aluminum Fencing, Cast Aluminum or Cast Iron fencing, as wells as kinds of swing or sliding gates.

Also as a ISO9001 & ISO14001 certified company, DD-FENCE always supply high quality products to end users, and to ensure the consistency of the quality, we have spent a lot of efforts on selection and optimization of our raw material & fittings supply chain. In addition, we have also take more care of QC on each production procedure. Now the qualified rate of DD-FENCE products reached 99.5%. And products quality warranty ranged from 10-20 Years.
