Welded Wire Mesh,Welded Wire Mesh Panel,Galvanized Welded Mesh,Wire Mesh Panel,Fence Panel
Construction & Decoration Building Structural Material
MOQ:300 Roll(s)
Payment Method : L/C T/T Paypal
Keywords:Galvanized welded wire mesh hardware cloth wire mesh fence chicken wire wire mesh panel welded wire mesh welded mesh galvanized wire mesh welded wire fence wire fence panel
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | |
| Product Package: | waterproof paper | Specifications: | 1/4",3/4",1/2",1",1.5",2",3",4" etc |
| Place of Origin: | China | Port: | Tianjin |
Galvanized Welded Wire Mesh
Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh, hot deep galvanized welded wire mesh.
Besides, according different processing methods, there are galvanized before welding wire welded mesh and galvanized after welding welded mesh.
Like electrical galvanized wire welded mesh, hot deep galvanized wire welded mesh, galvanized redrawing wire welded mesh, electrical galvanized（after welding） welded wire mesh, hot deep galvanized(after welding) welded wire mesh.
And Galvanized redrawing welded wire mesh is welding by high quality redrawing low carbon steel wire( the material of this kind wire is high quality hot-rolled wire rod. The main processes is Acid washing, galvanizing, and cold-drawing). The surface of this kind mesh is very bright. It is easy to transport and store. And the price is lower than electrical galvanized welded wire mesh. It is popular in the market. The usage of this kind mesh is same as black welded wire mesh.
electrical galvanized welded mesh has 15g/m2 zinc coating in common. It was used in industrial, building, travel, mine etc.

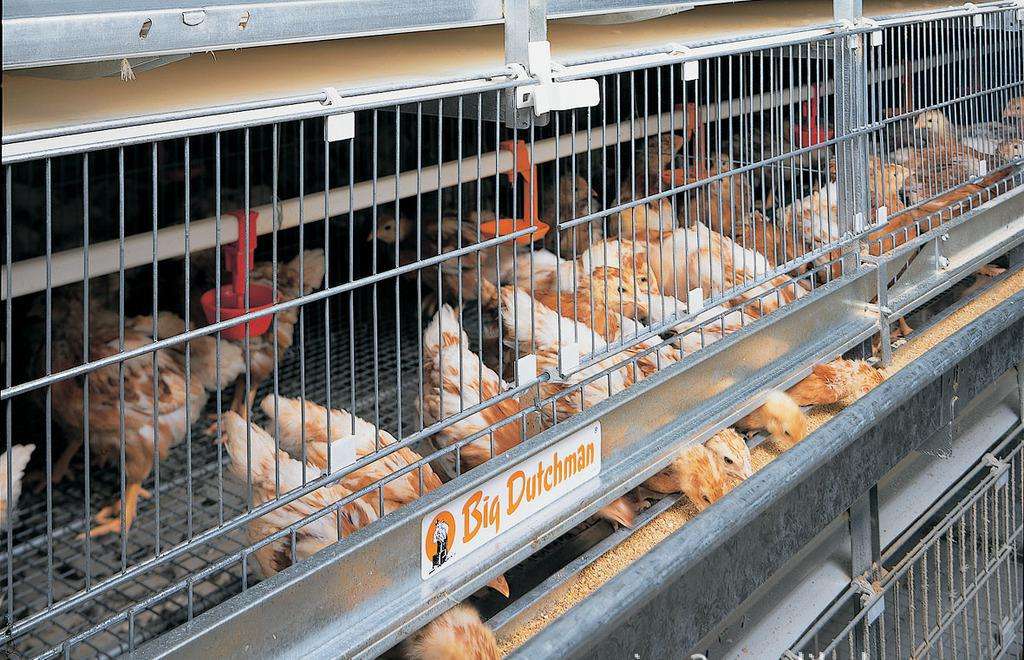

Hot deep galvanized welded mesh has thicker zinc. The zinc coating is more than 122g/m2. And the quality is better than electrical galvanize. It usually used in external wall thermal insulation system, concrete pouring，poultry farm, oil, chemical, machines and exports etc.
Application:
In construction in the form of reinforcement brick mesh, welded bar gratings or wire mesh sandwich construction. A wire mesh sandwich construction which comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.
Specification List of Galvanized Welded Wire Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 21,22,23,24,25,26,27 |
2.5/8" x 2.5/8" | 7.94mmx7.94mm | 20,21,22,23,24,25,26 |
3/8” x 3/8” | 10.6mm x 10.6mm | 19,20,21,22,23,24,25 |
1/2” x 1/2” | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23,24,25,26,27 |
5/8” x 5/8” | 15.875mm x 15.875mm | 16,17,18,19,20,21,22,23,24,25 |
3/4” x 3/4” | 19.1mm x 19.1mm | 14,15,16,17,18,19,20,21,22,23,24,25 |
6/7” x 6/7” | 21.8x21.8mm | 14,15,16,17,18,19,20,21,22,23,24,25 |
1" x 1/2" | 25.4mm x 12.7mm | 14,15,16,17,18,19,20,21,22,23,24 |
1" x 1" | 25.4mmX25.4mm | 14,15,16,17,18,19,20,21,22,23 |
1-1/4" x 1-1/4" | 31.75mmx31.75mm | 14,15,16,17,18,19,20,21,22,23 |
1-1/2" x 1-1/2" | 38mm x 38mm | 13,14,15,16,17,18,19,20,21 |
2" x 1" | 50.8mm x 25..4mm | 13,14,15,16,17,18,19,20,21 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16,17,18,19,20 |
Technical Note: | ||
| Contact Name: | Mrs Mary Wang | Contact Email: | sa****s@hysteelmesh.com |
| Contact Job Title: | Manager | Contact Mob: | 156***877 |
| Contact Tel: | 15632117877 | Contact Fax: | 0086-318-7698111 |
| Address: | In north of Beihoutuan Village Anping County | Website: | http://www.hysteelmesh.com/ |

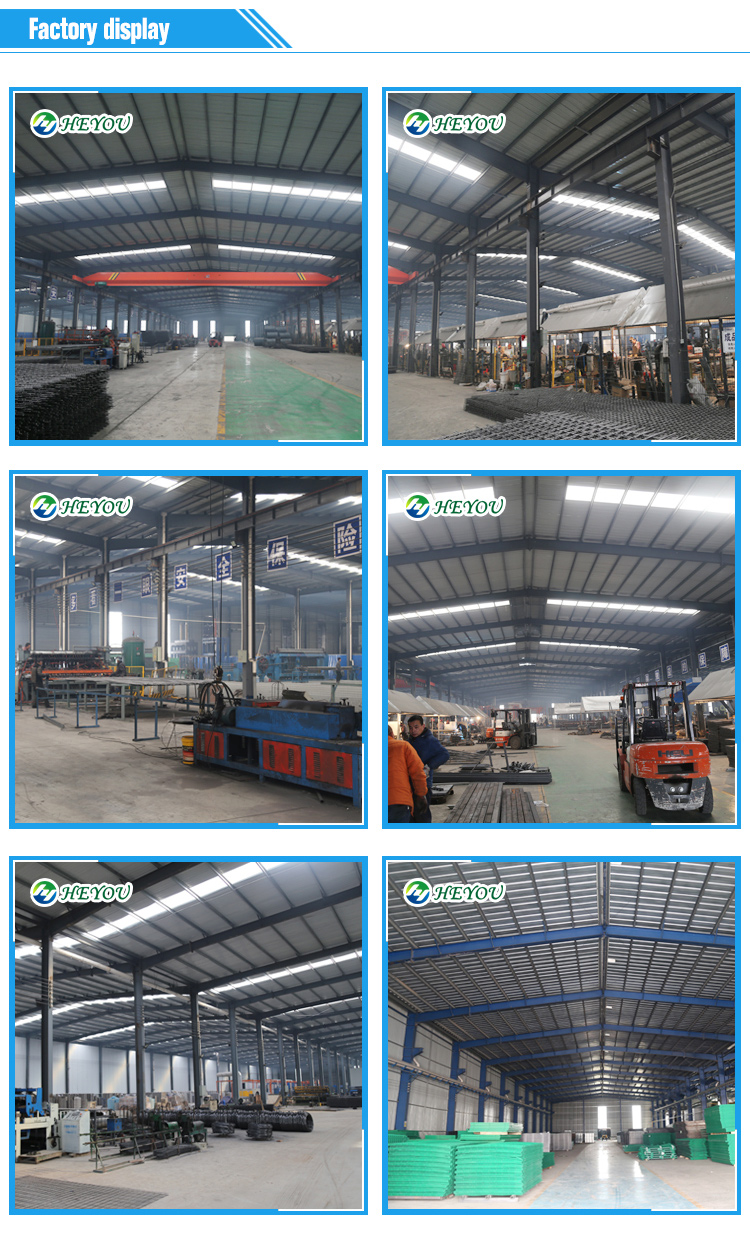

Heyou Wire Mesh was established in 2009year,which is a professional manufactory for reinforcement mesh,reinforcing mesh,reinforced mesh.Heyou Wire Mesh can produce National Standard reinforcing mesh,Australian/New Zealand Standard AS-NZS4671-2001 Reinforcement Mesh,British Standard BS4483 fabric reinforcement/reinforced mesh,Osterreichische Norm B4200-7 Grids and reinforcing meshes,Germany Standard DIN488 SD Reinforcing Mesh,Normes Francaises NFA35-016 Steel Rebar Mesh and Swiss Standard SIA 16211 S550 Reinforcement Wire Mesh.Our production capacity is 2000tons per month.Heyou factory has 8 workshops and covers 20000sqm area,with advanced international standard production line and equipments. We have a professional production team,a strictly set of Production management system and a complete set of QC system to ensure the products quality.We select the raw material from the steel factory which has high reputation in our field.When the material is coming to our factory, we will send the sample of the raw material to our laboratory in order to conform it as per contract requirement.During production, our quality inspector will be meassured in every link such after drawing wire, cutting wire,after welding.Although we inspected weld shearing,tensile strength,yeild strength of the whole mesh panle.About the Quality controled,we always adhere to the integrity of the fundamental,strategy of growth through quality. Heyou Wire Mesh built and develped the cooperation relationship with new and old business at home and abroad continuosly with our mission of offering products exactly meeting your needs.Heyou has competitive price,rich experiences,efficiency and reliability allow us to gain trust and praise from clients worldwide.We sincerely welcome you to our factory,inspect our capacity and start business cooperation based on mututal benefit ad double win strategy! We can produce it according to the customer's required.We warmly welcome your visit and business inquiry
