Polyurethane pu hard foam insulated Roof Panels
Construction & Decoration Building Decoration Products
MOQ:500 Square Meter(s)
Payment Method : L/C T/T
Keywords:PIR panel Polyurethane sandwich panel Roof panels Pu sandwich panel
| Product Category: | Construction & Decoration > Building Decoration Products | Trademark: | HCBY |
| Product Package: | Pallet | Specifications: | 50mm, 75mm,100mm,200mm |
| Place of Origin: | Hengshui | Port: | TIANJIN |
Product Features

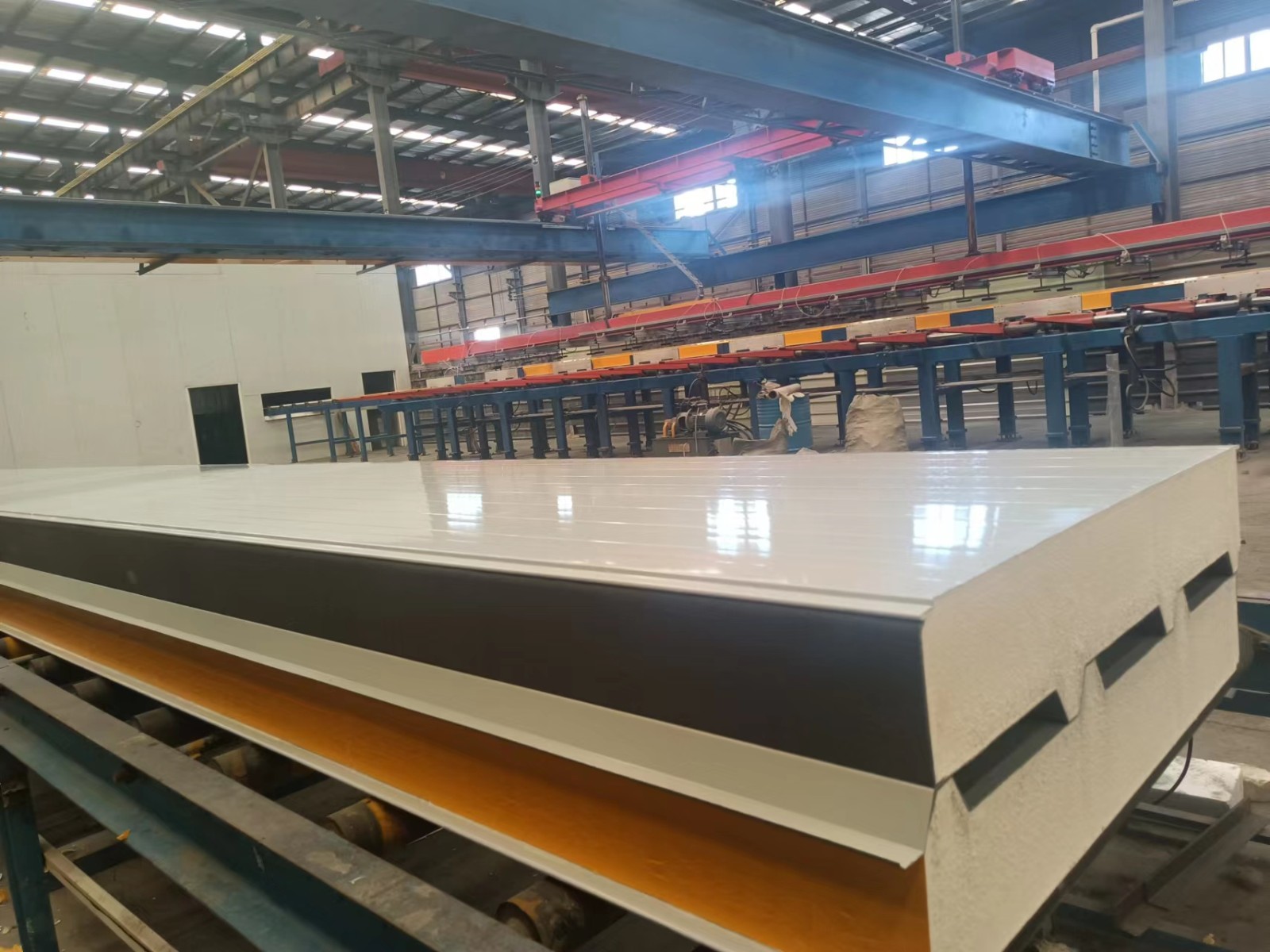

The concave convex groove structure improves the insulation and air tightness of the plate joints, which is specially designed for cold storage
Application
pu cold room panel is widely used in food, supermarkets, hotels, aquatic products, pharmaceutical, biological, chemical, industrial and mining enterprises and other industries. It can be customized according to customer requirements and library features, the constant pursuit of excellence, has the ability to meet the special requirements of customers, to win customer satisfaction.
ITEM | SPECIFICATION | |||
Product Name | Cold storage panel/cold room panel/cooler panel | |||
Structure | PPGI + Polyurethane foam + PPGI | |||
Effective | 1000mm | |||
Panel Thickness | 50mm、75mm、100mm、120mm、150mm、200mm | |||
Length | Generally 1-11.9m，according to the design,transportation or installation conditions | |||
Core material | Rigid polyurethane foam | |||
Density | 40-45kg/m3 | |||
Thickness of steel | 0.3-0.8mm | |||
Color | Blue、White Grey and other colors in RAL | |||
Thermal | 0.023% W/(m·K)Maximum | |||
Enclosed rate | 95% Maximum | |||
Flame resistance | Gread B | |||
Usage life | Over 20 years | |||
The technical specification of cold storage sandwich panel | ||||
Thickness range | Temperature difference between inside and outside | Height of wall panel | Lenght of roof panel | Applicable cold storage temperature |
mm | ℃ | m | m | ℃ |
100 | 30 | 5 | 4.45 | -15 |
125 | 35 | 5.5 | 5.2 | -20 |
150 | 50 | 6 | 5.85 | -25 |
175 | 65 | 6.5 | 6.3 | -30 |
200 | 75 | 7 | 6.8 | -40 |
| ·The data shown in the left table are only avialiable for the panel which subjectto the internal-external pressure difference and contraction pressure,without wind load.if the specified length/height is exceeded or wind load occurs,panel supporters are required. | ||||
| ·The above data are calculated according to the heat flow of 8-10W/m2. | ||||
| Contact Name: | Mrs Tracy Shi | Contact Email: | hc****d@aliyun.com |
| Contact Job Title: | Director | Contact Mob: | 137***703 |
| Contact Tel: | Contact Fax: | ||
| Address: | Yunhe New District, Fucheng Economic Development Zone, Hengshui City, Hebei Provice, China | Website: | www.hcbybuild.com |
Huacheng BoYuan Hebei Building Materials Technology Co.,Ltd is a comprehensive industrial company integrating research and development,manufacturing and sale as well as installation.
The main products and service: New type polyurethane composite panel, new type rock/glass wool composite panel, PU (PIR) sandwich building panel, cold storage panel, purification panel, metal curtain wall panel, profiled steel plate, Al-Mg-Mn alloy plate, environmental protection sound-absorbing panel; container house, integrated house, prefabricated house, building envelope system service; Professional construction contracting, etc.
Our products have been widely used in all of the construction industry. Such as: cold storage, animal husbandry, industrial plants, tall buildings, airports, stadiums, large-scale logistics storage, medicine, automobile, electronics and other fields, the products have reached the international leading level in production technology and use effect, and enjoy a high reputation among customers.
The machine is the most advanced Zhejiang Seiko production line in China, with a crawler length 33m, Foaming system is the most advanced OMS automatic foaming system imported in the world
The company adheres to the enterprise spirit of "integrity, innovation, growth and efficiency" and actively develops the market. With advanced technology, considerate service, efficient management and as the goal, constantly realize the innovation of technology and management
