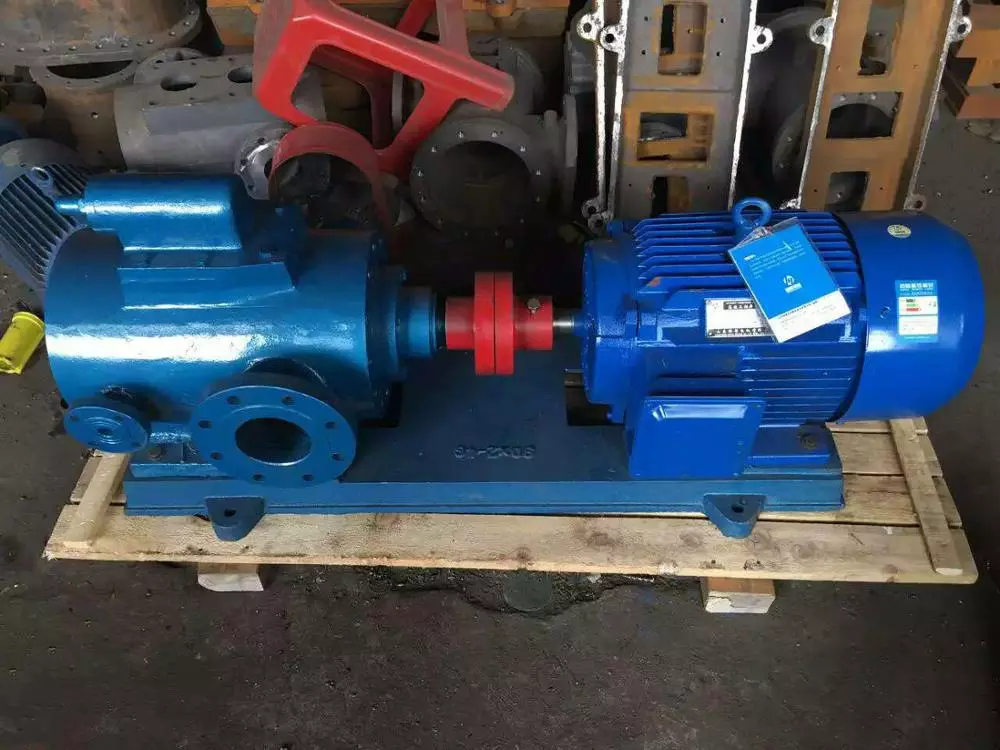

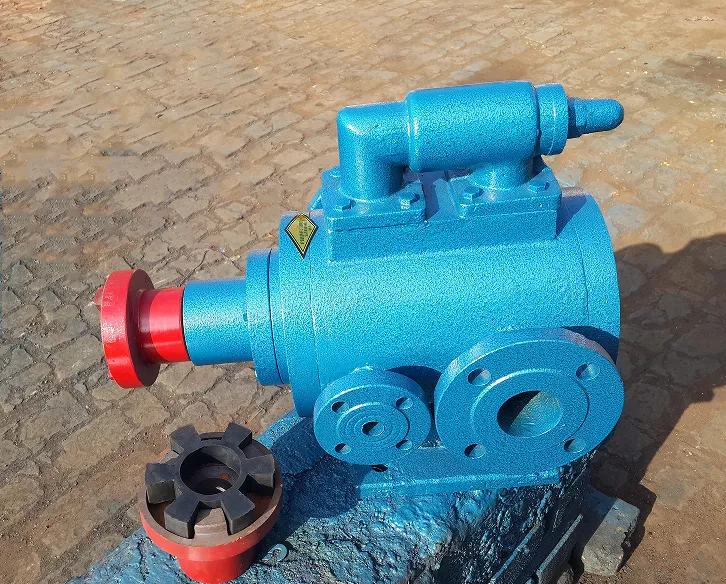

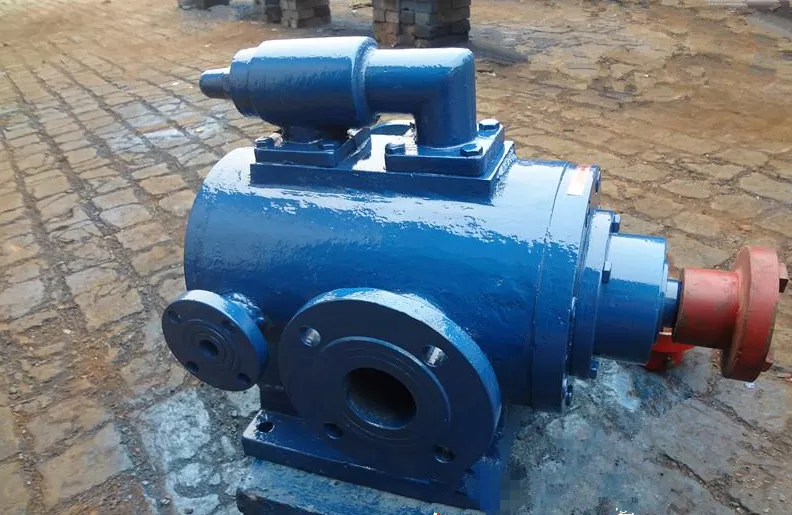

3GQB three screw oil pump asphalt heating hot oil pump crude oil Jacketed three screw pump

Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 500.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union Money Gram Others

Keywords:Jacketed three screw pump asphalt heating hot oil pump 3GQB three screw oil pump asphalt heating hot oil pump

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Valves & Pumps & Compressors Trademark: YUANHAN
Product Package: Standard wooden packing Specifications: 3QGB45X3-36 to 3QGB160x2-46
Place of Origin: MADE IN CHINA Port: TIANJIN, SHANGHAI, QINGDAO, GUANGZHOU

Products Description

3QGB  three screw oil pump asphalt heating hot oil pump is rotor type positive displacement pump, it is to use screw meshing principle, rely on the rotation of the screw in the pump set inside mesh with each other, the conveying medium closed in the gear cavity, along the screw axial continuous uniform to push to the outlet for the system to provide the stable pressure.


Performance scope

1.Capacity:2.5-240m3/h ;

2.Pressure:0.6-2.5mpa;

3.Motor power:1.1-90kw ;

4.Temperature:-20-300degree ;

5.Speed:950-1450rpm ;

6.Visoscity:3-10000cSt;

7.Material:cast steel;

Features

1 Medium is delivered continuously without agitation and pulsation;

2 Small vibration and low noise;

3  High pressure and high efficiency;

4  Simple structure and easy assemble;

5  Small volume and light weight;

6  Wearable and long life;

Application scope

1. Petroleum industry;

2. Electric power industry;

3. Chemicaindustry;

4. Shipbuilding industry;

5. Metallurgy industry;

6. Glass industry;

7. Machinery industry;

8. Machine industry;

Construction

The pumps are sealed generally by mechanical seal and driven by the motor through the claw couping;

The driving and driven screw : 16MnCrS5,40Cr,45,38CrMoAl;

Pump casing : HT200,QT450--10,ZCuSn10P1,ZG270--500;

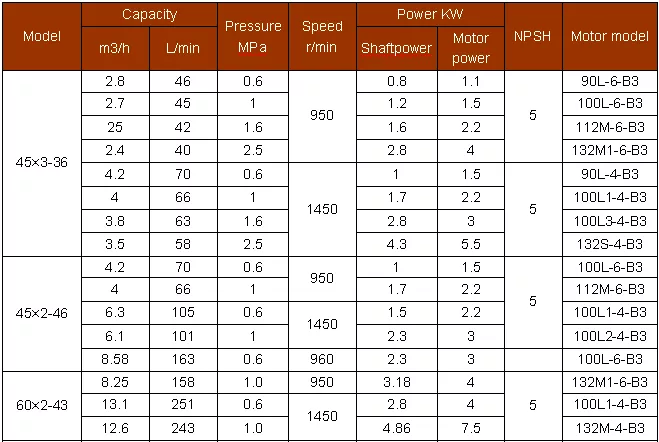

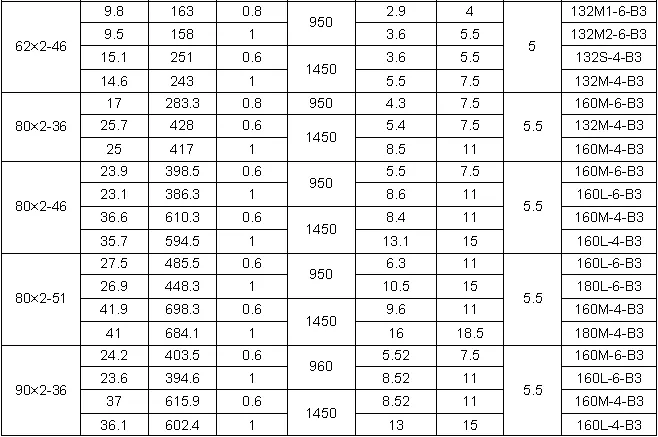

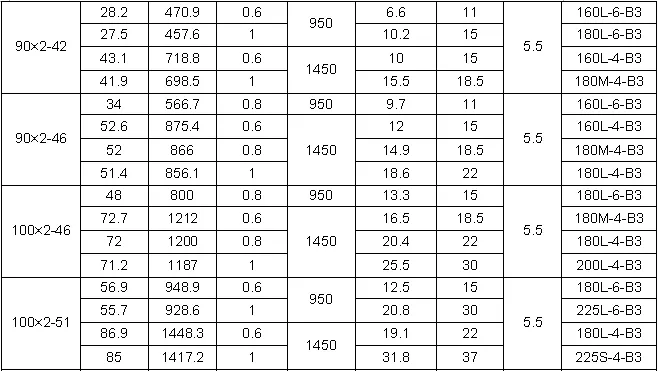

Data sheet(part of parameters)
