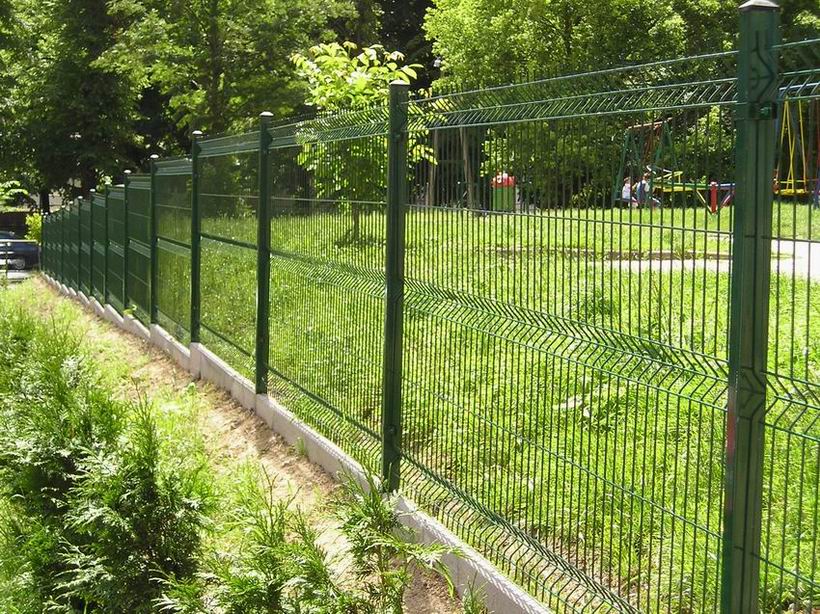

Mesh panel systems are recommended for low to high security fencing requirements, and offer a very strong and attractive perimeter solution.A rigid panel system with integrated profiled beams, the V Mesh fencing system is supplied complete with the corresponding fence posts and necessary fixings. The V Mesh fencing system has been designed to add an aesthetic appeal to our mesh fencing product range, a  high performance system complete with excellent appearance.

3D mesh panel systems are constructed to feature galvanised horizontal and vertical rods 5mm in diameter and resistance welded at the intersection points to form a 200mm x 50mm mesh pattern. The construction produces a modern and attractive appearance which is ideally suited for most boundary and general security fencing applications.

Additional rigidity is provided by pressed'V'beams formed horizontally in the panel.

Panels are available in three heights and have a 30mm high barbed top on one edge of the panel.

Advantage

Double horizontal wires

The quality is the result of high grade raw materials and meticulous processing

Extremely high resistance to vandalism combined with excellent visibility through the fence

A long service life with little or no maintenance required is its best feature

Product Application

It is often used in

Sports pitches

Airport

Commercial sites

Schools

Railway Stations & Airports

Kindergartens

Residential areas

Materials

It used galvanised steel wire general standard 4mm,5mm

Post use galvanised tube(standard 60×40mm,60×60mm,80×60mm)

Fixing:40×5mm clamp strip or metal clamp

Surface:Hot dipped galvanised,or galvanised then Powder coating fininshed,color as your requirement.

Specification:

Mesh size:200mm x 50mm(General standard),also we can do 100mm x 50mm,150mm x50mm,etc

Width: 2500mm,3000mm as standard Height:It available in 1.2mtr high, 1.8mtr high, 2.0mtr high, 2.4mtr high and 3.0mtr high formats as standard.

Wire Diameter:4mm,5mm as st
