Basalt Fiber Direct Roving
Metallurgy,Chemicals & Energy Composite Materials
MOQ:100 KG
Payment Method : L/C T/T Paypal
Keywords:Basalt Fiber Basalt Fiber roving Basalt Fiber direct roving
| Product Category: | Metallurgy,Chemicals & Energy > Composite Materials | Trademark: | BEIHAI |
| Product Package: | carton & pallet | Specifications: | 500-2400tex |
| Place of Origin: | CHINA | Port: | Shanghai |

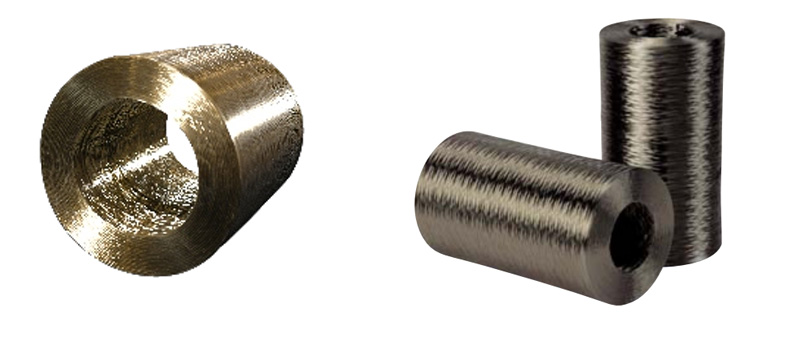

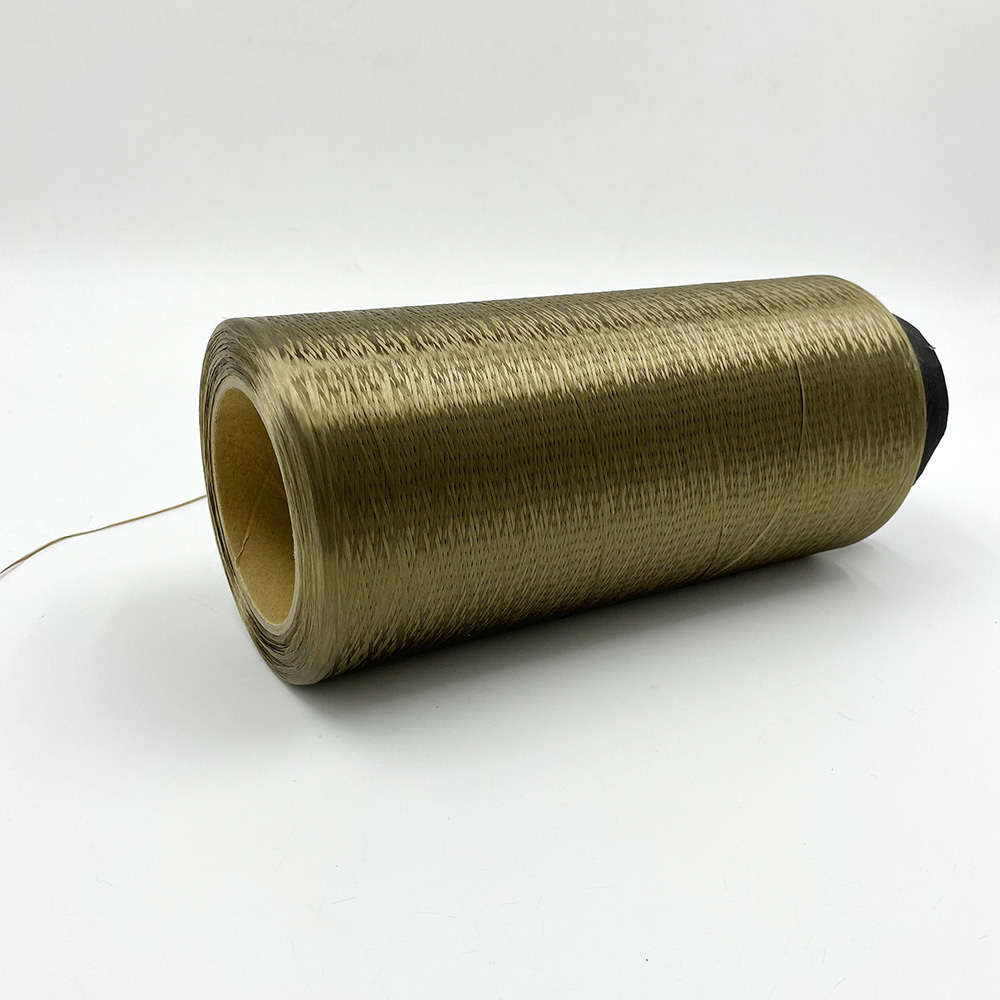

It is a basalt direct roving, which is coated with a silane-based sizing compatible with UR ER VE resins. It is designed for filament winding, pultrusion and weaving applications and is suitable for use in pipes, pressure vessels and profile.
PRODUCT CHARACTERISTICS
Excellent mechanical property of composite products.
Excellent chemical corrosion resistance.
Good processing properties, low fuzz.
Fast and complete wet-out.
Multi-resin compatibility.
DATA PARAMETER
Item | 101.Q1.13-2400-A | ||||||
Type of Size | Silane | ||||||
Size Code | Ql | ||||||
Typical Linear Density (tex) | 500 | 200 | 600 | 700 | 400 | 1600 | 1200 |
| 300 | 1200 | 1400 | 800 | 2400 | |||
Filament (μm) | 15 | 16 | 16 | 17 | 18 | 18 | 22 |
TECHNICAL PARAMETERS
Linear Density (%) | Moisture Content (%) | Size Content (%) | Breaking Strenth(N/Tex) |
ISO1889 | ISO 3344 | ISO 1887 | ISO 3341 |
±5 | <0.10 | 0.60±0.15 | ≥0.45(22μm) ≥0.55(16-18μm) ≥0.60(<16μm) |

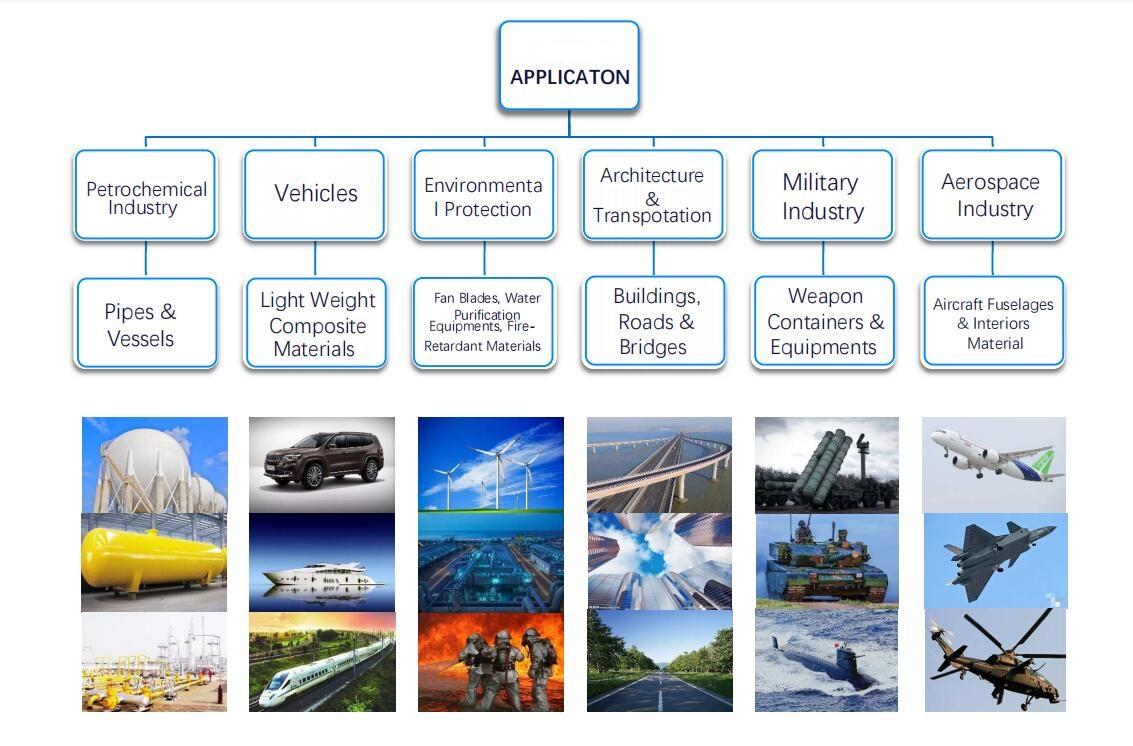

Application Fields:Winding and pultrusioning all kinds of pipes, cans, bars, profiles; Weaving various square cloth, gicdloth, single cloth, geotextile, grille; Composite reinforced materials, etc
- Winding of all kinds of pipes, tanks and gas cylinders
- Weaving of all kinds of squares, meshes and geotextiles
- Repair and reinforcement in building structures
- Short cut fibres for high temperature resistant Sheet Molding Compounds (SMC), Block Molding Compounds (BMC) and DMC
- Substrates for thermoplastic composites
