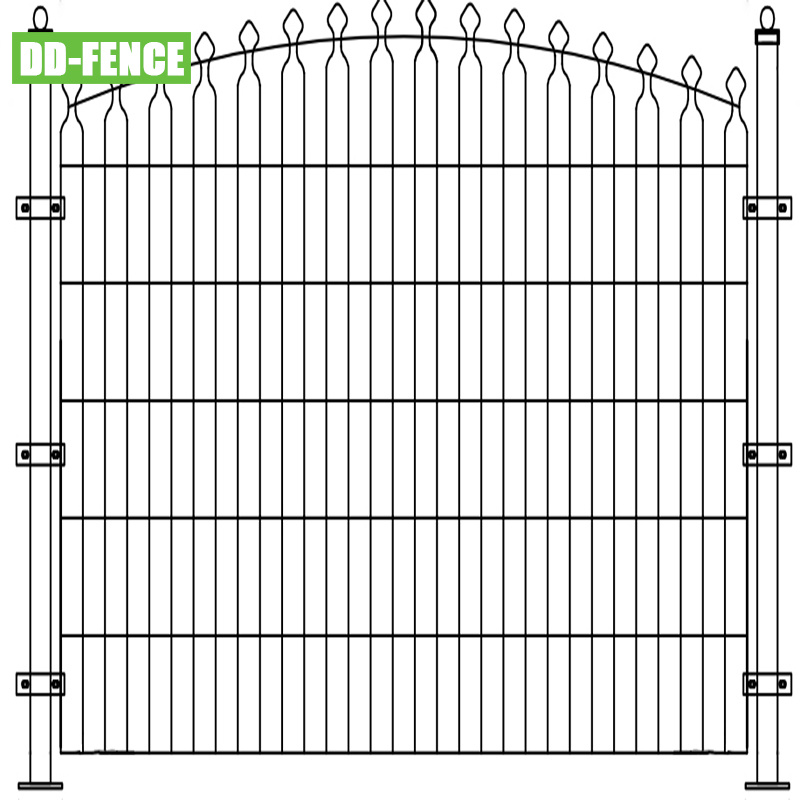

Double Wire Fence Sports / Docorative 868 / 656 Fence

Decorative Mesh Fence has a diamond-shaped decorative top,it is recommended for professional fencing of sites where both rigidity and an attractive design required:residential buildings,garden, factory,villa, road diver,parks,schools,public buildings,swimming pools, pedestrian fence, etc...

1. Panel:

The panels are made of heavy duty and strong wires,

horizontal double wires 8mm and vertical 6mm.

Or

horizontal double wires 6mm and vertical 5mm.

wide: from 2.0-2.5m

height:1080mm,1280mm,1480mm,1680mm,1880mm 2030mm 3030mm .

The mesh size is 200x65mm. / 200x50mm

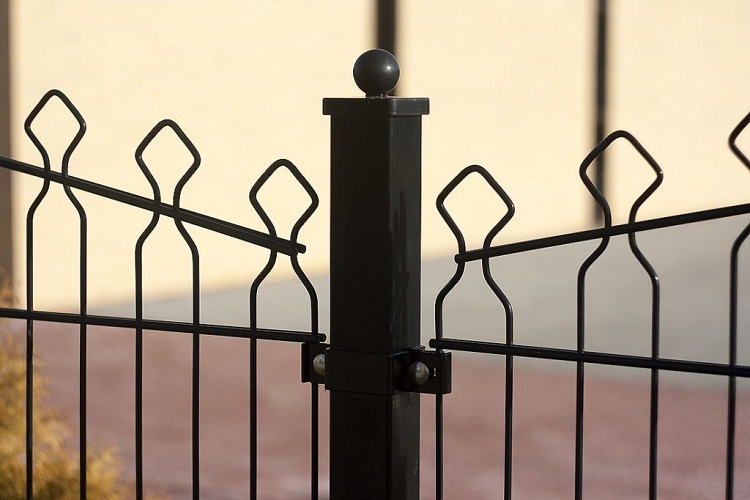

2. Post:

The post comes in square section pipe in 60x60mm, thickness be 1.5mm or 2.0mm. for a decorative design, the post are supplied with metal cap with a ball. fixing the panels to post using a metal clamp with security bolt in stainless steel 304 with anti theft nut. the post can be installed into ground or on ground with a base plate.

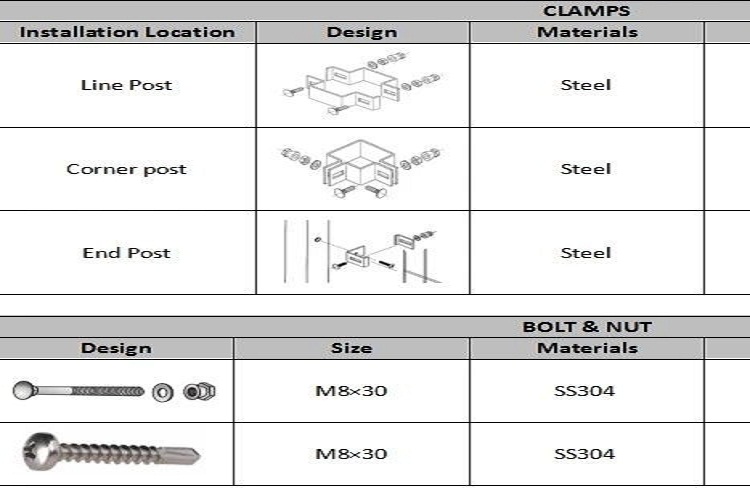

3. Accessories:

fixing the panels to post using a metal clamp with security bolt in stainless steel 304 with anti theft nut. the post can be installed into ground or on ground with a base plate.

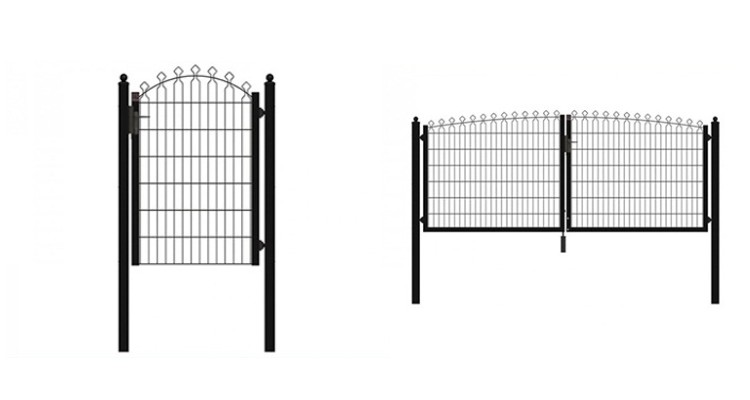

4. Gates:

The decorative mesh fence is totally finished with single swing gate and double swing gate.

5. Coating process:

The panels,posts and gates are first galvanized. afterwards polyester powder coating. the coating thickess is 80um to 120um.

6. Colors

The standard color available in black RAL9005,white RAL 9010 and green RAL6005.other colors on request.

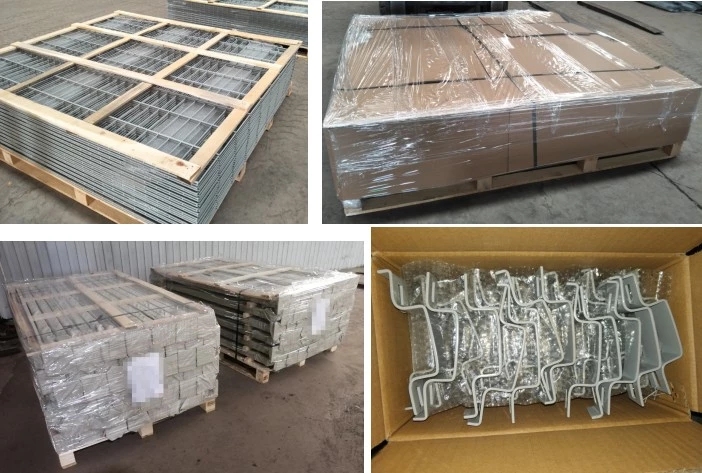

7. Packing

Panels - Metal pallet wrapped with cardboard plate and then wrapped with plastic film;

Posts - Wrapped with PP bags, then put on pallet, wrapped with plastic film;

Accessories - Carton box;

Customized packing is also available.
