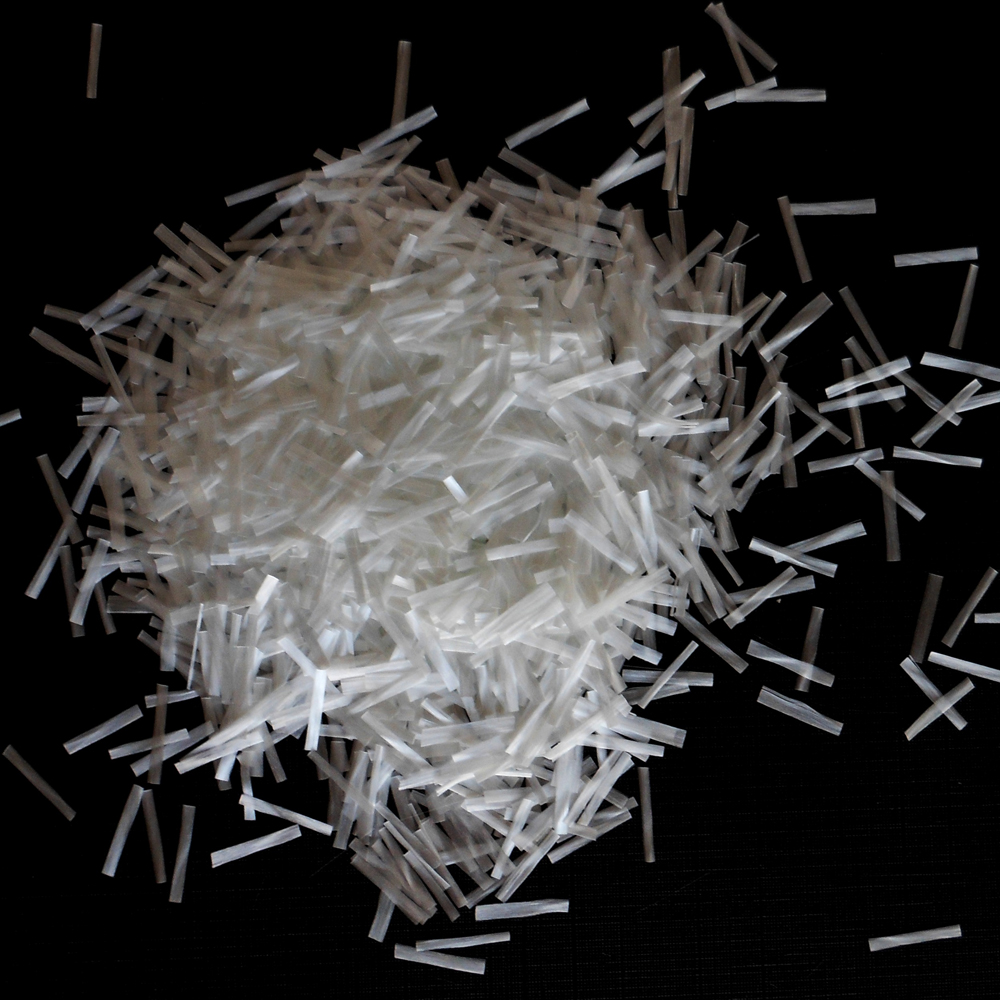

E glass fiberglass chopped strands for Thermoplastics
Metallurgy,Chemicals & Energy Composite Materials
MOQ:1 Ton(s)
Payment Method : L/C T/T Western Union Paypal
Keywords:cs Thermoplastics Chopped Glass Fiber Chopped Strands for PP PA Chopped fiber 3mm 4.5mm Chopped Strand Fiberglass
| Product Category: | Metallurgy,Chemicals & Energy > Composite Materials | Trademark: | BEIHAI |
| Product Package: | Bulk bag then in pallet | Specifications: | 3/4.5/6mm length,10/11/13UM diamter |
| Place of Origin: | CHINA | Port: | SHANGHAI |
Chopped Strands for Thermoplastic are based on silane coupling agent and special sizing formulation, compatible with PA,PBT/PET, PP, AS/ABS, PC, PPS/PPO,POM, LCP.
E-Glass Chopped Stands for thermoplastic are know for excellent strand integrity, superior flowability and processing property, delivering excellent mechanical property and high surface quality to its finished product.
Product Features
1.Silane-based coupling agent which delivers most balanced sizing properties.
2.Special sizing formaulation which delivers good bonding between chopped strands and matrix resin
3.Excellent integrity and dry flowability, good mold ability and dispersion
4.Excellent mechanical properties and surface condition of composite products
Extrusion and Injection Processes
The reinforcements(glass fiber chopped strands) and thermoplastic resin are mixed in an extruder. After cooling, ther are chopped into reinforced thermoplatic pellets. The pellets are fed into an inject molding machine to form finished parts.
Application
E-Glass Chopped Strands for Thermoplastics are mainly used in injection and compression molding processes and its typical end-use applications include automotive, home appliance, valves, pump housings, chemical corrosion resistance and sports apparatus.
Product List:
Item No. | Chop Length,mm | Features |
BH-01 | 3,4.5 | Standard product |
BH-02 | 3,4.5 | Excellent product color and hydrolysis resistance |
BH-03 | 3,4.5 | Standard product, excellent mechanical properties, good color |
BH-04 | 3,4.5 | Super high impact properties, glass loading below 15 wt.% |
BH-05 | 3,4.5 | Standard product |
BH-06 | 3,4.5 | Good dispersion, white color |
BH-07 | 3,4.5 | Standard product, excellent hydrolysis resistance |
BH-08 | 3,4.5 | Standard product for PA6,PA66 |
BH-09 | 3,4.5 | Suitable for PA6, PA66, PA46, HTN and PPA, Excellent glycol resistance and super |
BH-10 | 3,4.5 | Standard product, excellent hydrolysis resistance |
BH-11 | 3,4.5 | Compatible with all resins, high strength and easy dispersion |
Identification
Type of Glass | E |
Chopped Strands | CS |
Filament Diameter, μm | 13 |
Chop Length,mm | 4.5 |
Technical Parameters
Filament Diameter (%) | Moisture Content (%) | Size Content (%) | Chop length (mm) |
±10 | ≤0.10 | 0.50 ±0.15 | ±1.0 |
