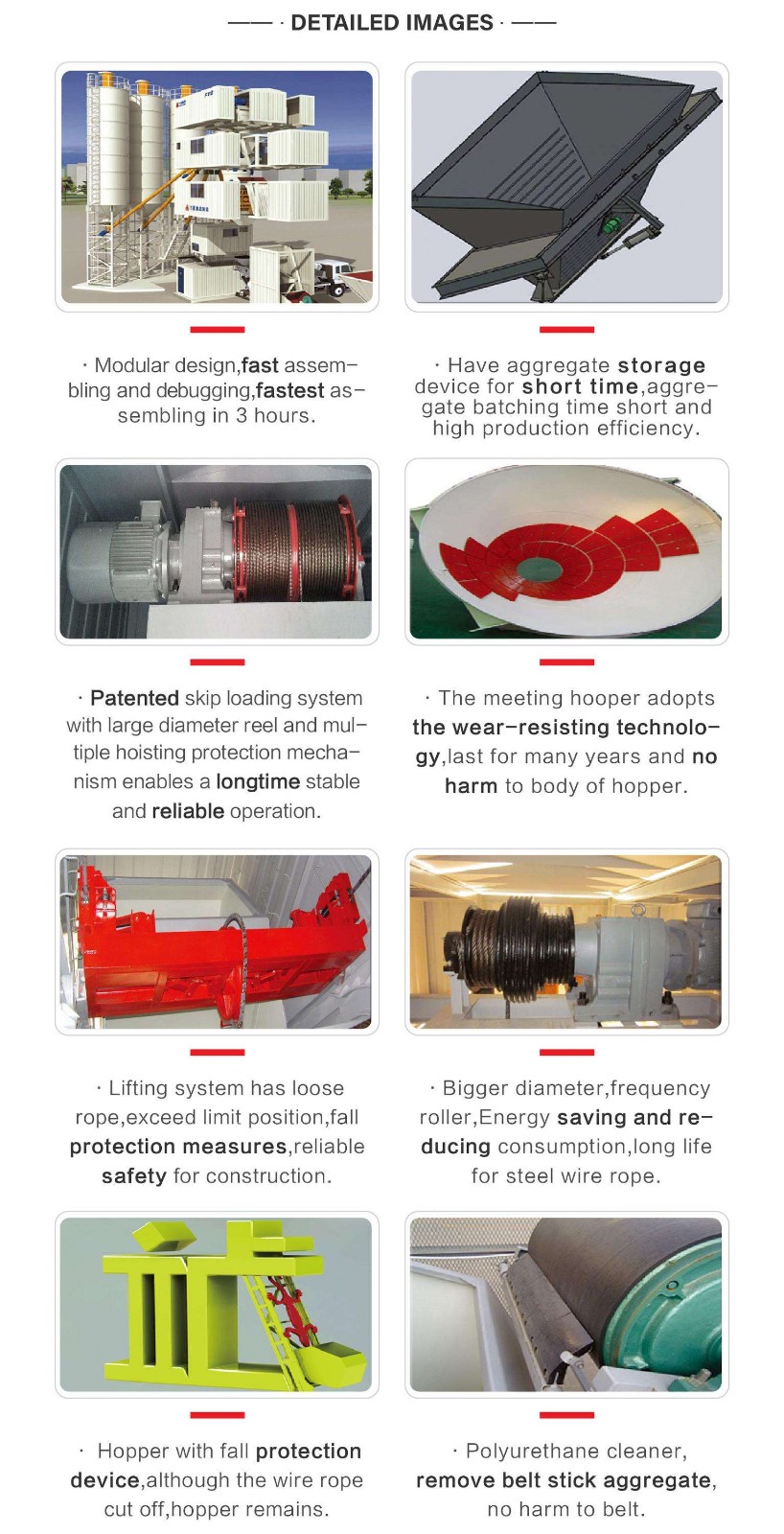

Modular container-design mixing plant with skip loading
Manufacturing & Processing Machinery Engineering & Construction Machinery
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:Concrete Machinery Concrete Mixing Plant Concrete Batching Plant construction machinery ready mixed concrete mixer Concrete Mixers concrete batcher concrete mixer machinery ready concrete mixing ready mixed concrete
| Product Category: | Manufacturing & Processing Machinery > Engineering & Construction Machinery | Trademark: | FYG |
| Product Package: | bulk | Specifications: | |
| Place of Origin: | Haiyang,Shandong | Port: | QINGDAO |
| Item | Unit | HZS50D | HZS90D | HZS120D | HZS180D | |
| Nominal output/h | m3/h | 50 | 90 | 120 | 180 | |
| Mixer charging | m3 | 1 | 1.5 | 2 | 3 | |
| Batching machine | PLD1600-III | PLD2400Q-IV | PLD3200QD-IV | PLD4800QD-IV | ||
| Aggregate storage bins charging | m3 | 7 | 15 | 20 | 20 | |
| Aggregate storage bins qty | pc | 3 | 4 | 4 | 4 | |
| Aggregate weighing capacity | kg | 2000 | 3000 | 4*2000 | 4*3000 | |
| Cement weighing capacity | kg | 600 | 1000 | 1200 | 1600 | |
| Fly-ash weighing capacity | kg | / | 300 | 400 | 600 | |
| Water weighing capacity | kg | 250 | 400 | 500 | 800 | |
| Additive weighing capacity | kg | 40 | 40 | 50 | 80 | |
| Mixer power | kw | 37 | 2*30 | 2*37 | 2*55 | |
| Belt conveyor power | kw | 15 | 18.5 | 30 | 45 | |
| Total power | kw | 80 | 120 | 150 | 190 | |
| Mixer discharge height | m | 3.8 | 3.8 | 3.8 | 3.8 | |
| Total weight | t | 24 | 42 | 51 | 62 | |
| Outline dimension(L*W*H) | m | 17.7*10.4*19.4 | 30.8*15*19.4 | 34*13.2*19.4 | 40*19*18.5 | |
| Loading | skip hoist | |||||
| Weighing accuracy | Aggregate | % | ±2 | ±2 | ±2 | ±2 |
| Powder | % | ±1 | ±1 | ±1 | ±1 | |
| Water | % | ±1 | ±1 | ±1 | ±1 | |
| Additive | % | ±1 | ±1 | ±1 | ±1 | |
| Contact Name: | Mrs Shuangyuan Zhao | Contact Email: | sy****o@china-fangyuan.com |
| Contact Job Title: | Manager | Contact Mob: | 188***923 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |
Fangyuan Group Co., Ltd. is located in Haiyang City, Jiaodong Peninsula, between the three cities of Qingdao, Yantai and Weihai. It now has 22 branch companies, and established wholly-owned production enterprises in Dortmund, Beijing and Shanghai,we also have a provincial technology center.The Group covers an area of 1.8 million square meters, with a construction area of 1 million square meters and total assets of 2.5 billion yuan.
The construction machinery products produced by Fangyuan Group include JZC, JS series concrete mixers, PLD series concrete batching machines, HBT series concrete pumps, HZS series concrete batching plants, TC series tower cranes, SC series construction elevators, and WBZ series stabilized soil mixing plants, JZL series electric pile driver, FY series concrete mixer truck,etc.
In the past few years,Fangyuan Group has successively won many honorary certificates.Taking construction technology to the next level is our mission – and that means making it cost-efficient, accurate, future-proof and connected. We are a market and technology pioneer in construction machinery. Our innovations play a role in virtually every sector of construction industry, from machines for construction material production & logistics to software solutions that pave the way for smart construction sites.
