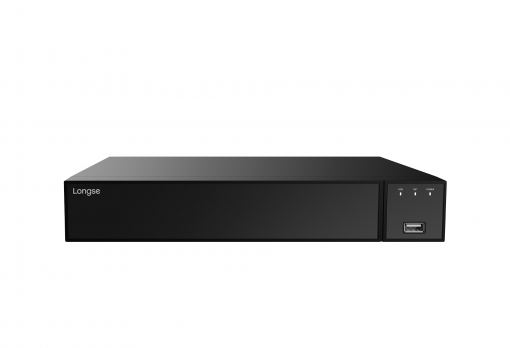

9 Channel Cellular Nvr Mobile Wireless Hd Network Video Recorder Video Surveillance System

Security, Fire & Safety CCTV Products

EXW Price:US$ 32.60 / Piece(s)

MOQ:10 Piece(s)

Payment Method : T/T Paypal

Keywords:NVR POE nvr Video Recorder Video Surveillance System

Inquire


Add to Favorites

Product Category: Security, Fire & Safety > CCTV Products Trademark: Longse
Product Package: NEUTRAL COLOR BOX Specifications: Dimension(W×D×H) 260*215*43(mm)
Place of Origin: China Port: Guangzhou

  • System

  • Video

  • Audio

  • Alarm

  • Display

  • Recording

  • Playback & Backup

  • Network

  • Storage

  • General

SPECIFICATION
Model NO.NVR3009C
System
Main Processor ARM Cortex A7 Processor
Operating SystemEmbedded LINUX
Video
Input9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output  1 VGA, 1 HD
Audio
Input1 Port RCA
Output1 Port RCA(Linear, 1kΩ)
Audio Bit Rate64kbps
Audio Compression standardG711u, G711a, ADPCM_DVI4
Intercomsupport (two-way)
Alarm
Sensor Input NO
Output  NO
Motion Detection  9 Channel, MD Zones: 396 (22 × 18)
Trigger Events Recording, Email, FTP, Snapshot, Buzzer and Screen Tips
Display
HD Output11024x768/60Hz，1280x720/60Hz，1280x1024/60Hz，1920x1080/60Hz，4K(3840x2160)/30Hz
HD Output2N/A
VGA     Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom  YES
OSDCamera Title, Time, Recording, Motion Detection, Event Alarm
Recording
Video Compression  H265/H264/H265+/H264+
Resolution  4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record Rate  PAL :4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
Record Mode Manual\Timer\Motion Detection\Smart Event
Playback & Backup
Local Sync Playback 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps
Decode Capability 4CH 1080P(1920x1080)@30fps
Remote Sync Playback YES
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup ModeUSB Device/Network
Network
Interface 1 x RJ45 (10M/100M Adaptive Ethernet Interface)
Incoming Bandwidth 80MB
Network Functions  TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif onvif S,onvif T
Web BrowserEdge,IE8-11, Google Chrome , Firefox ,Safari
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10/MAC OS
Cloud SupportYes
Smart PhoneiPhone, iPad, Android, Android Pad
POE  N/A
WIFI  UIN/A
Storage
Interface Type  1 SATA Hard Disk Interface (3.5" SATA)
Capacity Up to 8TB capacity
eSATAN/A
General
Language  UITraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese,Janpanese
USB Interface 2 USB 2.0 Interfaces
RS485 1port
Power Supply DC12V 2A
Working Environment-10~55℃/10~90%
Dimension(W×D×H)260*215*43(mm)
Weight2kg(without HDD)


Contact Name: Mrs Mia Tang Contact Email: mi****a@longse.com
Contact Job Title: Commercial Manager Contact Mob: 135***517
Contact Tel: +86 20 66217333 Contact Fax: +86 20 66217338
Address: No.18, Dongming 3rd, Huangpu District, Guangzhou, Guangdong, China (510535) Website: https://www.longse.com/

Longse Technology Limited is a provider of IoT products and solutions with video as the core. We employ more than 700 people worldwide, of which R&D personnel and technical service personnel account for more than 18.5%. And our R&D investment accounts for about 6% of annual sales. Longse focuses on comprehensive security and smart solutions. The product lines include HD Cameras, IP Cameras, Consumer Cameras, Access Control, Recorders, Accessories, Client Software and APP. Longse provides professional solutions covering all industries, such as smart city, transportation, industrial park, commercial, residential, school, etc.
