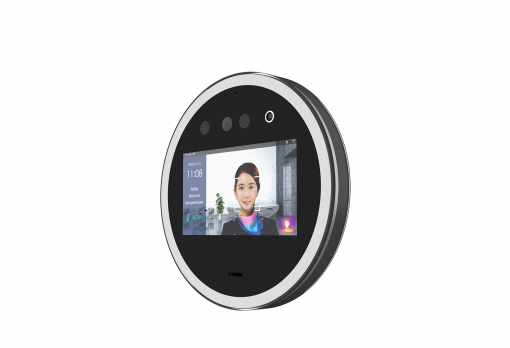

Face Recognition and Access Control Attendance Panel FK03AYW

Security, Fire & Safety Surveillance & Access Control

EXW Price:US$ 140.00 / Piece(s)

MOQ:10 Piece(s)

Payment Method : T/T Paypal

Keywords:Facial Recognition System  Attendance System Standalone Access Controller Access Control

Inquire


Add to Favorites

Product Category: Security, Fire & Safety > Surveillance & Access Control Trademark: Longse
Product Package: NEUTRAL COLOR BOX Specifications: 241×202×104mm
Place of Origin: China Port: GUANGZHOU

  • System

  • Screen

  • Camera

  • Camera

  • Body temperature detection

  • Face recognition

  • Network Functions

  • Accessories

  • Interface

  • General

SPECIFICATION
Model NO.FK03AYW
System
Main ProcessorSV806
Operating SystemEmbedded LINUX
RAMDDR3 256MB
ROMEMMC 4GB
Screen
Dimensions5 inch IPS HD LCD screen
Resolution1280*720
Camera
Type2MP  camera
Sensor1/5"  GC2145
ResolutionNIR 800*600 15fps
Lens2.28mm
Camera
TypeDaily camera
Sensor1/2.8" SONY Starvis Back-illuminated CMOS sensor IMX307
ResolutionColor 1920*1080 30fps
Lens4.3mm
Body temperature detection
Temperature measuring distance0.5m~0.75m
Temperature range35℃-42℃
Temperature measurement time＜2s
Temperature measurement accuracy± 0.3℃
Measuring Environment8 ° C ~ 33 ° C
Face recognition
Detection TypeSupport face recognition, face comparison, mask detection, living body detection, mask recognition
Face recognition accuracy0.995
Face recognition distance0.5~2m
Face database capacityMax support 2,000 faces
Face PostureHorizontal less than 67°, vertical less than 40°
OcclusionOrdinary glasses and short fringe have no effect on recognition.
ExpressionUnder normal circumstances, slight expressions do not affect recognition.
Response SpeedAbout 200ms
Face exposureSupport
Local StorageSupport storage of 5,000 records
Recognition areaFull screen recognition
Upload MethodTCP, HTTP,  MQTT
Network Functions
Network protocolIPv4, TCP/IP, HTTP, MQTT
Interface protocolPrivate protocol
Security ModeAuthorized  password
Event linkageVoice broadcast, Abnormal event upload to the platform, Alarm output
System UpgradeSupport remote upgrade
Accessories
Supplementary lightIR light, LED white light
Identification Module/
Audio InSupport Internal MIC (Developing)
Audio OutBuilt in Speaker support voice broadcast after successful recognition
Network Module/
Wi-Fi2.4G/5.8G Dual frequency, IEEE 802.11b/g/n, IEEE802.11a/ac
Bluetooth/
Temperature SensorHeimann32*32
Alarm Indicator LightAbnormal red light, Normal green light
Interface
Network InterfaceRJ45 10M/100M Network Adaptation
Alarm Input/
Alarm Output/
Relay OutputSupport, NO, NC, COM
RS485 interfaceSupport
Wiegand interfaceSupport external Wiegand protocol equipment
TF card slot/
HDMI/
Reset keySupport
Anti-disassembly switch/
General
HousingPlastic (PC+ABS), Aluminum alloy, Glass
Operating Temperature8 ° C ~ 33 ° C
Working humidity10% -90% Non-condensing
Storage Temperature -20 ° C ~ 70 ° C
Storage humidity5% -95% Non-condensing
Protection Level/
Power SupplyDC12V, 1A
Power dissipation (maximum)≤ 12 W
Dimensions (mm)φ167*18.3mm
Bracket TypeWall Mounting & Desktop
Product weight (including packaging)1.2Kgs
Packing size (mm)241×202×104mm
Installation MethodDesktop installation/Doorpost installation/Wall installation
