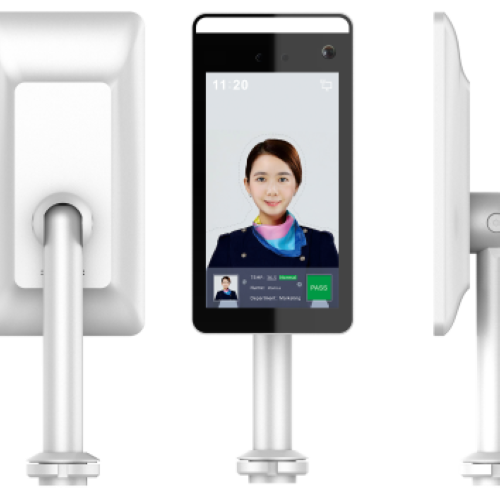

Face Recognition and Access Control Panel FK02GY

Security, Fire & Safety Surveillance & Access Control

EXW Price:US$ 130.00 / Piece(s)

MOQ:10 Piece(s)

Payment Method : T/T Paypal

Keywords:Access Control Panel Face Recognition AI access control

Inquire


Add to Favorites

Product Category: Security, Fire & Safety > Surveillance & Access Control Trademark: Longse
Product Package: NEUTRAL COLOR BOX Specifications: 220 (W) * 112 (H) * 24 (T)
Place of Origin: China Port: guangzhou

  • System

  • Screen

  • Camera

  • Camera

  • Face recognition

  • Network Functions

  • Accessories

  • Interface

  • General

SPECIFICATION
Model NO.FK02GY
System
Main ProcessorSV810
Operating SystemEmbedded LINUX
RAMDDR3 512MB
ROMEMMC 8GB
Screen
Dimensions7 inch IPS HD LCD screen
Resolution600*1024
Camera
Type2MP  camera
Sensor1/2.9"  GC2053
ResolutionNIR 800*600 15fps
Lens4.51mm
Camera
TypeDaily camera
Sensor1/2.9" GC2093
ResolutionColor 1920*1080 30fps
Lens4.51mm
Face recognition
Detection TypeMask detection only
Face Recognition Distance0.5-2m
Face database CapacityMax support 30,000 faces
Recognition AngleVertical  61°, Horizontal  36°
OcclusionOrdinary glasses and short fringe have no effect on recognition.
ExpressionUnder normal circumstances, slight expressions do not affect recognition.
Response SpeedAbout 200ms
Face ExposureSupport
Local StorageSupport storage of 25,000 records
Recognition AreaFull screen recognition
Upload MethodTCP, HTTP,  MQTT
Network Functions
Network ProtocolIPv4, TCP/IP, HTTP, HTTPS, MQTT, RTSP, SMTP, NTP, Onvif
Interface ProtocolPrivate protocol
Security ModeAuthorized  password
Event LinkageVoice broadcast, Abnormal event upload to the platform, Alarm Output
System UpgradeSupport remote upgrade
Accessories
Supplementary LightIR light, LED white light
Identification Module/
Audio OutBuilt in Speaker support voice broadcast after successful recognition
Network Module/
Interface
Network InterfaceRJ45 10M/100M Network Adaptation
Alarm Input/
Alarm OutputSupport 1 channel
Relay OutputSupport
RS485 InterfaceSupport(Reserved interface, no peripheral devices are  supported currently)
Wiegand InterfaceSupport Wiegand 26, 34 protocols
USB1*USB 2.0
TTL Serial TTL DC 3.3V
TF Card Slot/
HDMI/
Reset keySupport
Anti-disassembly Switch/
General
HousingAluminum alloy, Ultra-white tempered glass panel,  IP66
Operating Temperature -10℃~50℃
Working Humidity10% -90% Non-condensing
Storage Temperature -40 ° C ~ 70 ° C
Storage Humidity5% -95% Non-condensing
Protection Level/
Power SupplyDC12V
Power Dissipation (maximum)≤ 8 W
Dimensions (mm)220 (W) * 112 (H) * 24 (T)
Bracket size (mm)φ50x188.5(Installation hole diameter φ33)
Installation MethodDesktop installation/Floor  installation/Gate machine installation/Column installation/Wall installation


*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
