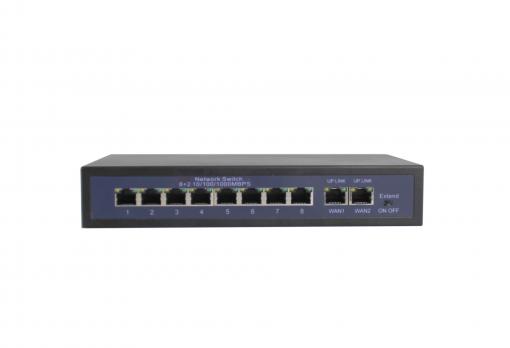

HT812 8-PORT POE SWITCH

Security, Fire & Safety CCTV Products

EXW Price:US$ 35.40 / Piece(s)

MOQ:10 Piece(s)

Payment Method : T/T Paypal

Keywords:POE SWITCH CCTV Accessories

Inquire


Add to Favorites

Product Category: Security, Fire & Safety > CCTV Products Trademark: /
Product Package: box Specifications: Dimension (L x W x H) mm 220*140*40
Place of Origin: China Port: guangzhou

  • IEEE802.3u/100BASE-TX

  • IEEE802.3x Flow Control, IEEE802.3az

  • When accessing Ethernet, ports 1-8 are yellow

SPECIFICATION
ModelHT812
PowerPower Adapter VoltageInput：110-240V/AC 50-60Hz
The maximum power supply machine120W
Protection levelMould +-4KV
Differential mode +-1KV
Network ConnectorNetwork Port1~8 port: :10/100Mbps PoE Ethernet LAN port
WAN1/WAN2 port : 10/100/1000Mbps Ethernet WAN port
Transmission DistanceExtend switch is default OFF, state(1~8 port)：100m
Extend switch is ON, state:(1~8 port:): 200m
WAN1/WAN2 port: 100m
Transmission MediumCat5/5e/6 standard network cable
Network SwitchNetwork StandardIEEE802.3/10BASE-T
IEEE802.3u/100BASE-TX
IEEE802.3x Flow Control, IEEE802.3az
Maximum Frame Size1536 Bytes
MAC address lis2K
Backplane bandwidth2Gbps
PoE StandardIEEE802.3af/at
Power Over EthernetPoE Power Supply Type End-Span(4/5+;7/8-)
PoE Power Consumptionaf,at Adaptive (every port)
LED Status IndicatorPoE Ethernet When the PoE is powered, 1-8 LEDs are green
When accessing Ethernet, ports 1-8 are yellow
EnvironmentalWorking temperature0℃~55℃
Storage temperature -40℃~70℃
Working humidity10%-90% non-condensing
Storage humidity5%-95% non-condensing
MechanicalDimension (L x W x H) mm220*140*40
Weight1.4KG
MaterialSECC
ColorDark grey
StabilityMTBF>30000h


*Product performance is based on testing in a controlled environment. Your results may vary due to several external and
