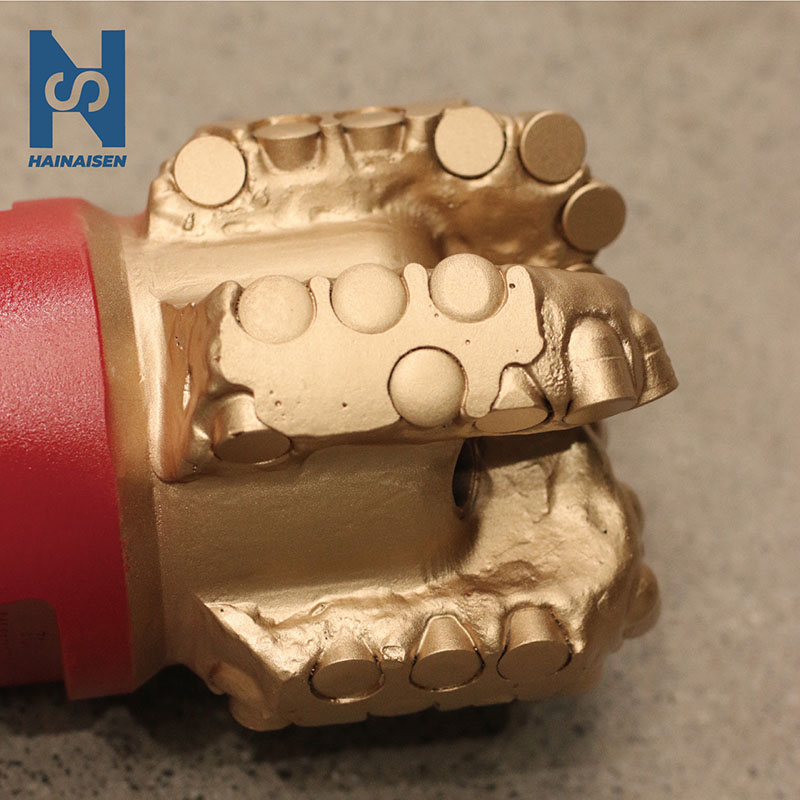

PRODUCT SPECIFICATIONS
Size	4- 5/8 inch (Φ118mm)
Model number	118HS3532SA
Body type	High Manganese Steel
Number of blade	5
Primary PDC cutter size	1308
Number of nozzle	5
Diameter of nozzle	12 mm
Gauge length	34.67 mm
API connection	API 2-7/8 REG
Make-Up Torque(KN.m)	8.2~9.5(2.09)KN·m(Mpa)
Suitable formation	Abrasive formation
Weight On Bit(WOB)	4-16 T
Rotary Speed(RPM)	60-240r/min
Application	Oil & Nature Gas
Quality	High Level
Package	Iron Case
MOQ	1 Piece
Certificate	ISO 9001
OEM	Yes
Customized Size	Yes

Characteristics:

1. The crown surface of the bits is long cast surface which is suitable for abrasive formation.

2. The conical surface is shallow, so the bit has good orientation,good cleaning effect and strong aggressivity.

3. The relatively short gauge length can reduce the torque due to the contact between the bits and the well wall. The gauge area has been reduced and contact force of the gauge surface has been increased. The design can enhance the lateral cutting force of the bits which helps the control of the well deviation. The gauge surface is inset by single-row PDC cutters gauge teeth in order to improve abrasive resistance.

4. The exposed PDC cutter is welded at the bottom of the gauge surface,which prevents the bit from being sticked when it is lifted.
