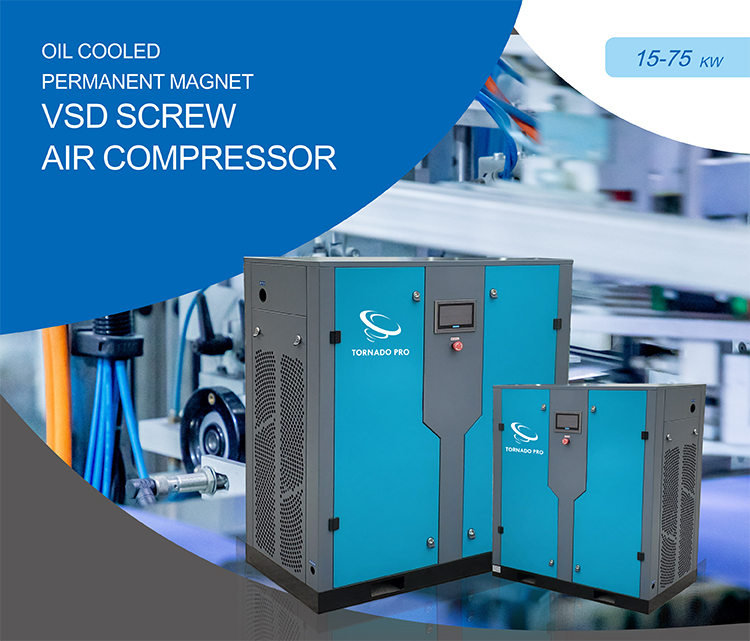

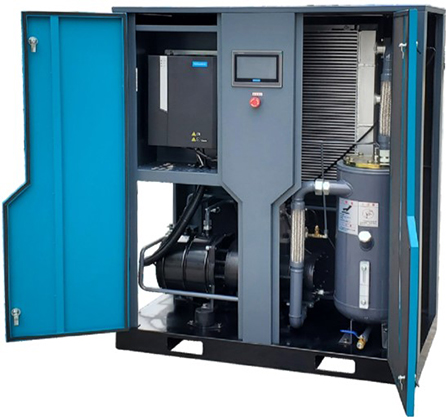

Olymtech Rotary VSD Air Compressor with CE Quality Frequency Oil Injected Screw Air Compressor

Manufacturing & Processing Machinery General Industrial Equipment

FOB Price:US$ 2,490.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Others

Keywords:Industrial Air Compressor Screw Air Compressor Air Compressor Air Compressor Screw Type 75KW Compressor Oil-Cooled Air Compressor VSD PM Motor Compressor

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > General Industrial Equipment Trademark: OLYMTECH
Product Package: Plywood case package or air column package Specifications: 15KW-75KW
Place of Origin: GUANGDONG Port: GUANGZHOU,CHINA
 WHY ENERGY EFFICIENCY

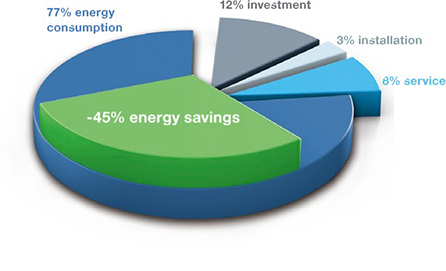

Energy costs represent about 77% of the total operating cost of your compressor. That is Why e?ciently reducing the energy consumption of your compressed air installation should be a major focus.
Why VSD (variable speed)?
As a majority of customers have a variable demand for compressed air, a variable speed compressor is superior VS a ?xed speed compressor in terms of energy saving by perfectly matching air supply to air demand of avoiding unloading losses.

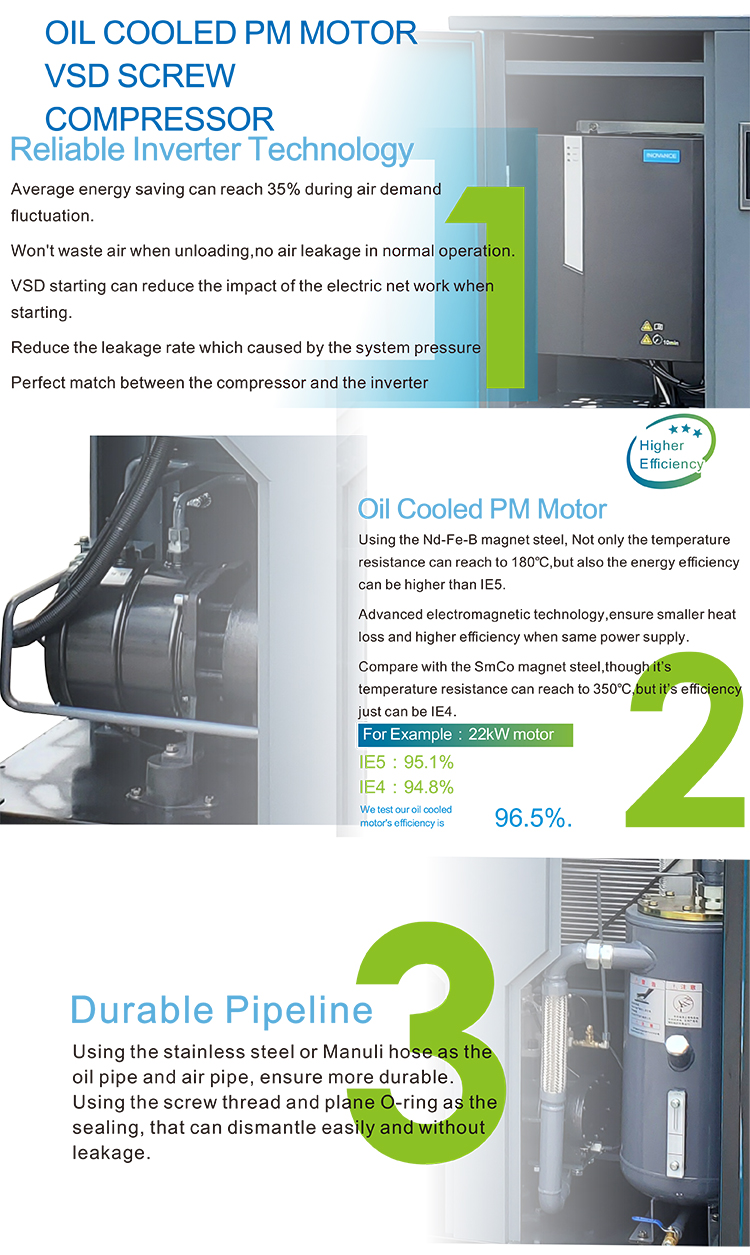

Why PM (permanent magnet motor)?
Permanent magnet is a high e?ciency motor combines our variable speed technology with our new and highly e?cient drive train, resulting in energy savings of up to 40%
 IE5 super high e?ciency oil cooled motor Temperature resistance can reach to 180℃
IE4  high e?ciency air cooled motor
 Ip65 motor protection level, suit for heavy duty factory(runs every 24 hours)
Temperature  resistance is 140℃
No fan blade, wind resistance loss is 0.
IP23 or IP54 motor protection level can be chosen
 Even in low speed, the motor cooling volume is not changed. More reliable and longer service life.
Wider adjust speed, torque suit for wider frequency setting
 Lower noise because of the motor case is wrapped by the oil.

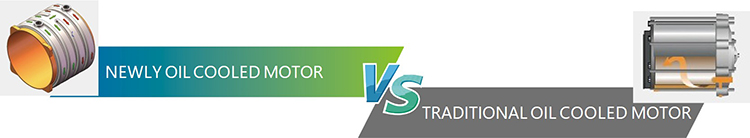

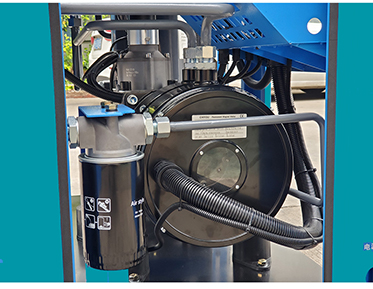

Newly Oil Cooled Motor
Traditional Oil Cooled Motor
Mould forming for the newly motor, no welding point,0 leakage risk
Need welding at the end and face of the oil passage,it will have the trachoma, deformation and oil leakage risks.
Small pressure di?erence because of the rotary oil passage.
Higher pressure di?erence, because of the small oil passage and the reciprocating oil way.
The cooling oil goes by arc shape, make sure the oil can be cooling uniformity.
Square oil passage,the oil can not ?ow in the corner,that will make the corner in higher temperature.
Easy for checking or repair.
 Internal oil passage, it’s not easy to check or repair.
Model
--
C15Y
C22Y
C37Y
Max
Working
Pressure
Bar
8
psig
116
Capacity
m3/min
2.3
3.4
6.4
Motor
Power
hp
20
30
50
kw
15
22
37
Connection
inch
G1''
G1''
G1-1/4''
Net Weight
kgs
300
360
390
Dimension
(L*W*H)
mm
1050
x600
x1125
1050
x600
x1125
1200
x650
x1500
Model
--
C55Y
C75Y
Max
Working
Pressure
Bar
8
psig
116
Capacity
m3/min
10.2
13.2
Motor
Power
hp
75
100
kw
55
75
Connection
inch
G2''
G2''
Net Weight
kgs
1000
1050
Dimension
(L*W*H)
mm
1550
x1160
x1600
1550
x1160
x1600

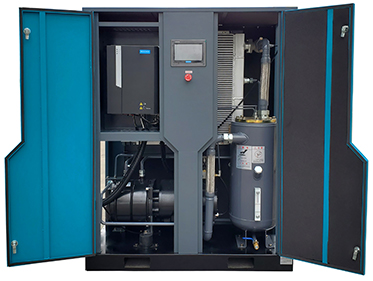

Air-end:BSL                     Motor:IP65 oil cooled permanent magnet
Inverter:Inovance          Controller:Inovance touch screen
20+ EXPERIENCE
Olymtech Technology Development Co.,Ltd is a professional manufacturer for air compressor and after treatment equipment. We have more than 20 years experience in air compressor, air dryer, air filter producting and exporting.
PROFESSIONAL MANUFACTORY
Our factory is located in Guangdong China, we have research and develop center,advanced processing equipment,professional technicians, rich experience workers and after-sales team to offer good quality products and good service to our customers.
00:00
02:08
Packing & Delivery
Recommend Products
Recommended by seller

TOP 15kw/22kw/16bar all in one laster cutting machine air compressor for sales air compressors compressor air-compressor

$985.00 - $5,689.00 / case

1.0 case

7.5kw 15kw 22kw 37kw energy saving low price low noise stable screw air compressor industrial comressors

$1,000.00 - $3,587.00 / case

1.0 case

7.5KW 11KW 15KW 22KW 37KW 45KW 55KW 75KW 90KW permanent magnet VSD energy saving ac compressor Stationary Air Screw Compressor

$988.00 - $13,550.00 / case

1.0 case

Use Atlas Copco Screw Compressor Air End Professional Compressor Manufacturers Air Tank Combined Screw Air Compressor

$1,000.00 - $5,784.00 / case

1.0 case

Permanent Magnetic Rotary Screw Air Compressor

$1,000.00 - $3,654.00 / case

1.0 case

300L 600L 1000L 2000L 3000L 4000L 5000L high quality wholesale air receiver storage for air compressor air tank

$298.00 - $2,457.00 / case

1.0 case

15HP 30HP 50HP CE Oil free silent stainless water tank oilless screw air compressor 380V high efficiency Air Compressors

$3,578.00 - $6,758.00 / case

1.0 case

Match Up compressed air refrigerated dryer for Compressor Energy Saving Refrigerated industrial air dryer

$156.00 - $321.00 / case

1 case

Factory best quality clean replacement air compressor spare parts air compressed air filter

$42.00 - $50.00 / case

1 case

FAQ
Q1: Why customer choose us?
O: Olymtech Technology Development Co, Ltd is a professional manufacturer for air compressor and after treatment equipment. We have more than 20 years experience in producing and exporting air compressor, air dryer and air filter.

Q2: Are you a manufacturer or trading company?
O: Our factory is located in Guangdong China, we have research and develop center, advanced processing equipment, professional technicians, rich experience workers and after-sales team to offer good quality products and good service to our customers. We also can provide you the OEM&ODM service.


Q3: What's your delivery time?
O: Generally 10 days, if urgently order, pls contact our sales in advance


Q4: How long is your air compressor warranty?
O: One year for the whole machine when the compressor leave our factory.


Q5: How long could your air compressor be used?
O: Generally, more than 10 years

Q6: What's payment term?
O: T/T, L/C, Paypal and etc. Also we could accept USD, RMB, Euro and other currency (Pls contact our sales for more information


Q7: How about your customer service?
O: 24 hours on-line service available

Q8: How about your after-sales service?
O: 1. Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service
3. World wide agents and after service available
Technology You Can Trust
------Olymtech Technology Development Co., Ltd------


Contact Name: Mrs Audrey Yang Contact Email: au****y@olymtech-cn.com
Contact Job Title: Manager Contact Mob: 138***475
Contact Tel: +8620 3918 0618 Contact Fax: +8620 34737878
Address: No.8 Jinye street, Chenchong, Qiaonan, Panyu Website: www.olymtech-cn.com

Air Compressor

Air Compressor

Olymtech Technology Development Co.,Ltd is a professional manufacturer for air compressor and after treatment equipment. We have more than 20 years experience in air compressor, air dryer, air filter producting and exporting.

Our factory is located in Guangdong China, we have research and develop center, advanced processing equipment, professional technicians, rich experience workers and after-sales team to offer good quality products and good service to our customers.

Olymtech mainly produce energy saving screw air compressor, refrigerated air dryer, adsorption air dryer, combine air dryer, after-cooler, line air filter, air tank, heat recovery,  oxygen generator, nitrogen generator and compressor parts.

Tornado Pro, Jianye is our own brand, we also offer OEM/ODM service to global dealers. Our products comply with the regulation of ISO9001, CE, ASME, GC & compressor industry standard, saftey and high quality.

We have strong sales network in the world. Our export our compressor system to 80 countries, mainly are Malaysia, Bangladesh, Indonesia, Thailand, Cambodia, Myanmar, Russia, Mexico, USA, Belgium, Greece, Czech, Australia, New Zealand, India, Jordan, South America, Africa, etc.

Make sky more blue is the vision of Olymtech, and let everyone using energy saving air compressor system is Olymtech's mission. Choosing Olymtech air compressor, satisfed with China-made.
