Oxygen Gas Cylinder Filling Plants Oxygen Generator Setup Plug and Play industrial oxygen generator

Manufacturing & Processing Machinery Valves & Pumps & Compressors

FOB Price:US$ 5,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Others

Keywords:Industrial Oxygen Generator Oxygen Generator Oxygen-Generator Oxygen Generator Compressor Adsorption Oxygen Generator

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > Valves & Pumps & Compressors Trademark: OLYMTECH
Product Package: Plywood case package or air column package Specifications:
Place of Origin: GUANGZHOU,CHINA Port: GUANGZHOU,CHINA
Model
Gas
production
Air
consumption
Imported
Output
Dimension
HBF093-1
1
0.2
DN15
DN15
800*650
*1720
HBF093-2
2
0.4
DN15
DN15
950*950
*1500
HBF093-3
3
0.6
DN15
DN15
1050*900
*1865
HBF093-5
5
1
DN20
DN15
1450*900
*1825
HBF093-10
10
2
DN32
DN15
1450*900
*1825
HBF093-15
15
3
DN40
DN25
1800*950
*1940
HBF093-20
20
4
DN40
DN25
1850*1025
*2100
HBF093-25
25
5
DN50
DN25
2000*1050
*2210
HBF093-30
30
6
DN50
DN25
2000*1050
*2530
HBF093-50
50
10
DN65
DN25
2200*1250
*2720
HBF093-60
60
12
DN65
DN40
2250*1300
*2850
HBF093-80
80
16
DN80
DN40
2350*1550
*3060
HBF093-100
100
20
DN100
DN40
2500*1600
*3330
HBF093-120
120
24
DN100
DN40
2600*1700
*3670
HBF093-150
150
30
DN150
DN40
4700*1500
*2980
HBF093-180
180
36
DN200
DN40
4700*1600
*3370
HBF093-200
200
40
DN200
DN40
5000*1600
*3330
HBF093-240
240
48
DN200
DN50
5200*1700
*3670
HBF093-300
300
60
DN250
DN50
5900*1600
*4520

Principle

Pressure swing adsorption (PSA) oxygen generator uses molecular sieve as adsorbent. The principle of pressure adsorption and depressurization desorption is adopted to adsorb nitrogen from air, then produce oxygen gas.

Specifications

Oxygen flow rate: 1 ~ 150Nm3/h (under standard state) Oxygen purity: 93±3% (national standard) Oxygen pressure: 0.01 ~ 0.5mpa (gauge pressure, stable and adjustable) Oxygen dew point: - 40 ℃ ~ - 60 ℃ (atmospheric dew point)
Advantages
A unique lotus air distributor is installed at the bottom of the adsorber, which avoids the impact of high-pressure air flow on the molecular sieve and prolongs the service life of the molecular sieve. At the same time, the gas diffusion is uniform, which greatly improves the service efficiency of the molecular sieve and reduces the energy consumption.
Internal structure diagram
Special air diffusion equipment is set inside the adsorption tower. Firstly, compressed air enters the neck with cyclone equipment, through the alumina ceramic ball specially used for diffusion (using the spherical shape and hardness of the ceramic ball), the gas flows in the shape of "s" during diffusion. Then, through the double-layer stainless steel wire mesh and the activated molecular sieve, it can fully contact with the carbon molecular sieve. which not only greatly reduces the impact force of gas on carbon molecular sieve, also makes the gas more uniform in the adsorption process, which is conducive to improving the oxygen production efficiency and the service life of the molecular sieve.

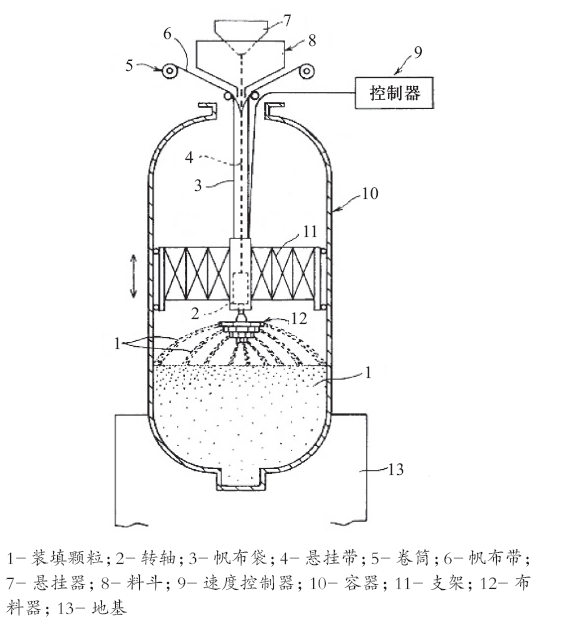

Advanced loading theold ensures the service life of the equipment
The molecular sieve is loaded by "Snowstorm" method, so that the distribution of carbon molecular sieve is uniform without dead angle, and it is not easy to be powdered;
the adsorption tower is equipped with multi-stage split gas distribution equipment and automatic compression equipment of molecular sieve cylinder. Ensure the adsorption performance and compression state of  molecular sieve, and effectively extend the service life of carbon molecular sieve.

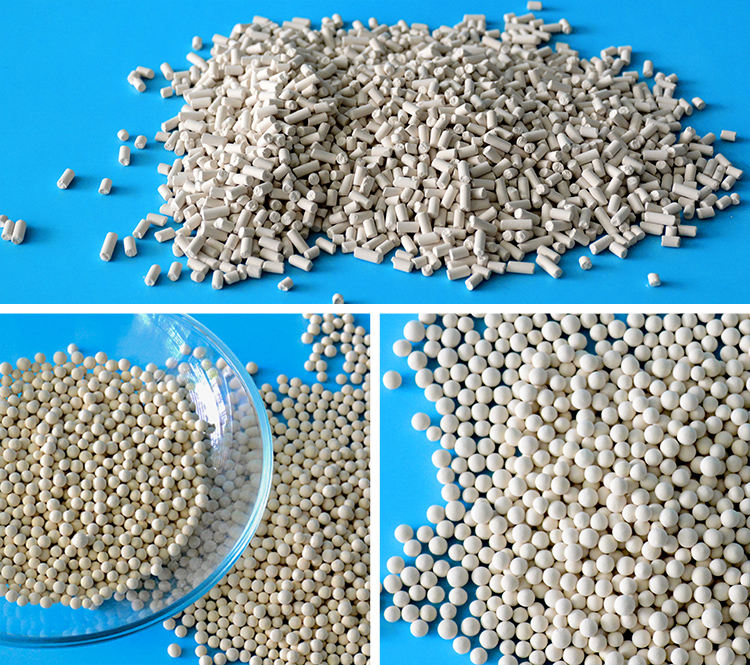

Molecular Sieve
Choosing high quality and high efficient molecular sieve to ensure maximum energy saving, power saving, and low air consumption ratio. High efficiency molecular sieve is an important step to ensure low air consumption ratio. We use the  molecular sieve, which has the characteristics of strong hardness, difficult to powder, high  recovery, long service life (up to 10 years). It has the best capacity and stability in China.

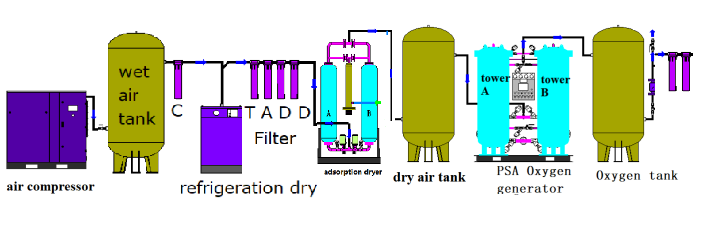

Oxygen generatior system flow chat
Recommend Products-Air Compressors
view more >>Recommended by seller

10HP 15HP 20HP 30HP 40HP 50HP 100HP 2IN1 permanent magnet VSD energy saving ac compressor with tank screw air-compressor

$1,045.00 - $5,578.00 / case

1.0 case

TOP 15kw/22kw/16bar all in one laster cutting machine air compressor for sales air compressors compressor air-compressor

$985.00 - $5,689.00 / case

1.0 case

7.5KW 11KW 15KW 22KW 37KW 45KW 55KW 75KW 90KW permanent magnet VSD energy saving ac compressor Stationary Air Screw Compressor

$988.00 - $13,550.00 / case

1.0 case

220V 380V 550W 750W 1.1KW 2.2KW 5.5KW 3KW 3.3KW 4KW 24L 38L 50L 100L 200L direct air pump oil free portable air compressor

$66.00 - $542.00 / case

100.0 cases

7.5kw 11kw 15kw 22kw 30kw 37kw stable ac air compressor energy saving rotary air compressor direct driven air-compressors

$996.00 - $1,132.00 / case

1 case

15kw energy saving high efficiency 8bar 10bar 13bar american industrial compressor for electronics industry

$3,000.00 - $3,600.00 / case

1.0 case

Match Up compressed air refrigerated dryer for Compressor Energy Saving Refrigerated industrial air dryer

$156.00 - $321.00 / case

1 case

TOP 1000L 8bar storage tank high quality print compressor for sale air compressor machines air compressor tank

$552.00 - $771.00 / case

1 case

Factory best quality clean replacement air compressor spare parts air compressed air filter

$42.00 - $50.00 / case

1 case

Rich experience in Medical inductry
Export hundreds of plants to Hospital
Cooperation with famous enterprises
Company Profile
Olymtech Group
A professional oxygen generator, nitrogen generator factory.
Certificate
Packing & Delivery
FAQ
Q1: Why customer choose us?
O: Olymtech Technology Development Co, Ltd is a professional manufacturer for air compressor and after treatment equipment. We have more than 20 years experience in producing and exporting air compressor, air dryer and air filter.

Q2: Are you a manufacturer or trading company?
O: Our factory is located in Guangdong China, we have research and develop center, advanced processing equipment, professional technicians, rich experience workers and after-sales team to offer good quality products and good service to our customers. We also can provide you the OEM&ODM service.


Q3: What's your delivery time?
O: Generally 10 days, if urgently order, pls contact our sales in advance


Q4: How long is your air compressor warranty?
O: One year for the whole machine when the compressor leave our factory.


Q5: How long could your air compressor be used?
O: Generally, more than 10 years

Q6: What's payment term?
O: T/T, L/C, Paypal and etc. Also we could accept USD, RMB, Euro and other currency (Pls contact our sales for more information


Q7: How about your customer service?
O: 24 hours on-line service available

Q8: How about your after-sales service?
O: 1. Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service
3. World wide agents and after service available
