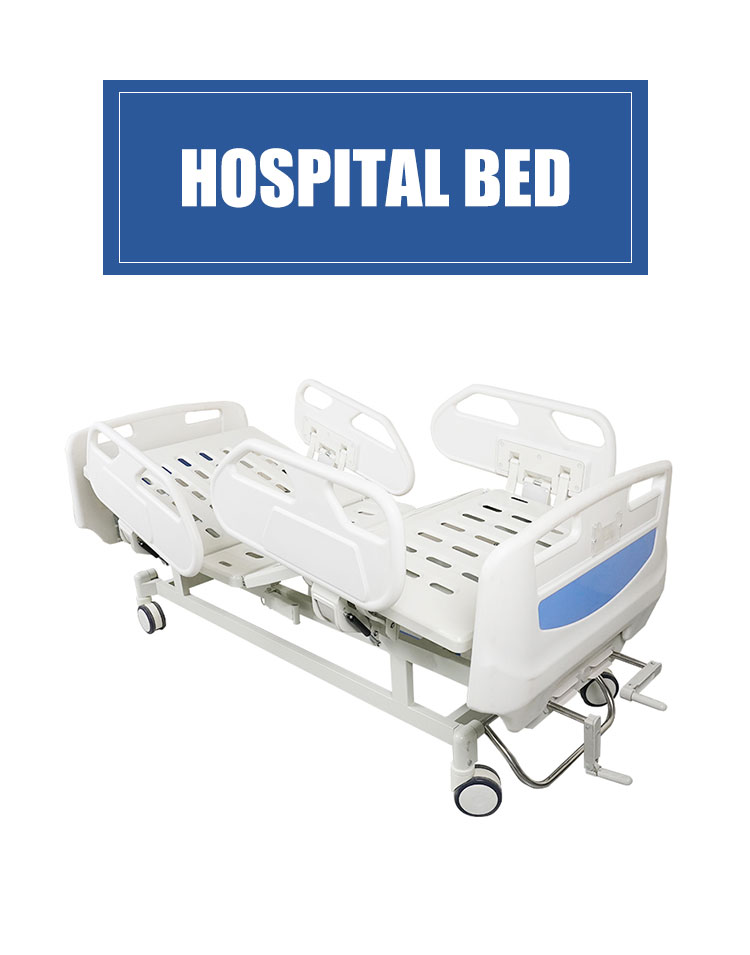

medical patient 4 ABS telescopic guardrails foldable 2 cranks manual hospital bed WJ-A7-05

Medical & Health & Beauty Medical Devices

FOB Price:US$ 436.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others

Keywords:hospital bed patient bed 2 cranks manual hospital bed manual hospital bed hospital nursing bed 2 crank hospital bed hospital manual beds hospital medical beds hospital bed 2 functions

Inquire


Add to Favorites

Product Category: Medical & Health & Beauty > Medical Devices Trademark: OEM
Product Package: carton Specifications: WJ-A7-05
Place of Origin: China Port: Tianjin xingang

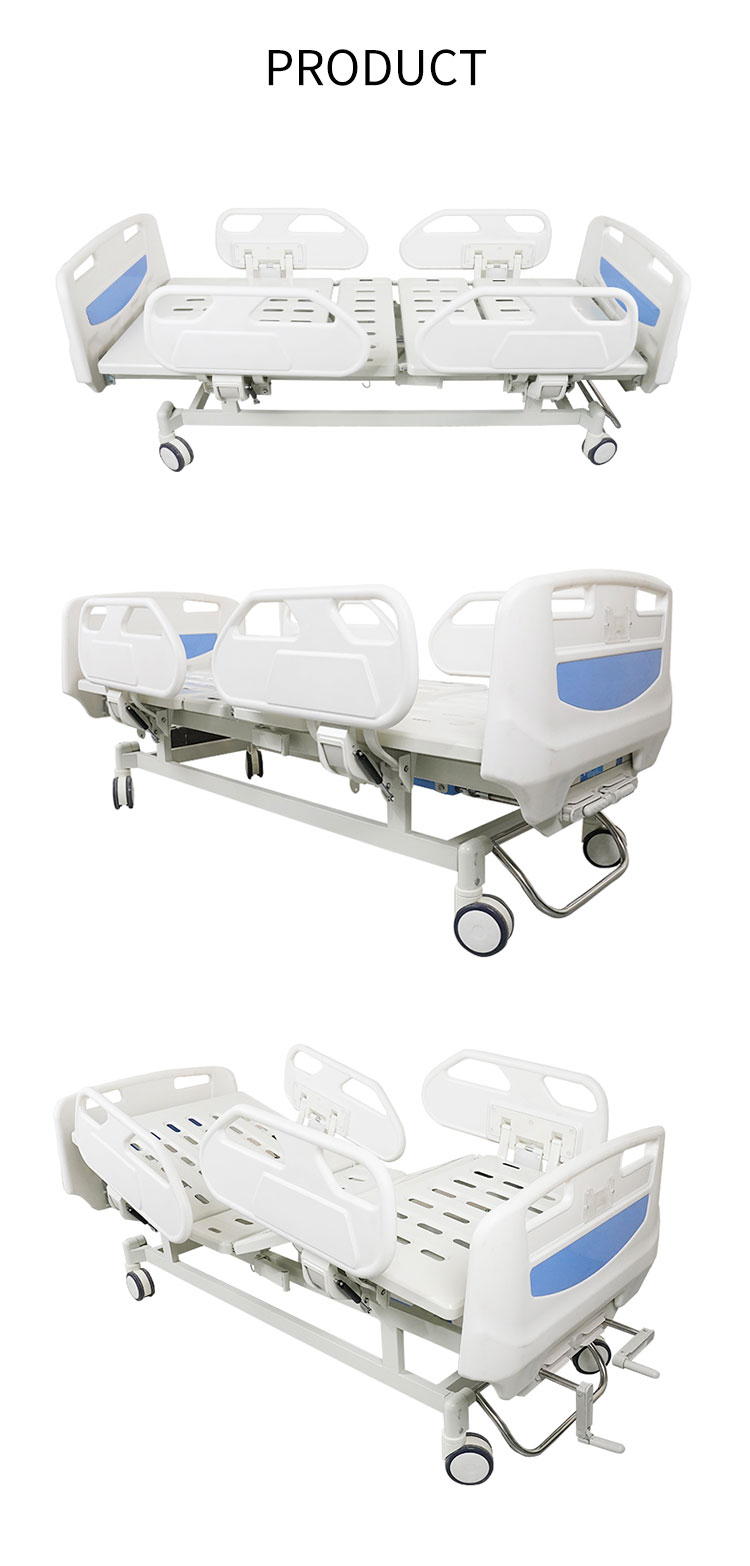

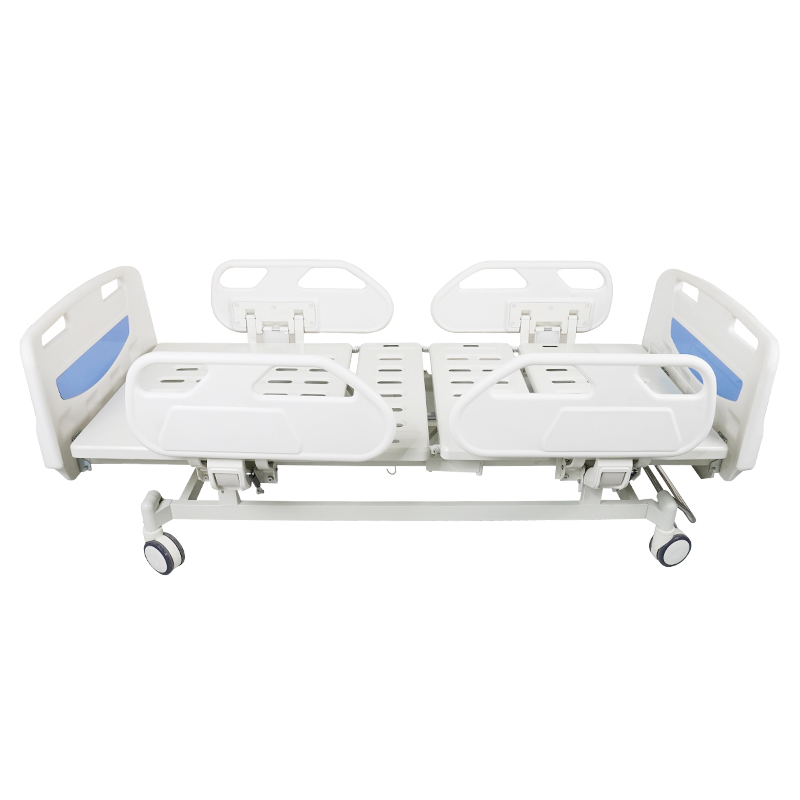

Product Description



BrandWanJi
NameMulti-function electric hospital bed
MaterialSteel + ABS
MOQ1 PCS
Features1. Back elevation/decline
2. Leg elevation/decline
3. Back and Leg elevation/decline
4. Rise up and down
Standard1. One-time press-formed bed panel
2. 4 ABS telescopic guardrails
3. 1 sets of removable ABS bed head and bed tailboard
4. 2 sets of screw system, two rockers
5. 4 central control mute wheel, Aluminum alloy brake pedal
6. 4 Infusion Pole Slots,two telescopic infusion pole slots
7. 4 Drainage hook
Optional1. 8cm thick tri-fold mattress
2. Telescopic infusion pole
3. Under the bed shelf
4. ABS telescopic table
Product DetailsBed Structure:Main frame: 30×60×1.5mm high-quality carbon steel pipe.
Beam: Welded and formed cold-rolled steel pipe.
Base welding: smooth and flat, no burrs, no exposed solder joints, no bubbles, high precision, stable and reliable.
Bed board: One-time forming cold-rolled steel plate, thickness 1.2mm, four-section structure, easy to disassemble, easy to clean and disinfect, and attached with steel pipe welding. The backboard support adopts the double-rod support method, and the connection is stable. The bed board has a perforated design for easy ventilation. Mattress guards are mounted on the bed board.
Function:(1) The bed body can lift as a whole by 500(±5%)~760(±5%)mm (distance from the ground to the bed).
(2) Adjustable range of lifting performance: the back inclination is 0°~70o (+5o), and the leg inclination is 0°~45o (+5o).
(3) Surface spraying: It adopts green environmental protection spraying treatment, the overall color is consistent, and the spraying is even. The bed body is made of electrostatic powder coating, anti-rust fully treated paint, acid and alkali corrosion resistance, and fading resistance.
(4) Headboard: ABS blow molding, acid and alkali resistance, easy to clean. It can be easily and quickly disassembled and can be used for CPR first aid. Equipped with patient information card slot.
(5) There are multi-function sockets at the bedside and the bedside, and a telescopic multi-function socket at the bedside, equipped with an infusion stand; there are four drainage hooks at the bottom of the bed.
(6) Guardrail: segmented four-piece encrypted side guardrail, ABS overall blow molding, with angle display, lower hidden design, with hydraulic rod, slow down without noise. Guardrail base: aluminum alloy is cast and fixed on both sides of the bed, and it rises and falls synchronously with the bed.

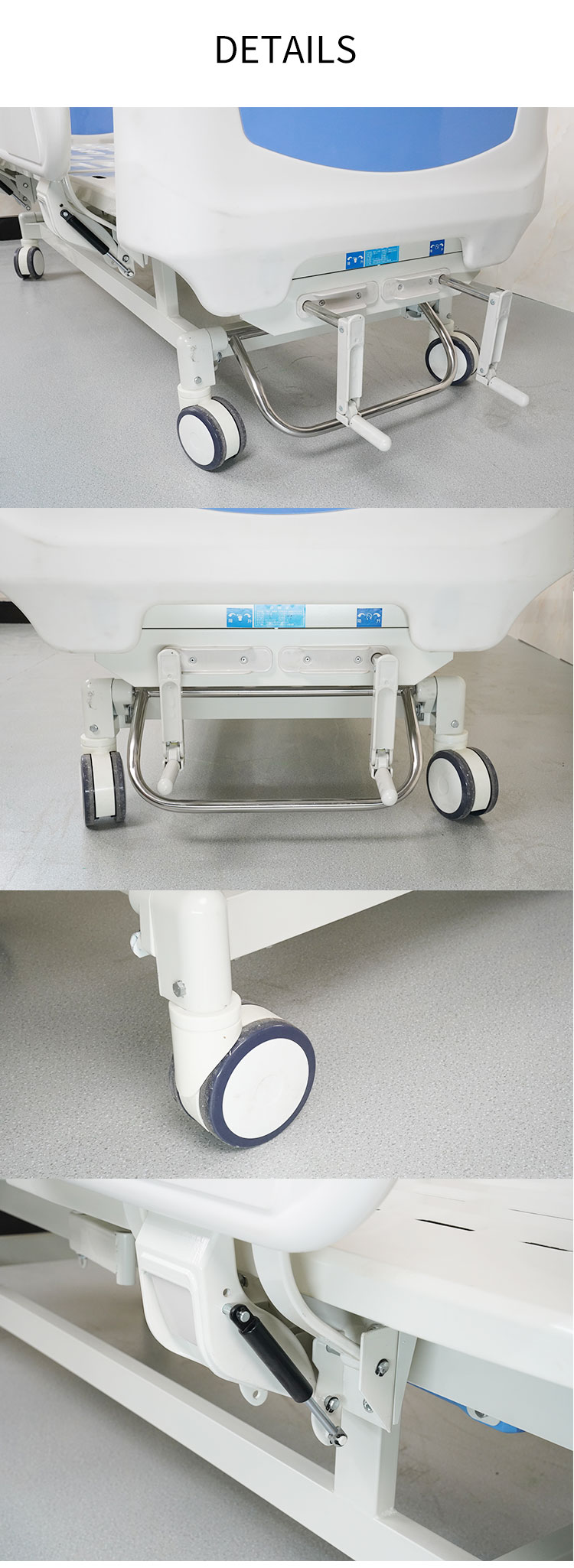

Casters and Braking Systems:High-quality central control double-sided casters with a diameter of 125mm; four-wheel synchronous brakes, aluminum alloy pedals, stepping on the brakes, lifting and unlocking; the wheel surface is made of super polyurethane material, which is quiet and wear-resistant. It can be sterilized by water washing and high temperature. The metal structure of the main frame, the universal rotating shaft of the main frame, and the double axles adopt silent high-temperature grease precision ball bearings.

Motor:ABS material, one-time injection molding. Built-in steel core, hidden design, foldable to 45 degrees. Cranks: Three sets of high-quality cranks for flexible adjustment of back, leg position, bed height. Overload protection device with bidirectional limit.Company Information
