9 cubic meters Concrete mixer truck right hand drive construction site mixer
Manufacturing & Processing Machinery Engineering & Construction Machinery
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:Concrete Machinery Concrete Mixing Plant Concrete Batching Plant construction machinery ready mixed concrete mixer concrete batcher concrete mixer machinery ready mixed concrete Twin Shaft Concrete Mixer concrete mixer truck
| Product Category: | Manufacturing & Processing Machinery > Engineering & Construction Machinery | Trademark: | FYG |
| Product Package: | bulk | Specifications: | |
| Place of Origin: | Haiyang,Shandong | Port: | QINGDAO |
Item | Type | 7m3concrete truck mixer | 8m3concrete truck mixer | 9m3concrete truck mixer | 10m3concrete truck mixer | 12m3concrete truck mixer | |
Drum | Geometric volume | 12.1 | 13.8 | 16.5 | 17.5 | 20.5 | |
Effictive agitate volume | 7 | 8 | 9 | 10 | 12 | ||
Effictive mixing volume | 5 | 6 | 7.5 | 8.5 | 10.5 | ||
Inclination angle | 15 | 15 | 12 | 11 | 11 | ||
Rotational velocity | 014 | ||||||
Rotation direction from the rear of truck | Charge in clockwise,discharge in anticlockwise | ||||||
Vane | Double-screw vane | ||||||
Discharge Capacity | when the slump is 5cm ≥2m3/min | ||||||
Remnant | when the slump is 5cm ≤1% | ||||||
Charge and discharge device | HopperL×W | 950 × 1000 | |||||
| 1600 | ||||||
| 780 | ||||||
Water supply system | water pump WP24-180B12or WP24-180B12 | ||||||
Hydraulic system
| Oil pump |
|
|
|
| A4VTG90/32R | |
Motor | Deutschland Rexthroth | PLM7 | PLM7 | PLM9 | PLM9 | ||
Type of reduction box | Deutschland ZF | ||||||
ZF | |||||||
Chassis | Type of engine/Power | WD615.87/213 | WD615.69/247 WD615.87/213 | WD615.69/247kW | WD615.69/247kW | WD615.47/273 | |
| Contact Name: | Mrs Shuangyuan Zhao | Contact Email: | sy****o@china-fangyuan.com |
| Contact Job Title: | Manager | Contact Mob: | 188***923 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |

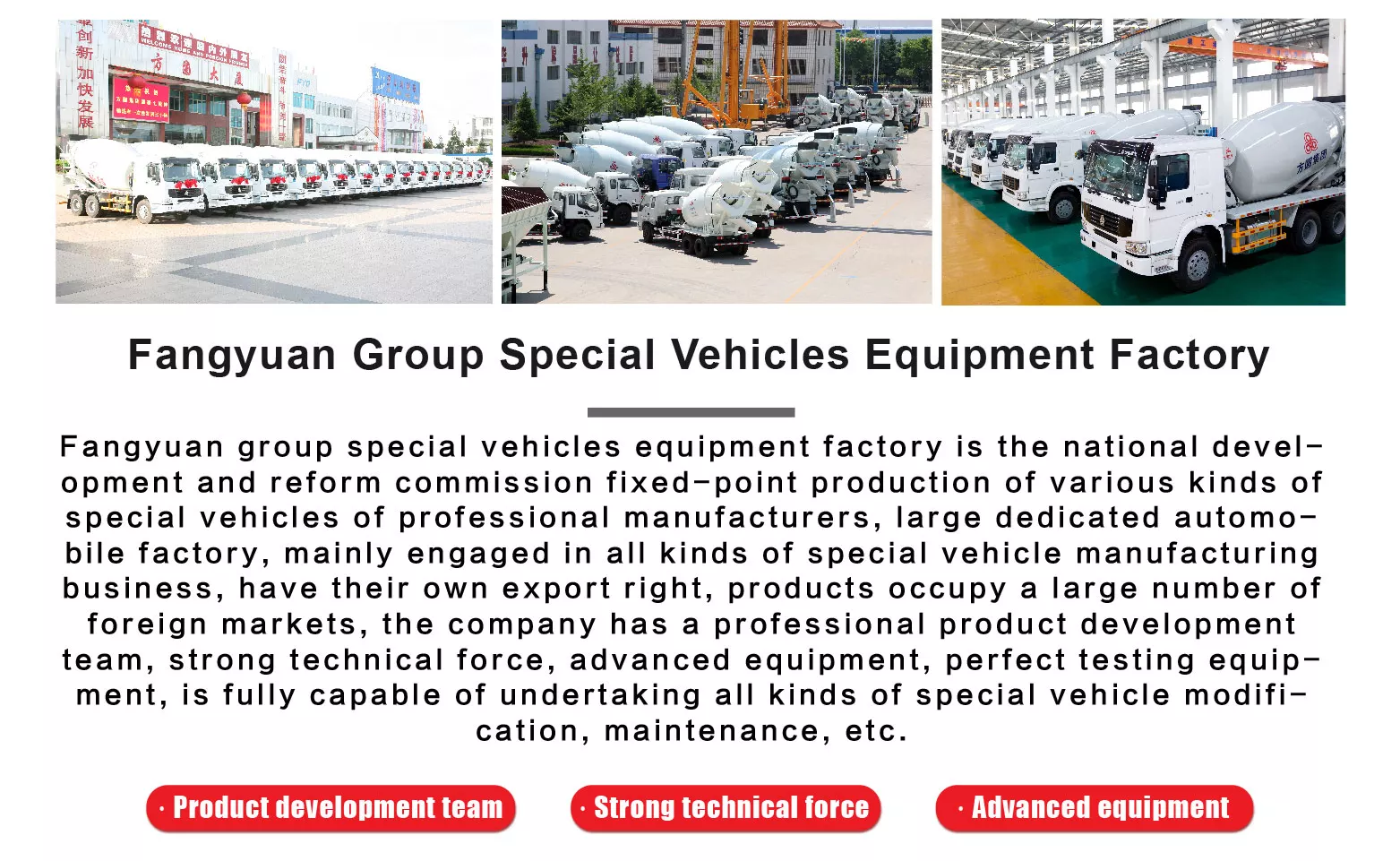

Fangyuan Group Co., Ltd. is located in Haiyang City, Jiaodong Peninsula, between the three cities of Qingdao, Yantai and Weihai. It now has 22 branch companies, and established wholly-owned production enterprises in Dortmund, Beijing and Shanghai,we also have a provincial technology center.The Group covers an area of 1.8 million square meters, with a construction area of 1 million square meters and total assets of 2.5 billion yuan.
The construction machinery products produced by Fangyuan Group include JZC, JS series concrete mixers, PLD series concrete batching machines, HBT series concrete pumps, HZS series concrete batching plants, TC series tower cranes, SC series construction elevators, and WBZ series stabilized soil mixing plants, JZL series electric pile driver, FY series concrete mixer truck,etc.
In the past few years,Fangyuan Group has successively won many honorary certificates.Taking construction technology to the next level is our mission – and that means making it cost-efficient, accurate, future-proof and connected. We are a market and technology pioneer in construction machinery. Our innovations play a role in virtually every sector of construction industry, from machines for construction material production & logistics to software solutions that pave the way for smart construction sites.
