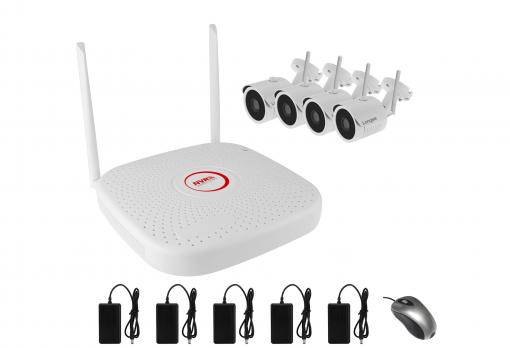

WiFi Kits WIFI2108PGE4FE200

Security, Fire & Safety CCTV Products

EXW Price:US$ 99.90 / Piece(s)

MOQ:10 Piece(s)

Payment Method : T/T Paypal

Keywords:4CH WIFI Kits CCTV Camera camera kits WiFi camera

Inquire


Add to Favorites

Product Category: Security, Fire & Safety > CCTV Products Trademark: /
Product Package: neutral color box Specifications: NVR、Camera、Cable 5.3kg/SET
Place of Origin: China Port: guangzhou

  • Package

  • Camera

  • LENS Type

  • Night Vision

  • Network

  • Wireless

  • Camera Features

  • Interface

  • General

  • System

  • Video

  • Audio

  • Alarm

  • Display

  • Recording

  • Playback & Backup

  • Network

  • Storage

  • General

SPECIFICATION
Model NO.WIFI2108PGE4FE200
Package
NVR1x KT-NVR2108PGE4W
Camera4 x LBH30FE200W
WIFI RangeNo Obstacles 300m Max
Cable1 x 1m Net Cable
Mouse1xUSB 2.0 Mouse
Adaptor1xDC 12V 2A for WIFI NVR, 4xDC 12V 0.5A for WIFI IP Camera
Weight5.3kg/SET
Camera ModelLBH30FE200W
Camera
Image Sensor1/2.9"  Full HD CMOS Sensor
Resolution2MP 1080P
Effective Pixels1920(H)*1080(V)
Compression H.264/H.264+/H.265/H.265+
TV SystemPAL(default）
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec
S/N Ratio≥52dB
Scanning SystemProgressive
Video OutputWireless network
Reset ButtonYes
LENS Type
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels2M Pixels
Night Vision
Infrared LED14μ x 20PCS
Infrared Distance25M
IR StatusAuto Control
IR Power OnAuto Control
Network
Ethernet/
ProtocolTCP/IP,ICMP,RTP,RTSP,RTCP
ONVIF/
P2P/
POE/
Main Stream 11920*1080@1-15fps(default resolution:1920*1080/frame rate:15fps/bit rate:1Mbps)
Main Stream 2/
Main Stream 3/
Sub Stream 1720*480@1-15fps(default frame rate:15fps/bit rate:0.5Mbps)
Sub Stream 2/
Sub Stream 3/
Tri Stream/
IE Brower /
Smart Phone/
Wireless
Antena3dbi
HotspotNO
Wi-FiWi-Fi(IEEE802.11b/g/n)
WIFI RangeNo obstacles 300m Max.
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
Corridor Pattern/
ROI/
Defog  Mode/
BLC/
HDR/
WDR/
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR
Language/
Interface
Audio/
Alarm/
SD Card Slot/
RS485/
General
HousingMetal , IP67
Anti-cut BracketYES
IR Cut FilterYES
Operation Temperature-10℃ ~ +50℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 500mA
Dimension157(W) x 70(H) x 66(D)mm
Weight650g
ModelNVR2108PGEW
System
Main ProcessorARM Cortex A7 Quad-core Processor
Operating SystemEmbedded LINUX
Video
Input9CH (3840x2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output1 VGA, 1 HD
Audio
Input/
Output1*3.5mm audio interface
Audio Bit Rate64kbps
Audio Compression standardG711u, G711a
Alarm
Sensor InputNO
OutputNO
Motion Detection9 Channel, MD Zones: 396 (22 × 18)
Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips
Display
HD1Resolution: 4K(3840x2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HD2/
VGAResolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4K
Digital ZoomYES
OSDCamera Title, Time, Recording, Motion Detection, Alarm
Recording
Video CompressionH.264/H.265/H.264+/H.265+
Resolution4K(3840x2160),25MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record RatePAL :4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
Record ModeManual\Timer\Motion Detection
Playback & Backup
Local Sync Playback1CH 4K@30fps,1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps
Decode Capability4CH 1080P@30fps
Remote Sync PlaybackYES
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
Backup ModeNetwork/USB2.0
Network
Interface1 RJ45 10M/100M Adaptive Ethernet Interface
Incoming BandwidthWired 80Mbps; wireless 28Mbps
Network FunctionsTCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif VersionSupport Onvif 2.4
Web BrowserIE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10
Cloud Support(P2P)Yes
Smart PhoneiPhone, iPad, Android, Android Pad
POE/
WIFISupport, WIFI Range: No Obstacles 300m Max.
Storage
Interface Type1 SATA Hard Disk Interface (2.5"/3.5" SATA)
CapacityUp to 8TB capacity
eSATA/
General
LanguageTraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese,Japanese
USB Interface2 USB 2.0 Interfaces
RS485/
Power SupplyDC12V/2A
Working Environment-10~55℃/10~90%
Dimension(W×D×H)219*217*40(mm)
Weight2.0KG (without HDD)


*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
