Tiling Hoister

Construction & Decoration Building Structural Material

FOB Price:US$ 88,888,890.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T

Keywords:tilting crane cutting cart hoister

Add to Favorites

Product Category: Construction & Decoration > Building Structural Material Trademark:
Product Package: Specifications:
Place of Origin: Port: SH

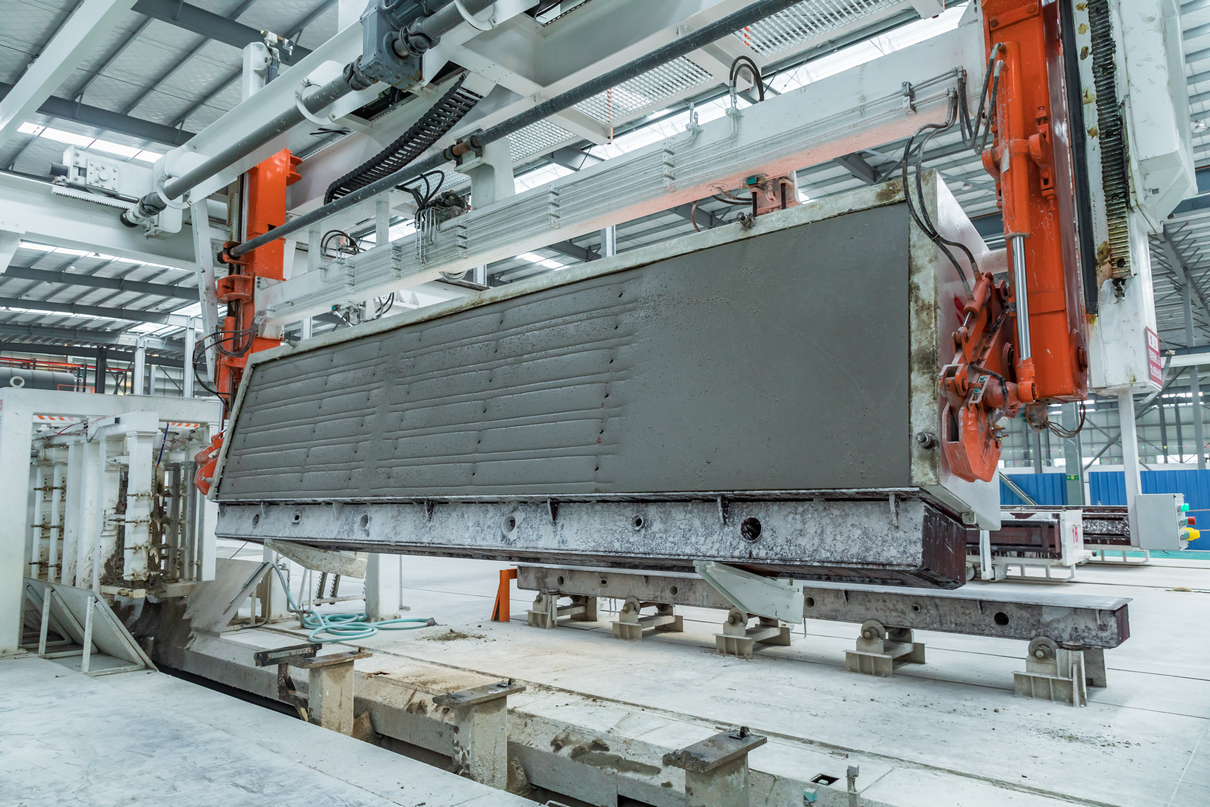

After pre-curing, the mould will be transferred to tiling area. The hoister should grasp mould to rotate it with 90 degrees, then the clamping arm controlled by hydraulic motor will loosen to put side wall and cake together on the cutting cart. Then the empty mould base will be sent back to the side wall conveyor line, which is assembled with a free side wall to become a complete mould and ready for the next pouring processing.

The tilting table is installed at the end of the cutting section. By using this equipment, the waste material at the top and bottom of cake can be removed. The tilting table is composed by a table, guide pillar, hydraulic system, and control system.

The cut concrete block, together with the side plate is conveyed to the table by the semi-finished product hoist. Then the side plate will be fixed, while the block will be turned by 90° by the hydraulic system. Thus the waste material can fall off automatically. After that, the table rotates back to the original position, and releases the side plate.

To make our tilting table more reliable, we use premium oil cylinder. Thus the table can tilt stably and synchronically, while the tilting speed is also adjustable. The whole tilting process doesn't need the traveling crane, and little operation is needed from the workers.


Contact Name: Mrs Rita Li Contact Email: li****g@teeyer.com
Contact Job Title: Sales Manager Contact Mob: 182***998
Contact Tel: Contact Fax:
Address: Website:

Jiangsu TEEYER Intelligent Equipment Co.,Ltd, is located in National High-tech Development Zone in Changzhou City Jiangsu Province.It is a R&D and manufacturing enterprise specializing in complete sets of equipment and production lines for aerated concrete cutting machines.The leading products include complete sets of AAC cutting equipment, AAC panel equipment and Engineering machinery.

TEEYER was established in 1989 with a registered capital of 160.735 million yuan,  an area of 153,000 square meters, and more than 500 employees. TEEYER has a provincial-level enterprise technology center with more than 80 R&D personnel. TEEYER conducts extensive industry-university-research cooperation, with no less than five research and development product projects and no less than 20 patents declared each year. With decades accumulation, cutting-edge equipment and capable R&D team, TEEYER has firmly established its leading position in the domestic AAC equipment sphere.

In 1994, TEEYER Company took the lead in commercializing aerated concrete cutting equipment , breaking the previous situation that the country was completely dependent on imports, and contributing its own strength to the revitalization of China's national industry.On the basis of learning from Germany's advanced technology, it has developed a series of aerated concrete producing equipment products in accordance with our country's condition
