Air security radars(WD-RD-Y02)

Security, Fire & Safety Police Equipment

FOB Price:US$ 122,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : T/T

Keywords:Radar detection of small UAVs

Inquire


Add to Favorites

Product Category: Security, Fire & Safety > Police Equipment Trademark: Wedefence
Product Package: Aluminum packing box Specifications: WD-RD-Y02(5km)
Place of Origin: China Port: shenzhen

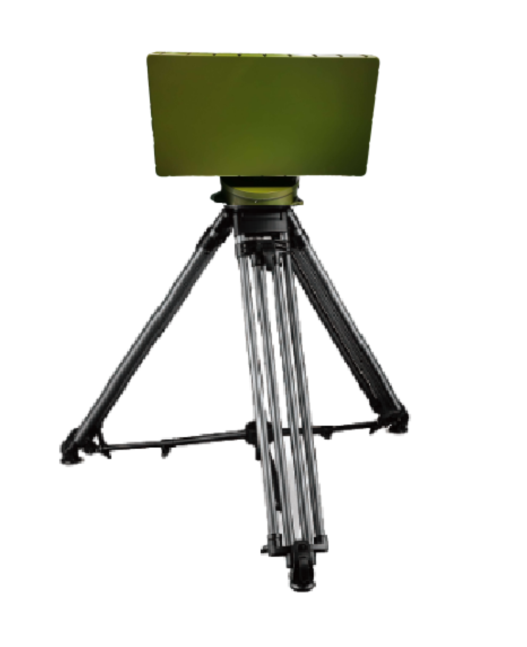

      The 3-dimentional pulsed Doppler radar is a medium-range air security radars optimized for the detection of small UAVs. It can be equipped with photoelectric system, radio interference equipment, laser weapons and drone navigation deception system. Ku band all solid state T/R module and fractional Fourier transform digital signal processing technology are adopted. Adaptive clutter suppression algorithm and target matching algorithm are used for radar clutter and target echo. allows drones to be detected while reducing false alarms from birds by adaptive target matching algorithm and tracking algorithm

Specification:

1. Frequency band: Ku band(16.1GHz~17.018GHz)

2. Maximum detection range: ≥5km(RCS 0.1 m2)

3. Scan angle: azimuth scan angle:0~360°, elevation scan angle:0~40°

4. Scan type: mechanical scan in azimuth, frequency scan in elevation

5. Minimum detectable target radial velocity: 1m/s

6. Blind zone: ≤200m

7. Detection probability: ≥95%

8. Resolution: Azimuth resolution: ≤0.6°, elevation resolution: ≤0.6°, range resolution: ≤10m

9. Antenna scanning cycle: 3～12 rpm

10. Maximum targets per scan: ≥200

11. False alarm rate: 10-6

Features:

1. Track mode: TWS

2. Map: online map, offline map, satellite map, chart...

3. Features identification: allows drones to be detected while reducing false alarms from birds by target tracking

       4. Data record: records the detection data
