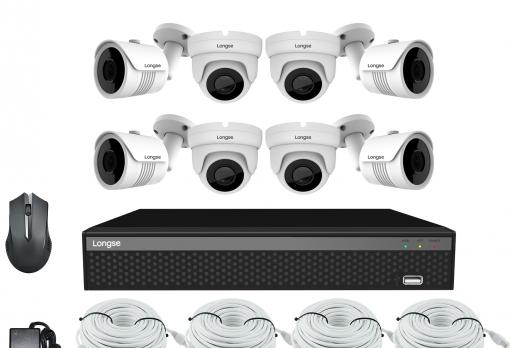

NVR2108DP3FE200 8CH POE NVR Kits 2MP

Security, Fire & Safety CCTV Products

EXW Price:US$ 234.10 / Piece(s)

MOQ:10 Piece(s)

Payment Method : T/T Paypal

Keywords:POE NVR Kits CCTV Camera nvr poe

Inquire


Add to Favorites

Product Category: Security, Fire & Safety > CCTV Products Trademark: /
Product Package: neutral color box Specifications: kits
Place of Origin: China Port: guangzhou

  • Package

  • Lens

  • Night Vision

  • Network

  • Camera Features

  • Interface

  • General

  • System

  • Video

  • Audio

  • Alarm

  • Display

  • Recording

  • Playback & Backup

  • Network

  • Storage

  • General

SPECIFICATION

Model NO.NVR2108DP3FE200
Package
NVR1x NVR2108DP
Camera4 x LIRDBAFE200
4 x LBH30FE200
Cable8x 20m CAT5e Cable
Mouse1xUSB 2.0 Mouse
Hard Disk No
AdaptorDC52V/2.5A
Weight12.8kg/SET
Camera ModelLIRDBAFE200LBH30FE200
Image Sensor1/2.9"  Full HD CMOS Sensor
Resolution2MP 1080P
Effective Pixels1920(H)*1080(V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI
TV SystemPAL/NTSC
Electronic Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
Minimun Illumination0.01Lux
S/N Ratio≥60dB
Scanning SystemProgressive
Video OutputNetwork
Reset ButtonOptional
Lens
Focus Length3.6mm
Focus ControlFixed
Lens TypeFixed
Pixels5MP
Night Vision
Infrared LED14μ x 18PCS14μ x 20PCS
Infrared Distance20M25M
IR StatusAuto Control
IR Power OnAuto Control
Network
EthernetRJ-45 (10/100Base-T)
Wireless/
ProtocolTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,UDP
ONVIFSupport ONVIF 2.4(Profile S/T/G)
P2PYES
POEYes, Support IEEE 802.3af
Video Delay0.3S (Within the Lan)
Main Stream 12304*1296@20fps
Main Stream 21920*1080@30fps
Main Stream 31280*720@30fps
Sub Stream 1720*480@30fps
Sub Stream 2352*288@30fps
Sub Stream 3/
Tri Stream/
IE Brower IE8-11, Google Chrome, Firefox , Mac Safari
Smart PhoneiPhone, iPad, Android, Android Pad
Camera Features
Day/NightColor/ B&W (IR-CUT )
Image ConfigSaturation/Brightness/Contrast /Sharpness, Mirror,  White Balance, FLK(Flicker Control)
Starlight/
Corridor PatternSupport
Defog  ModeSupport
ROI/
BLCYES
HDR/
WDRNO
Motion DetectionSupport
Privacy  Masking3 Rectangular Zone
Recording ModeNVR
LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
Interface
AudioOptional
Alarm/
SD Card Slot/
RS485/
General
HousingMetal , IP67
Anti-cut BracketNOYES
IR Cut FilterYES
Operation Temperature-20℃ ~ +60℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 750mADC12V±10%, 950mA
Dimensionφ93 x 74(H) mm157(W) x 70(H) x 66(D)mm
Weight400g650g
ModelNVR2108DP
System
Main ProcessorARM Cortex A7 Processor
Operating SystemEmbedded LINUX
Video
Input16CH (3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output1 VGA, 1 HD
Audio
Input1 Port RCA
Output1 Port RCA(Linear, 1kΩ)
Audio Bit Rate64kbps
Audio Compression standardG711u, G711a, ADPCM_DVI4
Alarm
Sensor Input4
Output1
Motion Detection16 Channel, MD Zones: 396 (22 × 18)
Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
Display
HD OutputResolution:4K (3840 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGAResolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split16CHxD1/9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital ZoomYES
OSDCamera Title, Time, Recording, Motion Detection, Event Alarm
Recording
Video CompressionH265/H264/H265+/H264+
Resolution4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record RatePAL :4k@10×25fp,5MP@14×25fp,4MP@16x25fp,3MP@16×25fp,1080P@16×25fp, 960P@16×25fp,720P@16×25fp, D1@16×25fp
NTSC: 4k@10×30fp,5MP@14×30fp,4MP@16×30fp,3MP@16×30fp,1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp
Record ModeManual\Timer\Motion Detection\ Alarm\Motion and Alarm\Smart Alarm
Playback & Backup
Local Sync Playback1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability4CH 1080P(1920x1080)@30fps
Remote Sync PlaybackYES
Search ModeALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup ModeUSB Device/Network
Network
Interface9 x RJ45 (10M/100M Adaptive Ethernet Interface)
Incoming Bandwidth80MB
Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Support onvif S,onvif T
Web BrowserIE8-11, Google Chrome, Firefox , Mac Safari
CMS SoftwareSupport  Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support(P2P)Yes
Smart PhoneiPhone, iPad, Android, Android Pad
POE8 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output≧100W,  Support Plug and Play, Support network cable extended mode Max. 200M
WIFI/
Storage
Interface Type1 SATA Hard Disk Interface (2.5"/3.5" SATA)
CapacityUp to 8TB capacity
eSATA/
General
LanguageTraditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek,  Vietnamese,Janpanese
USB Interface2 USB 2.0 Interfaces
RS485/
Power SupplyDC 52V/2500mA  ≤10W (Without Hard Disk and POE)
Working Environment-10~55℃/10~90%
Dimension(W×D×H)260*215*43(mm)
Weight2.0KG (without HDD)


*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
