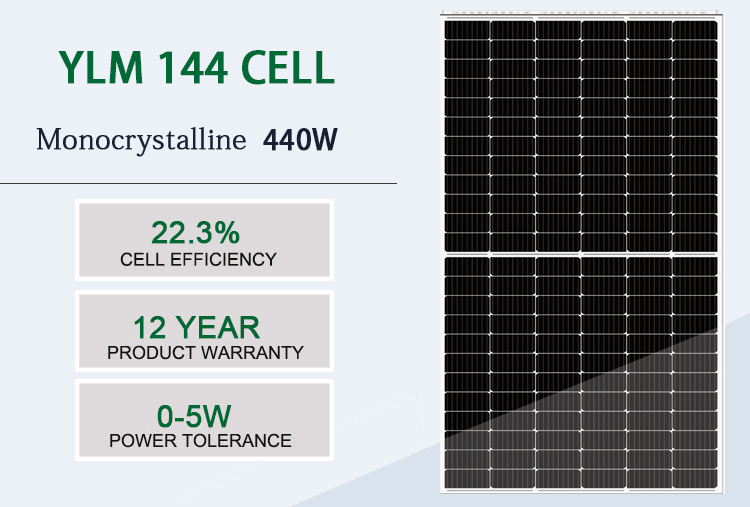

440W Monocrystalline Silicon Solar Panel with High Quality and Cheaper Price
Electrical & Power Energy Solar Components
MOQ:30 Piece(s)
Payment Method : L/C T/T Western Union Paypal
Keywords:Solar Panel 9bb 144cells Solar Panel Monocrystalline Solar Panel Silver Frame Black Solar Panel PV Solar Panel Solar Module Solar Cells,Solar Panel 440 watt half cell solar panel
| Product Category: | Electrical & Power Energy > Solar Components | Trademark: | Goldsun |
| Product Package: | Carton and pallet 30 pieces/ per pallet, one container 660 pieces | Specifications: | 2135*1110*1190mm |
| Place of Origin: | Yantai, China | Port: | Qingdao port |
| Electrical parameters at Standard Test Conditions(STC) | ||||
| Module type | YLXXXD-40d 1/2 (XXX=Pmax ) | |||
| Power output (Pmax/W) | 435 | 440 | 445 | 450 |
| Power output tolerances (Pmax/W) | 0/+5 | |||
| Module efficiency (%) | 20.01 | 20.24 | 20.47 | 20.70 |
| Voltage at Pmax(Vmpp/V) | 40.75 | 40.95 | 41.15 | 41.35 |
| Current at Pmax (Impp/A) | 10.68 | 10.75 | 10.82 | 10.89 |
| Open-circuit voltage (Voc/V) | 49.30 | 49.50 | 49.70 | 49.90 |
| Short-circuit current (Isc/A) | 11.26 | 11.33 | 11.40 | 11.47 |
STC:1000W/m2irradiance,25.C cell temperature,AM1.5g specturm according to EN 60904-3.
Average relative efficiency reduction of 3.3% at 200W/m2 according to EN60904-1
Certifications

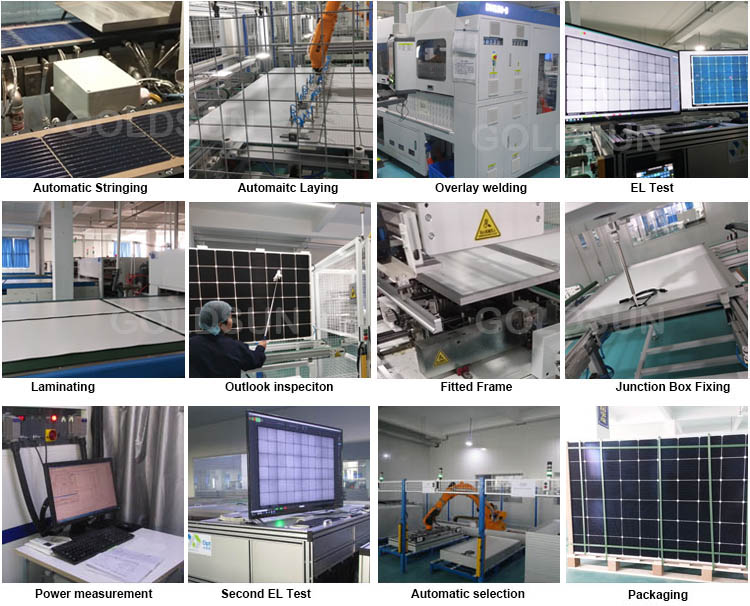

Production Process

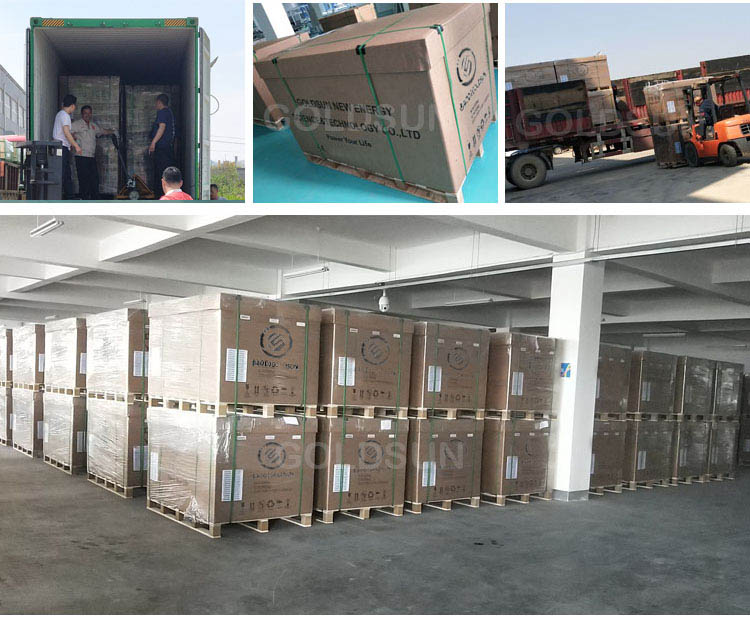

Packaging specifications

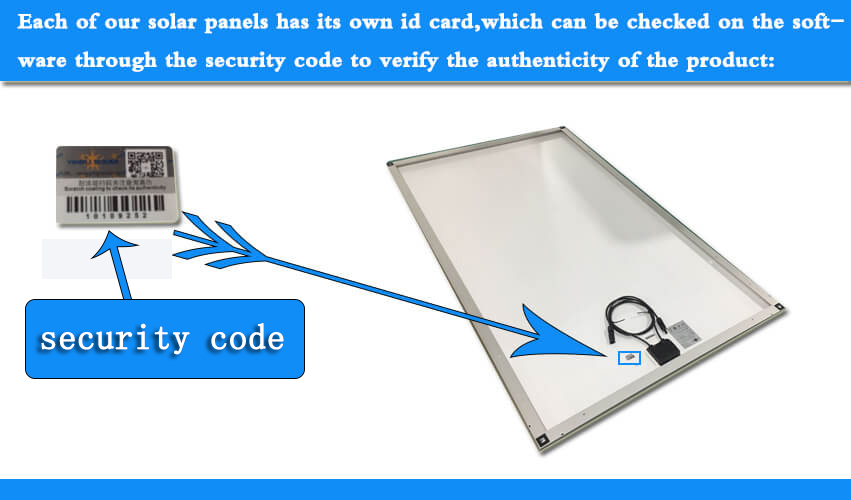

Product Security Code

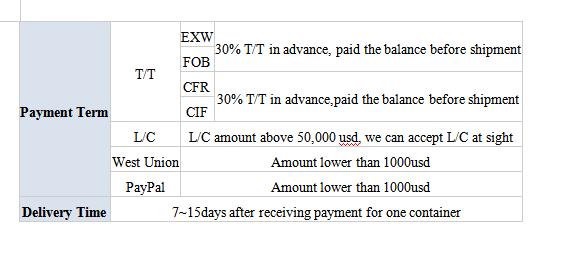

Payment
| Contact Name: | Miss. Skye Sun | Contact Email: | in****o@baodigoldsun.com |
| Contact Job Title: | Manager | Contact Mob: | 135***395 |
| Contact Tel: | 86 - 535 - 6430103 | Contact Fax: | 86 - 535 - 6501180 |
| Address: | No. 107, Jinshan Road, Fushan District, Yantai, Shandong Province, China | Website: | http://www.baodigoldsun.net |
Goldsun New Energy Science&Technology Co.,Ltd is a new energy high technology enterprise,dedicate to produce solar panel,construction solar power plant,research and develop new energy products ,provide complete solar solutions. The company specializes in producing multi-busbar single glass and double-glass solar panel,bifacial solar panel. Also we produce 5BB PV 12BB PV and 9BB modules and customized special-shaped and special-purpose PV modules, and have a complete PV module product line. Goldsun company has the internationally leading intelligent production line and the MES system for the whole production line. The equipments include advanced multi-busbar automatic soldering machine, photovoltaic typesetting robot, automatic laminating machine, single layer double cavity laminating machine and advanced testing equipment, we can guarantee our products of high productivity, low cost and stable and reliable quality. In 2018 Goldsun company invest to build a join venture company named Yingli Energy(Yantai) Co.,Ltd together with Yingli Energy (China) Co.,Ltd.It mainly produce solar panel under the quality control of Yingli technology and management. Goldsun company has R&D team consisting of high quality engineers, led by overseas study post-doctoral and has built R & D centers and laboratories which has been identified as the municipal "Engineering Research Center". Our products have obtained eight national invention patents, dozens of utility models and appearance patents,and also have obtained the national, provincial and municipal technical achievements appraisal, the Science and Technology Progress Award and the invention award for many times.All these products are independent researched and designed by our company. With our rich experience and professional team, we are able to provide our customers with more competitive and customized product solutions.
