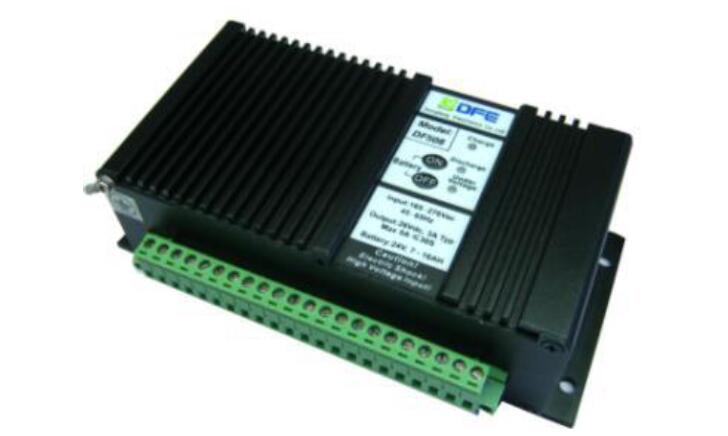

DF508-300 Power Module







1General



DF508-300  is a converter  module from DC 110V   to  DC  48V.



Using  this module, DF508-MU  &  battery, a power supply  system with backup can be built.




2Technical  Indicator



1Environment temperature40℃~+70humidity5%95%no  condensation of  moisture air pressure70kPa110kPa

2Power  Supply

rated  voltage  is DC  220Vrange  is DC  80264V

3Efficiency:≥80,  Vin=230VacIo=3Awithout battery

4Output:



Rated  Power:  80W

Rated  Voltage:  25.5±0.5V



Rated  Current: 6A



5)  Dimension: 168*78*50mm








3LE &  Button  function



Charge  LED: green,  battery charge



Discharge  LED: red,  battery discharge



Under  voltage  LED: red,  Alarm for low voltage  of  battery

Battery  button  ON:  work with  battery

Battery  button  OFF:  work without  battery







4Terminal  Block  Definition





TB  Name



Definition



TB  Name



Definition





L





L of    AC  input





RA



Start     for      activation     of



battery





N





N  of  AC  input





RN



Stop      for       activation      of



battery



FG



Earth



VA



Power  of  Auxiliary  signal



Vo+



Positive  of  load    output



BL



Alarm  of    battery low voltage



Vo-



Negative  of  load    output



AN



Alarm  of    AC  power fault



B+



Positive  of  battery



BR



Status  of  battery    activation



B-



Negative  of  battery



OV



Fault  of    power supply



BN



Retreatment of  battery



RL+



Load+ for battery activation





RL-



Load-  for battery activation















5Characteristic



. Protection for over voltage, over current of output & short  circuit.







. Good  insulation &  isolation for safety,  power frequency withstand






voltage: AC  2500V, impulse withstand  voltage: 5kV.



. Natural  cooling, the  heat dissipation at  the  bottom,  suitable for strap  installation, heat dissipation.

. Using terminal for wiring, button for start, exit action  of battery, indicator for charge,  discharge, battery low voltage,  installation and commission are extremely  convenient.
