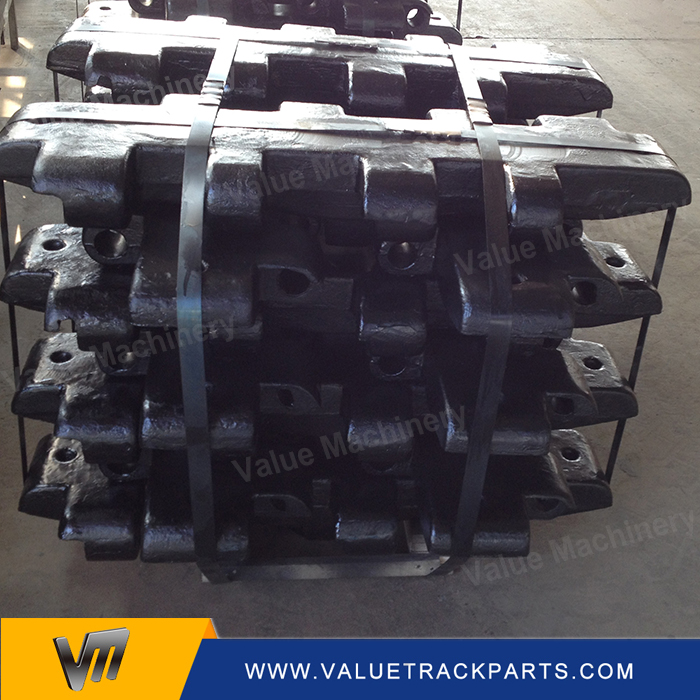

Kobelco Crawler Crane Track Shoe / Track Pad / Track Plate

Manufacturing & Processing Machinery Engineering & Construction Machinery

CIF Price:US$ 98.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T Western Union

Keywords:crawler crane track pad crawler crane track shoe crawler crane track plate Kobelco track shoe

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > Engineering & Construction Machinery Trademark: VM
Product Package: Pallet and plywood case Specifications:
Place of Origin: China Port: Qingdao

1. Introduction

Product Name

Kobelco   Crawler Crane Track Shoe / Track Pad / Track Plate

Material

35SiMn,   35SiMnTi, 28CrMnMo, 28CrNiMnMo, 31Mn2SiMo

Technique

Casting

Heat Treatment

Whole   quenching & tempering, then surface hardening

Warranty

2000 - 2500   working hours


2. Track Shoe for Kobelco Crawler Crane, from 30 ton to 600ton, models as follows,

Kobelco

BM500,     BM600,   BM650,   BM700,   BM700HD,     BM700HD-2,   BM750,   BM800, BM800HD, BM900, BM900HD,   BM1000, BM1200, BME800, BME800HD, BMS800, BMS900,  BMS1000

;CK800,  CK850,    CK850-II,  CK850-III,  CK850G,  CK850-2F, CK900, CK1000,   CK1000-II, CK1000-III, CK1000G, CK1100, CK1100G, CK1600, CK1600-II, CK2000,   CK2000-II, CK2500, CK2500-II, CK2750, CK2750G

CKS600, CKS800,    CKS900,  CKS1100,  CKS1350,  CKS2500

CKE600,  CKE700,    CKE800,CKE800G,  CKE800G-2.  CKE800-1F,  CKE850,    CKE900,  CKE1000,  CKE1100, CKE1200,       CKE1350,     CKE1350-1F,       CKE1800,     CKE1800-1F,     CKE2500,   CKE2500-II,   CKE2500G,   CKL1000I,   CKL1500,   CKL2600

P&H60P,     P&H70P, P&H75P, P&H85P-60C, P&H100P, P&H315, P&H320,   P&H325, P&H330, P&H335, P&H335AS,     P&H345,   P&H440,   P&H550A,     P&H550-1,   P&H550-2,   P&H550S,   P&H550.S2, 5035, 5045, 5055, 5080, 5100, 5170,

7035, 7045, 7050, 7055,   7055-1,7055-2, 7055-3F, 7065, 7065-2, 7070, 7080, 7080-2, 7090, 7100, 7120,   7120-1F,7150, 7200, 7250, 7250S, 7250-2, 7250-2F, 7300, FS80, FS90, SL4500,   SL6000, TK550, SK1600D, etc.

3. Quality Introduction:

Heat Treated

1. All casting should be Austenitized at 900°C for one Hr per every inch of casting thickness.

2. Then Quenched on water and Tempered for sufficient amount of temperature and time.

3. All heat treatment should be carried out after castings reach temperature lower than 200°C. The general hardness after QT to be 230-320 BHN.



Quality Inspection

1. Chemical Composition

2. Mechanical Properties after HT

3. Metallography/Microstructure

4. Dimensional Accuracy

5. NDT Examination/LPI or MPI

6. NDT Examination/UT

7. Cutting / Sectioning



 Pin

The Pins are heat treated and fine machining, that can extend the service life.



Contact:

Email: info@valuetrackpart.com

Phone: 0086-535-6710636

We can supply full undercarriage parts for brands crawler crane. One step buying can save your much time and money.

Contact Name: Mrs Jessie Chao Contact Email: je****e@valuetrackpart.com
Contact Job Title: Manager Contact Mob: 183***633
Contact Tel: Contact Fax:
Address: Website: https://www.valuetrackpart.com

We are specialized at supplying Crawler Crane Undercarriage Parts. We aim to provide our customers with top quality parts and exceptional service.
