Yantai Dongheng Machinery Co., Ltd

Business Type:Manufacturer

Main Products: Earth drillHydralic breakerHydraulic compactorMixer bucketMixer bowlLog splitterLog grappleSaw headHedge trimmerTree shear

view on mobile

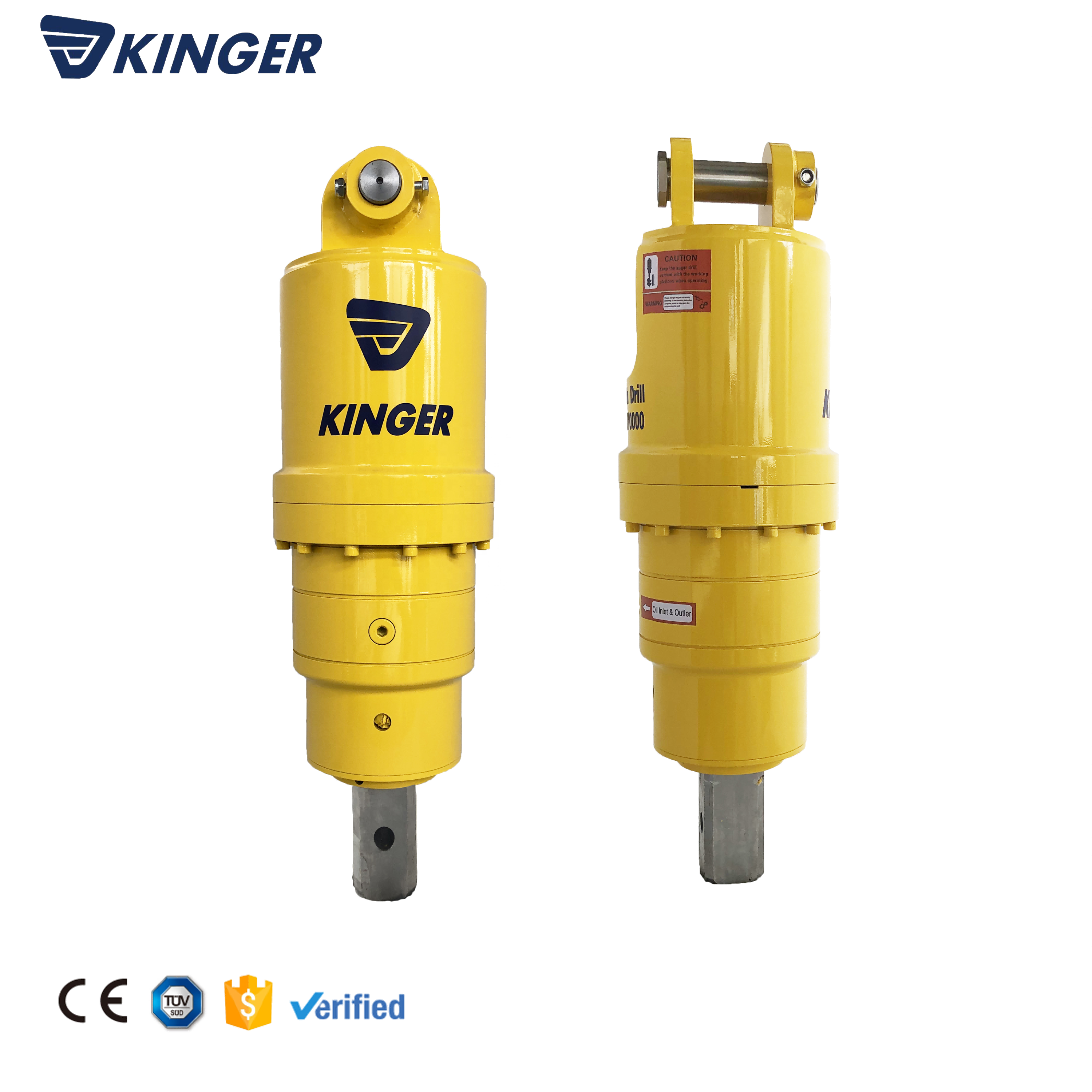

KINGER hydraulic earth auger drill for excavator

Manufacturing & Processing Machinery Engineering & Construction Machinery

EXW Price:US$ 900.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T Western Union

Keywords:auger drill hydraulic auger drill earth augers excavator auger drill earth auger drill earth auger drilling machine ground hole drill earth auger earth drill auger auger drive hydraulic earth drill

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > Engineering & Construction Machinery Trademark: KINGER
Product Package: Plywood case Specifications:
Place of Origin: YANTAI,SHANDONG Port: QINGDAO
KINGER earth auger application in Landscaping, Tree planting, Well boring, Foundation piles, Screw pile installations, Ground source heat pumps, Pole and Mast Installations, Solar energy piling, Bridge pier drilling etc.
Features of KINGER Hydraulic Earth Auger Drill:
1.Huge range of earth drill to suit 1-50T excavators.
2.High quality Imported Hydraulic motors.

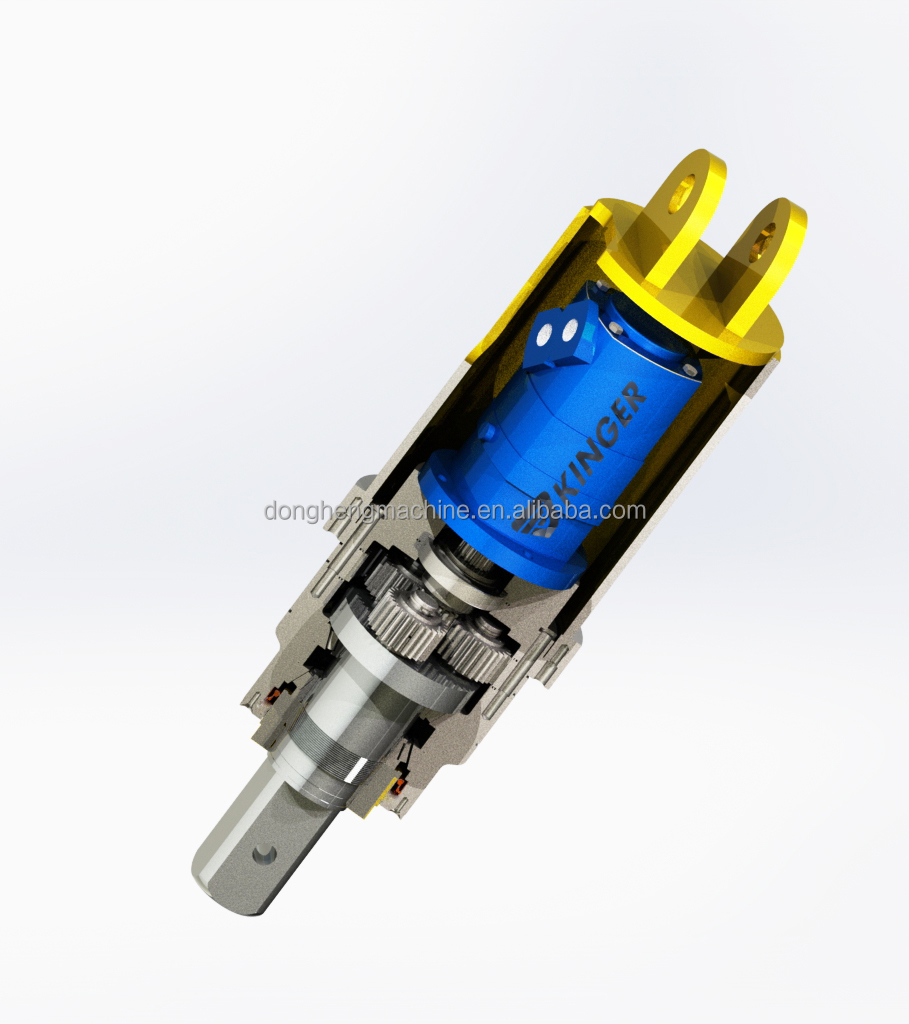

3.Heavy duty Planetary Reductions Gearbox with massive Diameter Output Bearing, Specially researched Gearbox design and heat-treating skills to make auger with massive torque.
4. Non-dislodgement output shaft.
5.Specially designed auger flight for more earth removal.
KINGER EARTH AUGER SPECIFICATION
Model
YDH mini
YDH1200
YDH1500
YDH2000
YDH2500
Applicable(T)
0.8-1.5
1-4
1-2
1.5-3
1.5-3
Torque Range(Nm)
275-1166
327-1320
542-1580
656-2270
855-2510
Oil Pressure Range(Bar)
50-200
60-220
60-200
60-200
60-200
Oil Flow Range(Lpm)
12-32
15-50
20-75
30-75
30-75
Speed Range(r/min)
30-98
30-102
32-97
35-98
35-90
Output shaft（mm）
65Rd
65Rd
65Rd
65Rd
65Rd
Unit Size(mm)
φ175X525
φ245X680
φ200X585
φ200X585
φ200X585
Unit Weight(kg)
40
80
49
50
50
Model
YDH4000
YDH4500
YDH5000
YDH5500
YDH6000
Applicable(T）
2-4
3-6
3-6
5-7
5-7
Torque Range(Nm)
1290-3795
1570-4580
1608-4890
1720-5320
1855-5960
Pressure Range(Bar)
60-200
60-210
60-210
70-210
70-210
Oil Flow Range(Lpm)
40-80
40-95
40-95
40-115
40-115
Speed Range(r/min)
28-80
32-77
28-57
30-85
27-80
Output shaft(mm)
65Rd
65Rd
65Rd
75Sq
75Sq
Unit Size(mm)
φ200X585
φ245X690
φ245X690
φ270X900
φ270X900
Unit Weight(kg)
52
87
88
119
120
Model
YDH7000
YDH8000
YDH9000
YDH10000
YDH12000
Applicable(T)
5-8
5-10
5-8
5-8
10-15
Max Torque(Nm)
2236-7300
2839-8250
3526-8760
3878-10250
4870-12300
Oil Pressure Range(Bar)
70-250
70-250
80-200
80-200
100-240
Oil Flow Range(Lpm)
60-150
60-150
50-95
50-95
80-150
Speed Range(r/min)
35-82
30-72
15-30
12-26
22-47
Output shaft(mm)
75Sq
75Sq
75Sq
75Sq
75Sq
Unit Size(mm)
φ270X900
φ270X900
φ270X870
φ270X870
φ290X945
Unit Weight(kg)
140
142
123
124
172
Why choose KINGER?

- More than 12 years manufacture experience
- 18-month warranty for motor and gearbox reduction
- Special heat treatment for gear
- Most complete model ranges for 1-50ton excavator
- Well performance
- Quick after-sale service
- Fast delivery
- Focus on quality all the time

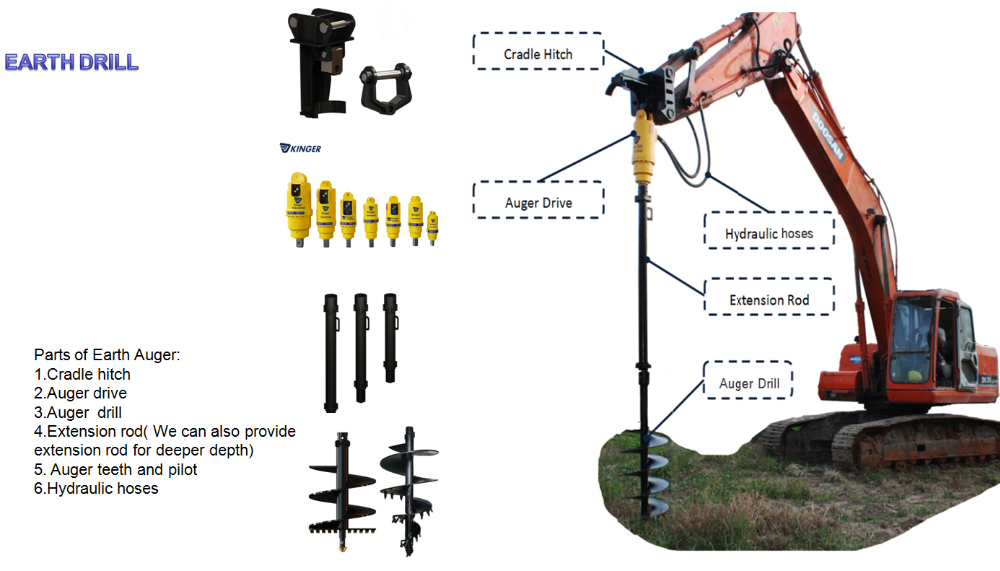

For the whole set earth auger we can supply with a very favorable price.Including auger drive, cradle hitch(mounting hitch), auger stem with auger teeth (Extension rod if needed).


Contact Name: Miss Betsy JIANG Contact Email: be****y@ytdongheng.com
Contact Job Title: Manager Contact Mob: 173***833
Contact Tel: Contact Fax:
Address: Website: https://www.kingermachinery.com/

Yantai Dongheng Machinery Co., Ltd. is established in 2010,which is a professional enterprise devoted to R&D,manufacture and sell Mini excavator, Earth auger, Log splitter, Saw head, Hedge trimmer, Stump Remover, Tree Shear,Chain Trencher,Concrete Mixer Bucket,and other construction, forestry and agricultural machinery and attachments.

Our company has passed ISO9001:2015 and CE certification. We are national high-tech and professional, refined, unique and innovative enterprise.

Our company owns plenty of independent intellectual property rights. So far, we have obtained more than 30 patents. That makes Dongheng to be a leading position in the construction, forestry and agricultural machinery industry.

 Our product adopts high and new technology, applied with best material and supported by various advanced inspection and testing equipment to make sure the quality stable and performance more excellent.

 With our more than 10-year manufacturing, sales and after-sales service experience, we have created our own brand "KINGER".

 Our product has been exported to USA,UK,New Zealand,Ukraine,Germany, Denmark, Russia, recognized by customers all over the world.
