Good Quality ZQ340 Casing Hydraulic Power Tongs Used in Oil Field
Oil & Gas Oil and Gas Equipment
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:Workover Tools Casing Tongs Oilfield Equipment Petroleum Equipment
| Product Category: | Oil & Gas > Oil and Gas Equipment | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai |

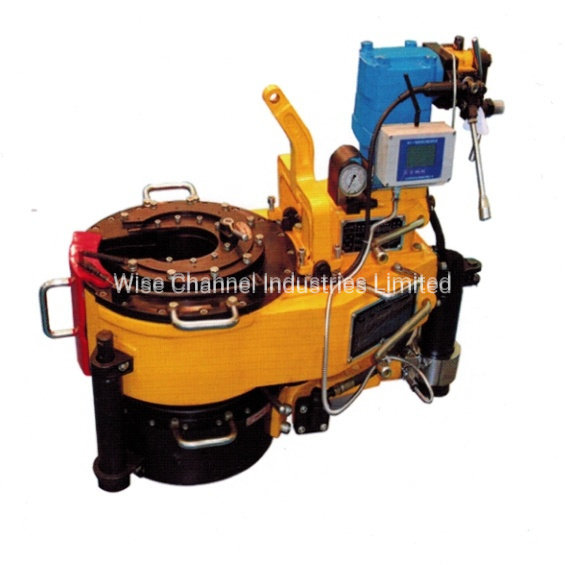

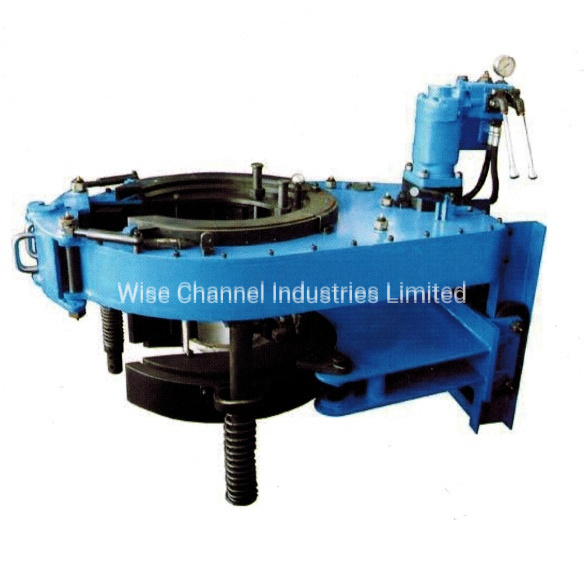

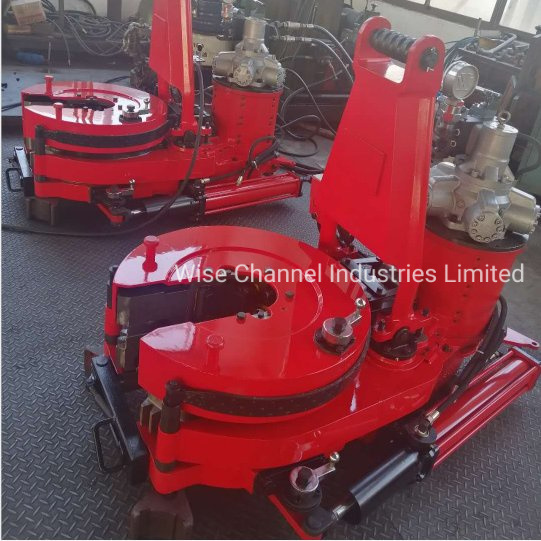

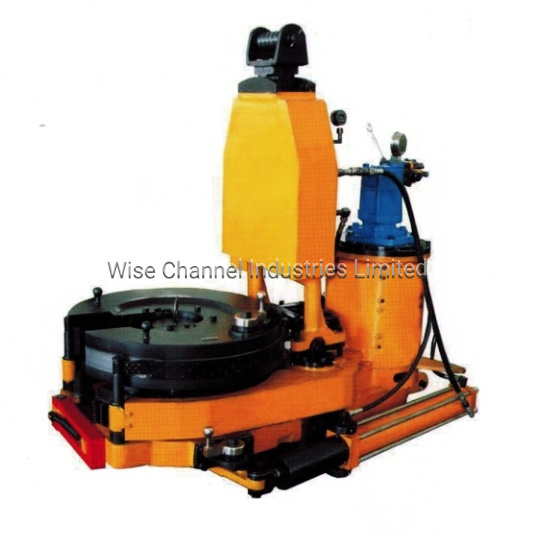

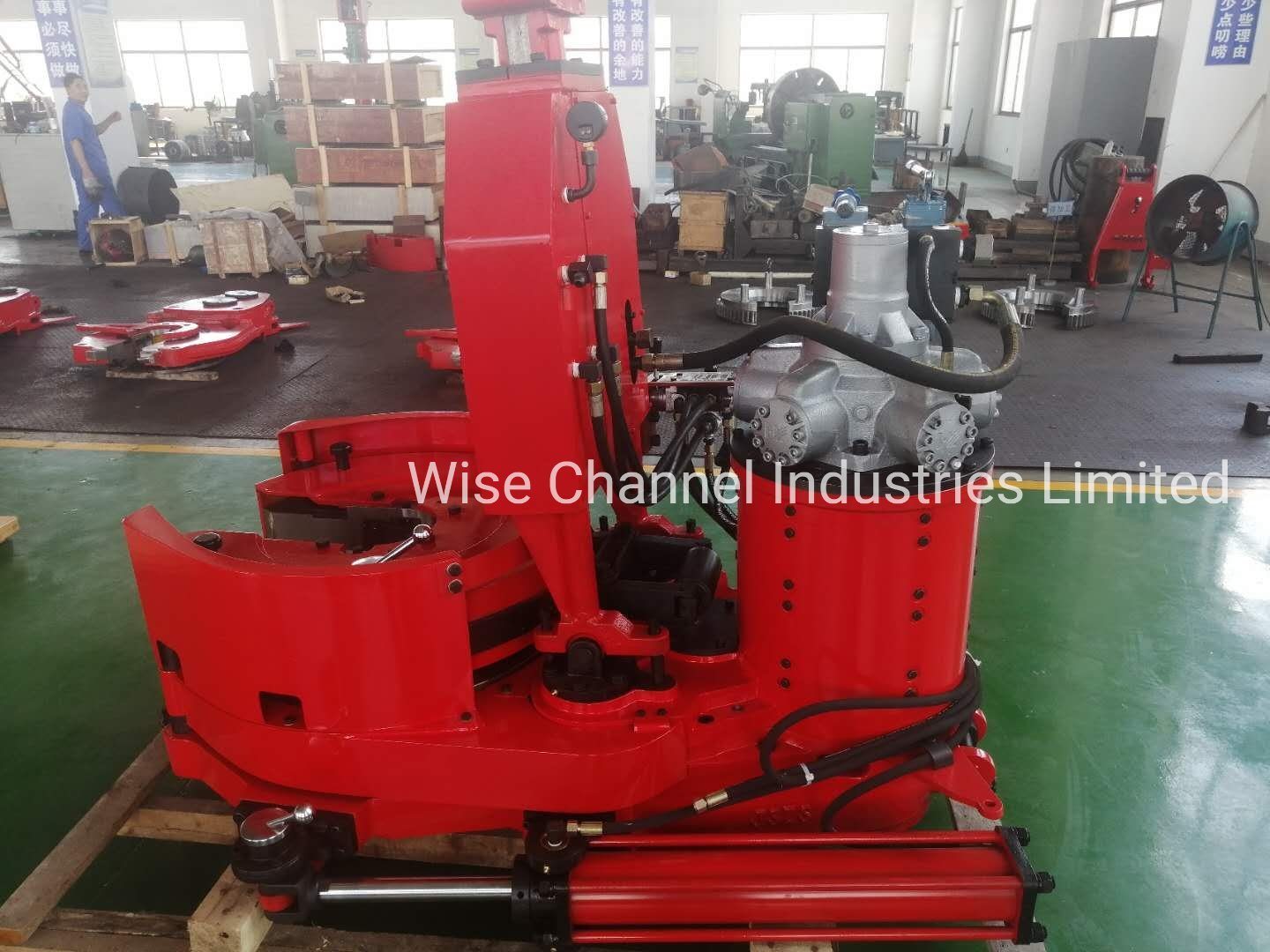

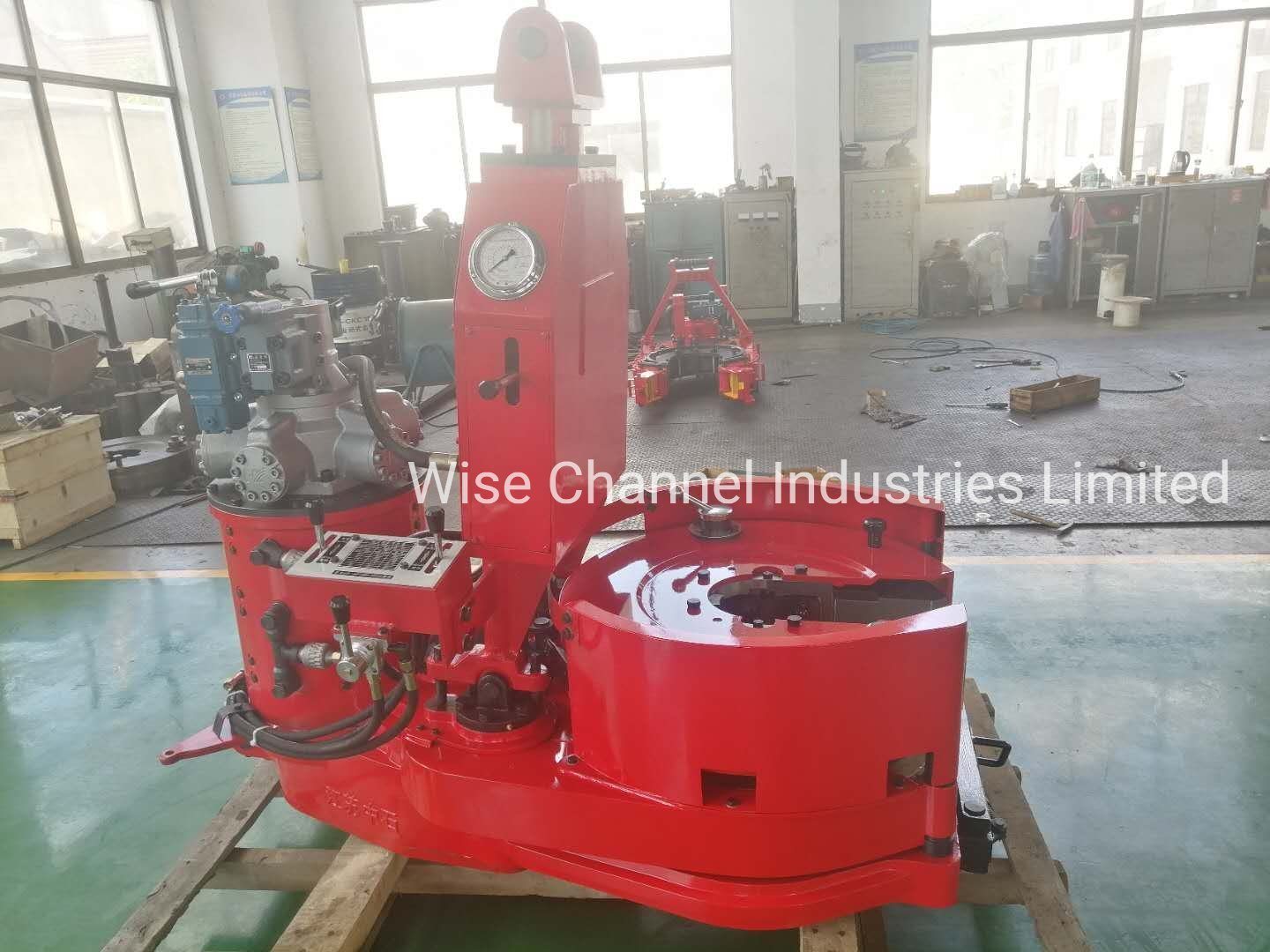

The casing tong is used to make up and break out for casing operation in oil field. It has greatly reduced the labor of worker, enhanced connection quality of thread and diminihed accidents in inappropriate casing operation. The tong has the following features:
1. Open head type, optimization design;
2. Brake belt assembly,up and down cnetralizing mechanism;
3. Wholly hydraulic mode and mechanical gear shift;
4. Equipped with torque gauge, optional torque control system to display, control and record the make-up torque;
Main parameters for casing hydraulic power tong
| Range of casing tong | 4 1/2",5",5 1/2",7",8 5/8",9 5/8" | 4 1/2",5",5 1/2",6 5/8",7",8 5/8",9 5/8",10 3/4",13 3/8" | 9 5/8",10 3/4", 13 3/8",16",18 5/8",20" |
| Torque of high gear | 2600N.m@12MPa | 4800N.m@13.8Mpa | 10160N.m@17.3Mpa |
| Troque of low gear | 20000N.m@12Mpa | 35000N.m@13.8Mpa | 70000N.m@18Mpa |
| Rated speed of high gear | 67 rpm | 42 rpm | 26 rpm |
| Rated speed of low gear | 9 rpm | 6 rpm | 4 rpm |
| Rated system pressure | 10MPa | 11Mpa | 12Mpa |
| Rated flow | 120 LPM | 120 LPM | 132.5LPM |
| Dimenison(mm) | 1500*630*650 | 1580*900*850 | 1980*1219*690 |
| Weight | 500kg | 750kg | 1450kg |
Production Lines:
| Contact Name: | Mr Fred Sun | Contact Email: | sa****s@wisechannel.cn |
| Contact Job Title: | Sales Manager | Contact Mob: | 137***018 |
| Contact Tel: | +86 515 86078182 | Contact Fax: | |
| Address: | No.1 Tianjin Road, Jianhu Economic Development Zone, Jiangsu 224700 China | Website: | https://www.wisechannel.cn |
Wise Channel Industries Limited is a professional manufacturing and trading group locating in Jiangsu of China. Under its management, there are three manufacturing facilities and one trading company, which manufacture petroleum equipment, construction equipment and hydraulic equipment etc. All of our factories have passed ISO9001 , and got necessary certificates required.
Through hard work of our staff, Wise Channel has developed into a modernization-management enterprise.a After 20 years of development Wise Channel has become a group that employ 500 staffs, including 25 senior engineers,40 high-level and intermediate-level technical personnel.

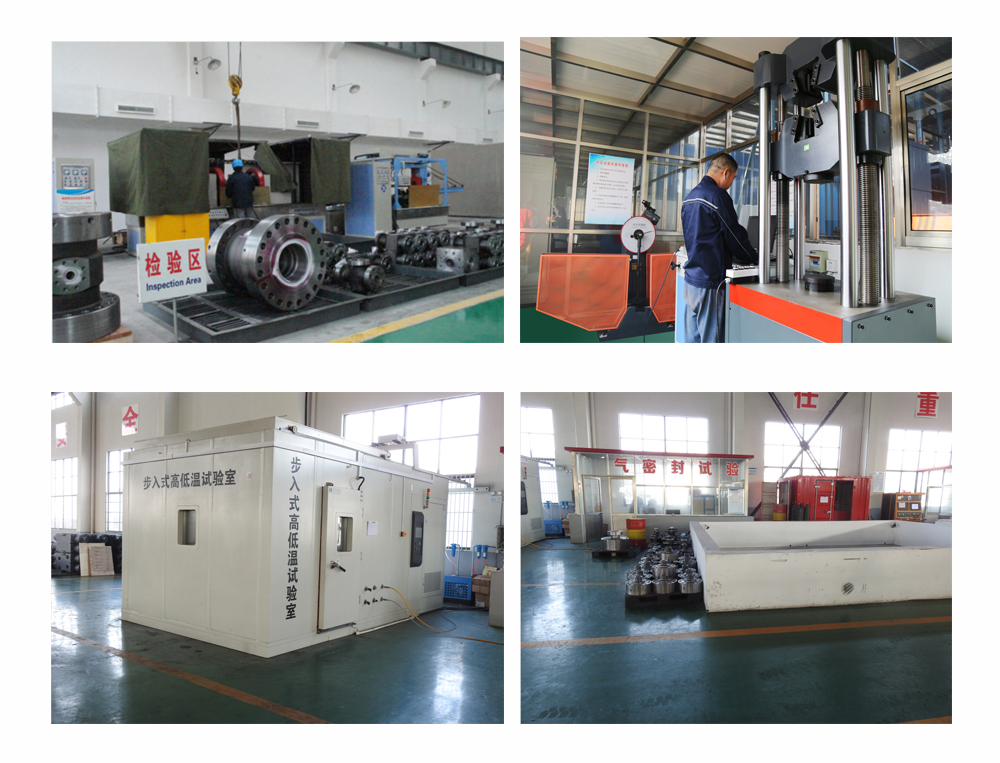

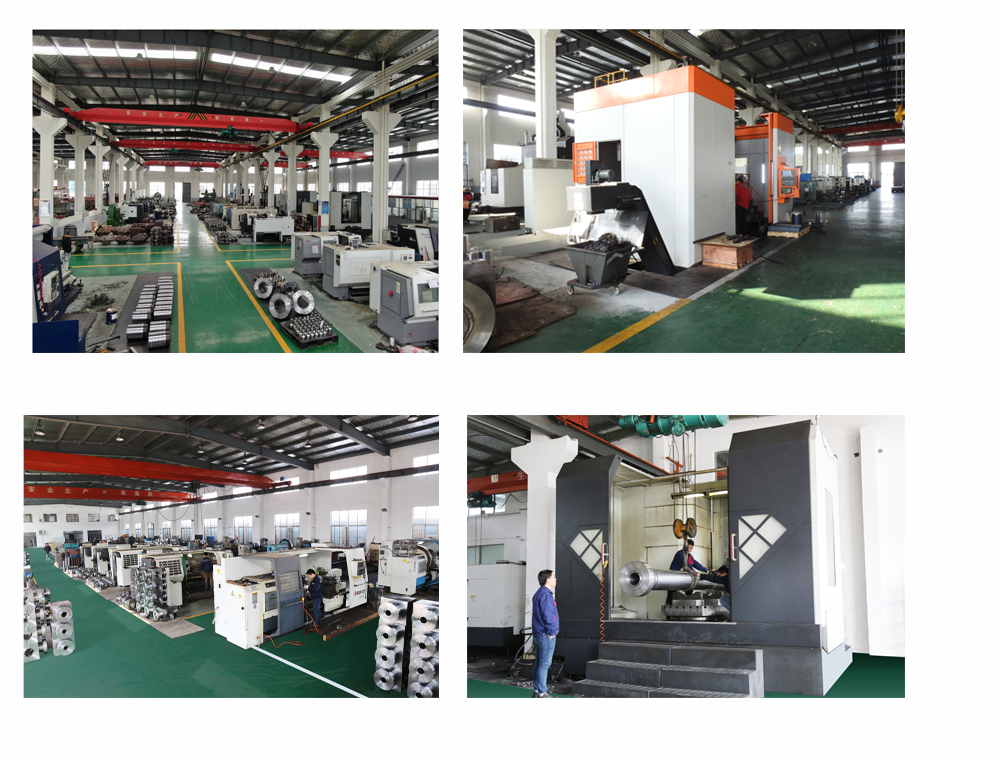

We own over 100 sets of various types of machining equipment, 30 sets of testing equipment. To ensure the stable quality, we also establish mechanical test center and chemical analysis center.
Adhering to the business motto"strengthen management upgrade product quality, establish the best brand and expand the market", we have won national and provincial awards and honors for many times.
Wise Channel expect to be your partner in future!
