Fast Environmental Changing Vibration Agree Chambers

Manufacturing & Processing Machinery General Industrial Equipment

FOB Price:US$ 2,000.00 / Piece(s)

MOQ:100 Piece(s)

Payment Method : L/C T/T D/P Western Union Paypal Money Gram Others

Keywords:Fast Environmental  Vibration Agree Chambers Test chamber

Inquire


Add to Favorites

Product Category: Manufacturing & Processing Machinery > General Industrial Equipment Trademark:
Product Package: The wooden case Specifications:
Place of Origin: Shenzhen Port: Shenzhen

Basic Info.

Model NO.
ETE4060-15
Type
Material Testing Machine
Maxcapacity
>1000KN
Accuracy Grade
0.5
Load Way
Mechanical Load
Loading Method
Static Load
Display
Digital
Control
Computer Control
Weight
0-100Kg
Power Source
AC380V
Oil Cylinder Position
Under
Color
White
Power
AC220V/AC380V
Certificates
CE, SGS
Inner Size
80L, 150L, 225L, etc
Inside Material
Stainless Steel SUS 304
Warranty
1 Year
Leading Time
10~40 Workdays
Brand
Envsin or OEM
Trademark
Envsin
Transport Package
Hermetical Plywood Packing
Specification
CE, SGS, UL
Origin
Made in China
HS Code
90248000

Product Description

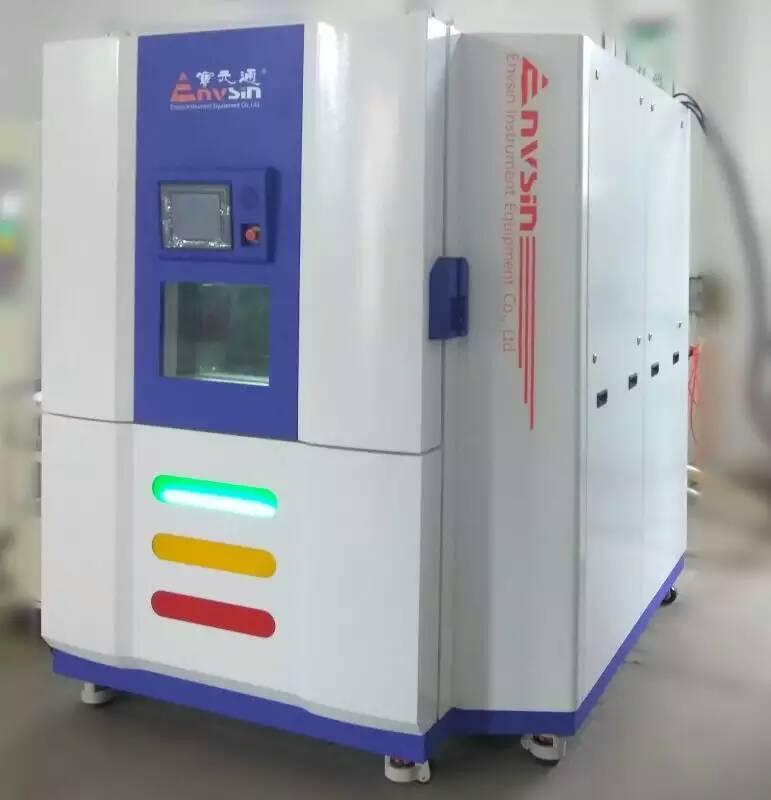

Fast environmental changing combined vibration test cabinet

General info:
The Rapid Temperature Changing (Humidity) and Vibration Combined Test Chamber is suitable for a whole product, parts and material testing. It can run with high temperature, low temperature, high-low temperature cycling test or environmental stress screening test. And it can achieve 3 factors (Temperature-Humidity-Vibration) integrated test when chamber combined with shaking table. Mainly evaluate product's reliability and environment adaptive capacity through simulating Temperature-Humidity-Vibration factors which effect on products, then find products' limit and flaw.

Application:
It widely used in military, aerospace, shipbuilding, manufacturing and quality management etc.

Specification:


ETE Temperation/Vibration Chambers4060-5
7060-5
4120-5
7120-5
4220-5
7220-5









ECE Climate/Vibration Chambers4060-10
7060-10
4120-10
7120-10
4220-10
7220-10










4060-15
7060-15
4120-15
7120-15
4220-15
7220-15









Test Area Volume (L)
600
1200


2200







Parameters of Temp.Test:


















Temp. Range (C) Temp.-40/+180
-70/+180
-40/+180
-70/+180
-40/+180
-70/+180







Fluctuation (C)


±0.1-±0.8










Temp. Uniformity (C)


±0.5-±2.0










Temp. Change Rate (C/min)


5, 10, 15, 20, 25, 30, 35, 40 (on Air Outlet)











(Further info. available upon request)







Parameters of Climate Test (ECE series):


















Temp. Range (C)


+10~+95










Temp. Fluctuation (C)


±0.1~±0.5








Temp. Uniformity (C)


±0.1~±2.0










Humid. Range (%RH)


10~96 (98%RH working with blind plate)






Humid. Fluctuation (%RH)


±1~±3








Dew point Temp. Range (C)+4~+94(working with blind plate)/+4~+59(with vertical bottom plate with hole)/+4~+40(with horizontal bottom





plate with hole)


























Vertical Bottom Plate Size (mm)max.710
max.1000

max 1280

Horizontal Bottom Plate Size (mm)max.700*700
max.1000*1000max.1200*1200
Test Area Dimension W*D*H (mm)800*800*9501100*1100*950
1400*1400*1100


Exterior Dimension W*D*H (mm)1220*2890*21501525*3590*2150
1825*3950*2300





 Product Feature:
*Temperature changing rate can be designed up to 40oC/min.
*Dry air blowing system prevent surface of test specimen from dewing while temperature changes rapidly.
*Modular fabrication technique.
*Intelligent 32 bit measuring and control system with colorful screen.
*Interface USB and Ethernet.
*APP mobility management.
*Programmable power outlet with 4-CH. ON/OFF output control, to ensure safety.
*Patented air circulation system improves test's accuracy.
*Smart software with protection of overheat , overload, short circuit and fault detection.
*Power-failure and power-recovery operation selection.
*Independent thermal protector and sensors keep test specimen off over temperature, breezeless and smog.
*Network video monitoring is synchronized with test data.
*Visible observation window for real-time monitorin.
*Patent: Self-developed humidity chamber structure without condensation.
(ECE series)
*Automatic water supply device is equipped with ultrapure filtration system and water shortage reminder.(ECE series)
*Environmental servo refrigerant flow control for energy saving and quick heat-up/cool-down rate.
*Uniquely operation mode makes testing zone's temperature back to R.T after test, which protects sample status.
*Automatic reminder of maintenance time of equipments and software of fault records.
*Optional remote service function and video CD of equipment operation.


Company Information
As a subsidiary of BAOYT Hong Kong International Group, Envsin is a leading test equipment manufacturer in China.
We are committed to environmental and climatic test technology. Our products are prevailing in many fields such as military, aerospace, shipbuilding, manufacturing and quality management. With 18 service centers in 16 countries, Envsin had qualified to provide many famous companies with competitive test solutions and services, as below:



Factory scene:

FAQ:
1. Delivey time:
     25 to 45 working days after receiving full payment.  For orders are hot and large, all machines are  in  production schedule.

 2.Which model should i choose?
    Firstly , you should inform me  what testing sample are.
    Secondly, what kind of standard do you want to reach.
    Thirdly, sample's dimension.

3. Are you looking for distributors?
    Yes, welcome to be our team one. We sincerely invite all good business chance here.

4.  Warranty:
     12 months.

5. After-service:
     You can contact local engineer to fix or install testing machine.
6. Our products need to be tested by a special testing machine, do you accept customized?
