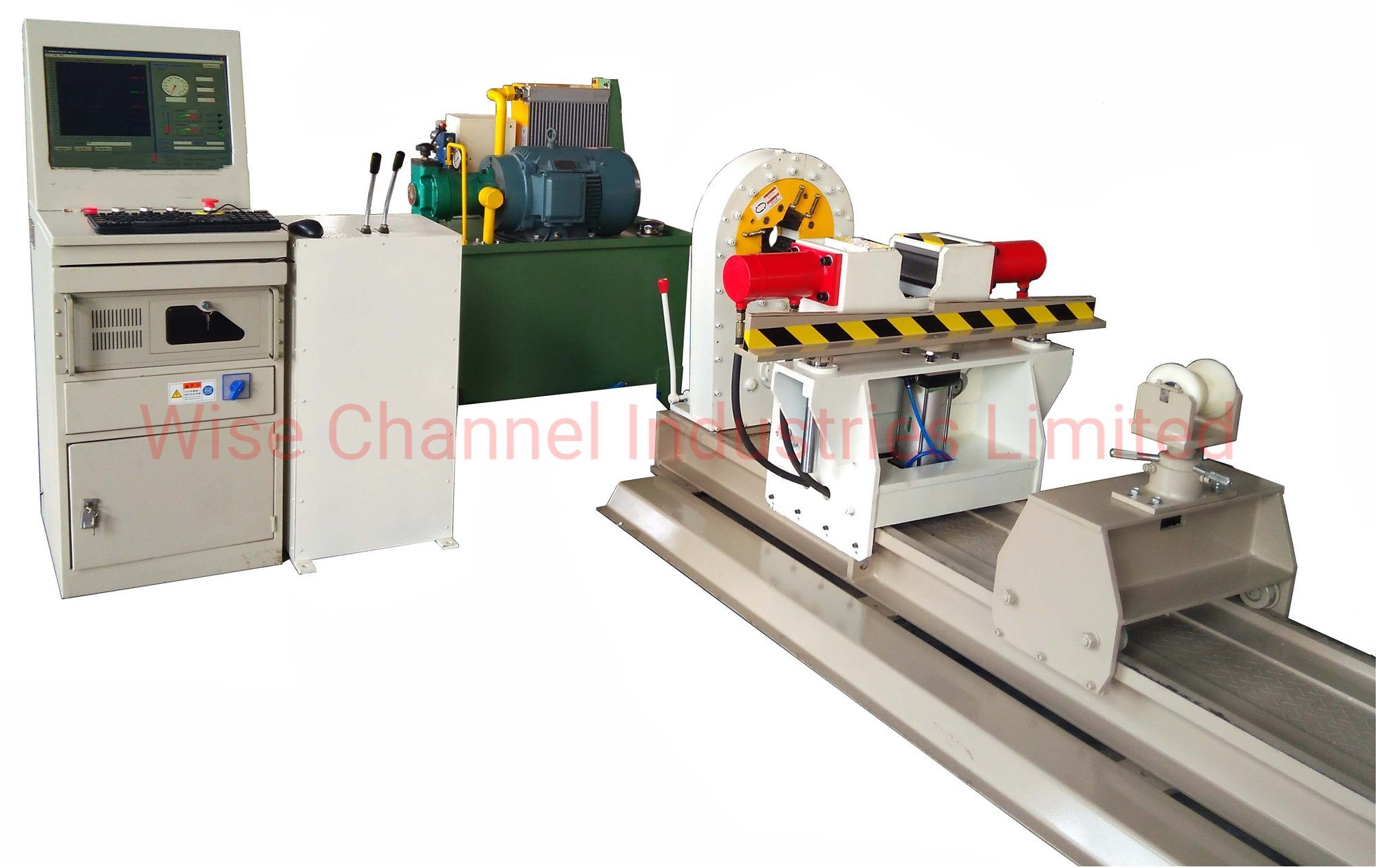

NJ114 Bucking Unit for Plunger Pump
Oil & Gas Oil and Gas Equipment
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:Screw Machine Hydraulic Power Tong Oilfield Equipment
| Product Category: | Oil & Gas > Oil and Gas Equipment | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai |
NJ114 (4 1 / 2 ″) -6 bucking unit is suitable for production and repairing equipment of defueling pump, for buckle of thread with steps and normal thread.According to the requirements on surface of the workpiece, micro mark, none trace mechanism can be selected.Floating arm tong can accurately detect the buckle torque, can accurately display the torque value between 10-6000 N.M, suitable for the processing of special buckle joints.
Equipment characteristics
1.The equipment is suitable for assembly and disassembly of plunger pump, and for joint buckle of 1 ″- 4 1 / 2 ″ (25- ?114mm) fittings.
2.According to the requirements on surface of the workpiece, micro mark, none trace mechanism can be selected.
3.With manual operation, fully automatic operation for selection.
4.Adopt 8"or 15" touch screen industrial control display terminal Torque display, control and recording.
5.The floating arm tong can accurately detect the buckle torque, and the detection accuracy is ± 1.5%
6.Can set operating parameters, pipe body, and coupling parameters, maximum torque, minimum torque, optimal torque, maximum circles and minimum circle of the buckle process.Name and work ID of the operator, contract number, furnace number, production pipe serial number and annotation.
7.Display and control buckle torque on the pipe, and shoulder torque, the ratio of shoulder torque VS max.torque, and shoulder circles
8.Record, query, and print past production records in diagram and daily report mode.
9.The production process record can be transferred through U disk to any computer in the office for storage or printing.
Main technical parameters
Suitable diameter: 1″~41/2″(?25.4mm~?114.3mm)
High-gear torque: 2500N·M
Low-gear torque: 6000N·M
High-gear speed: 8~26r/min
Low-gear speed: 3~10r/min
consumed power : 11KW
Max.flow rate of hydraulic system:20~60L/min(Manual stepless variable)
Hydraulic system peak pressure:31.5 MPa
Max.working pressure : 20MPa
Rated system pressure: 16 MPa:
Maximum diameter of master and backup tong: 400mm.
Center height of equipment: 1020mm
Overall dimensions and weight of the equipment
Bucking unit: 2020×1140×1560, about 3800kg
Hydraulic station: 1800×1350×1260,about 1350 kg
console: 950×1020×1180,about 120 kg

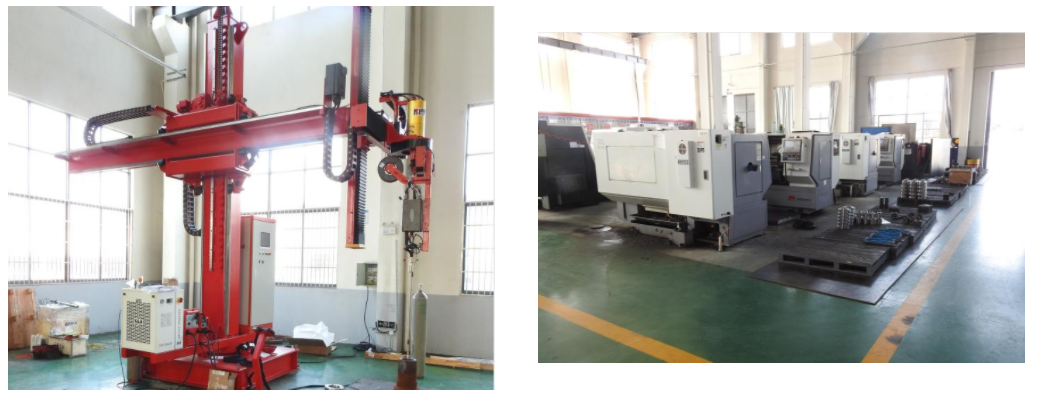

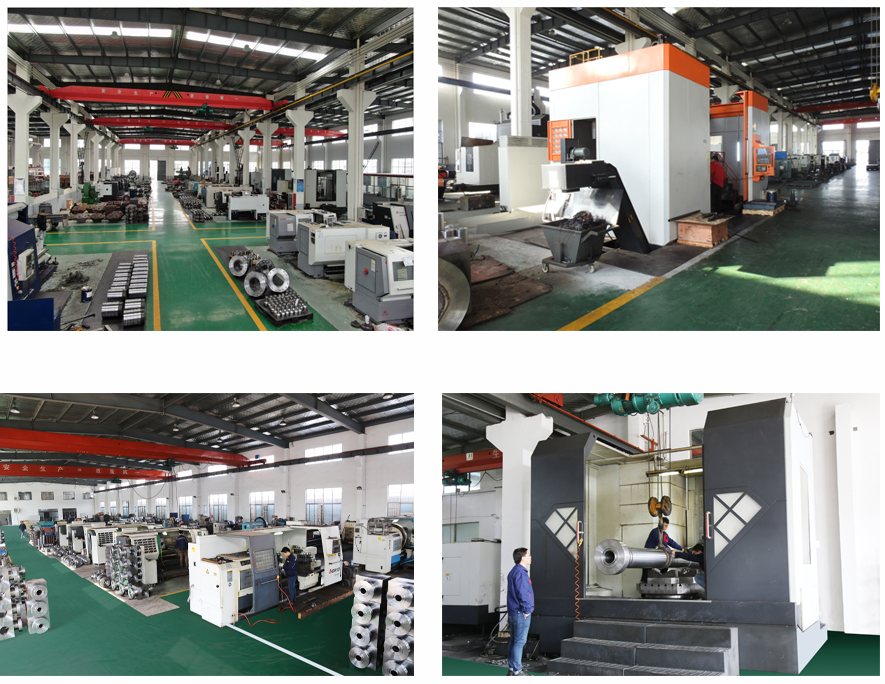

Our Facilities
| Contact Name: | Mr Fred Sun | Contact Email: | sa****s@wisechannel.cn |
| Contact Job Title: | Sales Manager | Contact Mob: | 137***018 |
| Contact Tel: | +86 515 86078182 | Contact Fax: | |
| Address: | No.1 Tianjin Road, Jianhu Economic Development Zone, Jiangsu 224700 China | Website: | https://www.wisechannel.cn |
Wise Channel Industries Limited is a professional manufacturing and trading group locating in Jiangsu of China. Under its management, there are three manufacturing facilities and one trading company, which manufacture petroleum equipment, construction equipment and hydraulic equipment etc. All of our factories have passed ISO9001 , and got necessary certificates required.
Through hard work of our staff, Wise Channel has developed into a modernization-management enterprise.a After 20 years of development Wise Channel has become a group that employ 500 staffs, including 25 senior engineers,40 high-level and intermediate-level technical personnel.
We own over 100 sets of various types of machining equipment, 30 sets of testing equipment. To ensure the stable quality, we also establish mechanical test center and chemical analysis center.
Adhering to the business motto"strengthen management upgrade product quality, establish the best brand and expand the market", we have won national and provincial awards and honors for many times.
Wise Channel expect to be your partner in future!
