Computer to screen CTS UV laser direct exposure system machine
Manufacturing & Processing Machinery Packaging & Printing Machine
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:computer to screen machine Direct imaging machine CTS machine CTS plate machine
| Product Category: | Manufacturing & Processing Machinery > Packaging & Printing Machine | Trademark: | GIS |
| Product Package: | wooden case | Specifications: | 1600*1800*2100 |
| Place of Origin: | Jiangsu Province, China | Port: | Shanghai port |

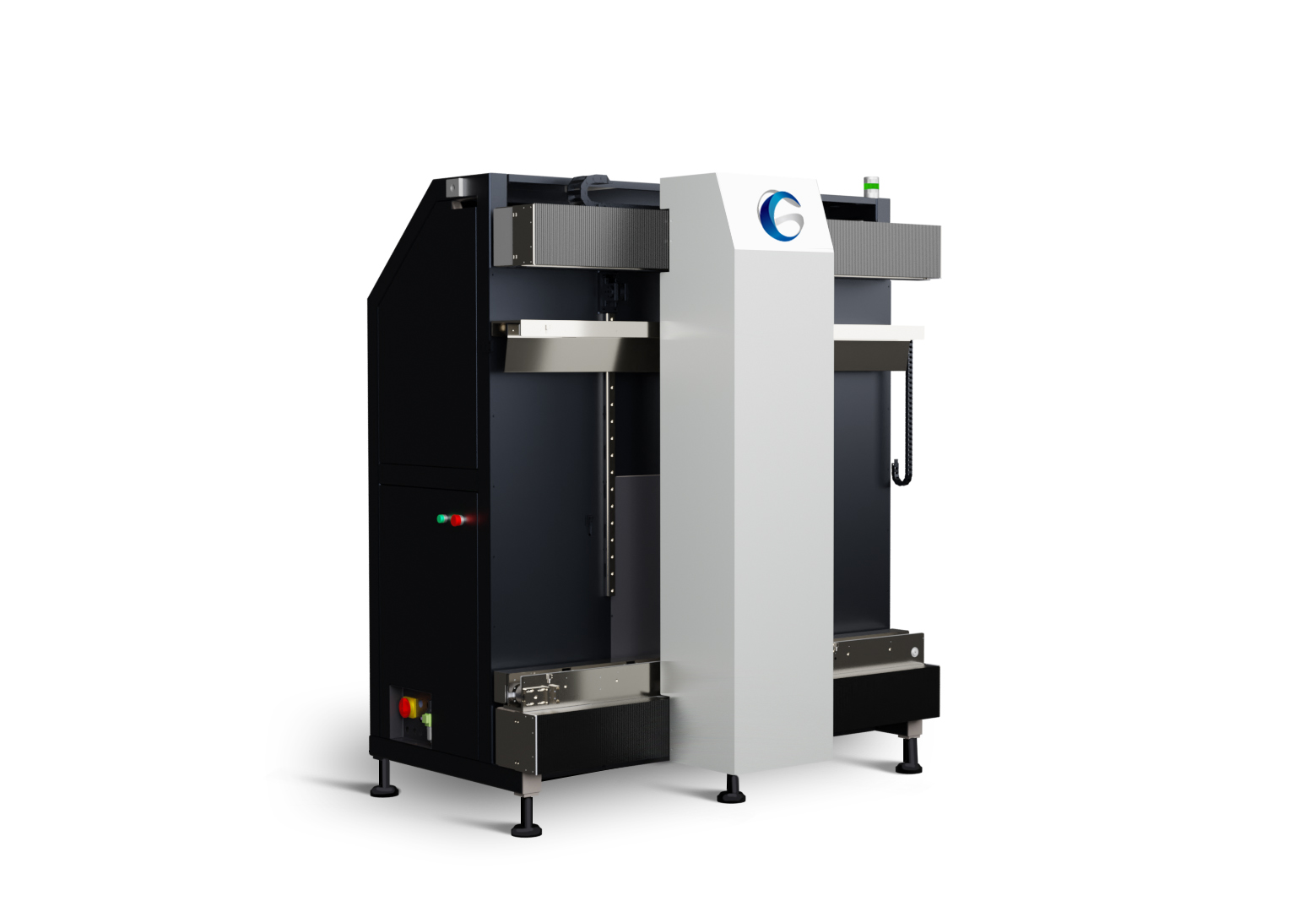

Computer to screen CTS UV laser direct exposure system machine
Product introduction：
The CTS series equipment is the high-precision laser computer to screen machine produced by GIS Laser for exposure process in the mesh screen plate making process. The system works in the yellow room environment and is compatible with current production line environment. It can expose multiple types of sensitive materials, with a wide applicable scope. It's capable of ensuring the optical elements aren't polluted in the exposure process when working under the clean condition. In addition, the user shall coordinate to configure proper parameters to ensure the desired performance of the machine under some specific production conditions.
The CTS series laser computer to screen machine is exclusively used for exposure process in the mesh screen plate making process, and the system cannot be used by the method not specified in the Manual.
Technical parameter:
| CTS100 | CTS100L | CTS200 | CTS300 | |
| Exposure system | DMD | DMD | DMD | DMD |
| Light source | 20-30W | 20-30W | 20-30W | 20-30W |
| Structure | Stainless steel | Stainless steel | Stainless steel+Marble | Intergral structure by marble |
| Drive system | Linear motor | |||
| Focusing lens | XGA | |||
| Motion | Scanning by exposing lens+ stepper, Frames lie still | |||
| Speed | 2-3/minute/m2 | |||
| Precision | 1270dpi | 1270dpi | 1270/2540dpi | 1270/2540dpi |
| Min line width | 50um | 50um | 40um | 40um |
| Max frame size (mm) | 900*1000 | 1200*1300 | 1080*1200 | 1200*1300 |
| Max print size (mm) | 800*900 | 1100*1200 | 900*1000 | 1100*1250 |
| Weight (kg) | 1000kg | 1200kg | 2000kg | 3000kg |
| Machine size (mm) | 1710*1470*1500 | 2030*1745*1500 | 2700*1550*1600 | 2950*1980*1710 |
| Application | Textile / garment / PCB / Packaging | |||
CTS Machine details:(as reference)
FAQ:
1 Q: How can I get the sample to check your quality?
A: After price confirmation, you could require for samples to check our product's quality. If you need a blank sample to check the design and quality, we would provide you sample for free.
2 Q: How can I get the price?
A: We would provide the quote within 24 hours after we get your inquiry. If you are urgent to get the price, please tell us in your email or contact us by wechat, whatsapp directly.
3 Q: What about the lead time for the CTS machines?
A: The delivery time for CTS100 CTS200 CTS 300 is about 3 weeks. Please contact GIS teams and check the actual delivery time.
4 Q: Whether the equipment can be customized?
A: Yes, we could design and produce the CTS machines based on your detail requirement.
| Contact Name: | Mr JingZhou WU | Contact Email: | yi****g@gis-group.com.cn |
| Contact Job Title: | Manager | Contact Mob: | 152***362 |
| Contact Tel: | Contact Fax: | ||
| Address: | No.5 Building,High Tech Industry Park,Economic Development Zone,Fengxian,Jiangsu Province. | Website: | http://www.gis-group.com.cn/en/ |
GIS Tech Inc. was established in Xuzhou, Jiangsu Province. GIS Tech has subsidiaries of Jiangsu GIS laser Technologies Inc., Jiang su GIS Semiconductor Technology, GIS Intelligent and Next Tech Research Center.
GIS Tech Inc. has establised a manufacturing and R&D base in Fengxian County, Xuzhou, covering an area of 20000 square meters, including 1000 square meters of clean workshops. It has R&D and after-sales centers in Suzhou, covering an area of 2000 square meters, with a core teams of 30R&D people, and it's planned to be explanded to 60 people. The products cover optical, mechanical, electrical systems, software and sports systems. The technical force is strongly supported by a team of experts from Japan and Germany, with a technical team covering high-end talents such as optics, mechanices, electronics, software, etc, as well as complete production facilities and related equipment.
GIS Group has passed ISO9001 quality system certification. Our company plans to invest RMB 350 million in three years to become China's comprehensive core process equipment company, covering MEMS, IC package printed circuit boards, electronic glass, advanced light sources, printing and phtosensitive materials. Our main products are digital direct imaging exposure machine, physical vapor deposition vacuum coating equipment, new energy automation equipment and photosensitive ink, 3D cover plate, several major products have entered mass production, and we have increased production scale and market share in 2018, within three years we will become the leader of China's core process solutions.
Jiangsu GIS Laser Technologies Inc is a subsidiary of GIS Tech Inc. which is a multinational company providing advanced intelligent manufacturing solutions in the fields of to the industries of New Energy, Semiconductor Packaging, Lithium Battery, PCB and Printing, with its increadible innvovation through its independent Next Tech research Institute, Business Division and Manufacturing Plant.
