API 6A Single Tubing Head
Oil & Gas Oil and Gas Exploitation
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:Christmas Tree Oiffiled Equipment Oilfield Machinery Wellhead Petroleum Equipment Petroleum Machinery Drill Equipments
| Product Category: | Oil & Gas > Oil and Gas Exploitation | Trademark: | |
| Product Package: | Plywood box | Specifications: | Psl1~Psl4 |
| Place of Origin: | Jiangsu | Port: | Shanghai |

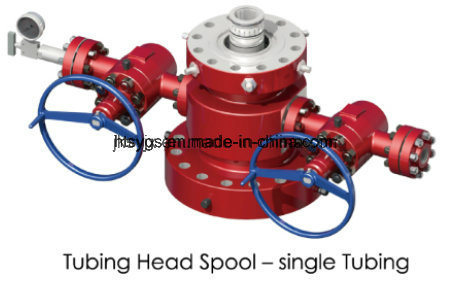

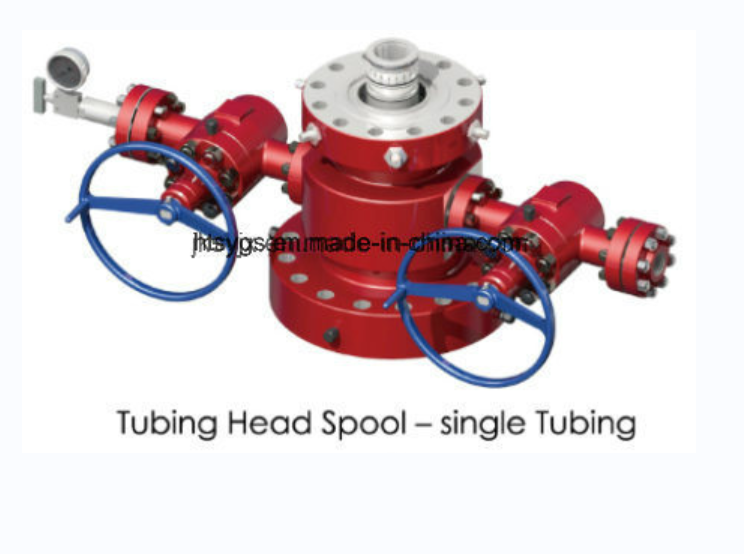

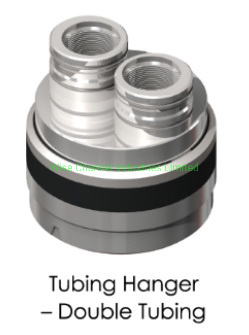

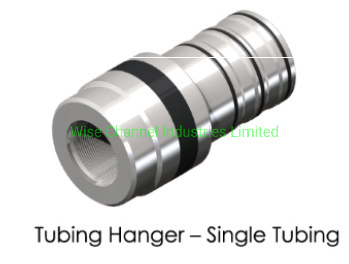

Tubing head and tubing spool are used for hanging tubing and sealing the annular space between casing and tubing, feature with the following:
Secondary seal between tubing hanger and adapter hanger can be "O" ring, BT seal or metal-metal seal;
Metal-metal seals, special elastomer seals, or metal+special seals are set between tubing hanger and tubing head;
Tubing hanger for tubing head has straight type seat bore and 45°cone of hanging shoulder, wth strong loading ability;
Complete with lubricator and sealing test port;
Secondary seal mechanism is set at the bottom flange, which can be "O"seal,BT seal or metal seal;

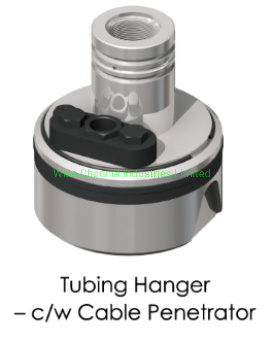

Tubing hanger and tubing head adapter flange can be penetrated through cable or cable penetrator and be provided with control pipeline interface;

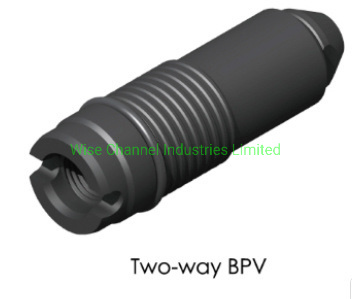

Tubing hanger can be set with BPV thread as required;
The flanges are provided with locking screw;
The connection type of side outlet is bolted with VR thread for valve-replacement operation.
