API 6A FC GATE VALE

Oil & Gas Piping and valves

FOB Price:US$ 600.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:FC VALVE API 6A VALVE GATE VALVE

Add to Favorites

Product Category: Oil & Gas > Piping and valves Trademark: ORD
Product Package: plywood box Specifications: 1-13/16" ~ 7-1/16"
Place of Origin: CHINA Port: SHANGHAI

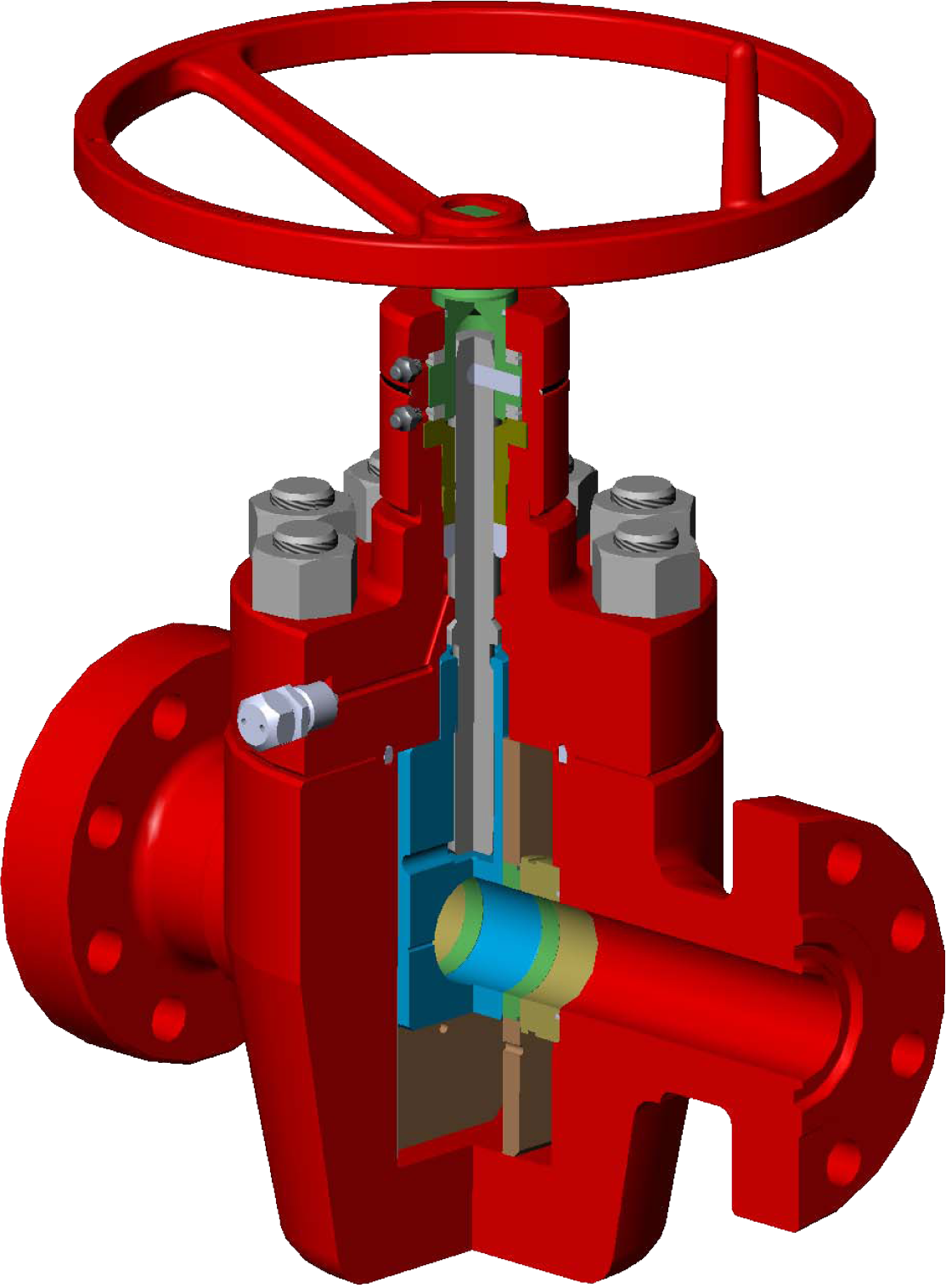

The FC Gate Valve is designed with slab gate, non-rising stem, full bore thru-conduit, floating gate and seats, which can deliver outstanding performance throughout a wide range of conditions. It is a field-proven valve which can provide reliability and interchangeability. The available working pressure is from 2000 to 20,000psi and bore sizes from 1-13/16" through 7-1/16".

Features & Benefits

Back seat design permits to replace stem packing under pressure.
Full bore, thru-conduit design maximizes valve life.
There is stem pin to protect the stem and internal parts from failure by shearing if the handwheel is over torque.
Bi-directional design provides flow direction versatility.
Metal-to-metal sealing (gate-to-seat, seat-to-body).
Gates, stems, seats, body bushings and other working parts are easily field replaceable. No special tool is needed.

Contact Name: Miss Cindy Jiang Contact Email: ci****g@oruid.com.cn
Contact Job Title: Manager Contact Mob: 138***010
Contact Tel: 86-515-80680559 Contact Fax:
Address: No.126, Shenshe Road, Hi-Tech Industrial Park, Website: http://www.oruid.com.cn/
Jiangsu Oruid Petroleum Machinery Co., Ltd, established in January 2011, is located in Jianhu County, Jiangsu Province, which is known as the "Pearl of Water Town". The main products are the design, processing and manufacturing of oil drilling and production equipment and accessories (including valves, wellhead and Christmas tree equipment, downhole tools, throttling and killing manifolds, cementing and fracturing equipment, fracturing systems, etc. ) and their general components. Oruid has API Q1, 6A, 16C, ISO 9001, ISO 14000, ISO18000 and other quality & environmental certificates. And we got Year 2020 Certificate of Export Commodity Brand from China Council for the Promotion of International Trade from China Chamber of International Commerce. Products are exported to the United States, Canada, the Middle East, South America, Europe and other countries and regions, which are deeply trusted by customers. Oruid is committed to the development of new products and technologies, with more than 30 patents for inventions and utility models by 2021. Oruid has got Manufacturer′s Capability Certificate (MCC) from TUV as well. With high quality and advanced technology, we sincerely invite you to visit our factory and discuss cooperation.
