Why60000 High Pressure Cleaner High Pressure Pump System
Oil & Gas Oil and Gas Equipment
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords: Plunger Pump Water Injection Pump Cleaning Plunger Pump High Pressure Pump Piston Pump
| Product Category: | Oil & Gas > Oil and Gas Equipment | Trademark: | |
| Product Package: | Wood Case | Specifications: | 22~115mm |
| Place of Origin: | Jiangsu | Port: | Shanghai |
WHY60000 high pressure pumps are built to operate at the continuous maximum duty stated in the performance parameters. Just compare the crankshaft speed, average plunger speed, plunger diameter and power rating.
High Pressure Pump Weight:approx.2800 KG
Quality and reliability
Stainless steel pump head free of alternating stress
Spring Preload high pressure sealing make it longer life
Solid solid ceramic plunger to ensure high strength and stable operation
An integrated lubricating oil and piston cooling system to improve the service life.
Built-in double gear reducer to make transmission balance higher efficiency
Special design of the crankcase magnetic filter
Crankcase forced lubrication system
An integrated ball type liquid inlet valve design, greatly improving the efficiency of fluid mechanics.
Computational fluid mechanics design in dynamic load to ensure the highest reliability under max duty working conditions.
The crankshaft is made of a high strength forging process and is specially treated

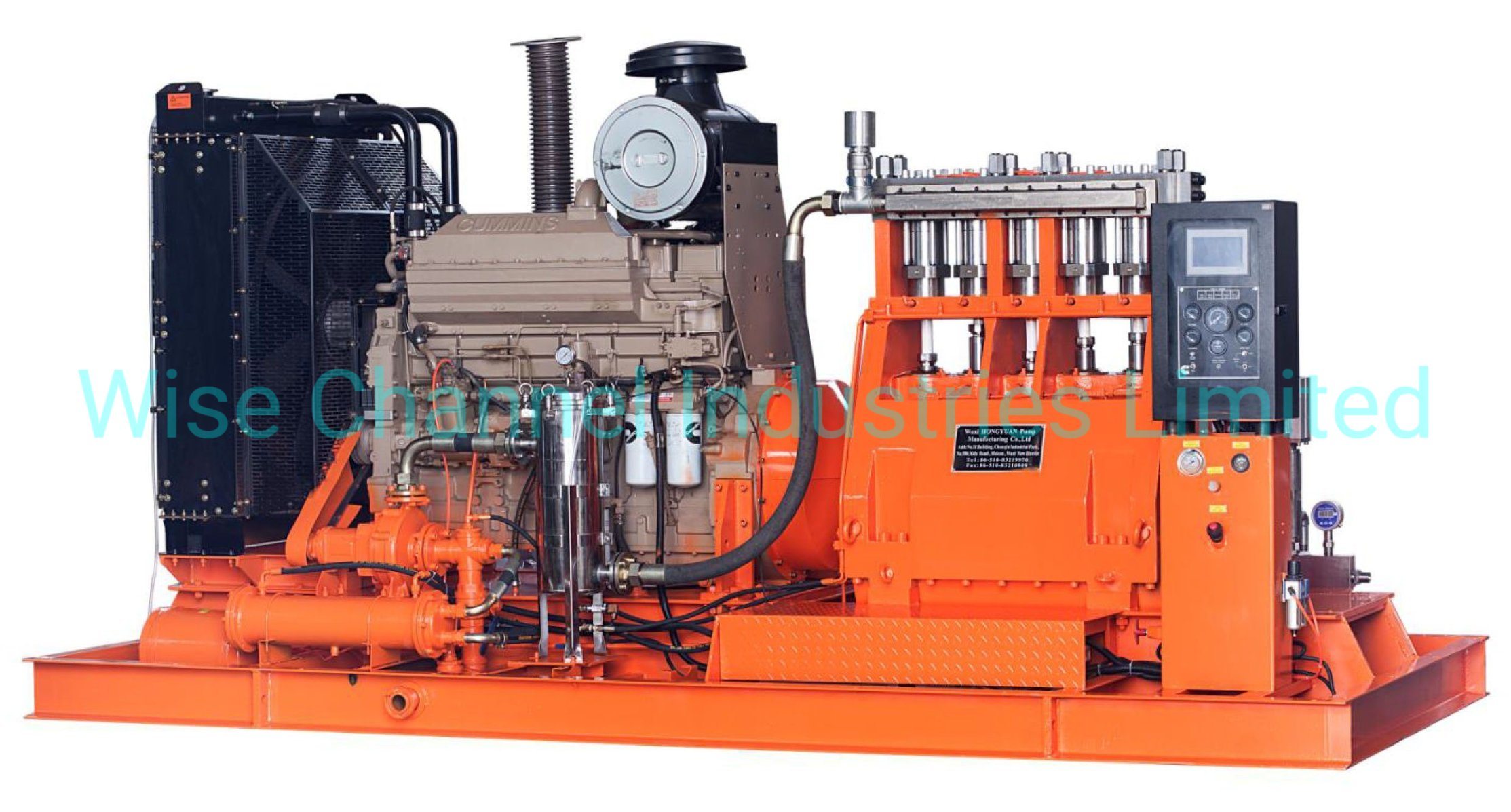

Stationary unit with diesel engine
Length: 4500 mm
Width: 2000 mm
Height: 2450 mm
Weight: 8000 kg
Feature:
Power ratings up to 800kw

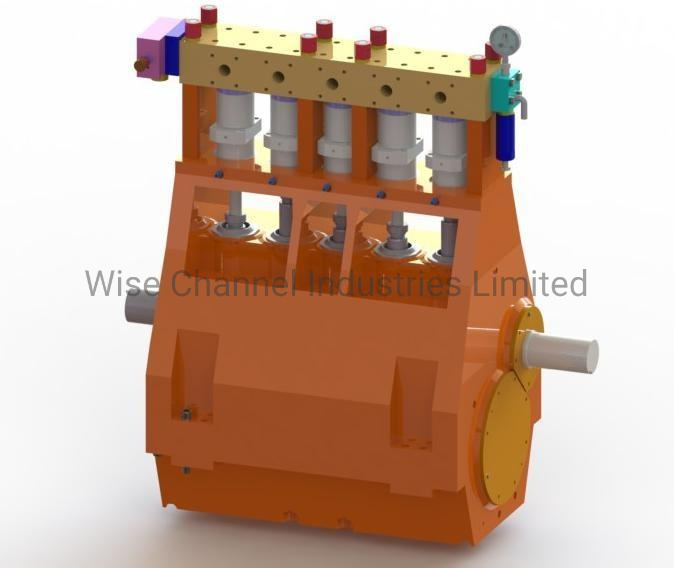

Vertical 5 cylinder design
D=Piston/Plunger dia. [mm] n1=Motor/Engine r.p.m n2=Crankshaft r.p.m.
N2 Plunger speed:0.73m/s Rod force:155KN Stroke:100mm
Choice N2:450
WHY60022~WHY60034:A type Fluid End, spring loaded dynamic seal, SS fluid end WHY60036~WHY60060:B type Fluid End, spring loaded packing seal, alloy & SS fluid end WHY60060~WHY60110:C type Fluid End, spring loaded packing seal, alloy fluid end
Conversion table:Rating 1kW=1.34HP Op.pressure 1bar=14.5psi=0.1Mpa
Conversion efficiency of WHY high pressure pump can up to 90%~96%
The dynamic high pressure seal promotes the advantages of Y type seal design, further improving the efficiency, and the special
ceramic plunger can reach the maximum 3000bar pressure
