Tubing head

Oil & Gas Oil and Gas Exploitation

FOB Price:US$ 1,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method :

Keywords:Casing head Casing Spool Tubing head Tubing Spool Wellhead High Pressure Mandrel hanger Slip hanger

Add to Favorites

Product Category: Oil & Gas > Oil and Gas Exploitation Trademark: Ruier
Product Package: Plywood Box Specifications: 7 1/16 "~ 21-1/4" 2000PSI~20000PSI AA, BB, CC, DD, EE, FF, HH
Place of Origin: Yancheng, Jiangsu, China Port: Shanghai

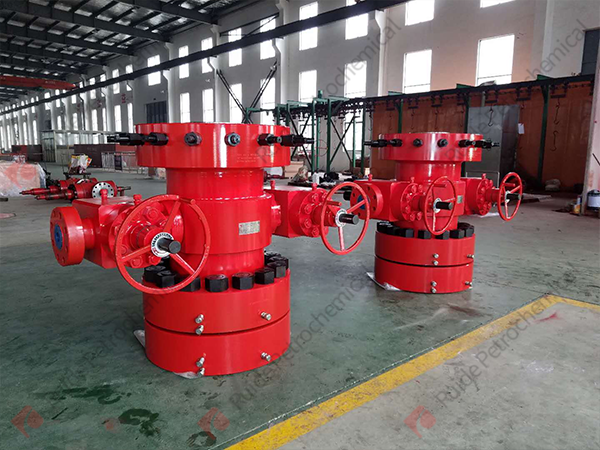

Tubing head
The tubing head consists of tubing head spool, tubing hanger, packing device, jacking screw, gate valve, pressure gauge and flange. Installed on the casing head, it mainly bears the pressure in the tubing string and the load of the tubing string, Christmas tree and other devices. The bottom flange is equipped with secondary sealing mechanism and sealing test port of production casing. The oil pipe head and its reducing joint can be used for direct cable crossing or cable crossing as a whole, and control pipeline interface can be set. Back pressure thread can be set at the oil pipe head according to the needs.
Basic parameters
Nominal size: 7 1 / 16 "~ 21-1 / 4"
Working pressure: 5000PSI ~ 15000psi
Temperature class: Ku
Material grade: AA, BB, CC, DD, EE, FF, HH
Specification level: PSL1 ~ psl4
Performance level: PR1 ~ PR2

Contact Name: Mr William Xue Contact Email: wi****m@ycruide.com
Contact Job Title: GM(General Manager) Contact Mob: 138***028
Contact Tel: Contact Fax:
Address: NO.888.Tang Qiao Road, Hi-tech Economic Zone, Jianhu County, Yancheng, Jiangsu Province, China Website: http://en.ycruide.com/
Yancheng Ruide Petrochemical Machinery Co., Ltd have got the ADNOC(ADCO) Group Approval, the manufacture ID in ADNOC approval list is 38247 and 47895, the Product Group ID is 184405 and 184625 184212 including API 6A valves, gate valves, Globe valves and choke valves. Our company is a network member of the CNPC, CPCC Material and Equipment Group Company. We have passed the certification of the ISO9001 international quality system and have obtained certificates of API-6A (certificate No.: 0861), 16C (certificate No.: 0085), 6D (certificate No.: 0754) and the right to use the monogram. With the hard work of the whole staff and the support from all circles since its establishment, the company has developed into a modern enterprise with a fixed asset of 25 million RMB and an annual sales volume of 50 million RMB. Now there are over 50 employees, which include 10 senior engineers, 20 upper intermediate technical management personnel; and over 100 sets of cold and hot processing equipment, over 20 sets of inspection equipment. The main products of our company include: high and medium pressure valves, the main technical parameters being PN2.5-105MPA nominal pressure and DN3-500mm nominal bore; oil/gas wellheads, casing heads, choke & kill manifolds, mud manifolds, drilling fittings and hydraulic pipes, etc. The products are produced in accordance with the international standards ISO/DF, ANSI, API, GB and petrochemical standard SY. The products are widely used in petroleum, chemical industry, metallurgy, power stations and construction projects. Also we are capable to offer customized products according to your requirements. We have advanced technology and fine equipment. With the tenet of “Integrity an
