Manual plug valve

Oil & Gas Piping and valves

FOB Price:US$ 100.00 / Set(s)

MOQ:1 Set(s)

Payment Method :

Keywords:Gate Valves High pressure wellhead Valve plug valve

Add to Favorites

Product Category: Oil & Gas > Piping and valves Trademark: Ruier
Product Package: Plywood Box Specifications: 1 13/16 "~ 7-1/16" 2000PSI ~ 20000psi
Place of Origin: Yancheng, Jiangsu, China Port: Shanghai

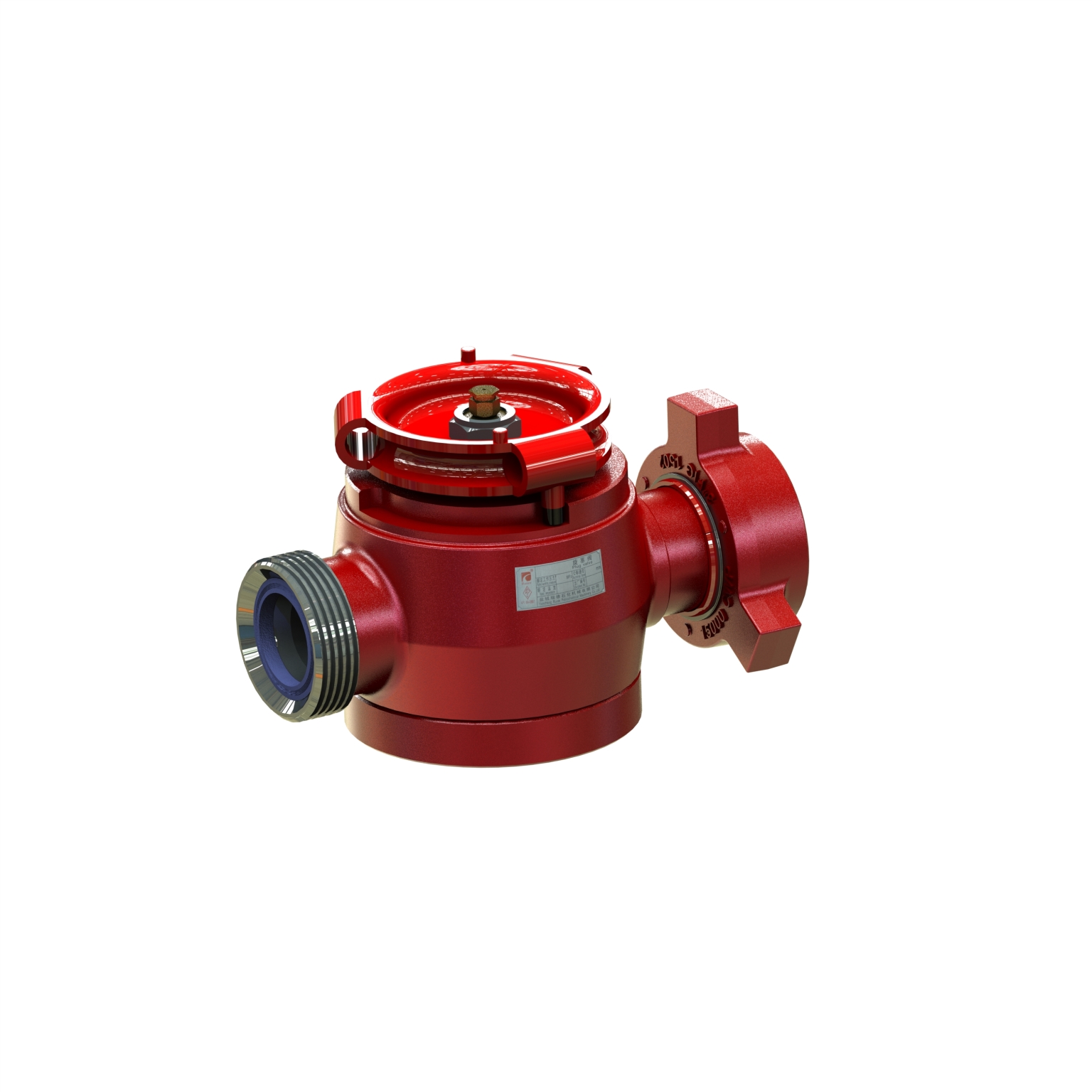

Manual plug valve
The valve core of the cylindrical plug valve is a cylinder, which is matched with the cylindrical surface of the valve seat to form a cylindrical sealing pair. Generally, four sealing methods are often used for cylindrical plug valve, namely, sealing with sealant, expanding with plug, sealing with O-shape and wedging sealing ring with eccentric plug.
The valve core of the conical plug valve is a cone, which is matched with the conical hole surface of the valve seat to form a conical surface sealing pair. The leakage gap between sealing pairs of conical plug valve can be adjusted by pressing the valve core deeper into the valve seat. When the spool is in close contact with the seat, the plug can still rotate.
Basic parameters
Nominal diameter: 1 "~ 4"
Working pressure: 6000PSI ~ 20000psi
Temperature: – 29 ° C ~ + 121 ° C (PU class), – 46 ° C ~ + 121 ° C (Lu class) conical type
Applicable conditions: standard, low temperature and H2S conditions
Executive standard: API Spec 6A & NACE Mr 0175

Contact Name: Mr William Xue Contact Email: wi****m@ycruide.com
Contact Job Title: GM(General Manager) Contact Mob: 138***028
Contact Tel: Contact Fax:
Address: NO.888.Tang Qiao Road, Hi-tech Economic Zone, Jianhu County, Yancheng, Jiangsu Province, China Website: http://en.ycruide.com/
Yancheng Ruide Petrochemical Machinery Co., Ltd have got the ADNOC(ADCO) Group Approval, the manufacture ID in ADNOC approval list is 38247 and 47895, the Product Group ID is 184405 and 184625 184212 including API 6A valves, gate valves, Globe valves and choke valves. Our company is a network member of the CNPC, CPCC Material and Equipment Group Company. We have passed the certification of the ISO9001 international quality system and have obtained certificates of API-6A (certificate No.: 0861), 16C (certificate No.: 0085), 6D (certificate No.: 0754) and the right to use the monogram. With the hard work of the whole staff and the support from all circles since its establishment, the company has developed into a modern enterprise with a fixed asset of 25 million RMB and an annual sales volume of 50 million RMB. Now there are over 50 employees, which include 10 senior engineers, 20 upper intermediate technical management personnel; and over 100 sets of cold and hot processing equipment, over 20 sets of inspection equipment. The main products of our company include: high and medium pressure valves, the main technical parameters being PN2.5-105MPA nominal pressure and DN3-500mm nominal bore; oil/gas wellheads, casing heads, choke & kill manifolds, mud manifolds, drilling fittings and hydraulic pipes, etc. The products are produced in accordance with the international standards ISO/DF, ANSI, API, GB and petrochemical standard SY. The products are widely used in petroleum, chemical industry, metallurgy, power stations and construction projects. Also we are capable to offer customized products according to your requirements. We have advanced technology and fine equipment. With the tenet of “Integrity an
