fiber glass wool insulation board
Construction & Decoration Building Structural Material
MOQ:1 Square Meter(s)
Payment Method : L/C T/T D/P Others
Keywords:fiberglass wool insulation insulation board wall insulation glass wool insulation board
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | Kingflex |
| Product Package: | plastic bag | Specifications: | 30-150 mm thickness; 48-100kg/m3 |
| Place of Origin: | Hebei,China | Port: | Xingang port, China |
Kingflex glass wool board is semi-rigid and rigid boards manufactured from stable glass fibers bonded with thermosetting resins. They are capable of withstanding the extreme temperatures encountered in industrial applications or in flat roofs. They can withstand normal loads met in domestic and commercial structures when used below floor screeds. They are easy to handle and cut suit intricate shapes. They are also light in weight, strong and resilient. It has a very flexible structure with special fiber structure and absorbe sound waves, prevents the transfer of the sound to the other side or reduce to very low levels.
Specification and Dimension | ||||
Product | Length (mm) | Width (mm) | Thickness (mm) | Density (kg/m3) |
Glass wool Insulation board | 1200-2400 | 600-1200 | 20-100 | 24-96 |
Technical Data
Item | Unit | Index | Standard |
Density | kg/m3 | 24-100 | GB/T 5480.3-1985 |
Average fiber dia | um | 5.5 | GB/T 5480.4-1985 |
Water content | % | <1 | GB/T 3007-1982 |
Reaction of fire classification | A1 | EN13501-1:2007 | |
Reshrinking temp | >260 | GB/T 11835-1998 | |
Thermal conductibility | w/m.k | 0.032-0.044 | EN13162:2001 |
Hydrophobicity | % | >98.2 | GB/T 10299-1988 |
Moisture rate | % | <5 | GB/T 16401-1986 |
Sound absorption coefficient | 1.03 product reverberation method 24kg/m3 2000HZ | GBJ 47-83 | |
Slag inclusion content | % | <0.3 | GB/T 5480.5 |
Advantage
?Waterproof
?Non combustible in category A
?In case of exposure to thermal and humidity, there will be no change in dimension.
?It does not fall off in time, decay, get moldy, corrosion affected or oxidize.
?It is not battered by bugs and microorganisms.
?It is neither hygroscopic, nor capillary.
? Easily installed
? Made from up to 65% recycled content
? Reduces overall building energy usage
? Easily transported around site due to packaging
? Can be custom cut to required length to reduce waste and installation time
? Made from biosoluble formulation
?not fall off, decay in time, is neither hygroscopic, nor capillary.
?No occurrence of corrosion or oxidization.
?In case of exposure to thermal and humidity, there will be no change in dimension.
?It does not fall off in time, decay, get moldy, corrosion affected or oxidize.
?It is not battered by bugs and microorganisms.
?It also acts as sound isolator as well as thermal isolator with its vibration conserving feature.
?The aluminium foil coat that the blanket of the air condition has the highest resistance to ?vapor permeability. Especially in the cooling systems, this coating of Aluminium foil is very important against the risk of corruption of insulation in time.

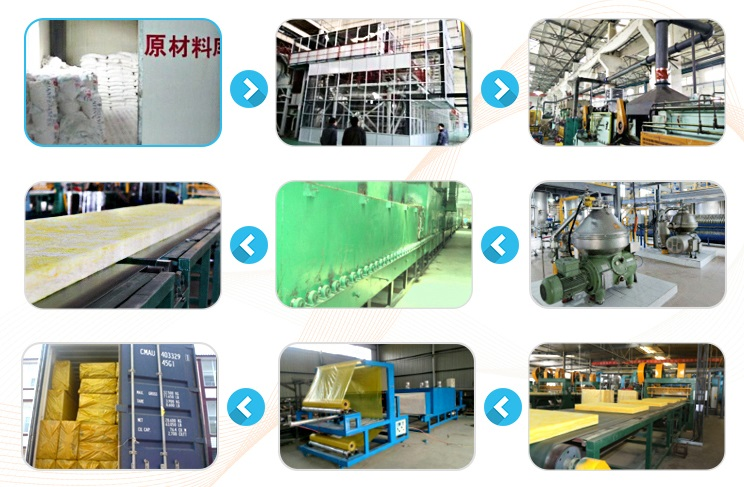

PRODUCTION PROCESS
APPLICATION
Behind radiators (decreases heat loss by heat transmission)
Thermal and sound insulation in sides
Interior thermal and sound insulation of wooden houses
Exterior insulation of HVAC pipes and rectangular or square cut ventilation pipes
On the walls of boiler rooms and generator rooms
Elevator engine rooms, stairs rooms
