Hexagonal Gabion Box
Construction & Decoration Hardware
MOQ:100 Piece(s)
Payment Method : T/T
Keywords:Gabion Gabion Box Hexagonal Gabion Box
| Product Category: | Construction & Decoration > Hardware | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | 天津新港 |
In order to meet the various needs, gabions must have the following features:
· Hexagonal mesh pattern critical points
· Double twist to avoid unraveling
· Reinforcing wires woven into corners to reinforce critical points
· A diaphragm securely attached at the base that will prevent the shifting of some and reinforce the gabion.
Certification:
1. All gabion basket are manufactured in accordance with the requirements of BS EN 10223-3:2013.
2. All wire is in accordance with BS EN 10218-2:2012 and BS EN 10223-3:2013
with an ultimate tensile strength of between 350 to 500N/mm2.
3. All wire used in the gabion production or accessories shall be Zinc or Zinc 90% Aluminium 10% coated in accordance with BS EN 10244-2:2009 (Class A) with an additional extruded organic polymer powder coating (grey,green) of 0.5mm nominal radial thickness. This organic polymer powder coating is in accordance with BS EN 10245-2:2011.
Optional Material:
1.Galvanized wire:zinc coating can be from 40-280g per square meter.
2.Galfan wire:also called aluminum-zinc coated wire (10% Al)zinc weight can be from 200g-500g per square meter.

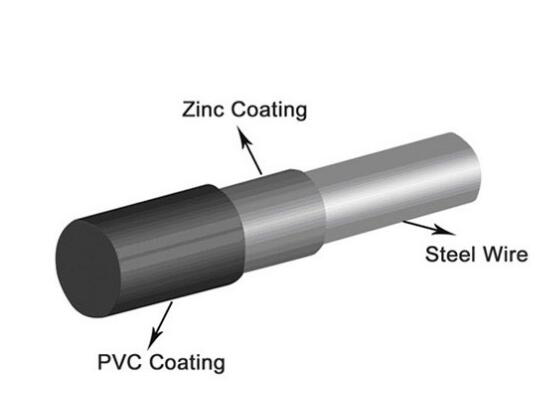

3.PVC coated wire:The inner wire is galvanized wire or galfan wire,and the regular color is gray and green.
Specification:
Typical mesh wire, selvedge wire and lacing wire group
| Mesh wire (mm) | Selvedge wire (mm) | Lacing wire (mm) | |
| Galvanized /Galfanbasket | 2.4 | 3.0 | 2.2 |
| 2.7 | 3.4 | 2.2 | |
| 3.0 | 3.9 | 2.2 | |
| PVC coated basket | 2.4/3.4 | 3.0/4.0 | 2.2/3.2 |
| 2.7/3.7 | 3.4/4.4 | 2.2/3.2 | |
| 3.0/4.0 | 3.9/4.9 | 2.2/3.2 |
Minimum zinc coating weight of gabion wire
| Wire diameter (mm) | Zinc coating(g/㎡) | Standard |
| 2.2 | 230 | EN10223-3 |
| 2.7 | 245 | EN10223-3 |
| 3.0 | 255 | EN10223-3 |
| 3.4 | 265 | EN10223-3 |
| 3.9 | 275 | EN10223-3 |
Mesh size:
60x80mm, 80x100mm,100x120mm
Basket Size
| 1 x 1 x 1 | 1,5 x 1 x 1 |
| 2 x 1 x 1 | 3 x 1 x 1 |
| 4 x 1 x 1 | 2 x 0,5 x 0,5 |
| 2 x 1 x 0,5 | 3 x 1 x 0,5 |
| 4 x 1 x 0,5 | 6 x 2 x 0,3 |
Length, width and height of gabion can be produces as per customers requirement, which shall not differ more than ± 5% from the ordered size prior to filling.
