Countersunk Self Tapping Screws
Construction & Decoration Hardware
MOQ:1 Ton(s)
Payment Method : L/C T/T D/P
Keywords:countersunk chipboard screws self tapping screws self tapping metal screws self tapping concrete screws stainless self tapping screws self thread screw self tapping screws for steel self tapping wood screws self tapping masonry screws black self tapping screws
| Product Category: | Construction & Decoration > Hardware | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | TIANJIN, CHINA |

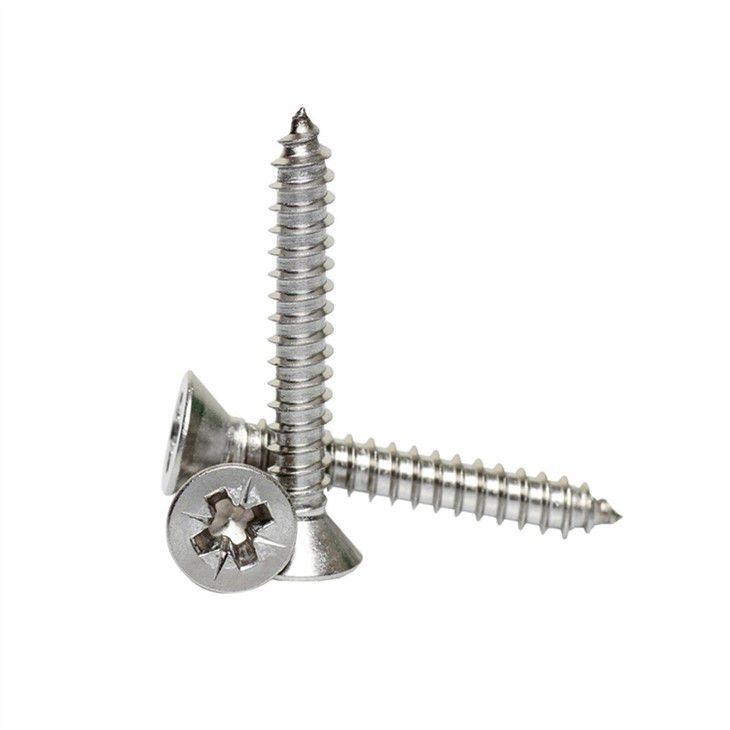

Countersunk self tapping screws are normally used with sheet metal and plastics. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit.
Specification
Standard: ASME B 18.6.4
Thread Type: Self-Tapping Screw Thread
Material: Carbons Steel
Property Class: A
Diameter: ST3.5×2、ST4.2×2、ST4.8×2、ST5.5×3、ST6.3×3、ST8×4
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Countersunk Head
Drive Type: PZ Drive
Alternative Standard: DIN 7982, ASME B 18.6.5M, JIS B 1125, JIS B 1122
MOQ: 1000kgs
Lead Time: 30 to 60 days
| Nominal Diameter d | 0# | 1# | 2# | 3# | 4# | 5# | 6# | 7# | 8# | 10# | 12# | 1/4 | 5/16 | |
| d | Nominal Size | 0.06 | 0.073 | 0.086 | 0.099 | 0.112 | 0.125 | 0.138 | 0.151 | 0.164 | 0.19 | 0.216 | 0.25 | 0.3125 |
| L | min | 3/16 | 3/16 | 3/16 | 7/32 | 1/4 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 13/16 |
| dk | max | 0.112 | 0.137 | 0.162 | 0.187 | 0.212 | 0.237 | 0.262 | 0.287 | 0.312 | 0.362 | 0.412 | 0.477 | 0.597 |
| min | 0.096 | 0.12 | 0.144 | 0.167 | 0.191 | 0.215 | 0.238 | 0.262 | 0.285 | 0.333 | 0.38 | 0.442 | 0.556 | |
| k | Ref. | 0.035 | 0.043 | 0.051 | 0.059 | 0.067 | 0.075 | 0.083 | 0.091 | 0.1 | 0.116 | 0.132 | 0.153 | 0.191 |
| M | Ref. | 0.062 | 0.07 | 0.096 | 0.1 | 0.122 | 0.148 | 0.168 | 0.176 | 0.182 | 0.198 | 0.262 | 0.276 | 0.358 |
| t | Ref. | 0.035 | 0.043 | 0.055 | 0.06 | 0.081 | 0.074 | 0.094 | 0.102 | 0.11 | 0.124 | 0.144 | 0.16 | 0.205 |
| p | Ref. | 0.014 | 0.015 | 0.017 | 0.018 | 0.018 | 0.027 | 0.029 | 0.03 | 0.03 | 0.032 | 0.035 | 0.036 | 0.061 |
| Socket No. | 0 | 0 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 4 | |
| Penetration depth | max | 0.036 | 0.044 | 0.056 | 0.061 | 0.082 | 0.075 | 0.095 | 0.103 | 0.11 | 0.125 | 0.139 | 0.154 | 0.196 |
| min | 0.02 | 0.028 | 0.04 | 0.045 | 0.066 | 0.052 | 0.072 | 0.08 | 0.087 | 0.102 | 0.116 | 0.131 | 0.174 | |
Packing Details
The packaging could be customized according to customer needs. And it would be fully reinforced to prevent unexpected damages during the shipment.
Product Advantages
Quality Control
Application
