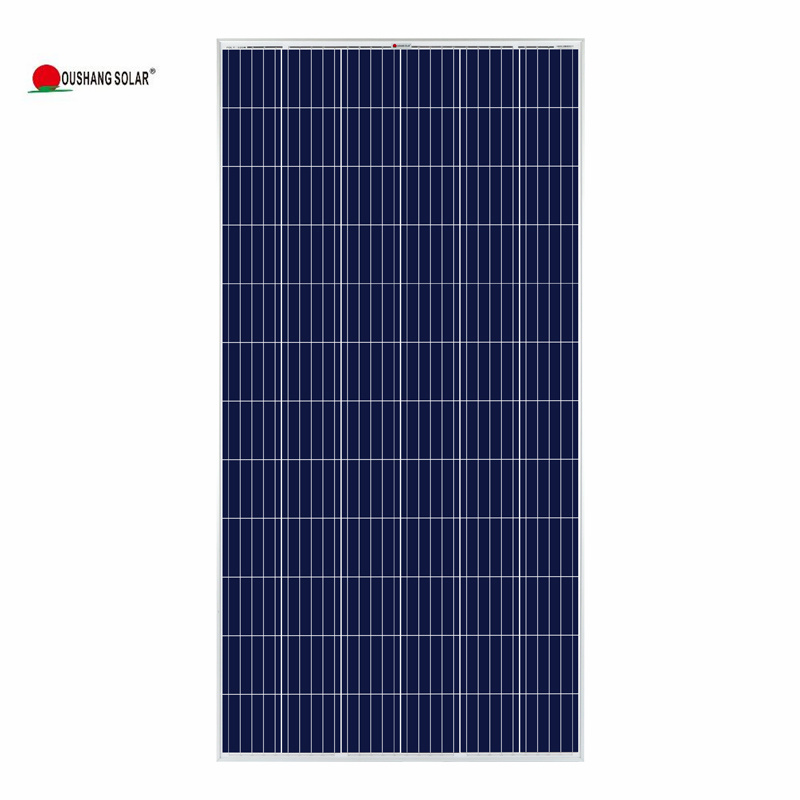

China famous brand 320 Watts 330watt Polycrystalline Solar Panel
Electrical & Power Energy Solar Components
MOQ:200 Piece(s)
Payment Method : L/C T/T D/P
Keywords:PV solar module poly 280w Poly 330w pv module 320watts solar panel poly 300w solar panels Pv module 300watt 320watts
| Product Category: | Electrical & Power Energy > Solar Components | Trademark: | OUSHANG SOLAR |

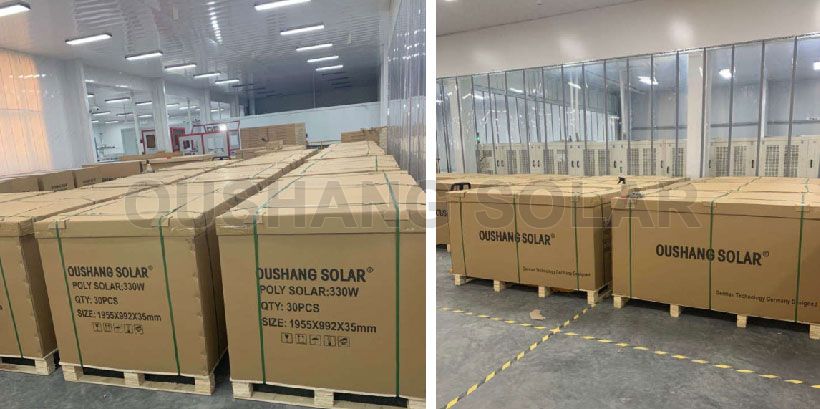

| Product Package: | 2pcs/carton; 31pcs/pallet; as requested | Specifications: | 320W 325W 330W 335W |
| Place of Origin: | CHINA | Port: | XINGANG/TINGDAO/NINGBO/SHANGHAI |
Package and Delivery
Specifications and Details
Model | OS-P72-320 | OS-P72-325 | OS-P72-330 |
Cell | POLY | POLY | POLY |
Max Power | 320W | 325W | 330W |
Max Power Voltage | 37.2V | 37.4V | 37.8V |
Max Power Current | 8.60A | 8.69A | 8.73A |
Open Circuit Voltage | 44.27V | 44.5V | 44.9V |
Short Circuit Current | 9.12A | 9.21A | 9.25A |
Number of Cells | 72(6*12) | 72(6*12) | 72(6*12) |
Size of Cells (mm) | 156*156 | 156*156 | 156*156 |
Dimensions(mm) | 1955*992*35 | 1955*992*35 | 1955*992*35 |
Maximum system voltage | 1000VDC | ||

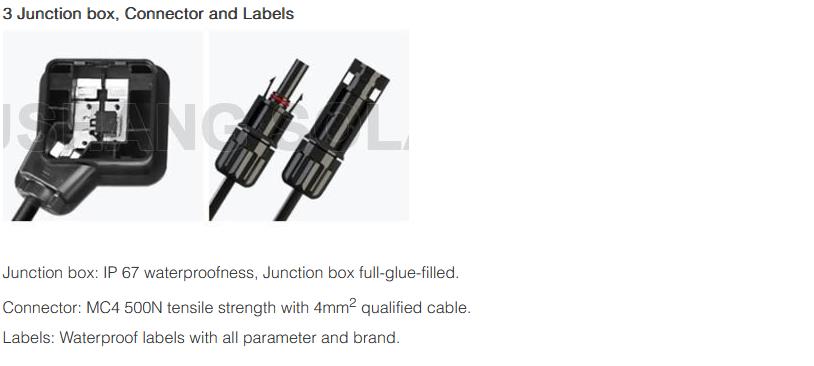

Junction Box Protection | IP67 | ||
Cables | 4mm2 | ||
Connector | MC4 | ||
Max wind load | 2400Pa | ||
Max snow load | 5400Pa | ||
Operating Temperature | -40℃~+85℃ | ||
Power Tolerance | ±3% | ||
| Contact Name: | Miss Emma Dong | Contact Email: | ad****n@oushangsolar.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 199***783 |
| Contact Tel: | 0311-80979377 | Contact Fax: | |
| Address: | The Northwest Corner of Dazhao Village, Hequ Town, Xingtai, Hebei Province, China | Website: | www.oushangsolar.com |

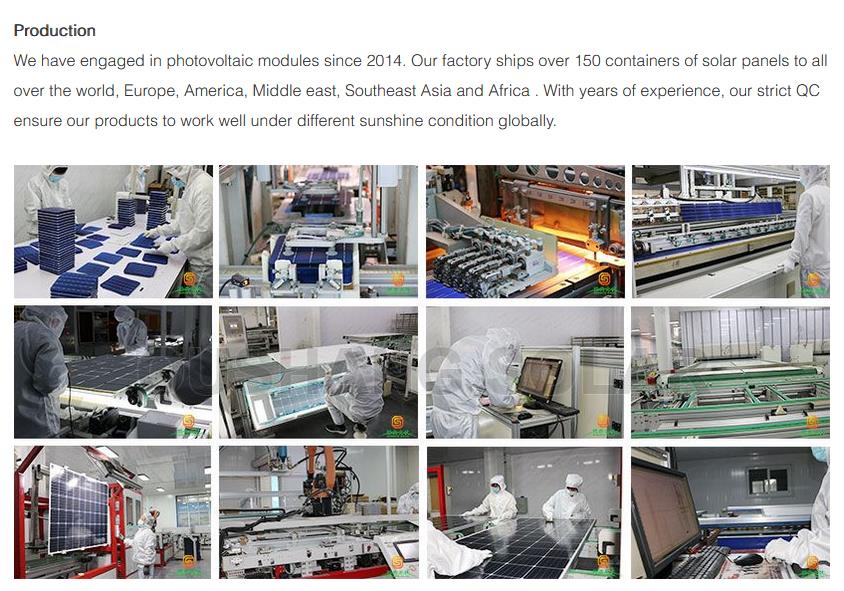

Hebei Oushang Photovoltaic Technology Co., Ltd. is one of top photovoltaic module manufacturer in China and has annual production capacity of 500MW. Our factory is located in Hebei Province, China and covers 50000 square meters land. OUSHANG SOLAR has engaged in R&D, production and sales of solar module products many years. The power range of our solar panels is from 5W to 550W. Products cover monocrystalline solar panel, polycrystalline solar panel, half cell solar modules, solar controller, solar inverter, solar gel battery, solar flood light, solar street light, solar monitor system and etc. We offer OEM service. There is the advanced automatic production line in our factory. We use strict production technology and quality control system to ensure the quality of manufactured products perfect. The quality inspection follows ISO9001 standard. The solar module products of our company have passed the TUV, SGS, CE, SONCAP, CQC test. Our factory has passed the Intertek inspection. Our reliable solar panels have been proven to perform in diverse climates and environments all over the world under the sun. More than 20GW has shipped to Africa, Europe, Middle America, Middle East, Southeast Asian.
