foundry ceramsite
Metallurgy,Chemicals & Energy Metallurgy and founding
MOQ:1 Piece(s)
Payment Method : L/C T/T
Keywords:fused ceramic sand ceramsite cerabeads black ball sand ceramcast cerapearl
| Product Category: | Metallurgy,Chemicals & Energy > Metallurgy and founding | Trademark: | |
| Product Package: | tonbag | Specifications: | as customers requiments |
| Place of Origin: | Hebei, China | Port: | Qingdao/ Tianjin |
Product Detail:
Foundry Ceramsite, is good artificial spherical grain shape, also called fused ceramic sand. Its main content is aluminum oxide and Silicon oxide, much better properties than t silica sand to gain a better performance in foundry. It has high refractoriness, little thermal expansion, good angular coefficient, excellent flowability, High resistance to wear, crush and thermal shock, high reclamation rate.
Ceramic Sand Property
Main Chemical Component | Al?O?≥70%, Fe?O?＜4%, TiO?＜3%, SiO?≤37% |
Grain Shape | Spherical |
Angular Coefficient | ≤1.1 |
Partical Size | 45μm -2000μm |
Refractoriness | ≥1800℃ |
Bulk Density | 1.8-2.1 g/cm3 |
Thermal Expansion（RT-1200℃） | 4.5-6.5x10-6/k |
Color | black |
PH | 7-8 |
Mineralogical Composition | Mullite + Corundum |
Acid Cost | ＜1 ml/50g |
L.O.I. | ＜0.1% |
Advantage
Green Sand. SAFE to environment compared with silica (silicosis) and zircon sand
High refractoriness (＞1800°C)，can be used for casting various materials. There is also no need to use different sand type according to material.
High reclamation rate. Both Thermal and mechanical reclamation. Offers longer work life and reduction of sand usage.
High collapsibility. Sintered Ceramic sand spherical shape compared with angular shaped grains allows for easier separation from cast parts and improved collapsibility resulting in lower scrap and casting efficiency.
Excellent fluidity and filling efficiency owing to being spherical.
Lower Thermal expansion and Thermal Conductivity. Casting dimensions are more accurate and lower conductivity provides better mold performance.

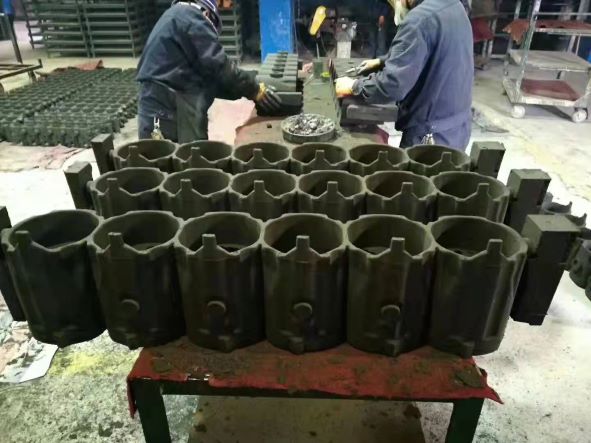

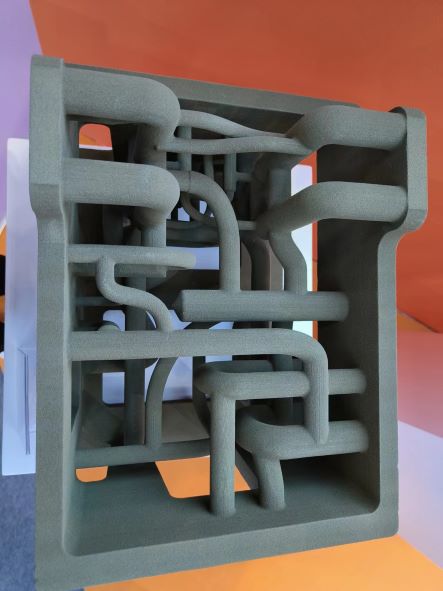

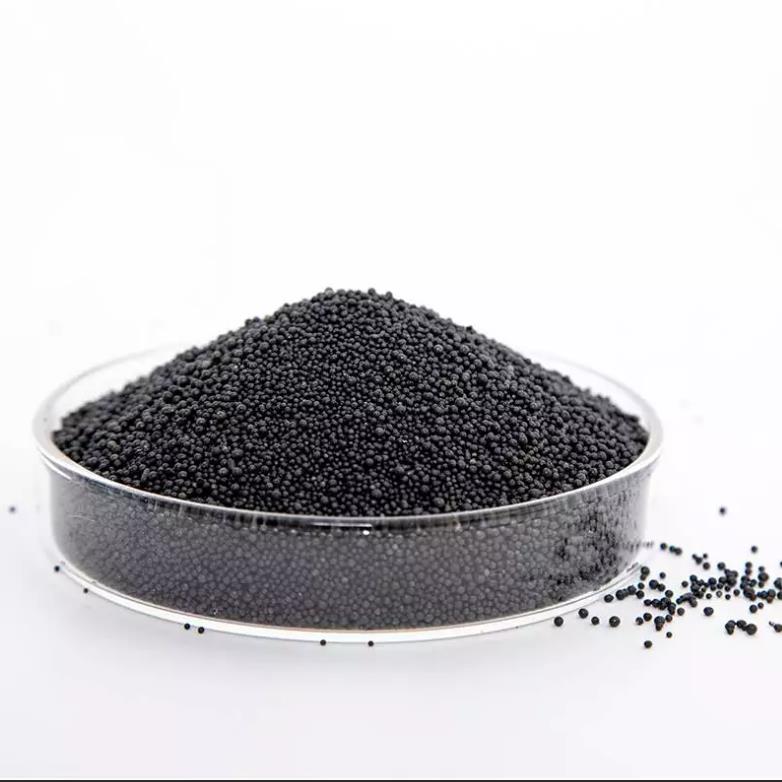

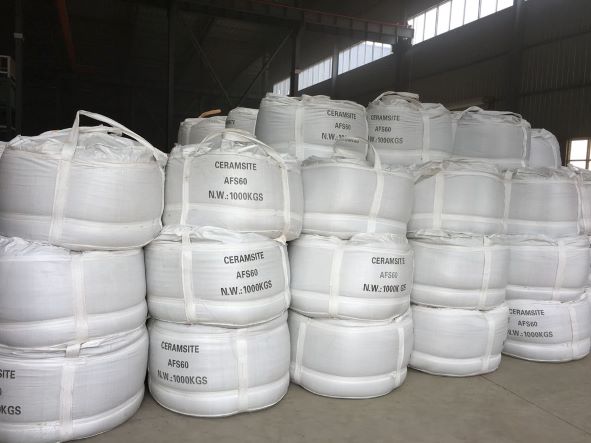

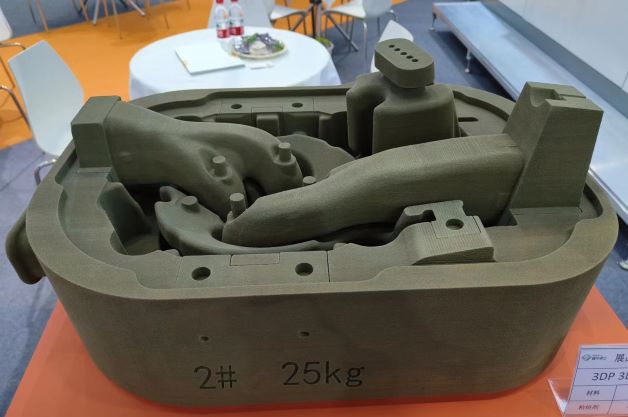

Picture Show
SND is a company manufacturing and marketing of metal products for nearly 20 years.
The company has been supplying products in materials cast iron, steel, stainless steel, aluminum etc by production methods sand casting, die casting, lost wax casting and lost foam casting and precision machining. Assembling and surface coating service are also available.
With the continuous efforts over the past years, our company has successfully developed products in various industries such as automotive, rail transit, agricultural machinery, chemical, energy, power, water, air compressor and construction.
Quality control systems within our plants are ISO9001 accredited to ensure a stable and reliable quality of every single part.
Inspections of Spectrometer, Ultrasonic, Magnetic, Permeation, Elongation, Tensile/yield strength etc are being conducted in normal production processes. X-ray test can be carried at our sub-contracted partner lab.
We produce, and optimize resources and save costs for customers.
Welcome contact SND to create a win-win cooperation.
