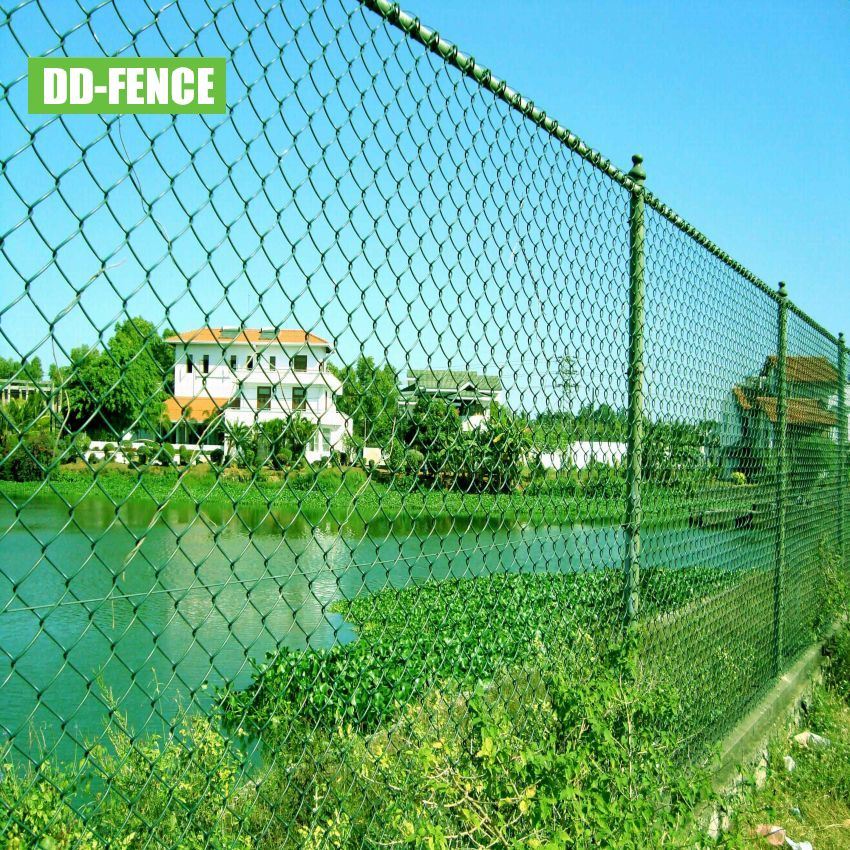

Garden Chain Link Fence
FOB Price:US$ 50.00 / Roll(s)
MOQ:70 Roll(s)
Payment Method : L/C T/T
Keywords:Chain Link Fence Chain Link Mesh Fence panel
| Product Category: | Construction & Decoration > | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Tianjin |
Product Description
Zinc Coated (galvanized) Steel Chain Link Fence Fabric
Complies with Standard Specification for Zinc-Coated Steel Chain-Link Fence Fabric to ASTM A392, for high security protective fencing.When covering the same area, this is undoubtedly the most cost-effective fence, and has a high tensile strength of 2170 lbf (9650 N), flexibility, and can be combined with barbed wire and razor wire to upgrade the protection level, It is suitable for highway fences, thermal power plant fences, various government projects, and fences to protect deer and other animals. It is also suitable for installation on slopes and can be cut arbitrarily.
Custom-made chain link fence fabric can be up to 12ft (3.66m) high, but chain link fences can be installed up to 20ft (6.1m).
For the part of the edge of the chain link fence, we can choose the knuckled edge or the twist edge. Easy to maintain and repair, any damaged parts can be replaced quickly.
In addition, if you want a private protection, then we can match the fence with privacy slats, any color, any combination, a combination of beauty and security and privacy protection.
Detailed specifications for the system supplied by HEBEI DOUDOU METAL FENCE PRODUCTS CO.LTD for the high security chain link fencing system are as under:
1.Chain-Link Fence Fabric Roll
The Chain-link fence fabric roll are produced by woven from high zinc wire.Fabric 72 in. (1830 mm) high and over shall be knuckled at one selvage and twisted at the other.
Wire Diameter and Tolerances
Diameter of the wire: 3.76mm ±0.13mm
Tolerances in accordance with ASTM A392; Made from steel in accordance with ASTM A817
Breaking Strength of the Wire
Wires: Minimum 5740lbf (N)
Mesh Sizes and Tolerances
Mesh spacing is measured between the centres of two adjacent
wires having same spatial alignment; alternatively the measurement can be made between two leading edges of wire.
Distance between the wires: 2''(50mm±3.2mm)
Tolerances are in accordance with ASTM A392
Weave
The wire shall be woven throughout in the form of approximately uniform square mesh, having parallel sides and horizontal and vertical diagonals of approximately uniform dimensions.
Dimensions of the fabric
Height: (72 in.)1830 ±5.3mm, vertical measured between the centres of the wires,
Length: (50 ft)15000 ±152.4mm, horizontal measured between the centres of the wires
Mounting
Fabric will be (72 in.)1830 + 5.3mm above Ground level.
Metallic Coating
On fabric galvanized after weaving, the weight of coating shall be determined on one or more pieces of wire removed from the fabric. These specimens may be of any length over 12 in. (300 mm) and shall include both bends and straight sections, but shall not include either twists or knuckles.
The weight of coating shall be determined in accordance with Test Method ASTM A90/A90M.
The Chain-link fence fabric roll are produced by woven from high zinc wire.Fabric 72 in. (1830 mm) high and over shall be knuckled at one selvage and twisted at the other.
Wire Diameter and Tolerances
Diameter of the wire: 3.76mm ±0.13mm
Tolerances in accordance with ASTM A392; Made from steel in accordance with ASTM A817
Breaking Strength of the Wire
Wires: Minimum 5740lbf (N)
Mesh Sizes and Tolerances
Mesh spacing is measured between the centres of two adjacent
wires having same spatial alignment; alternatively the measurement can be made between two leading edges of wire.
Distance between the wires: 2''(50mm±3.2mm)
Tolerances are in accordance with ASTM A392
Weave
The wire shall be woven throughout in the form of approximately uniform square mesh, having parallel sides and horizontal and vertical diagonals of approximately uniform dimensions.
Dimensions of the fabric
Height: (72 in.)1830 ±5.3mm, vertical measured between the centres of the wires,
Length: (50 ft)15000 ±152.4mm, horizontal measured between the centres of the wires
Mounting
Fabric will be (72 in.)1830 + 5.3mm above Ground level.
Metallic Coating
On fabric galvanized after weaving, the weight of coating shall be determined on one or more pieces of wire removed from the fabric. These specimens may be of any length over 12 in. (300 mm) and shall include both bends and straight sections, but shall not include either twists or knuckles.
The weight of coating shall be determined in accordance with Test Method ASTM A90/A90M.
Line Posts
The posts are made from CHS sections (1.9'',48.3mm), and are Hot Dip Galvanized after fabrication.
Raw Material
The steel is in accordance with the Standard ASTM A53.
Dimensions and tolerances
Post dimensions: CHS Post: section 48.3mm
Length: 2592mm total (including 762mm of grouting length),
Tolerances on the weight shall not vary more than +10 % from that prescribed,
Tolerances on the height: ± 10mm.
Coating Zinc
The post has a minimum zinc weight of 80 micron as per ASTM A123.
The posts are made from CHS sections (1.9'',48.3mm), and are Hot Dip Galvanized after fabrication.
Raw Material
| Chemical Composition | |
| Element | % |
| C | ≤ 0.25 |
| Mn | ≤ 0.95 |
| P | ≤0.05 |
| S | ≤ 0.045 |
The steel is in accordance with the Standard ASTM A53.
Dimensions and tolerances
Post dimensions: CHS Post: section 48.3mm
Length: 2592mm total (including 762mm of grouting length),
Tolerances on the weight shall not vary more than +10 % from that prescribed,
Tolerances on the height: ± 10mm.
Coating Zinc
The post has a minimum zinc weight of 80 micron as per ASTM A123.
Corner Posts
The posts are made from CHS sections (2.375'',60mm), and are Hot Dip Galvanized after fabrication.
Raw Material
The steel is in accordance with the Standard ASTM A53.
Dimensions and tolerances
Post dimensions: CHS Post: section 60mm
Length: 2592mm total (including 762mm of grouting length),
Tolerances on the weight shall not vary more than +10 % from that prescribed,
Tolerances on the height: ± 10mm.
Coating Zinc
The post has a minimum zinc weight of 80 micron as per ASTM A123.
The posts are made from CHS sections (2.375'',60mm), and are Hot Dip Galvanized after fabrication.
Raw Material
| Element | % |
| C | ≤ 0.25 |
| Mn | ≤ 0.95 |
| P | ≤0.05 |
| S | ≤ 0.045 |
The steel is in accordance with the Standard ASTM A53.
Dimensions and tolerances
Post dimensions: CHS Post: section 60mm
Length: 2592mm total (including 762mm of grouting length),
Tolerances on the weight shall not vary more than +10 % from that prescribed,
Tolerances on the height: ± 10mm.
Coating Zinc
The post has a minimum zinc weight of 80 micron as per ASTM A123.
Rail
The rails are made from CHS sections (1.66'',42mm), and are Hot Dip Galvanized after fabrication.
Raw Material
The steel is in accordance with the Standard ASTM A53.
Dimensions and tolerances
Post dimensions: CHS Post: section 60mm
Tolerances on the weight shall not vary more than +10 % from that prescribed,
Tolerances on the height: ± 10mm.
Coating Zinc
The rail has a minimum zinc weight of 80 micron as per ASTM A123.
The rails are made from CHS sections (1.66'',42mm), and are Hot Dip Galvanized after fabrication.
Raw Material
| Chemical Composition | |
| Element | % |
| C | ≤ 0.25 |
| Mn | ≤ 0.95 |
| P | ≤0.05 |
| S | ≤ 0.045 |
The steel is in accordance with the Standard ASTM A53.
Dimensions and tolerances
Post dimensions: CHS Post: section 60mm
Tolerances on the weight shall not vary more than +10 % from that prescribed,
Tolerances on the height: ± 10mm.
Coating Zinc
The rail has a minimum zinc weight of 80 micron as per ASTM A123.
Extension Arms
Dimensions and Tolerances
The extension arms are made out of galvanized steel section has an equal angle profile which is bolted on the I Beam post with a set of 3 nut and bolts (M8 mushroom headed bolts with breakable nut). Each angle has slots for holding the barbed wire Or runner razor wire.
Length of each arm is approximately 450mm.
Extension arms are Hot Dip Galvanized, hence, has a zinc coating of 70 - 80 microns.
Two number extension arms form a V groove above the post to support the concertina razor wire
Dimensions and Tolerances
The extension arms are made out of galvanized steel section has an equal angle profile which is bolted on the I Beam post with a set of 3 nut and bolts (M8 mushroom headed bolts with breakable nut). Each angle has slots for holding the barbed wire Or runner razor wire.
Length of each arm is approximately 450mm.
Extension arms are Hot Dip Galvanized, hence, has a zinc coating of 70 - 80 microns.
Two number extension arms form a V groove above the post to support the concertina razor wire
Concertina Razor wire (CBT-65)
Description
The barbed tape is manufactured in coil using a core galvanized wire around which a continuous galvanized strip with Long blade barb clenched. The barbed tape has minimum 1900 wrap around the core wire
Reference documents
EN 10346: Continuously hot dip coated steel flat products - technical delivery conditions,
ASTM F 1910: standard specification for long barbed tape obstacles,
ASTM A 764: Standard specification for metallic coated carbon steel wire, coated size and drawn to size for mechanical springs,
ASTM F 1379: Terminology related to barbed tape.
Galvanized Strip Specification
The strip is made out of good commercial low carbon steel in accordance with the European standard EN 10346. The tensile strength of the material is 270-500 N/mm2. The sheet, from which the tape is made, is zinc coated by immersing the molten zinc bath. The coating including both surfaces if 200gsm.
Core Wire
The core wire is a 2.5mm galvanized wire with a tensile strength of 1350 to 1500N/mm2,
Min Zinc coating on core wire would be 244 g/m2 (according to ASTM F 1910).
Clips
1.5mm heavy galvanized clips are used to tighten the loops together.
Dimensions and Tolerances
Description
The barbed tape is manufactured in coil using a core galvanized wire around which a continuous galvanized strip with Long blade barb clenched. The barbed tape has minimum 1900 wrap around the core wire
Reference documents
EN 10346: Continuously hot dip coated steel flat products - technical delivery conditions,
ASTM F 1910: standard specification for long barbed tape obstacles,
ASTM A 764: Standard specification for metallic coated carbon steel wire, coated size and drawn to size for mechanical springs,
ASTM F 1379: Terminology related to barbed tape.
Galvanized Strip Specification
The strip is made out of good commercial low carbon steel in accordance with the European standard EN 10346. The tensile strength of the material is 270-500 N/mm2. The sheet, from which the tape is made, is zinc coated by immersing the molten zinc bath. The coating including both surfaces if 200gsm.
Core Wire
The core wire is a 2.5mm galvanized wire with a tensile strength of 1350 to 1500N/mm2,
Min Zinc coating on core wire would be 244 g/m2 (according to ASTM F 1910).
Clips
1.5mm heavy galvanized clips are used to tighten the loops together.
Dimensions and Tolerances
| Dimension of the Concertina Razor Tape | |
| Barb profile | Long Blade |
| Wire diameter | 2.5 + 0.1mm |
| Spirals | 55 |
| Thickness of the barbed tape (mm) | 0.50 + 0.05mm |
| Width of the tape (mm) | 21.0 + 1mm |
| Barb length (mm) | 65.0 + 1mm |
| Distance between 2 barb (mm) (measured between the centre line of two adjacent barbs) | 100.0 + 1mm |
| Coil Diameter (measured across the centre line of the packed coil) | 1000 mm + 15mm |
| Recommended deployed length (m) | 10- 12 mtrs |
Barbed Wires on the Top
The system is further enhanced by four lines of barbed wire on the top of the fence which are supported by heavy duty extension arm on the top of the fence.
The barbed wire is made from Prime quality pre galvanized wire in compliance to ASTM 121. All rolls are fitted with special Inner Spools for easy of unwinding.
Wire Diameter and Tolerances
Line Wire diameter : 2.50 mm ±0.10mm,
Barbing Wire diameter : 2.00mm ±0.10mm,
Tolerances are in accordance with ASTM-A121
Tensile Strength of the Wire
Line wires: Minimum 400 N/mm2
Barbing wires: Minimum 400 N/mm2
Barbing Pitch
100mm
Zinc Coating
Heavily Galvanized up to 275 GSM
The system is further enhanced by four lines of barbed wire on the top of the fence which are supported by heavy duty extension arm on the top of the fence.
The barbed wire is made from Prime quality pre galvanized wire in compliance to ASTM 121. All rolls are fitted with special Inner Spools for easy of unwinding.
Wire Diameter and Tolerances
Line Wire diameter : 2.50 mm ±0.10mm,
Barbing Wire diameter : 2.00mm ±0.10mm,
Tolerances are in accordance with ASTM-A121
Tensile Strength of the Wire
Line wires: Minimum 400 N/mm2
Barbing wires: Minimum 400 N/mm2
Barbing Pitch
100mm
Zinc Coating
Heavily Galvanized up to 275 GSM
Nut and Bolts
Each clamp will be supplied with hot dip galvanized mushroom headed, square necked bolts (M8X40mm) and security nuts (M8).
Each clamp will be supplied with hot dip galvanized mushroom headed, square necked bolts (M8X40mm) and security nuts (M8).
Woven diamond pattern provides strong, durable and flexible construction. The closely spaced diamond mesh construction gives your fence linear.
strength and springy texture to protect horses from injury and prevent predators.
Use:
Chain Link Fence is extensively used as fences for playground and gardens, super highway, railway, airport, port, residence, etc.
Feature:
With uniform mesh hole and flat surface, chain-link fence has the following advantages: beautiful appearance, great corrosion resistance, long service lifespan.
Company InformationType:
Classified by the surface treatment: Elector-galvanized chain-link mesh, Hot-dip galvanized chain-link mesh, PVC-coated chain-link mesh, PE-coated chain-link mesh, Stainless chain-link mesh.
Factory name:
Hebei DouDou Metal Fence Products Co.,Ltd .
Our main business scope :
Metal fence and gate manufacture, R&D and Exporting
Our main markets:
North America,South America ,Oceania,Southeast Asia, Middle East, Africa ,Europe;
Product range:
Welded mesh fencing systems ;Woven type fences;Tubular welding fence;Tubular assembly type fences;
Razor wire and barbed wire protection products, Gate and gate accessories.
Our Solutions:
Apartment buildings protection solutions;
Industrial facilities protection solutions;
Telecom & Mobile tower base station protection solutions;
The airport port protection solutions;
Roads and railways protection solutions;
The border protection solutions;
Military defence and prison protection solutions;
Temporary protection solutions;
Livestock & Agriculture protection solutions etc.
Our service tenet:
Honesty, Patience, Specialty, innovation
Our vision: DD-Fence could be installed in every country's land in the world.
Our core values
Customer oriented
We insist on providing customers with more than expected service, we believe that
good service is priceless, we are always willing to listen to customer demand, we
Think solving issues for client is the the value of our survival.
