Galfan Coated Hexagonal Gabions Wire Mesh Gabion Retaining Wall Basket Rock Wall
Construction & Decoration Hardware
MOQ:3000 Square Meter(s)
Payment Method : L/C T/T
Keywords:gabion gabion wire mesh dpwh gabion rock wall gabion wire mesh gabion basket gabion box gabion retaining wall
| Product Category: | Construction & Decoration > Hardware | Trademark: | duojiyunjin |
| Product Package: | In bundle | Specifications: | 2x1x1 |
| Place of Origin: | Anping,Hengshui, China | Port: | Tianjin |
Product detail
Galvanized wire:zinc coating can be from 40-280g per square meter.
Galfan wire:also called aluminum-zinc coated wire (10% Al)zinc weight can be from 200g-500g per square meter.
PVC coated wire:The inner wire is galvanized wire or galfan wire,and the regular color is gray and green.
SPECIFICATION
Typical mesh wire, selvedge wire and lacing wire group
| Mesh wire (mm) | Selvedge wire (mm) | Lacing wire (mm) | |
| Galvanized /Galfanbasket | 2.4 | 3.0 | 2.2 |
| 2.7 | 3.4 | 2.2 | |
| 3.0 | 3.9 | 2.2 | |
| PVC coated basket | 2.4/3.4 | 3.0/4.0 | 2.2/3.2 |
| 2.7/3.7 | 3.4/4.4 | 2.2/3.2 | |
| 3.0/4.0 | 3.9/4.9 | 2.2/3.2 |
Minimum zinc coating weight of gabion wire
| Wire diameter (mm) | Zinc coating(g/㎡) | Standard |
| 2.2 | 230 | EN10223-3 |
| 2.7 | 245 | EN10223-3 |
| 3.0 | 255 | EN10223-3 |
| 3.4 | 265 | EN10223-3 |
| 3.9 | 275 | EN10223-3 |
Mesh size:
60x80mm, 80x100mm,100x120mm
Basket Size
| 1 x 1 x 1 | 1,5 x 1 x 1 |
| 2 x 1 x 1 | 3 x 1 x 1 |
| 4 x 1 x 1 | 2 x 0,5 x 0,5 |
| 2 x 1 x 0,5 | 3 x 1 x 0,5 |
| 4 x 1 x 0,5 | 6 x 2 x 0,5 |
Length, width and height of gabion can be produces as per customers requirement, which shall not differ more than ± 5% from the ordered size prior to filling.
Features
(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;
(2) the construction is simple and does not need special technology;
(3) Strong ability to resist natural damage, corrosion and adverse weather effects;
(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.
(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;
(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.

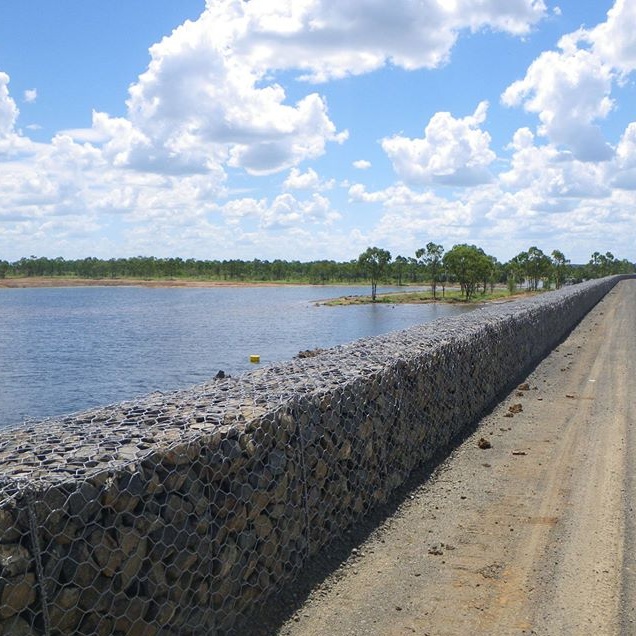

The gabion mesh can be assembled into a cage according to the engineering design requirements, and filled with fillers such as blocks and then connected into one body, which is used for embankment and roadbed protection. and other engineering new technologies. In recent years, a new type of material structure has been widely used in engineering projects such as transportation, water conservancy, municipal administration, gardening, soil and water conservation, etc.
