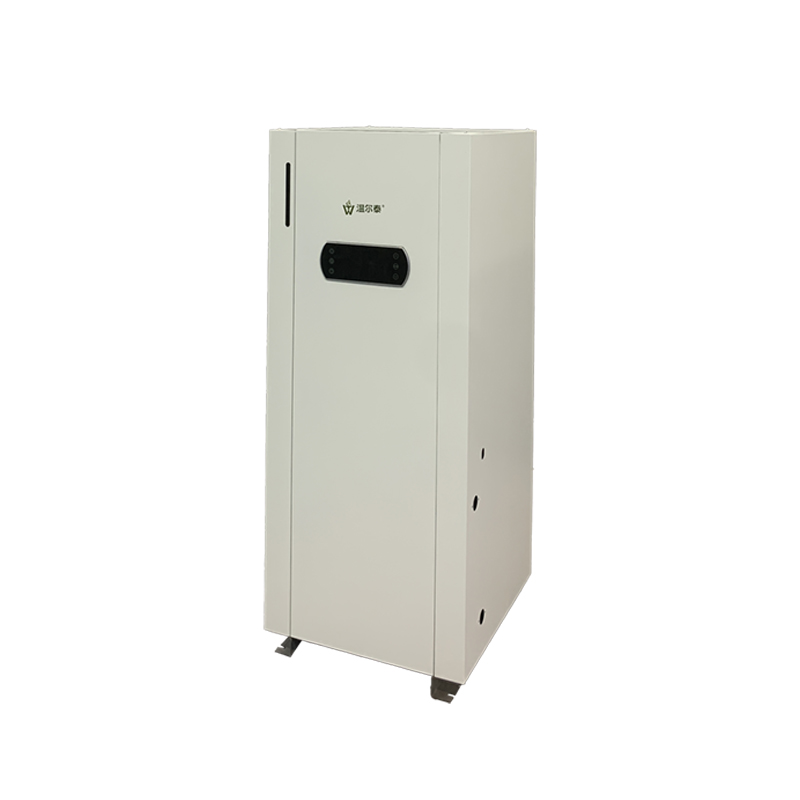

Central heating hot water shower system electric combination system boiler electric boiler

Household Appliances Home Appliances

FOB Price:US$ 2,200.00 / Piece(s)

MOQ:10 Piece(s)

Payment Method : L/C T/T D/P Western Union

Keywords:Instant heating gas boiler Hot water heater Condensing gas boiler Combined gas boiler Central heating boiler

Add to Favorites

Product Category: Household Appliances > Home Appliances Trademark: WIT-TORCH
Product Package: opp and carton Specifications: WT-CR-3JJ WT-CR-5JJ WT-CR-7JJ WT-CR-9JJ WT-CR-12JJ WT-CR-16JJ
Place of Origin: China Port: Tianjin
Product Description
Household Economic Series
Model
WT-CR-3JJ
WT-CR-5JJ
WT-CR-7JJ
WT-CR-9JJ
WT-CR-12JJ
WT-CR-16JJ
Heating area
(S, m2)
≤30
30-50
50-70
70-90
90-120
120-160
Rated heating power(kw)
3
5
7
9
12
16
Operating Voltage(V)
220
220
220
220
220
380
Rated heat storage (kwh)
3
4.8
6
8.4
12
16.8
Rated heat storage(MJ)
10.8
17.28
22
30
43
60
Max. heat release power (W/m2)
125
125
125
125
125
125
Water temperature
(°C)
40-80
40-80
40-80
40-80
40-80
40-80
Rated daily heating time(h)
24
24
24
24
24
24
Dimensions (mm*mm*mm)
500*340*920
550*340*920
550*340*1070
640*430*1070
820*430*1070
990*470*1070
Insulation resistance(MQ)
> 100
> 100
> 100
> 100
> 100
> 100
Ground resistance(Q)
W 1
W 1
W 1
W 1
W 1
W 1
Heat loss(24h)
<5%
<5%
<5%
<5%
<5%
<5%
Running noise(dB)
<50
<50
<50
<50
<50
<50
Interface diameter(DN)
15
15
20
20
25
25
Recommended cable
Copper wire 4mm2
Copper wire 6mm2
Copper wire 10mm2
Copper wire 16mm2
Copper wire 6mm2
Structural ontology
It includes structures such as heating, heat storage, heat exchange, circulation, control, and equipment housing.
Heating module
The equipment has a built-in electric heating device, which converts electric energy into heat energy during the low power period at night.
Heat storage module
The device has a built-in phase change heat storage material, which can store the heat energy converted from electrical energy during the nighttime low power period in the phase change material. The phase change material in the heat storage module has high heat storage density and high heat storage capacity.
Heat release module
The heat exchange device in the equipment releases the heat stored in the phase change material through the heat exchange device for heat supply when heat is needed.
Circulation device
The equipment has a built-in secondary side circulation device, which can effectively ensure the heat release effect, stabilize the room temperature within the set range, and ensure the heating effect.
Control module
The device has a built-in intelligent control module to monitor and control the parameters of electric heaters, circulating pumps,thermocouples and other instruments and equipment in the heating and heat release process, intelligently display the percentage of heat storage energy, and provide an intelligent visual operation interface to ensure the safety of system operation. sex and convenience.
Device enclosure
The equipment is embedded with high-performance thermal insulation materials, which can effectively maintain the temperature of the equipment, reduce the thermal insulation and heat dissipation, and improve the thermal storage efficiency of the system.

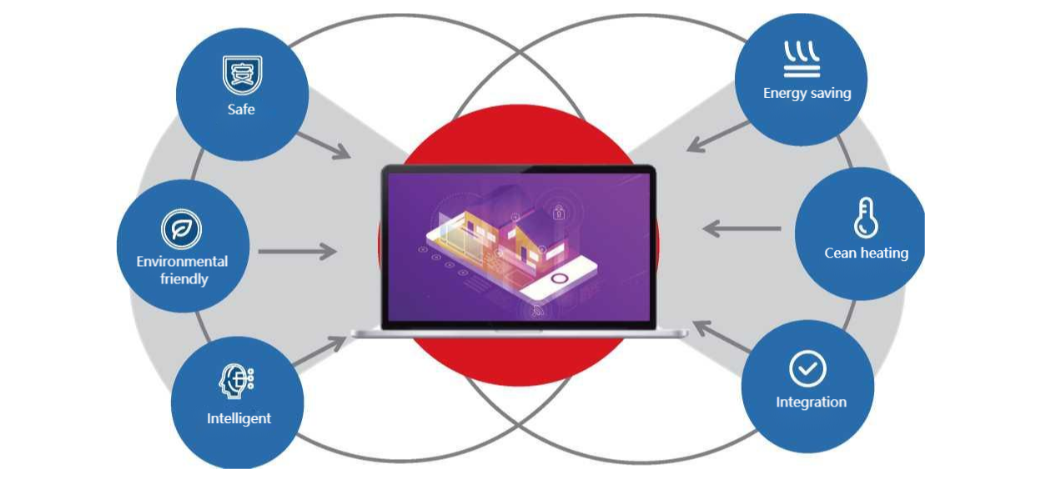

Product Advantages
Safety and environmental protection
During the operation of the equipment, it operates under normal pressure and zero emission, and will not produce dust, oil and other pollutants, which is safe and environmentally friendly.
Intelligent digital control
Automatic operation, using the Internet of Things digital remote control, the heating temperature can be adjusted at any time.
Easy and fast installation
There is no need to transform the original heating system, only the user needs to connect water and electricity to operate, the construction is convenient, the construction period is short, and the installation is simple and convenient.
Energy saving economy
Using clean energy such as low-price electricity at night to store heat for heating, compared with municipal heating, gas heating and other methods, the operating cost is greatly saved, and the energy consumption per square meter in the heating season is as low as 12.5 yuan/square meter.

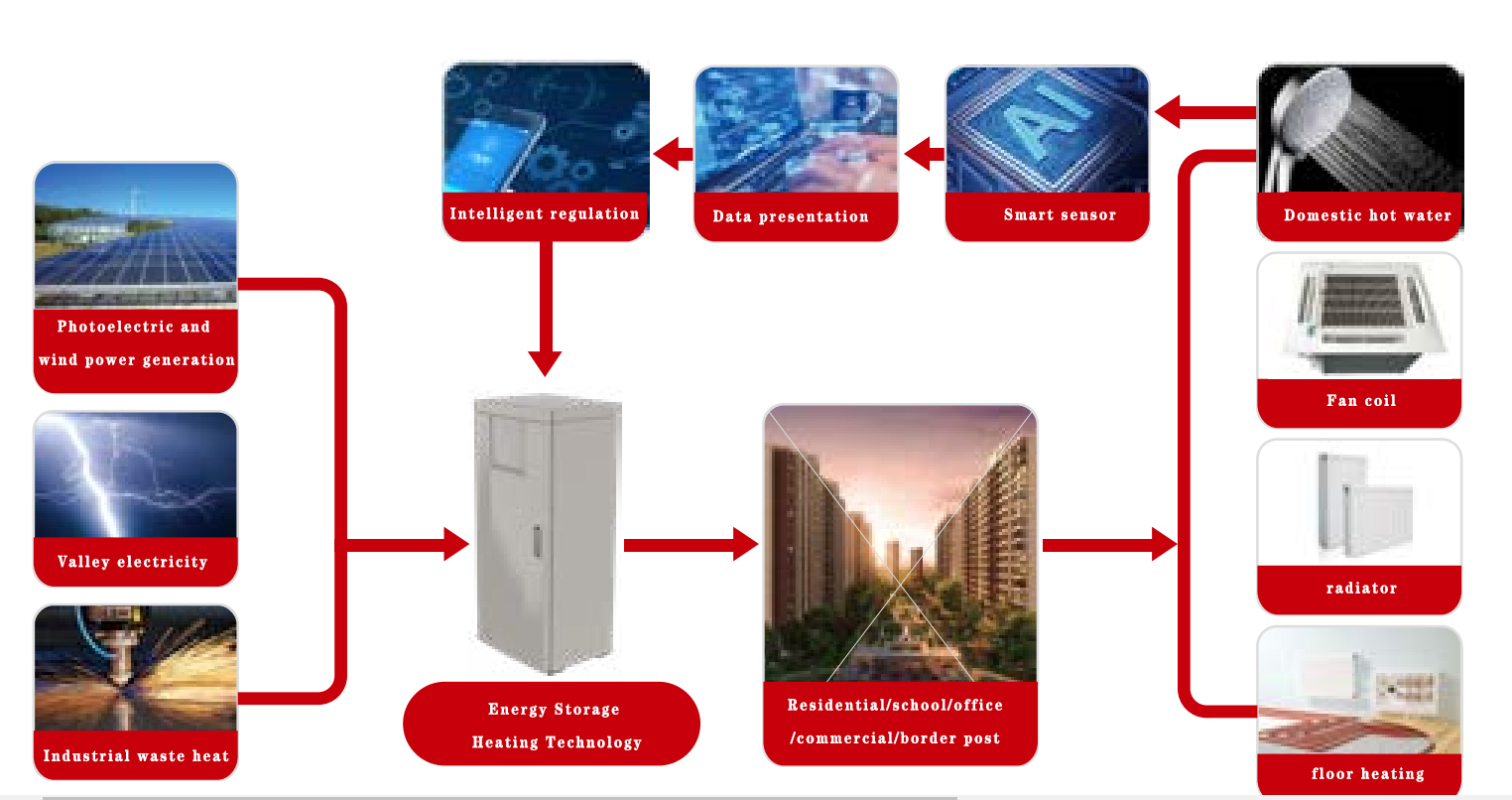

Low Valley Electricity/Clean Utilization of Renewable Energy
The equipment can use various clean electricity such as nighttime low-price electricity, photovoltaic electricity and wind
electricity to heat and store heat, and the heating methods are flexible and diverse.
Small footprint
The phase change heat storage heating integrates the equipment for heating, heat storage, heat release and other processes into one, which greatly saves the installation space.
