Wholesale Prices W Pale Galvanized Steel Palisade Fence
Construction & Decoration Building Structural Material
MOQ:10 Piece(s)
Payment Method : L/C T/T D/P Western Union Paypal Money Gram
Keywords:fence palisade fence fencing building materials
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Tianjin |
Product Description

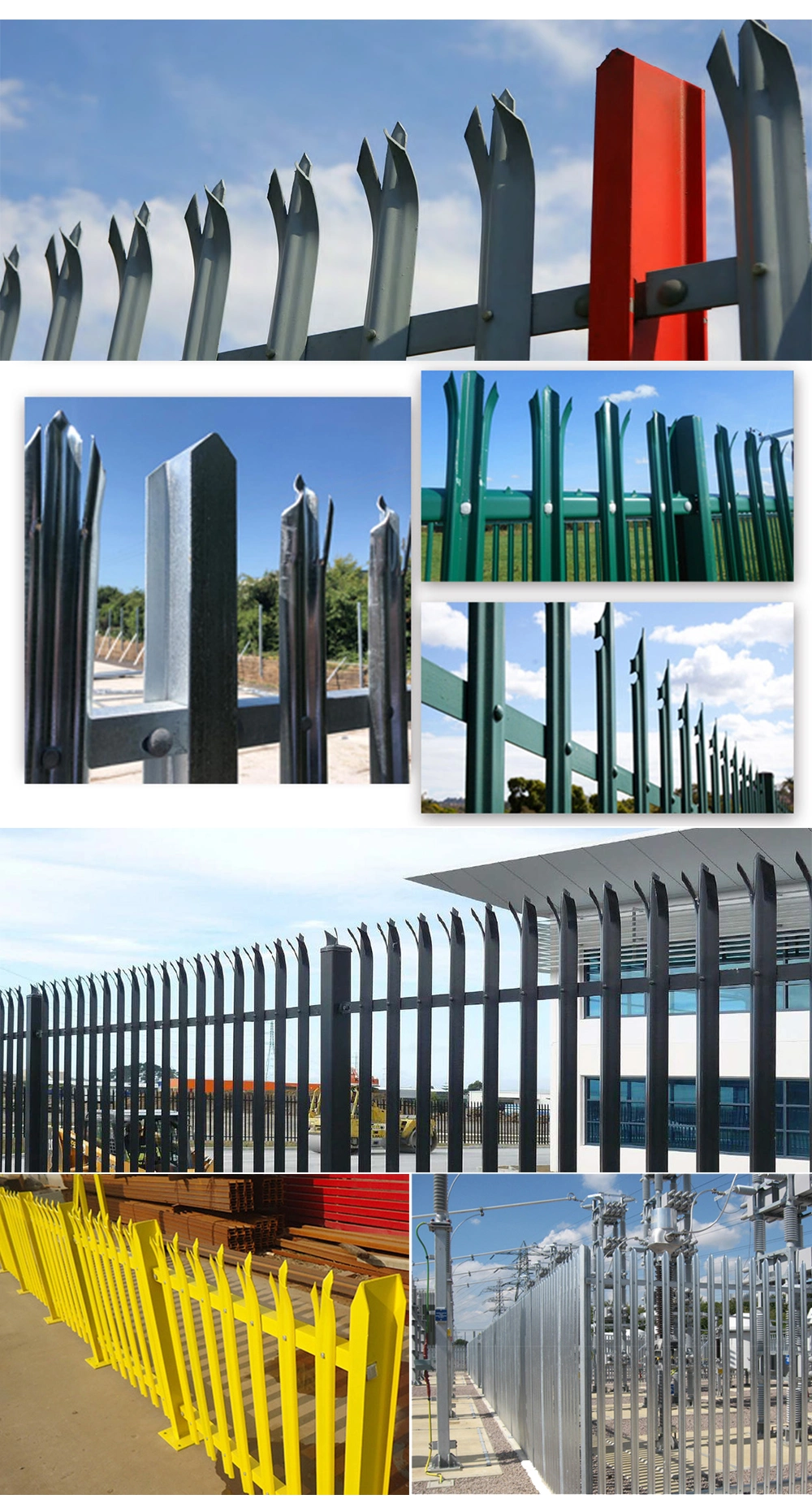

Palisade fencing is a high security fencing prevailing in Europe, Australia and South Africa markets.
It is designed to be strong, durable and provide excellent protection against climbing and cutting through.
Its imposing appearance, minimal foot holes and robust vertical steel pales ensure its excellent protection against unauthorized access, vandalism and attack.
Besides, it is also a good alternative to high walls.

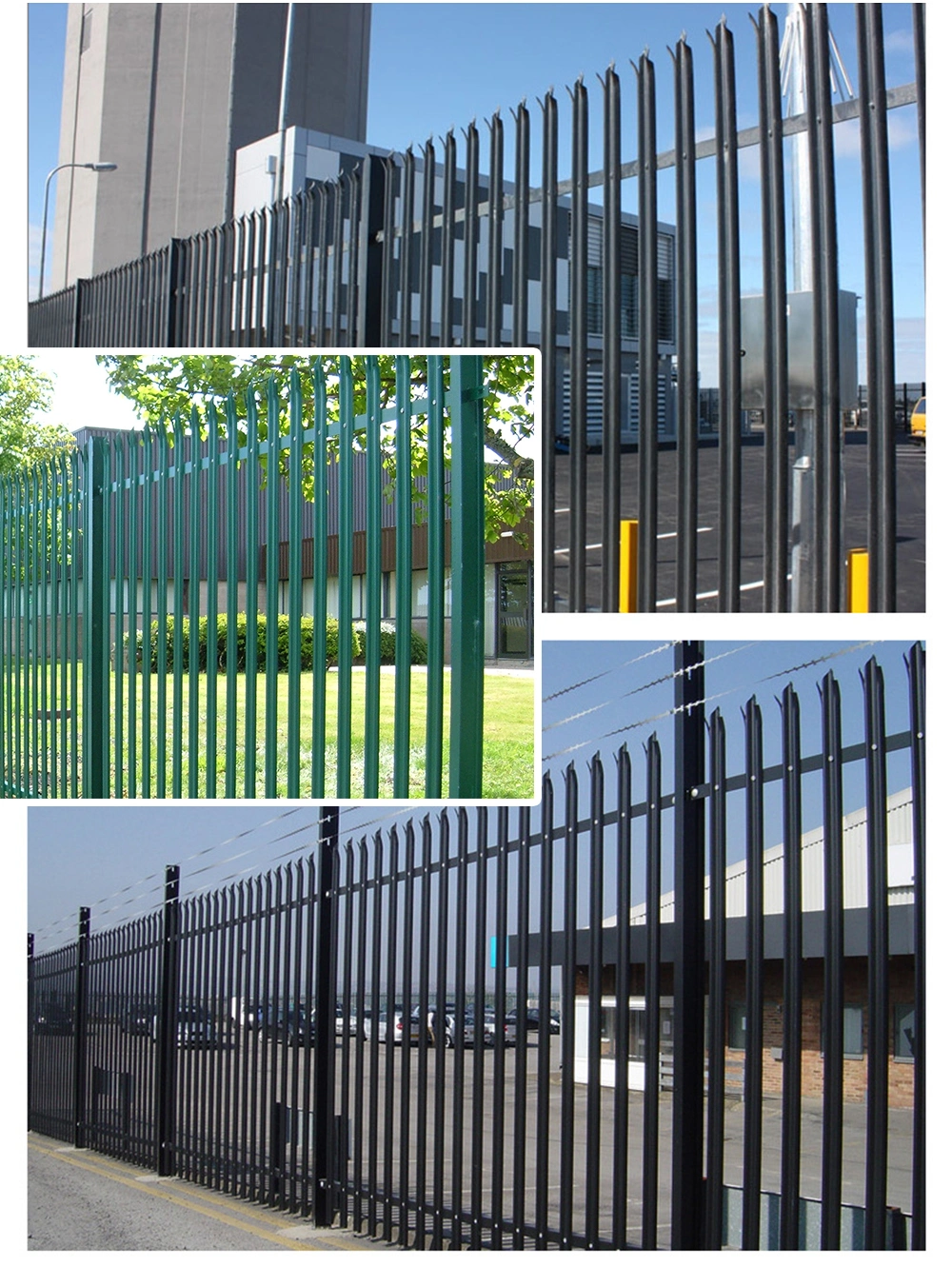

Typically, it is widely used to address a wide range of perimeter security needs from general purpose to high security purpose and is widely used in various residential, commercial and industrial applications, including but not limited to, highways, airports, docks, schools, sports grounds, leisure facilities, etc.

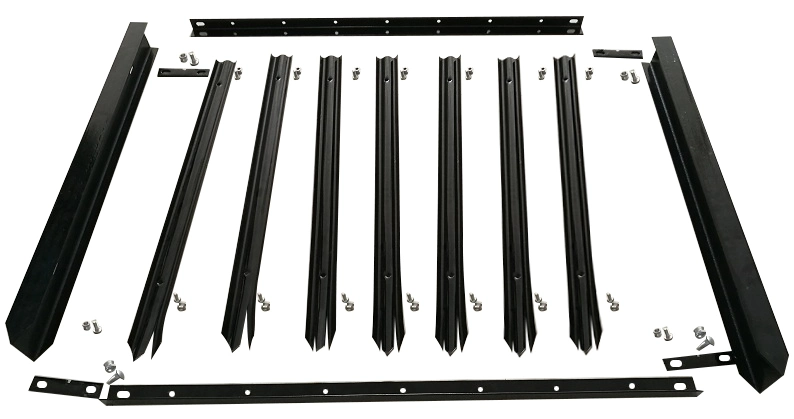

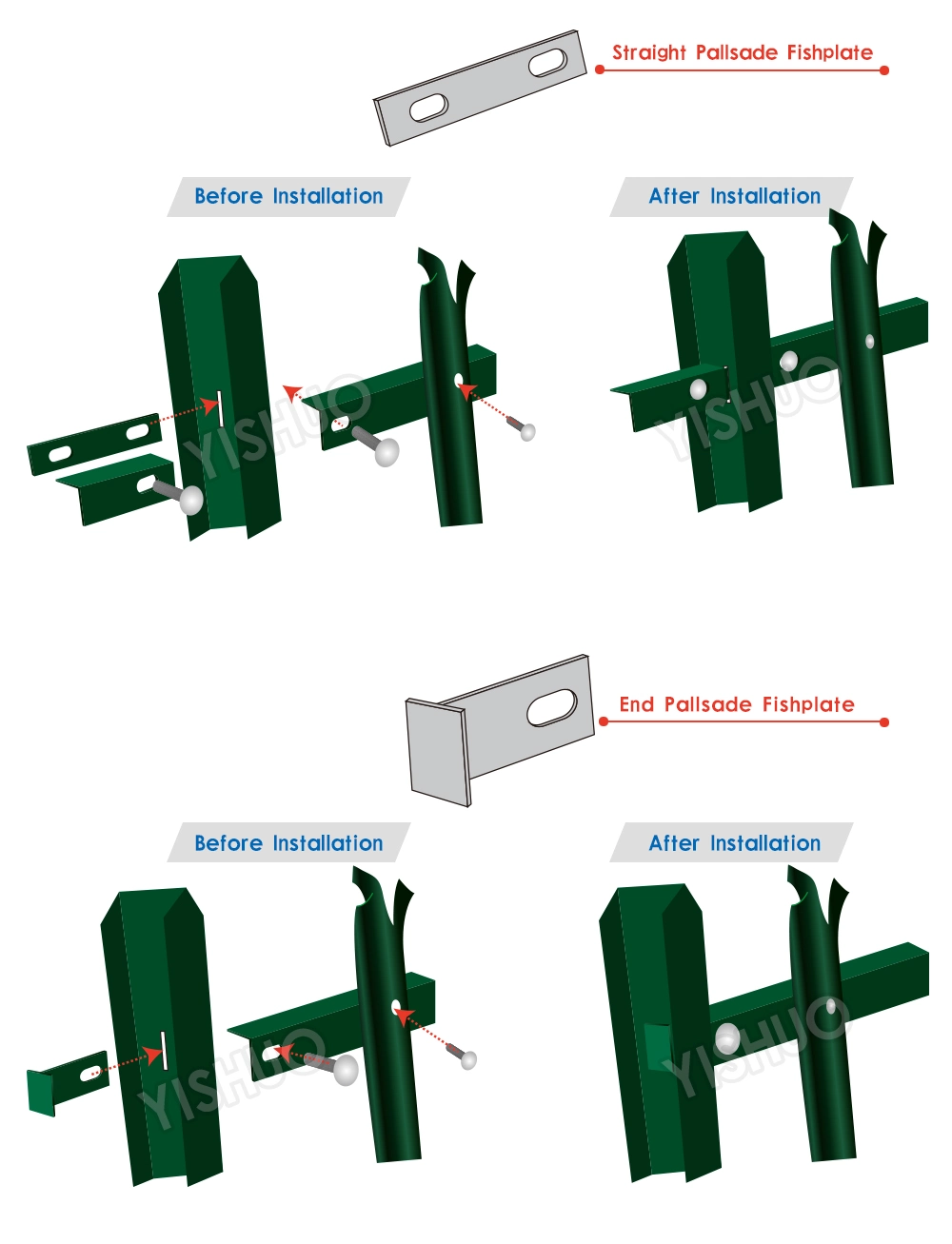

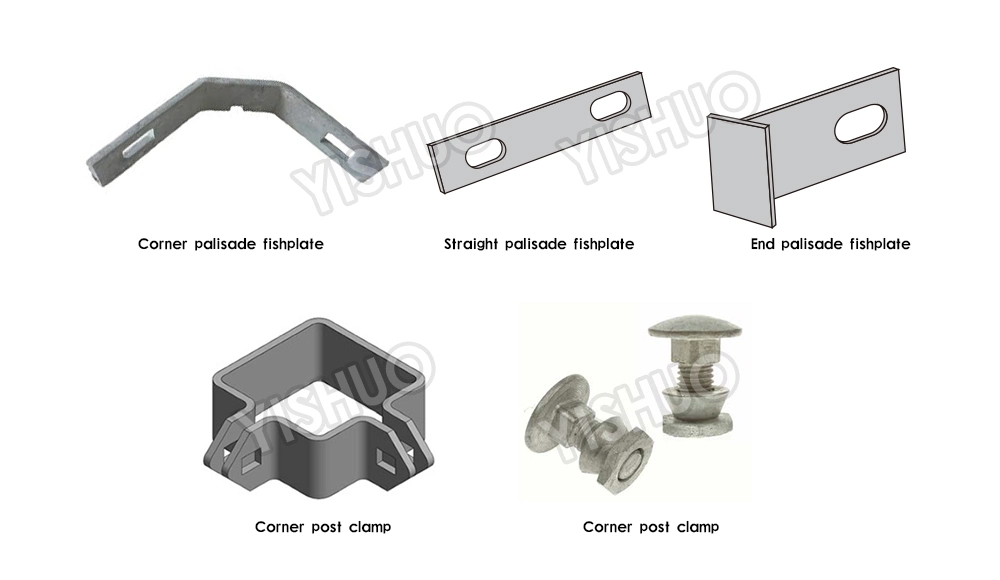

? M8 × 30, M12 × 30 anti-vandal steel or stainless steel bolts are provided;
? All colors are available in Ral;
? Other materials and specifications are available upon request.

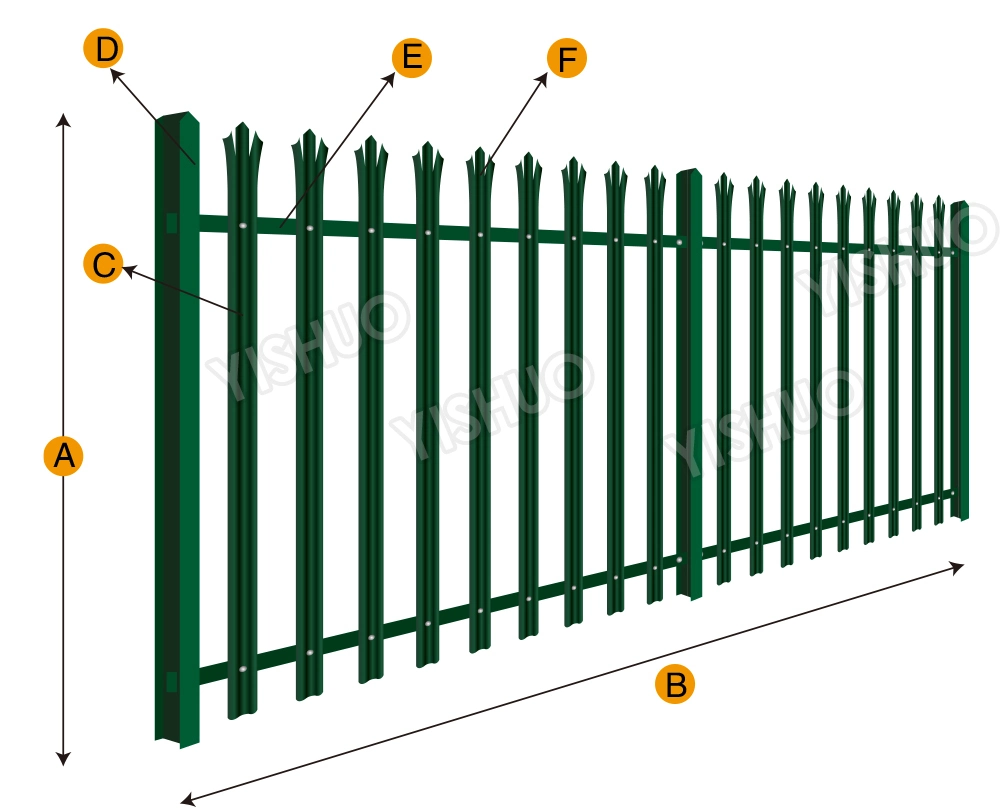

A Height:1800 mm, 2100 mm, 2400 mm, 3000 mm, etc.
B Width: 2750 mm, 3000mm, etc.

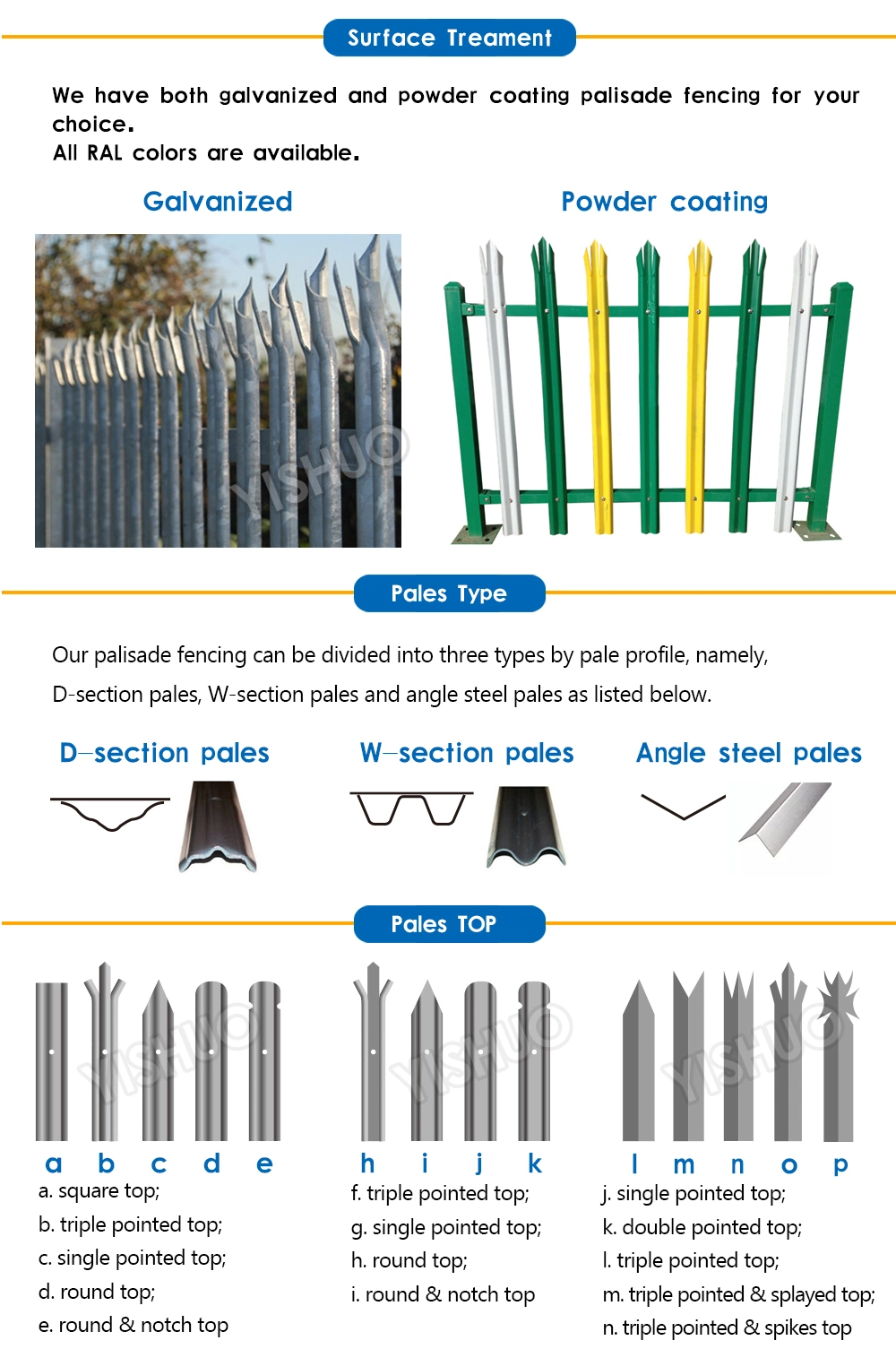

C Pale Type:W-profile, D-profile and angle steel
Pale Thickness: 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm
D Post: square post (60 mm × 60 mm, 80 mm × 80 mm, 100 × 100 mm); I post (100 × 55 mm)
E Horizontal Rail: angle steel (40 mm × 40 mm × 4 mm, 50 mm × 50 mm × 5 mm, 50 mm × 50 mm × 6 mm)
F Pale Top: square top, triple pointed top, single pointed top, round top, round & notch top, etc.
Pales-"W" section
Most useful vertical type of pales for palisade fencing, which is always the customers' first choice for pales.
Width | Thickness | Surface Treatment | Head | Height |
68mm-70mm | 2.0mm | Galvanized and electrostatic polyester coated or Hot dipped galvanized | Triple point | 1200mm-3000mm |
2.5mm | ||||
3.0mm |
Pales-"D" section
Compared with "W" profile pales, "D" profile is more economical.
Width | Thickness | Surface Treatment | Head | Height |
2.0mm | Galvanized and electrostatic polyester coated or Hot dipped galvanized | Triple point | ||
2.5mm | ||||
3.0mm |
Pale-Angle iron
Its cost is similar with "D" profile, but its structure is simpler than "D" profile.
Width | Thickness | Surface Treatment | Head | Height |
3.0mm | Galvanized and electrostatic polyester coated or Hot dipped galvanized | Single point Triple point | ||
| Contact Name: | Mr. Mike Guo | Contact Email: | mi****o@smartmfy.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 151***595 |
| Contact Tel: | +86 31183183888 | Contact Fax: | |
| Address: | North of Xitiangongying Village, Tiangongying Town, Xinji, Hebe (North of Xixiao Highway, Shijiazhuang, Hebei, China | Website: | www.smartmfy.com |
Established in 1987, HEBEI YISHUO is committed to quality manufacturing and excellent customer service on high-tech wire mesh and related metal products. We are located in tiangongying Township, Xinji City, Hebei Province, 2 kilometers away from Anping the hometown of wire mesh. Our factory covering an area of 15000 sqm, we are a production / R & D enterprise. After 30 years of innovation-driven development, we has become China′ S leading manufacturer and exporter of wire mesh&metal products. We produces and exports various types of storage cage, garden planter, laser cut decorative panel, guardrails, blade barbed wire and horticultural metal products. We have the most advanced automatic welding equipment, laser cutting equipment, and plastic spray production lines etc. Our products are widely used in subways, factories and industrial sites, real estate and residential quarters, government schools, stadiums, municipal roads, airports and ports, landscaping and ecology. Scenic spots, rail transit, highway facilities and other fields. The company has a sound scientific management system and strong technical force team. Our products are exported to Europe, America, Canada and other countries, with rich export experience and perfect after-sales service system.
